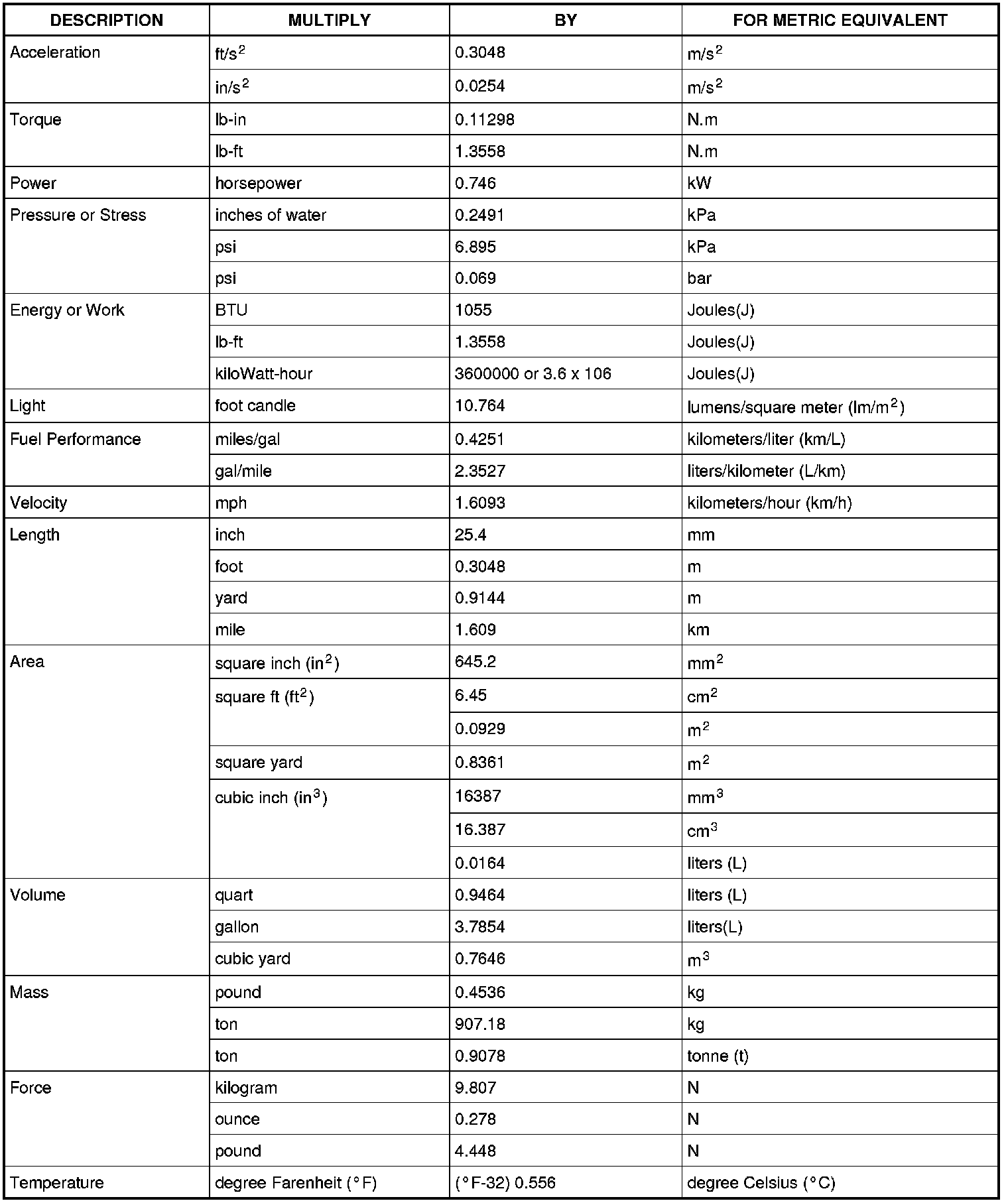

ENGLISH/METRIC CONVERSION

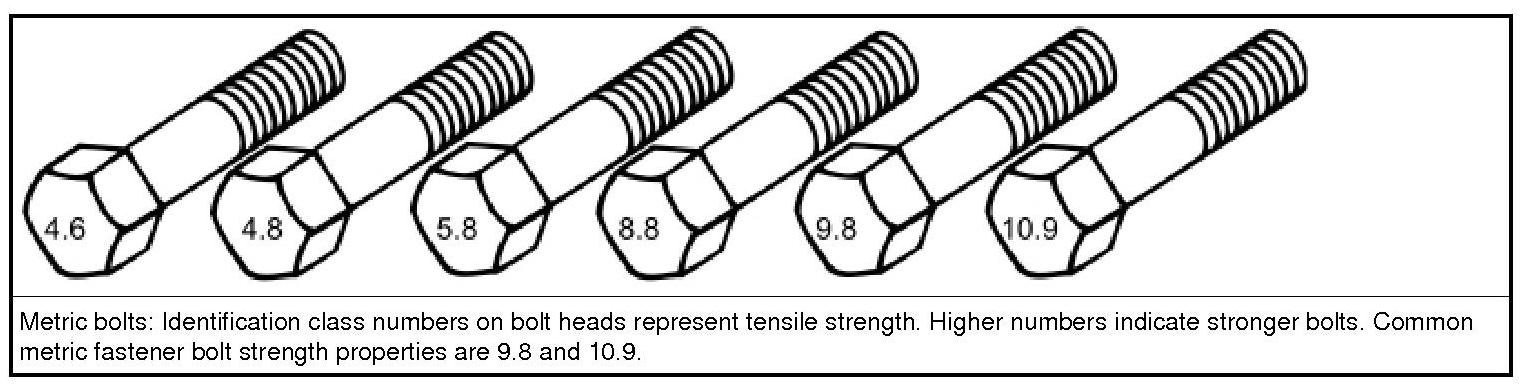

BOLT STRENGTH IDENTIFICATION

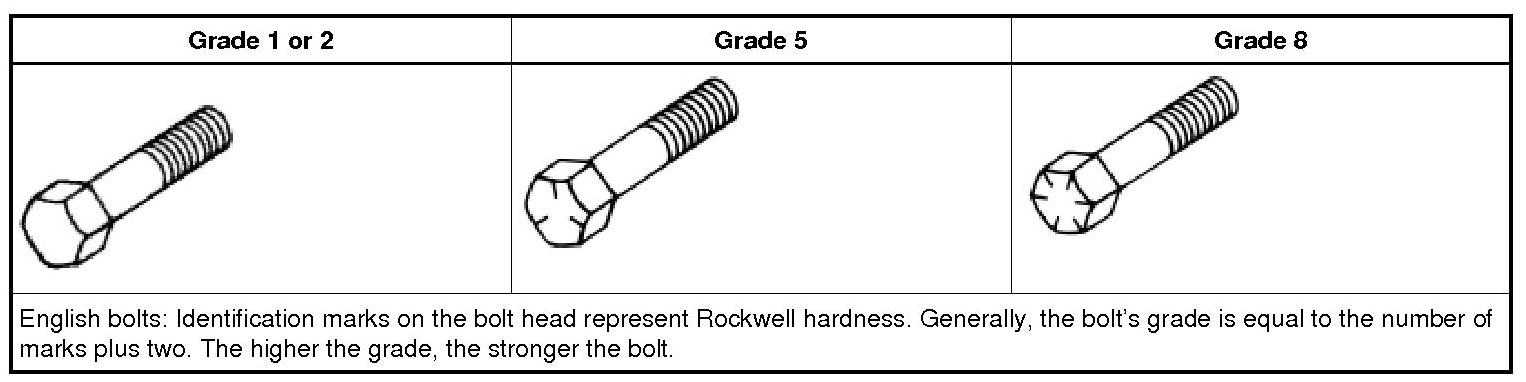

English System





Metric System






HEX NUT STRENGTH IDENTIFICATION

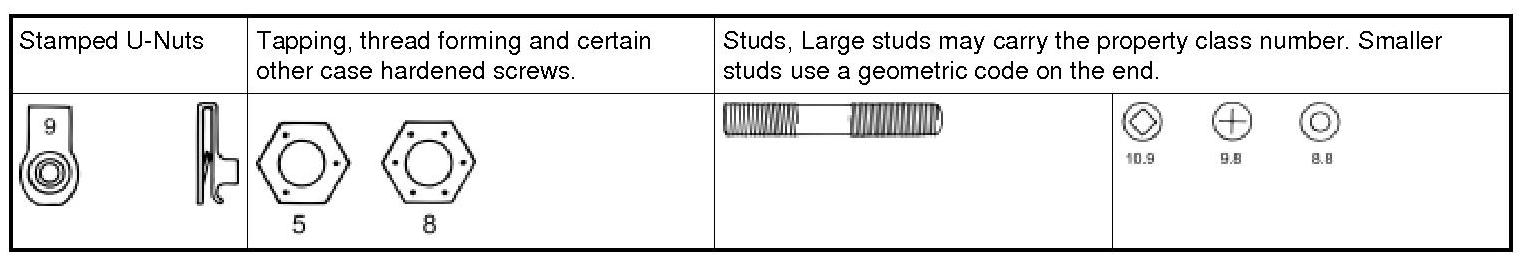

OTHER TYPES OF PARTS

Metric identification schemes vary by type of part, most often a variation of that used for bolts and nuts. Note that many types of English and Metric fasteners carry no special identification if they are otherwise unique.
