DTC Chart: Body Control Module (BCM)




DTC Chart: Body Control Module (BCM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information regarding Ford-specific diagnostic practices.

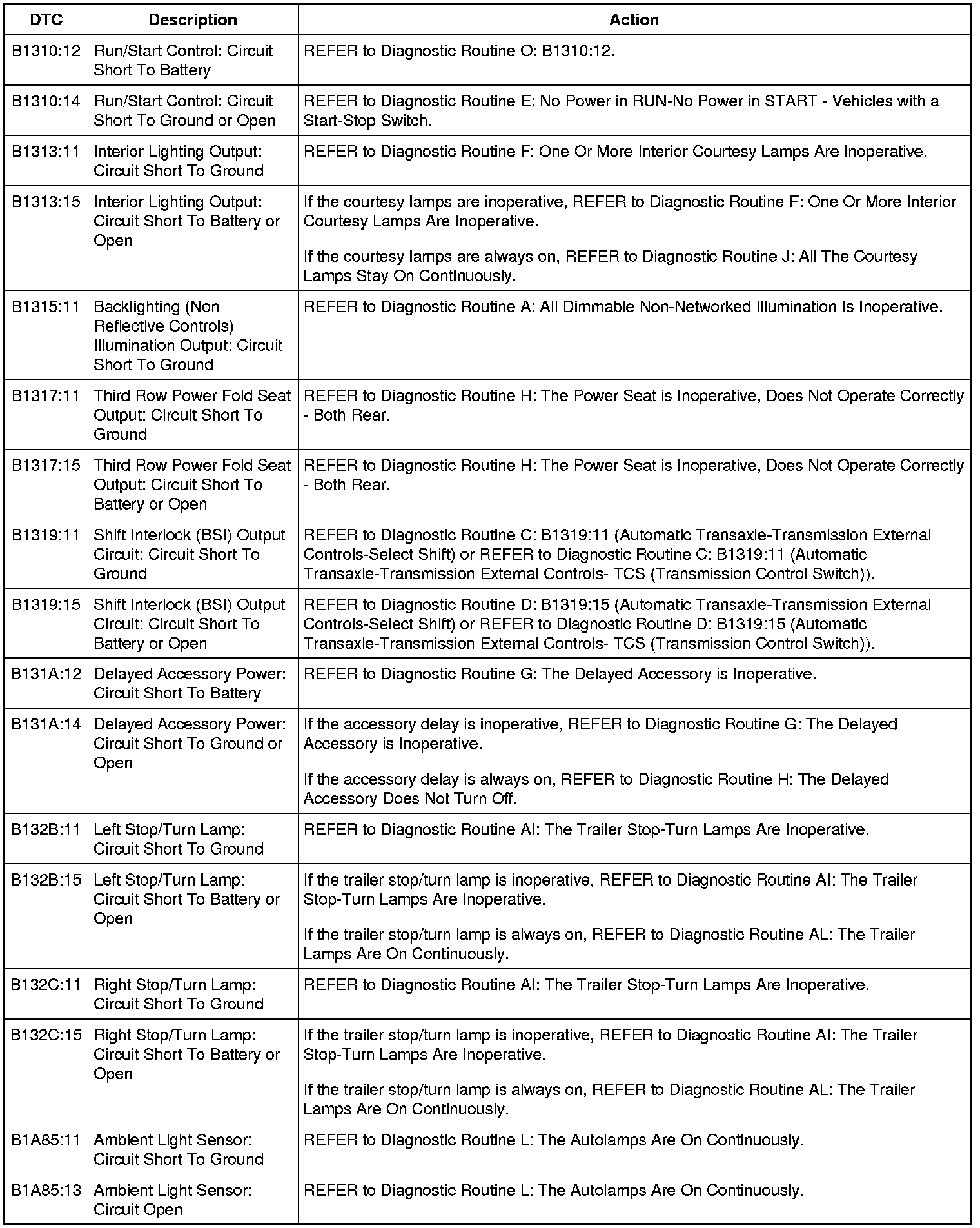

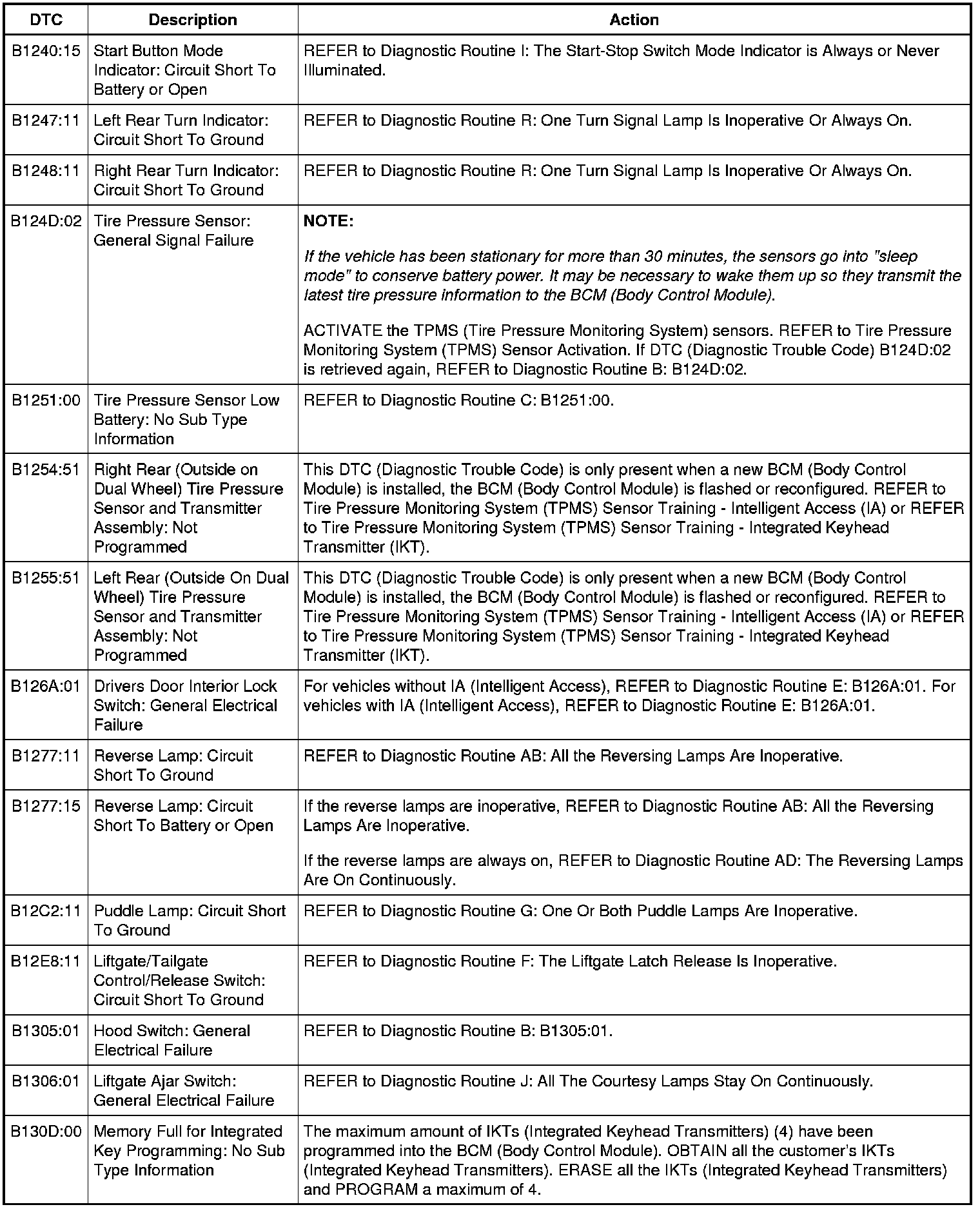

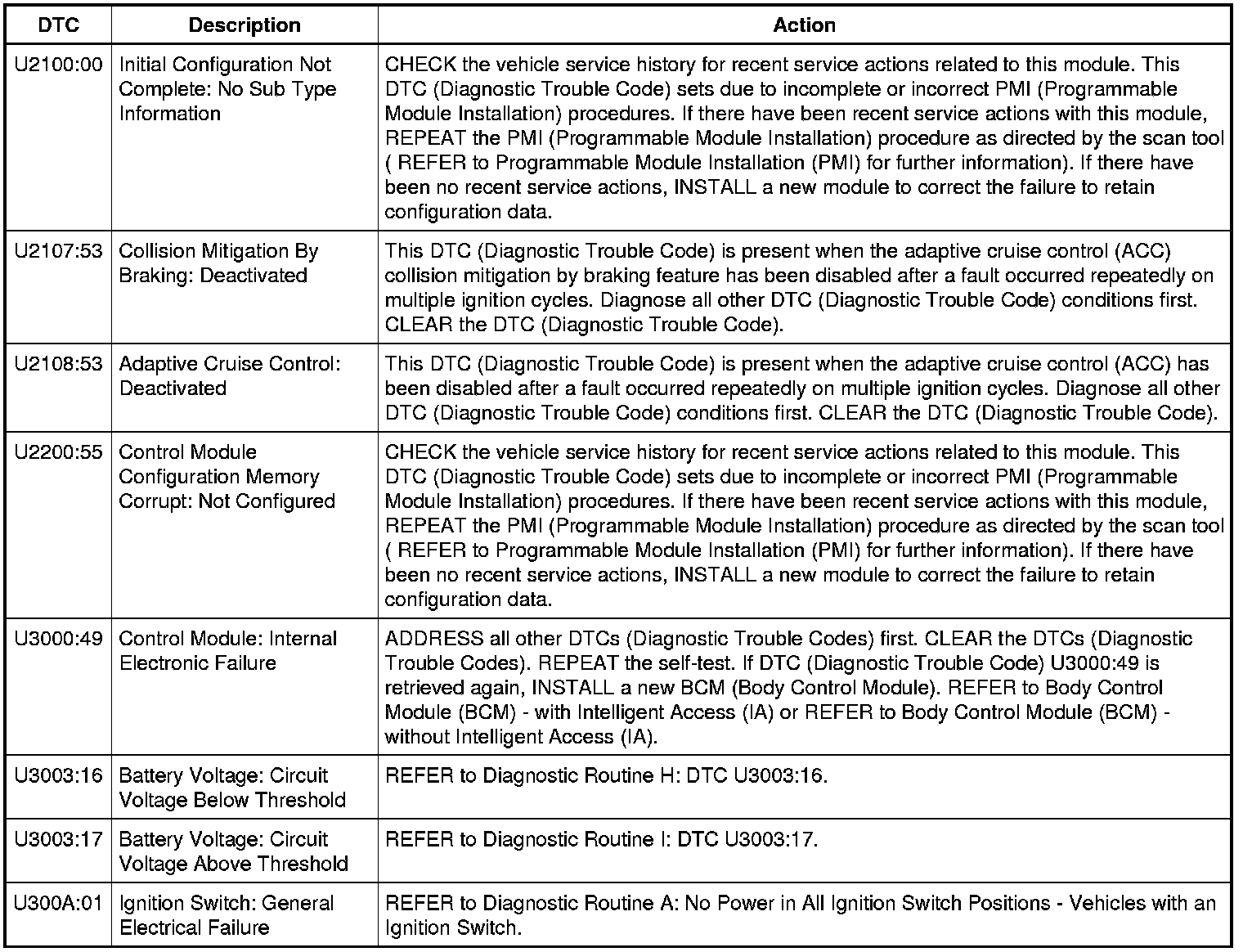

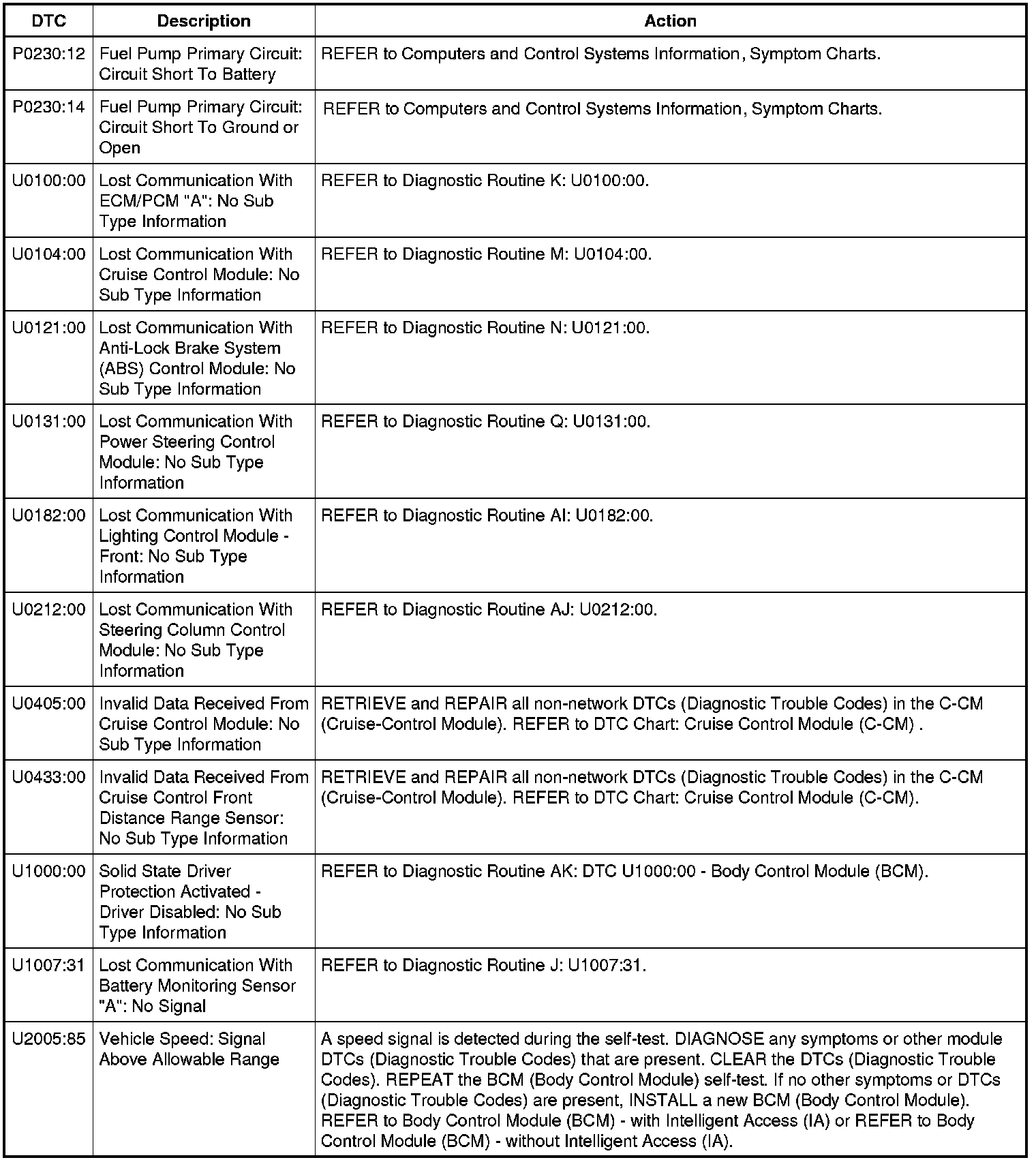

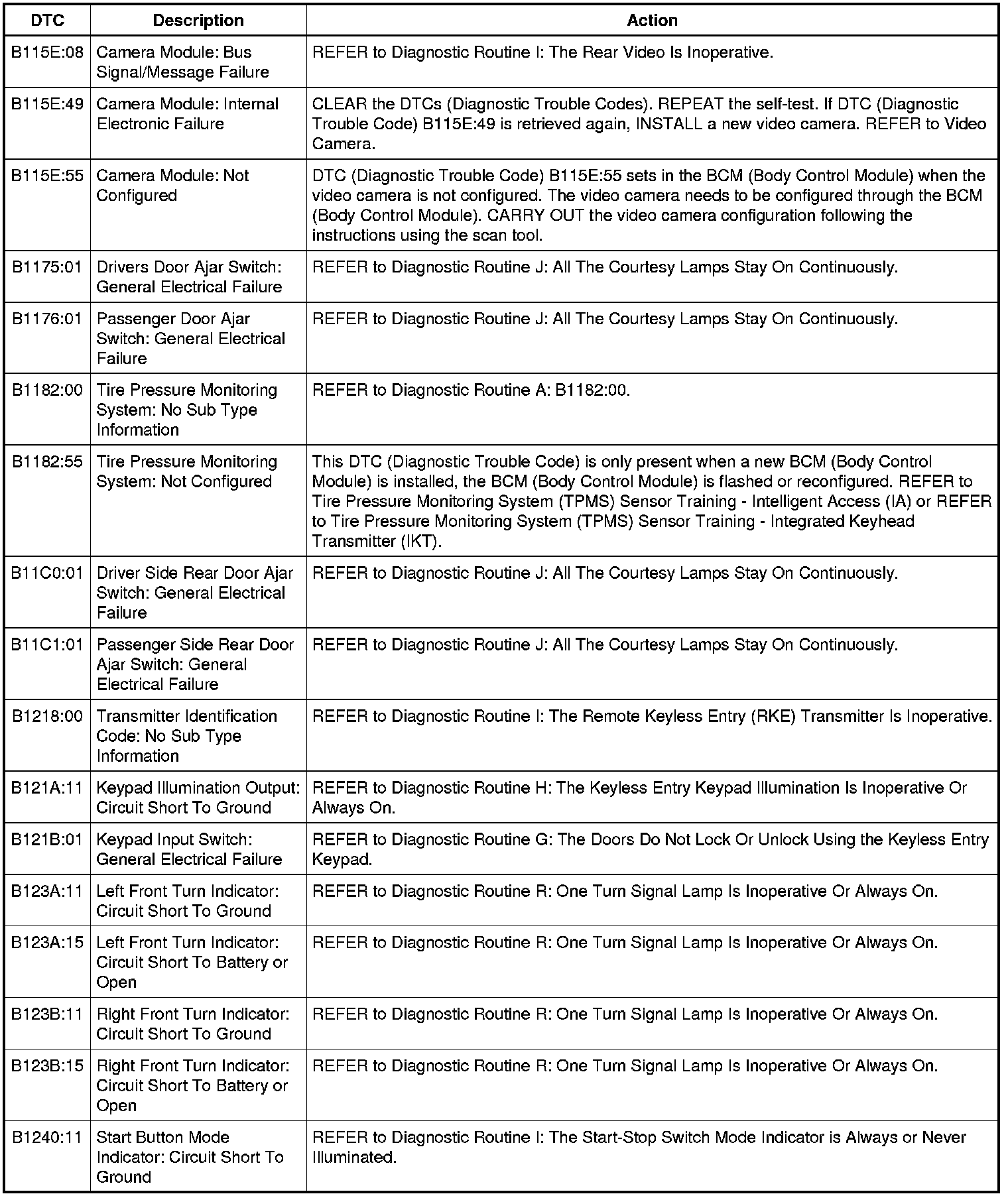

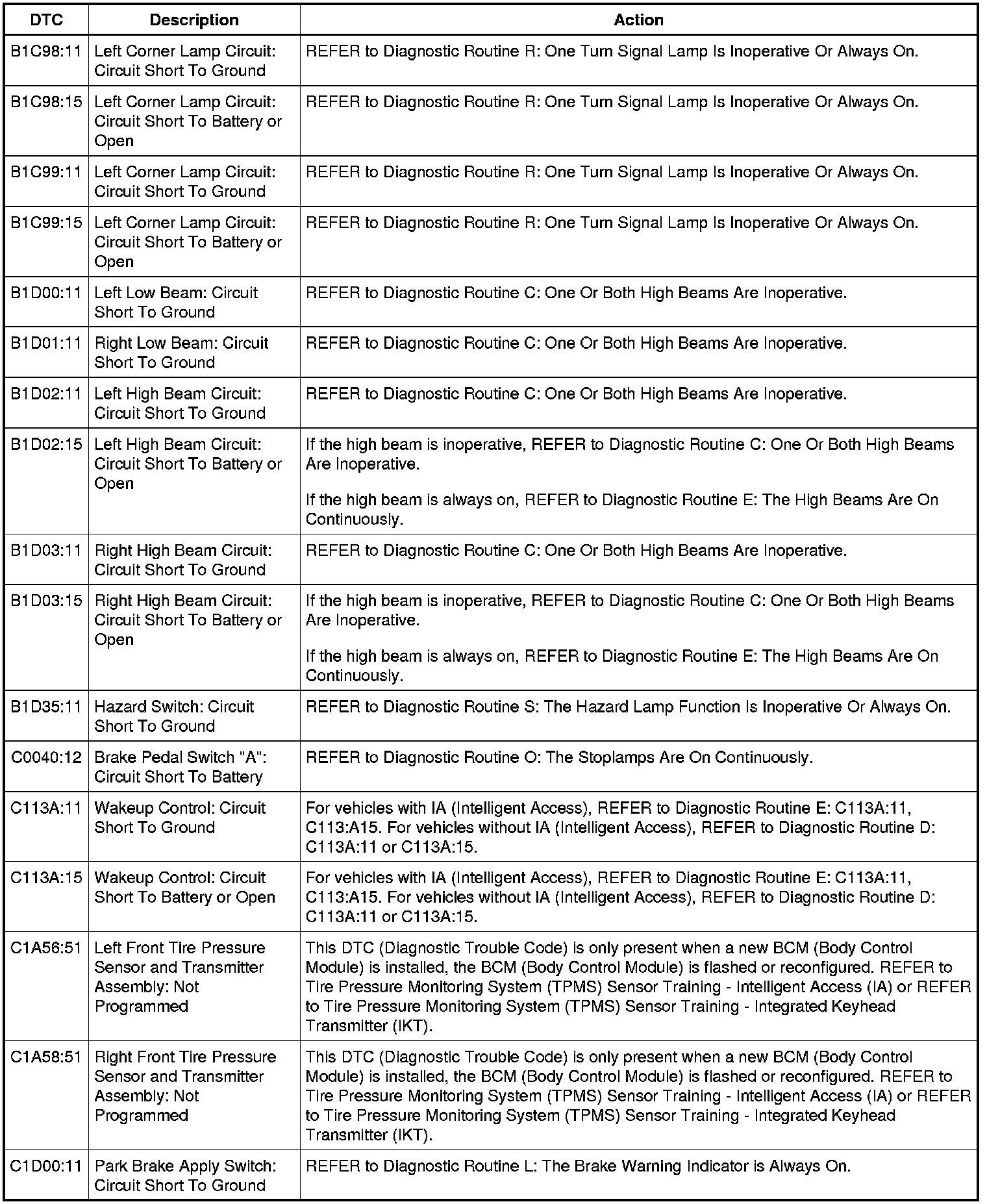

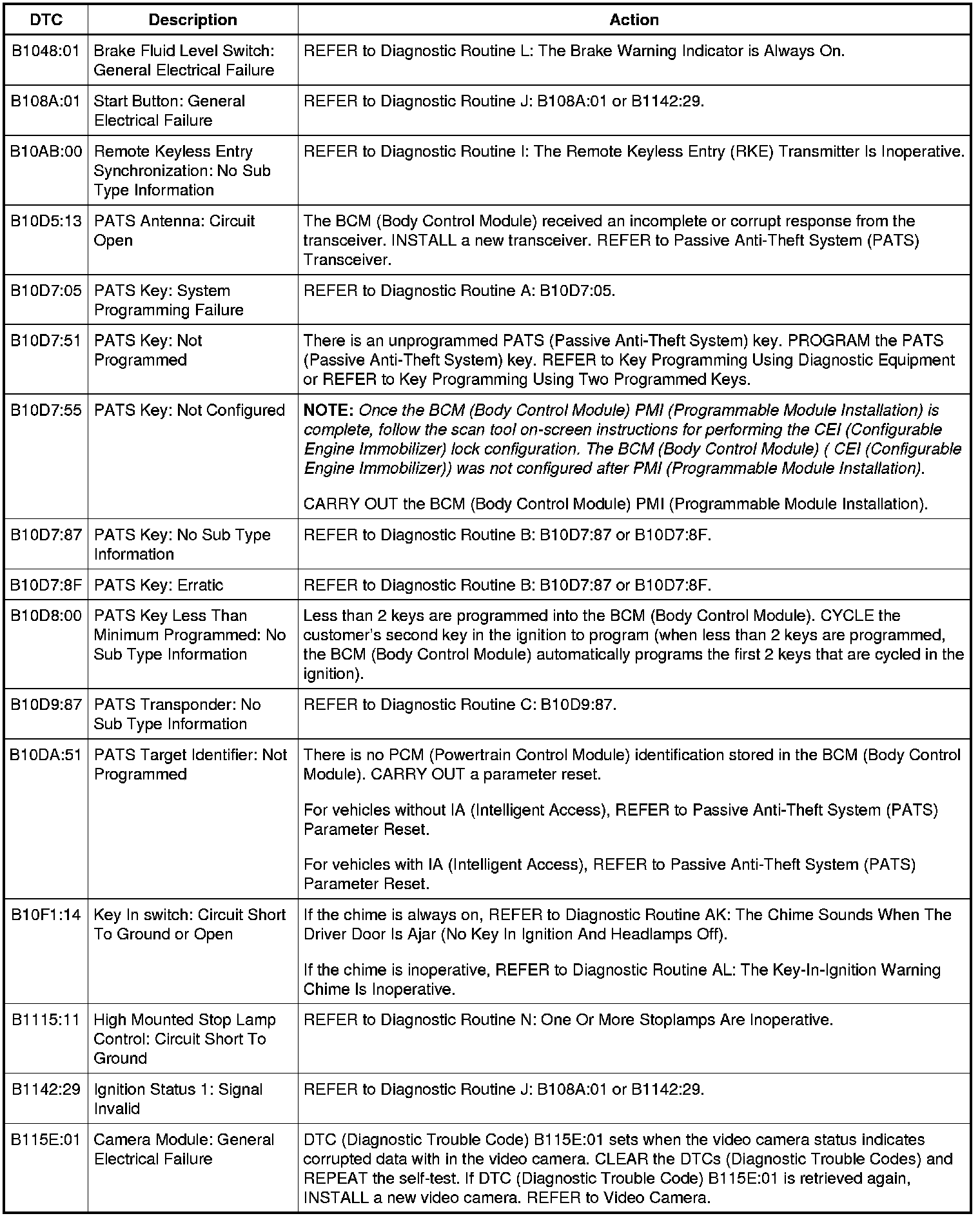

DTC Chart-BCM (Body Control Module)
