C1A67:54 or C1A67:76

Normal Operation and Fault Conditions

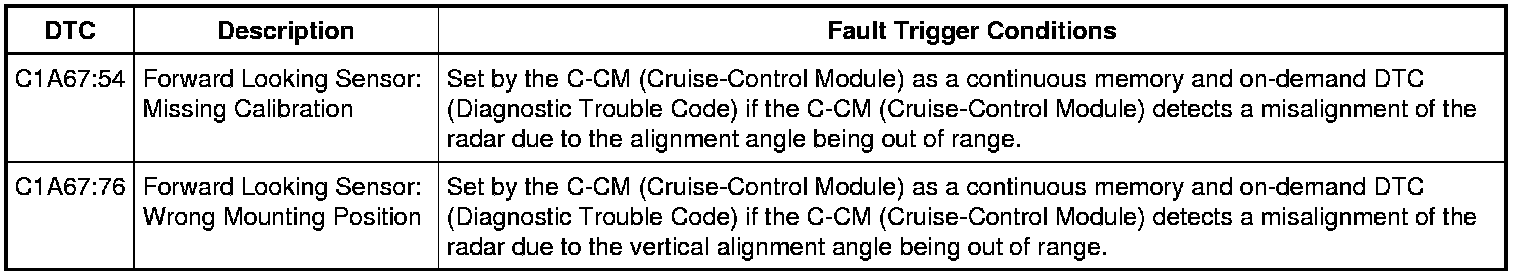

DTC Fault Trigger Conditions






Pinpoint Test

1. INSPECT THE C-CM (Cruise-Control Module) BRACKET

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Lifting Points Service and Repair.

2. Inspect the C-CM (Cruise-Control Module) bracket for damage.

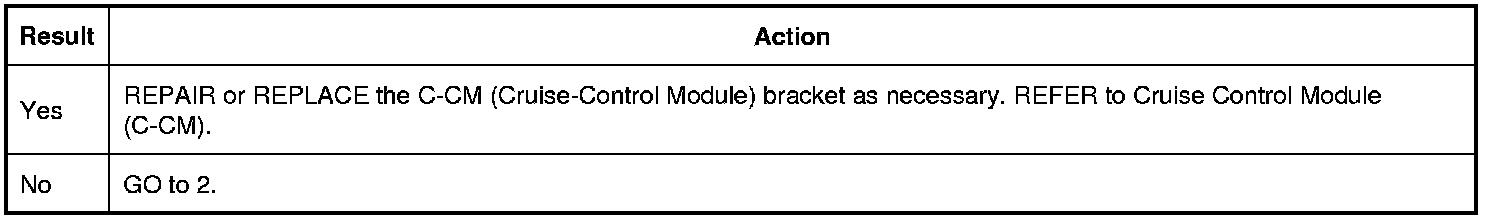

Is the C-CM (Cruise-Control Module) bracket damaged?






2. CARRY OUT THE VERTICAL AND HORIZONTAL ALIGNMENT

1. NOTE: Remove the front bumper cover to carry-out the vertical alignment procedure.

Carry out the alignment procedures for the C-CM (Cruise-Control Module). REFER to Cruise Control Module (C-CM) (with Sensor) Adjustment Adjustments.

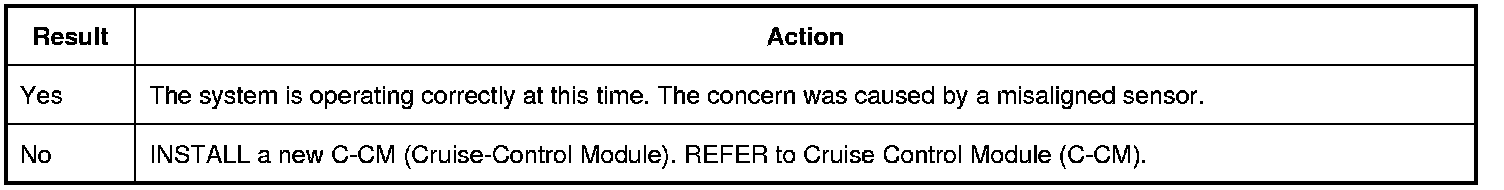

Does the C-CM (Cruise-Control Module) align correctly?
