Piston Pin Bore Diameter

Piston Pin Bore Diameter

General Procedure

NOTE: Refer to general specifications in the appropriate engine for the appropriate specification.

1. NOTE: Piston and piston pins are a matched set and should not be interchanged.

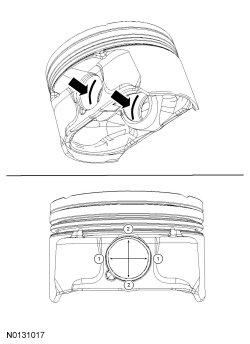

Measure the piston pin bore diameter in 2 directions in the middle of each side as shown. Verify the diameter is within specification.
