DTC Chart: Front Lighting Control Module (FLM)




DTC Chart: Front Lighting Control Module (FLM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information regarding Ford-specific diagnostic practices.

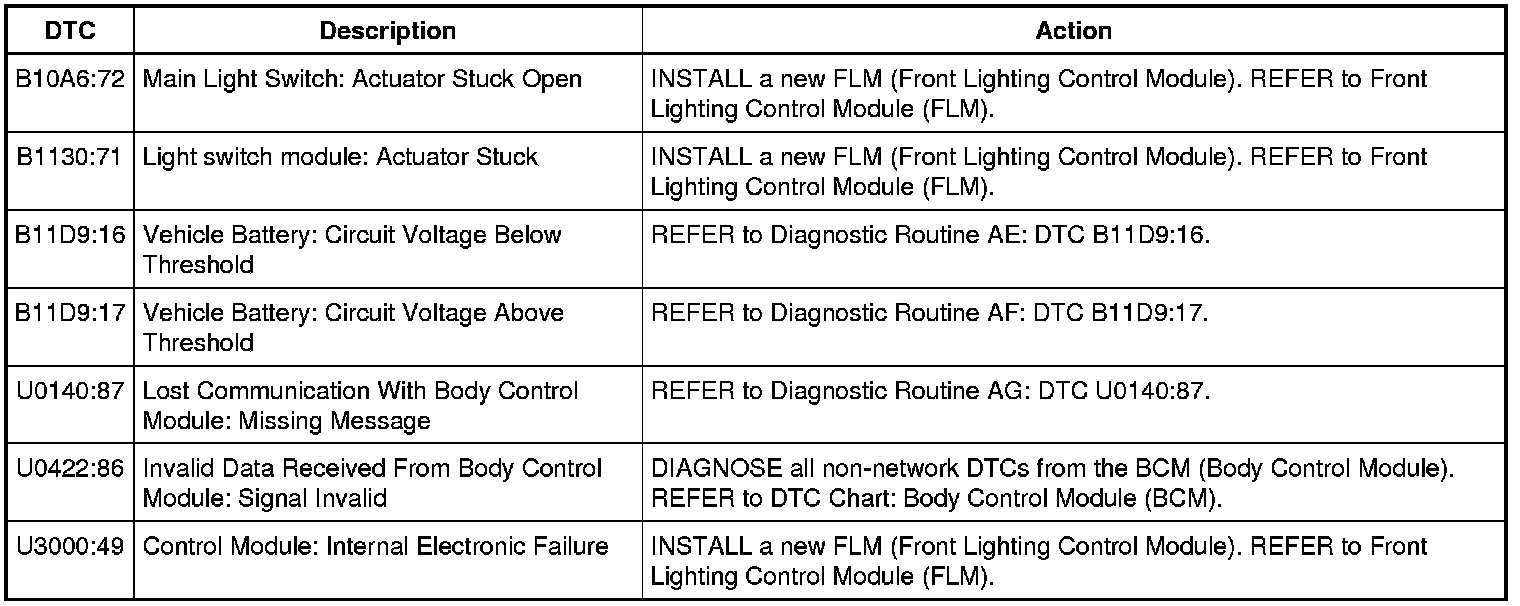

FLM (Front Lighting Control Module) DTC Chart
