DTC Chart: Occupant Classification System Module (OCSM)




DTC Chart: Occupant Classification System Module (OCSM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information regarding Ford-specific diagnostic practices.

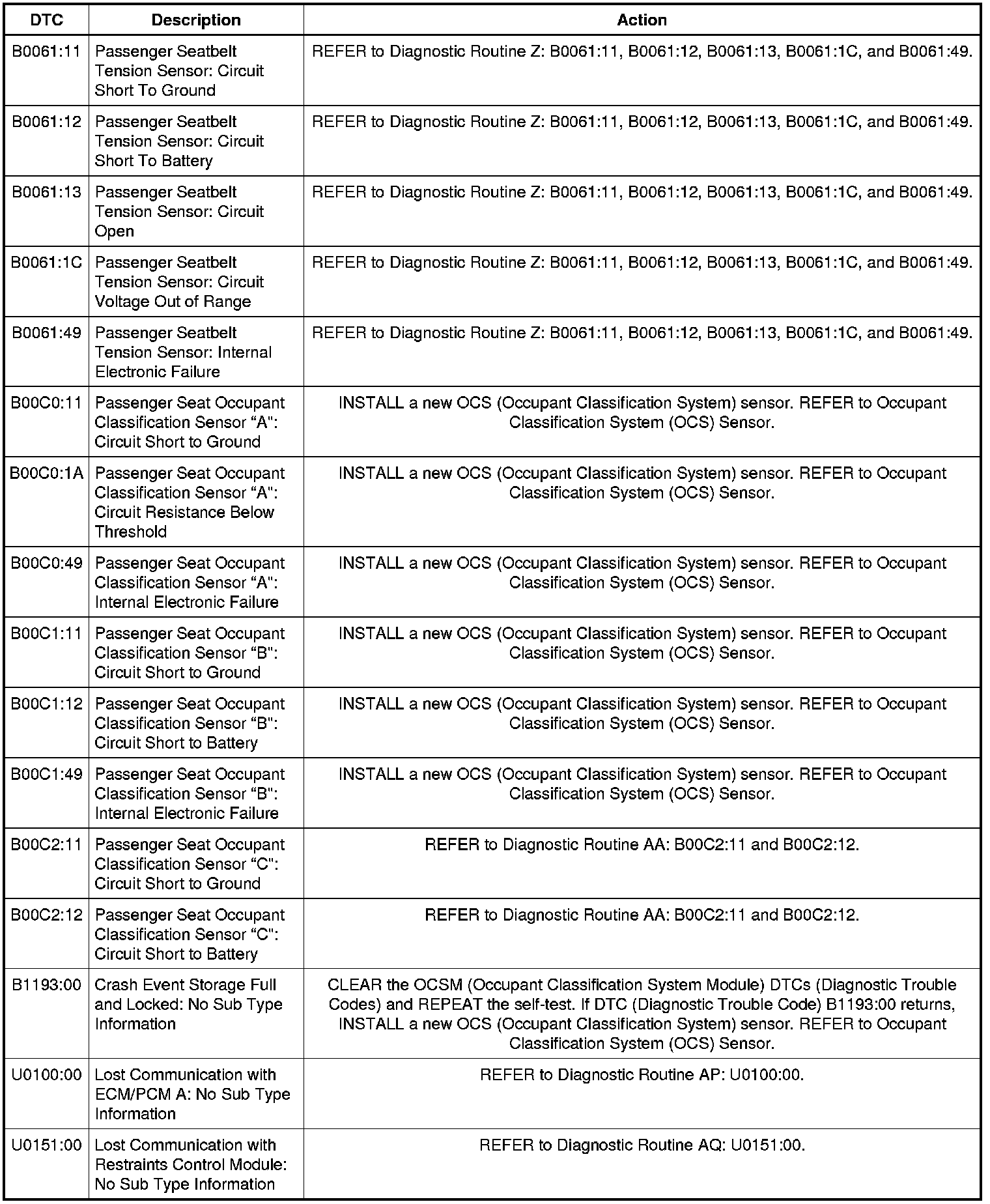

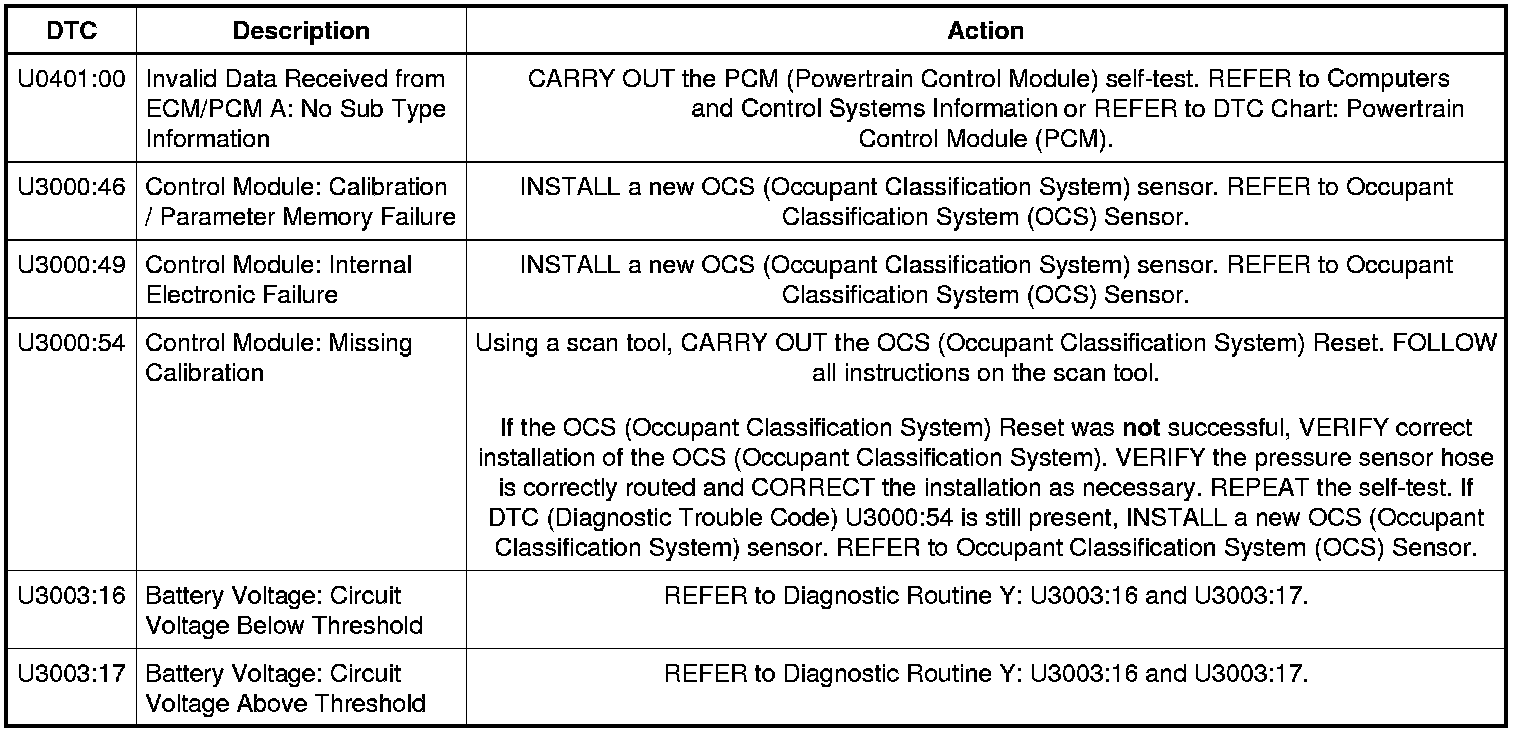

OCSM (Occupant Classification System Module) DTC Chart
