DTC Chart: Restraint Control Module (RCM)

DTC Chart: Powertrain Control Module (PCM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information regarding Ford-specific diagnostic practices.

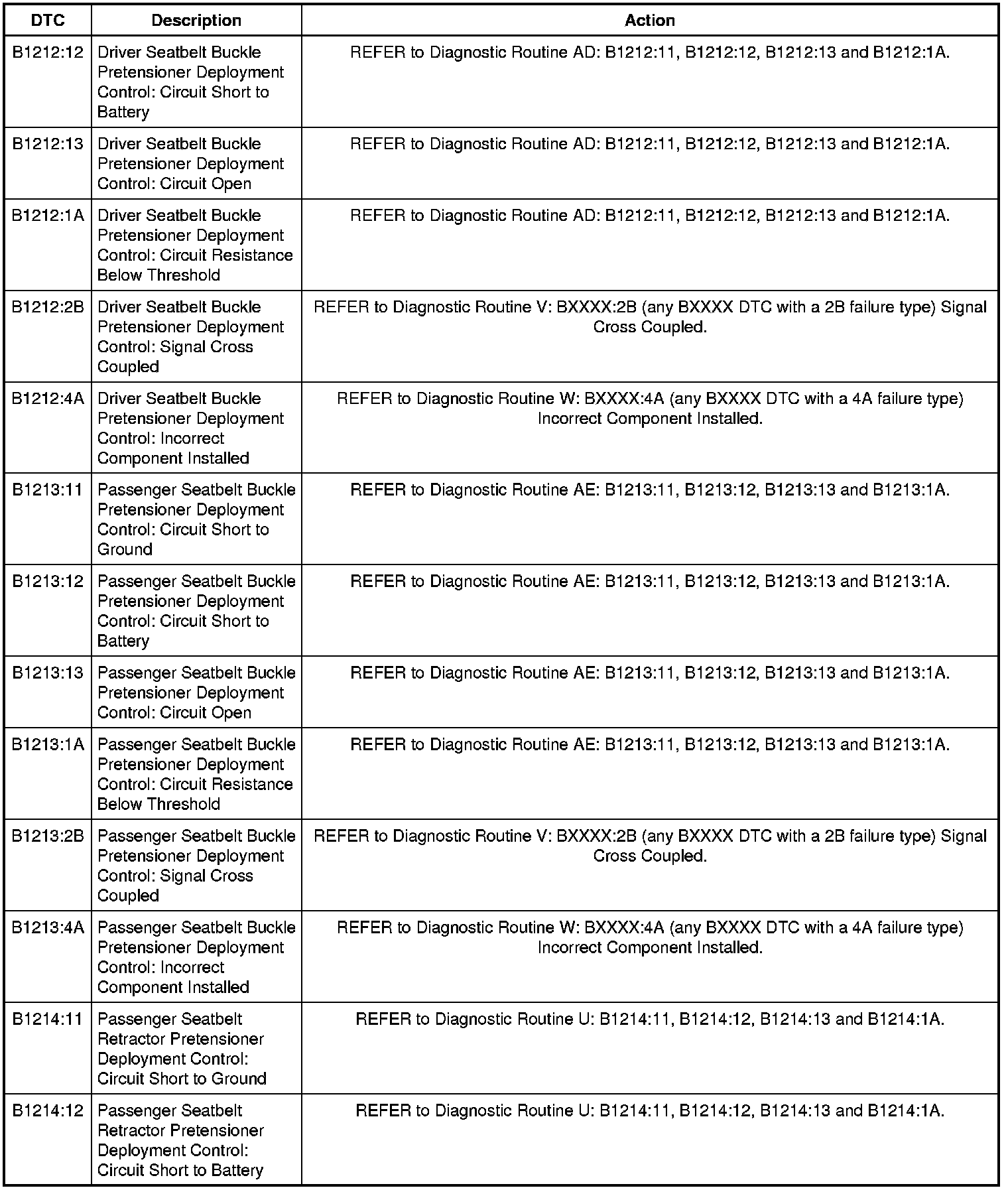

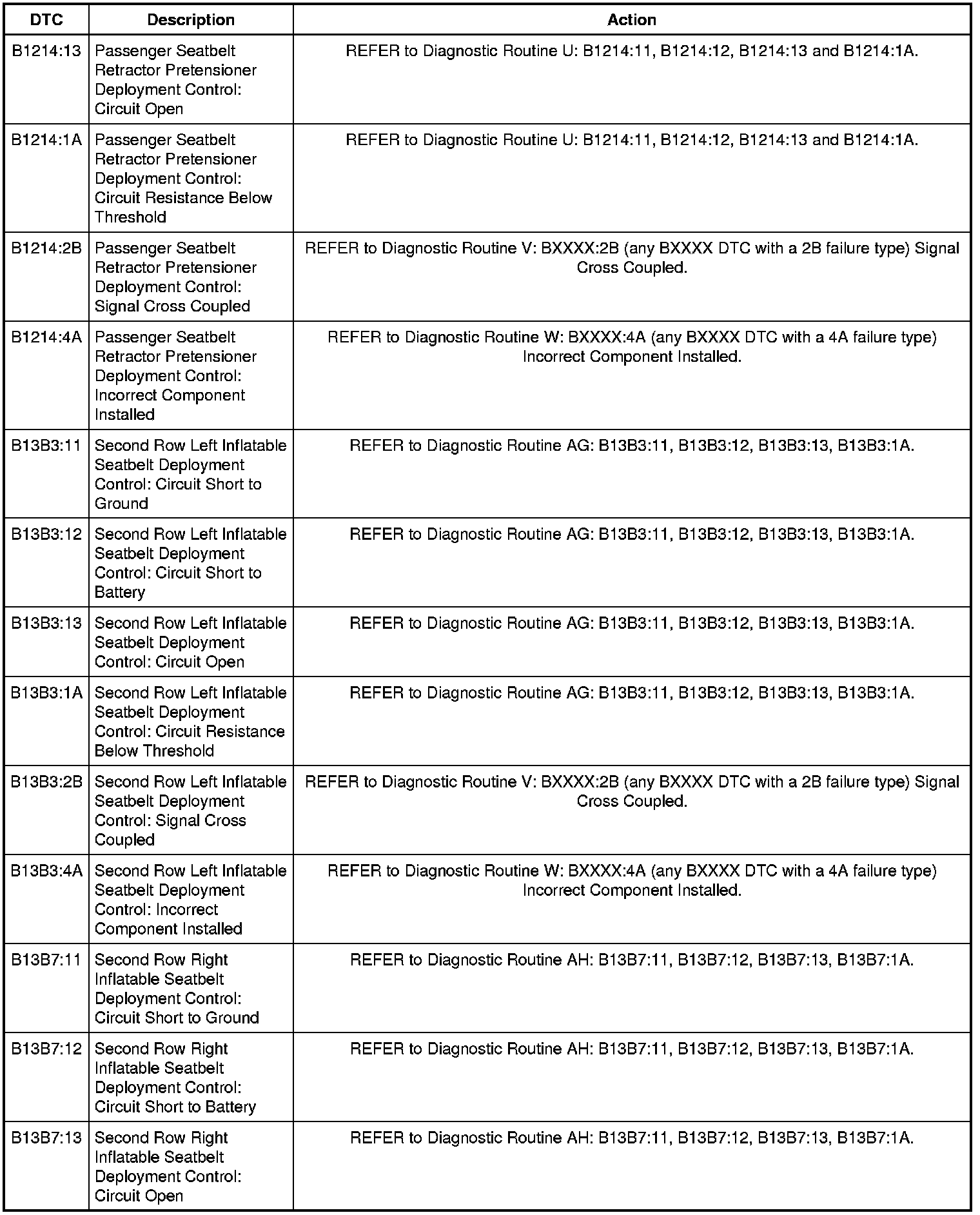

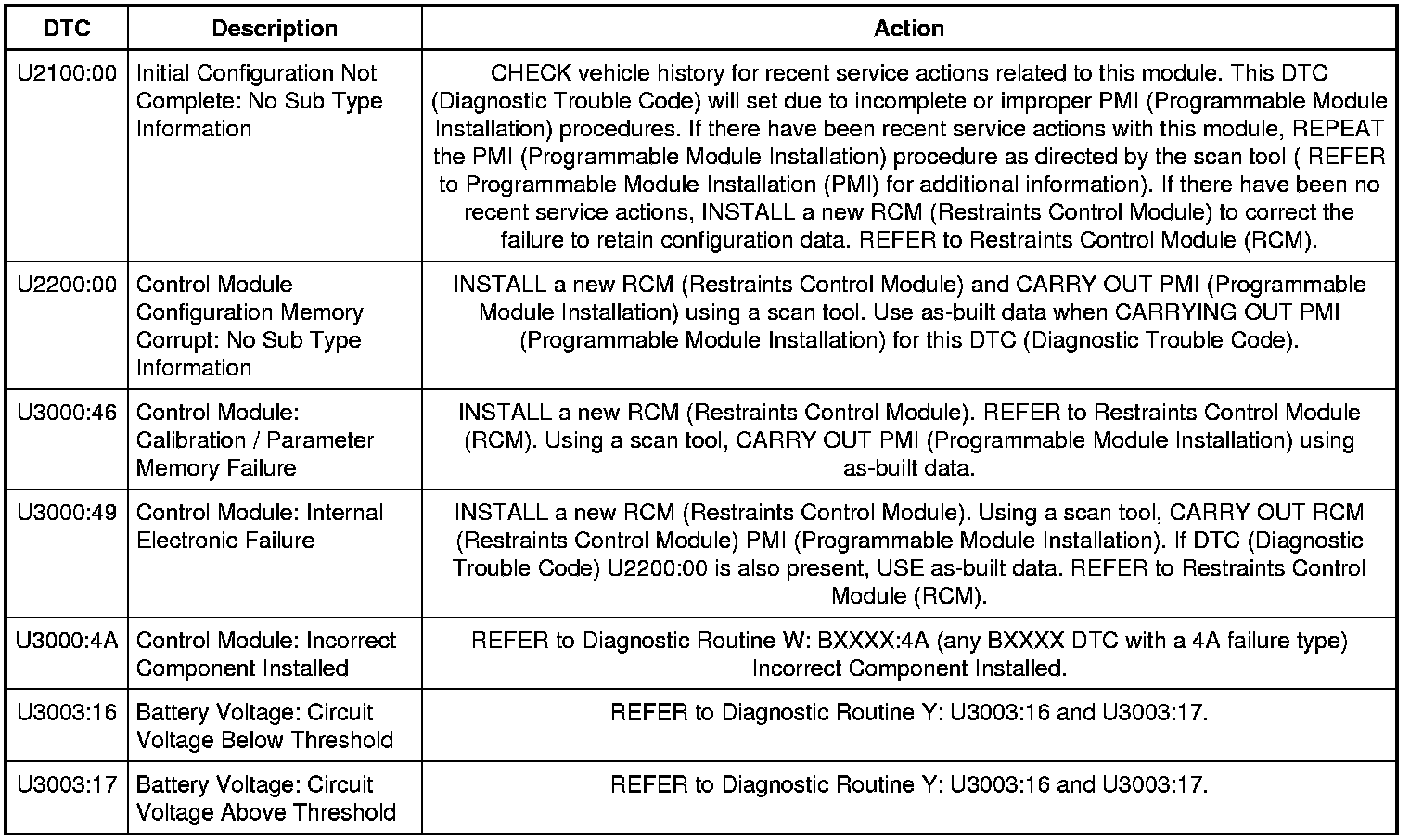

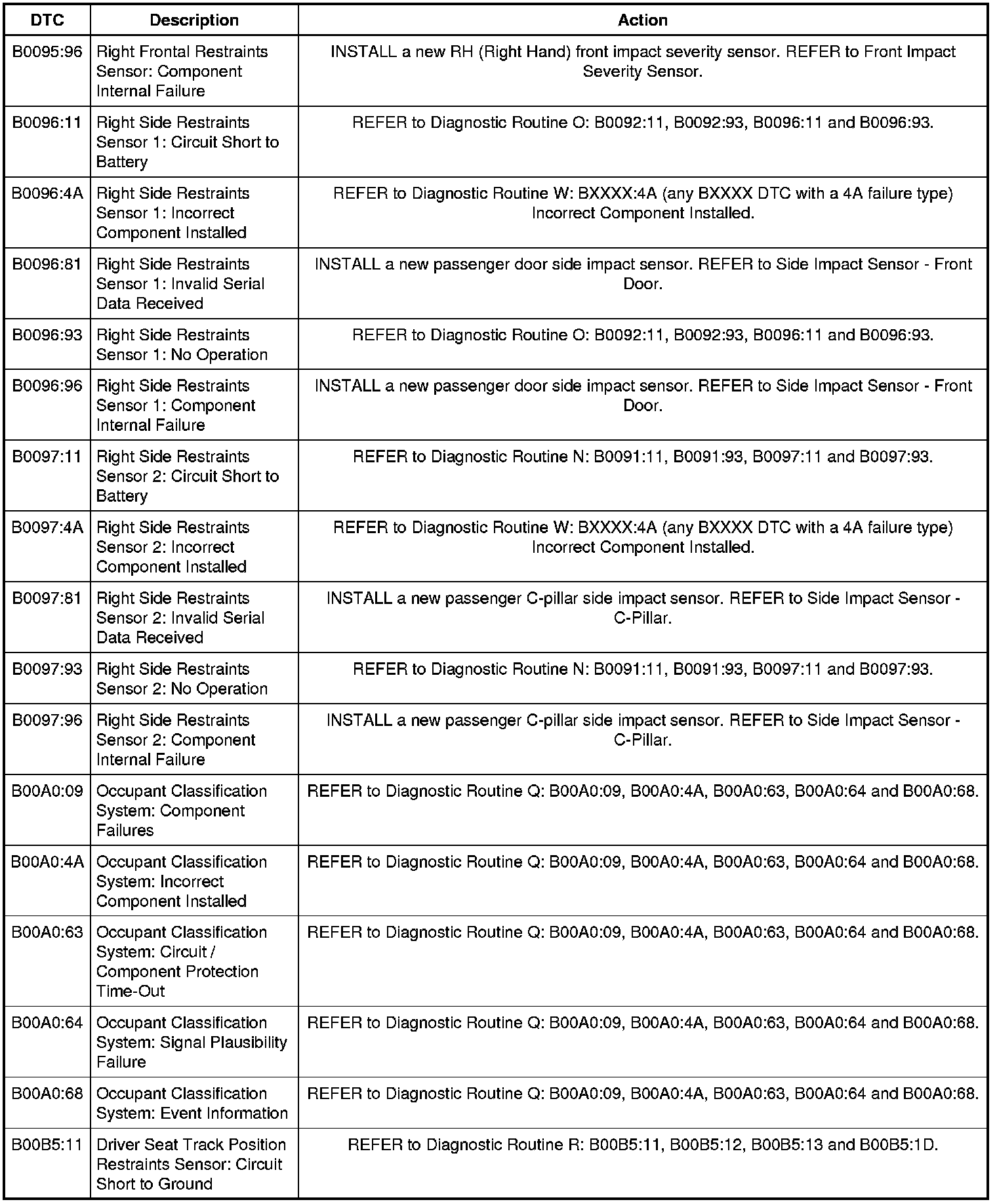

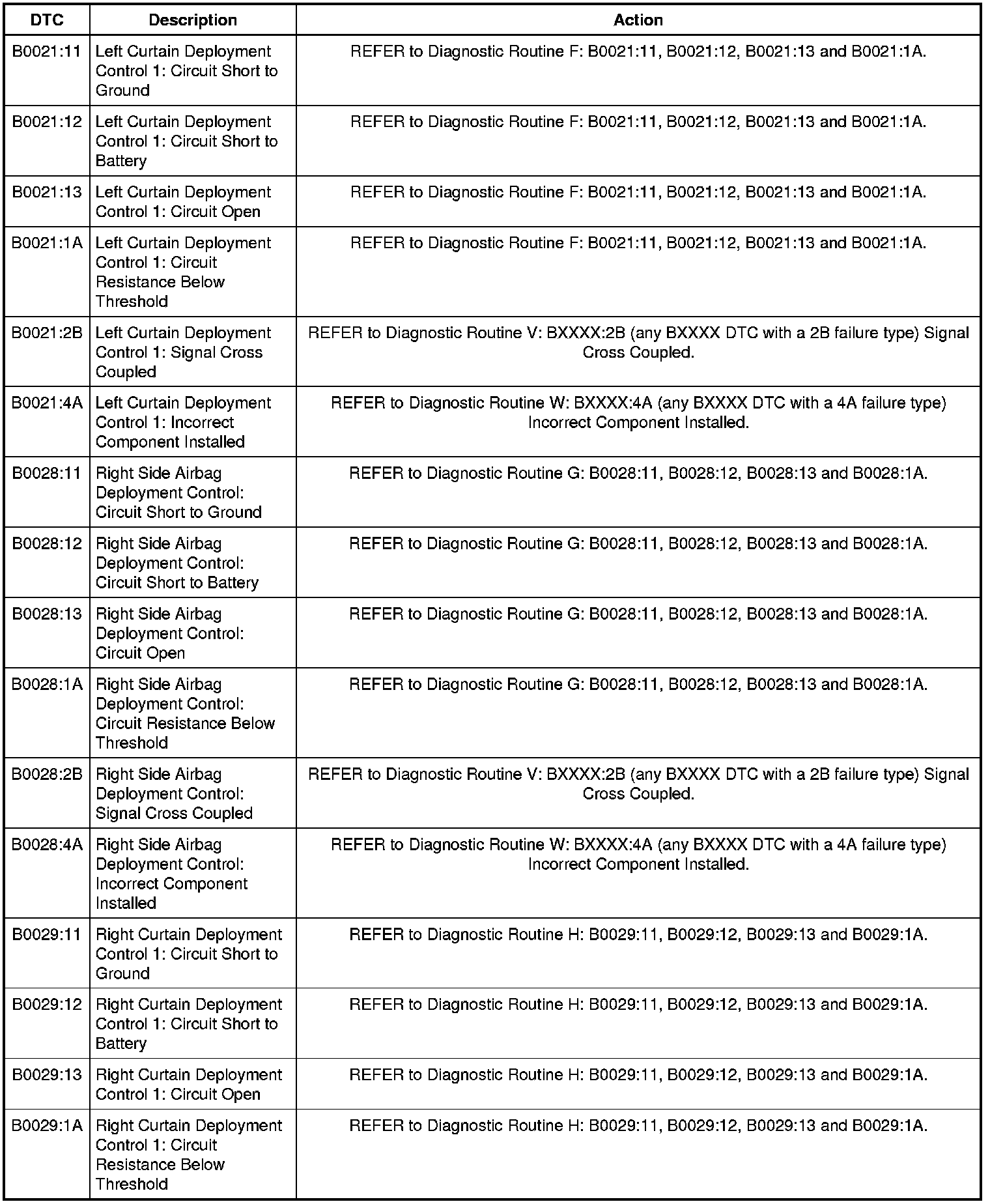

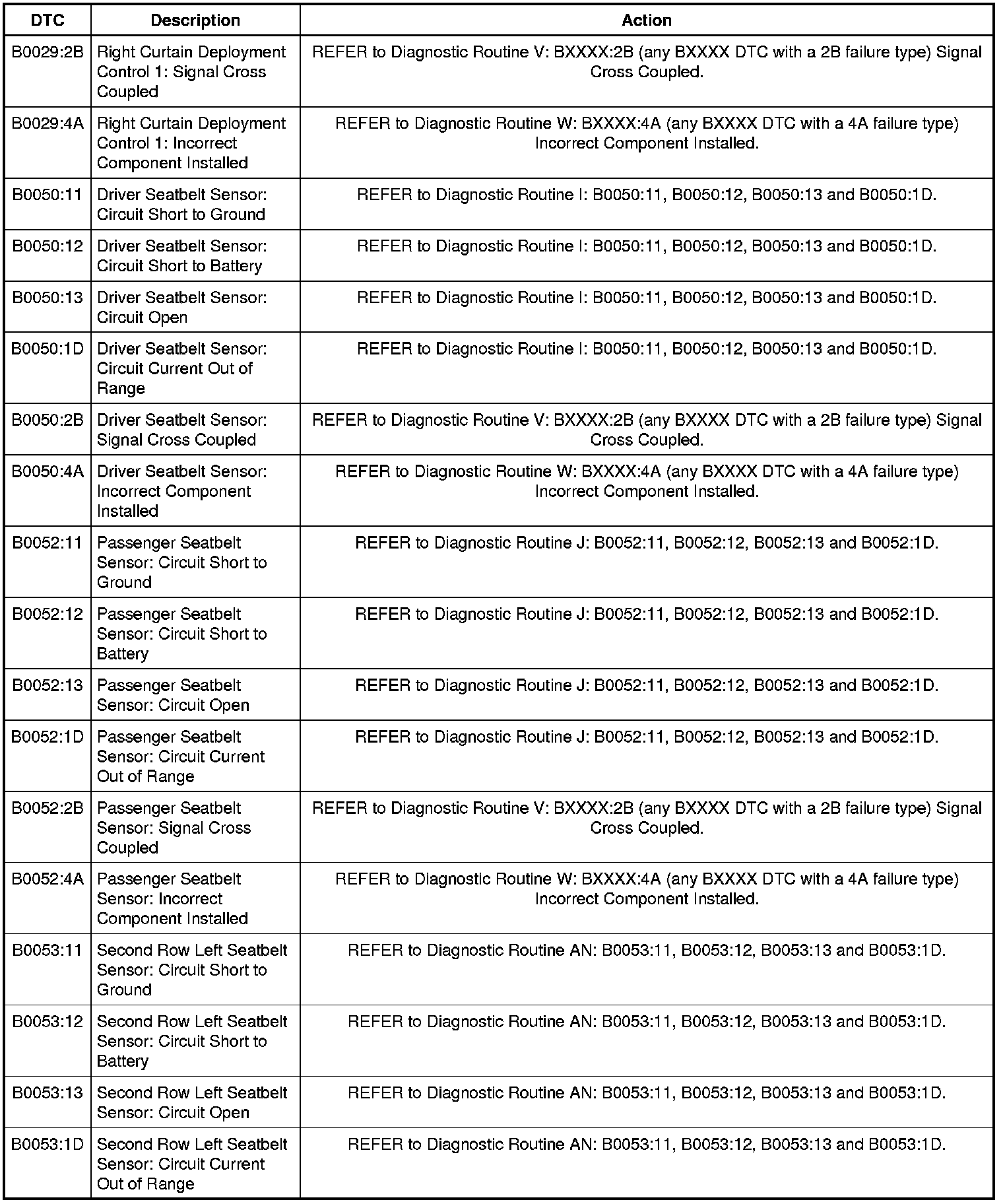

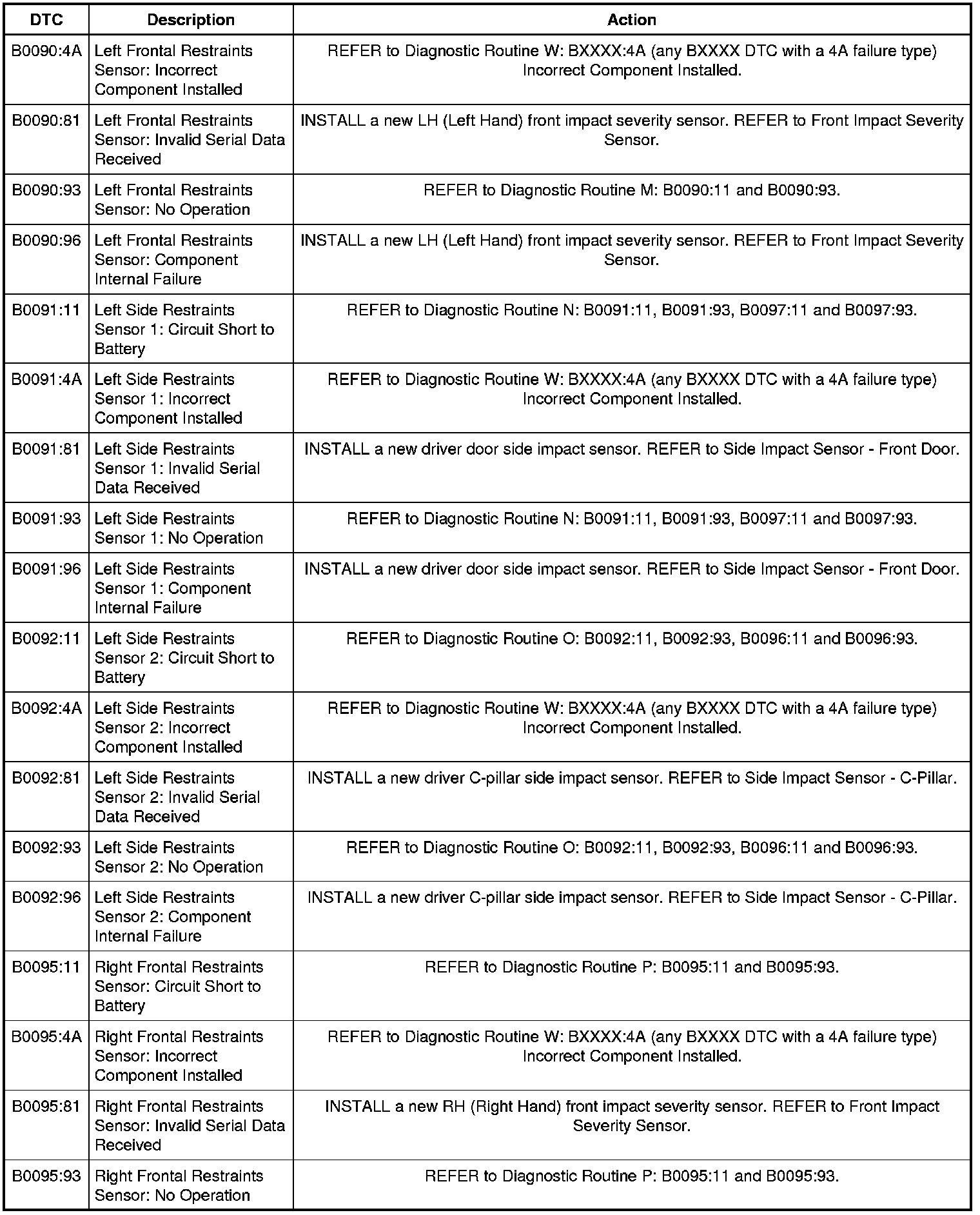

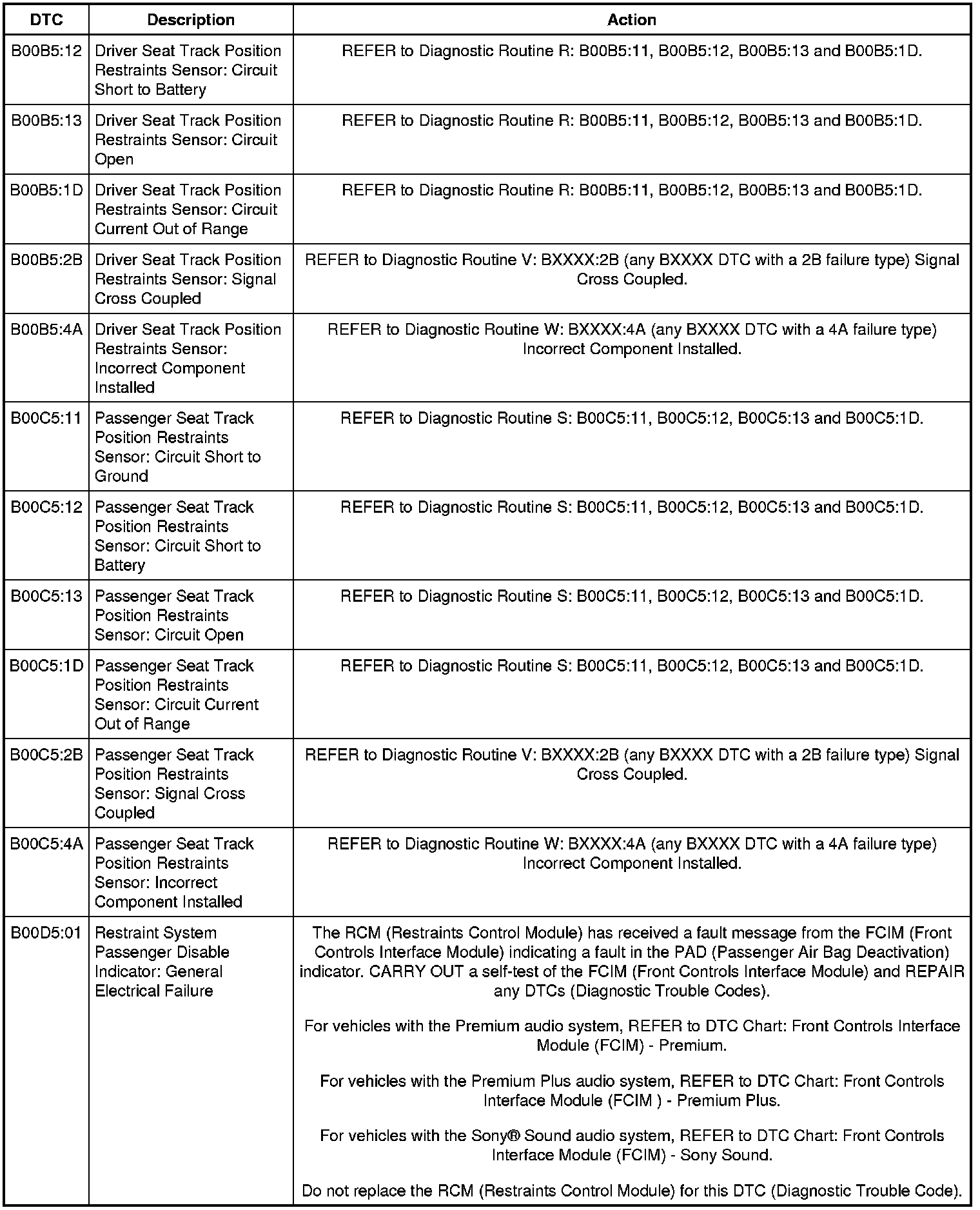

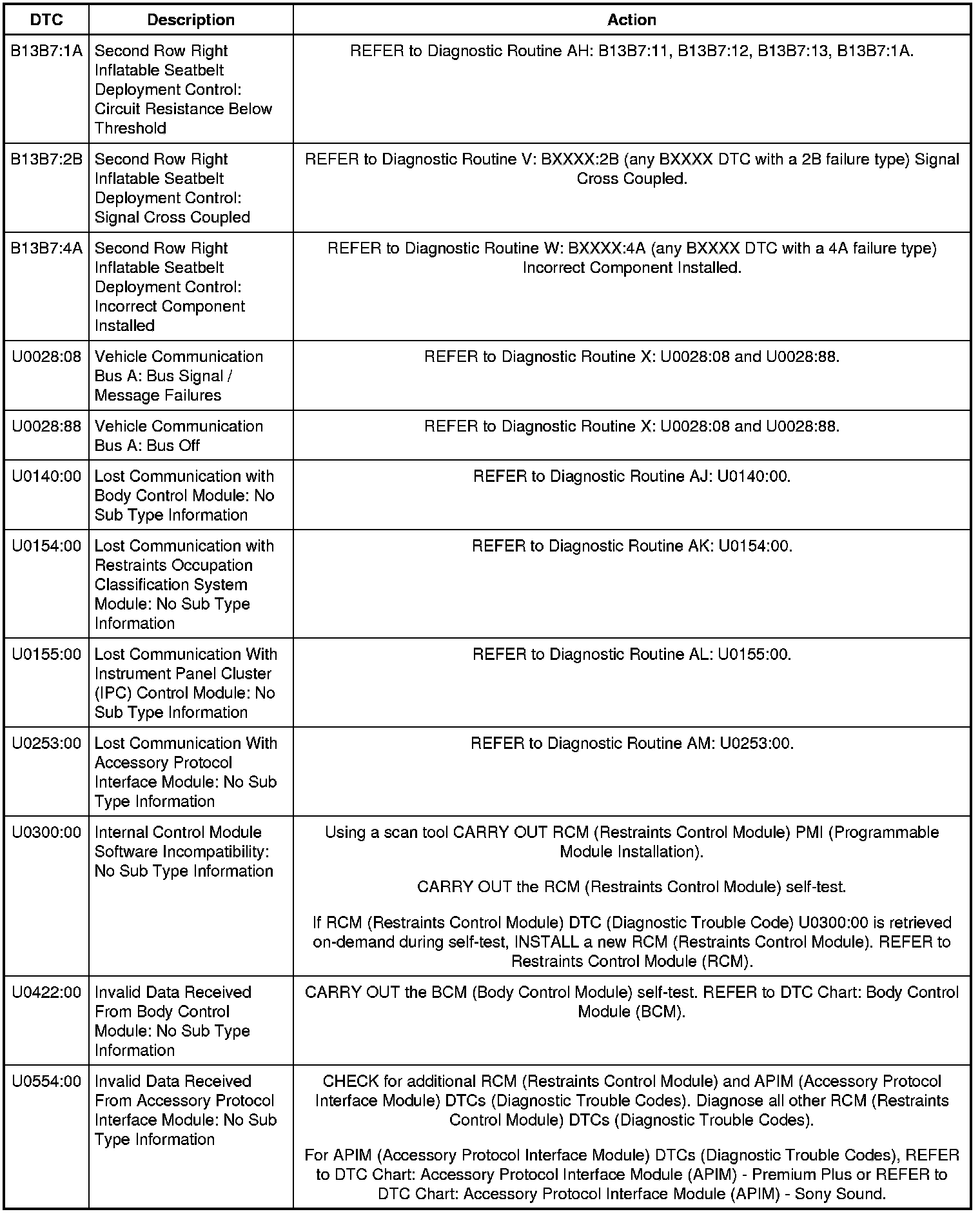

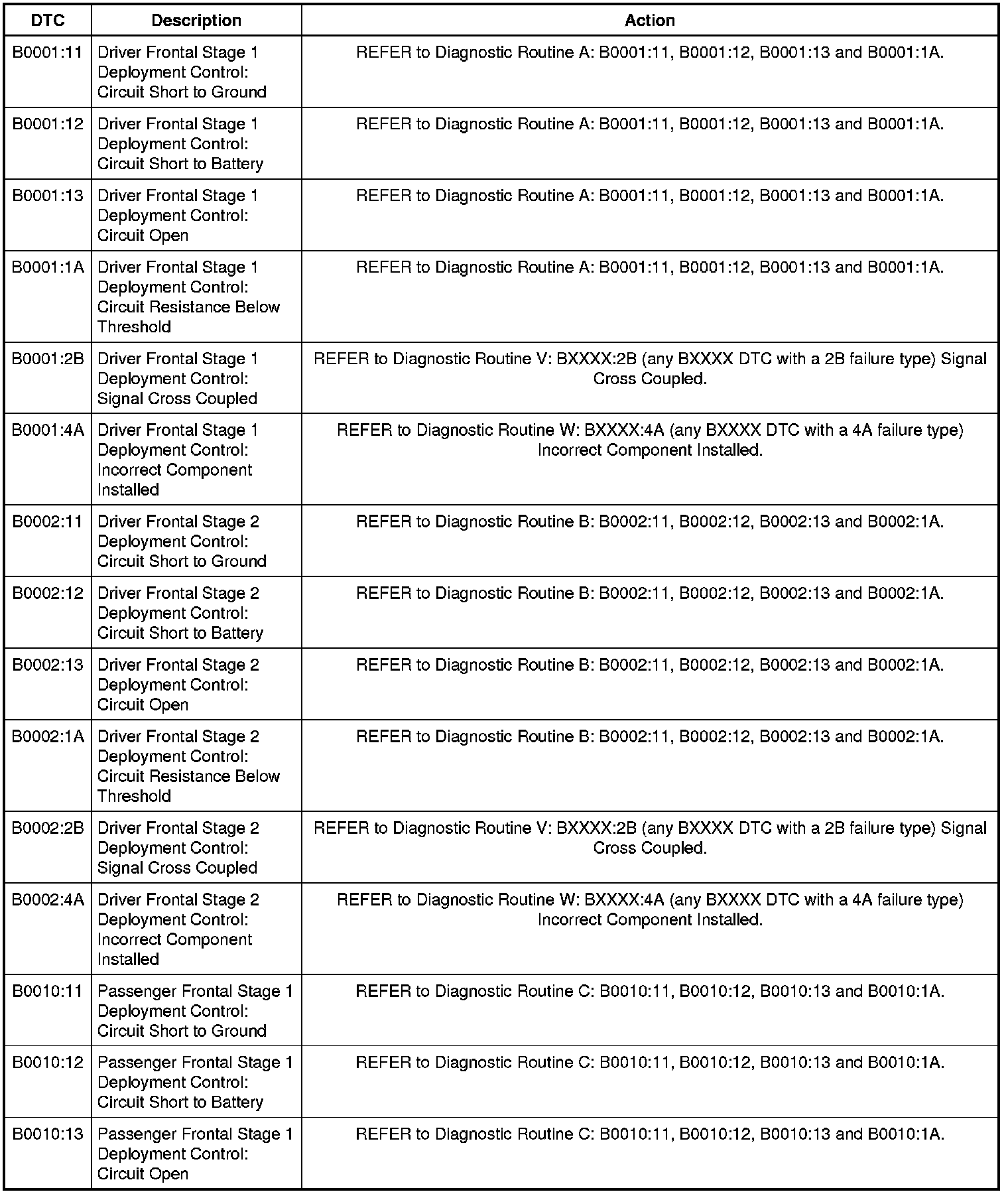

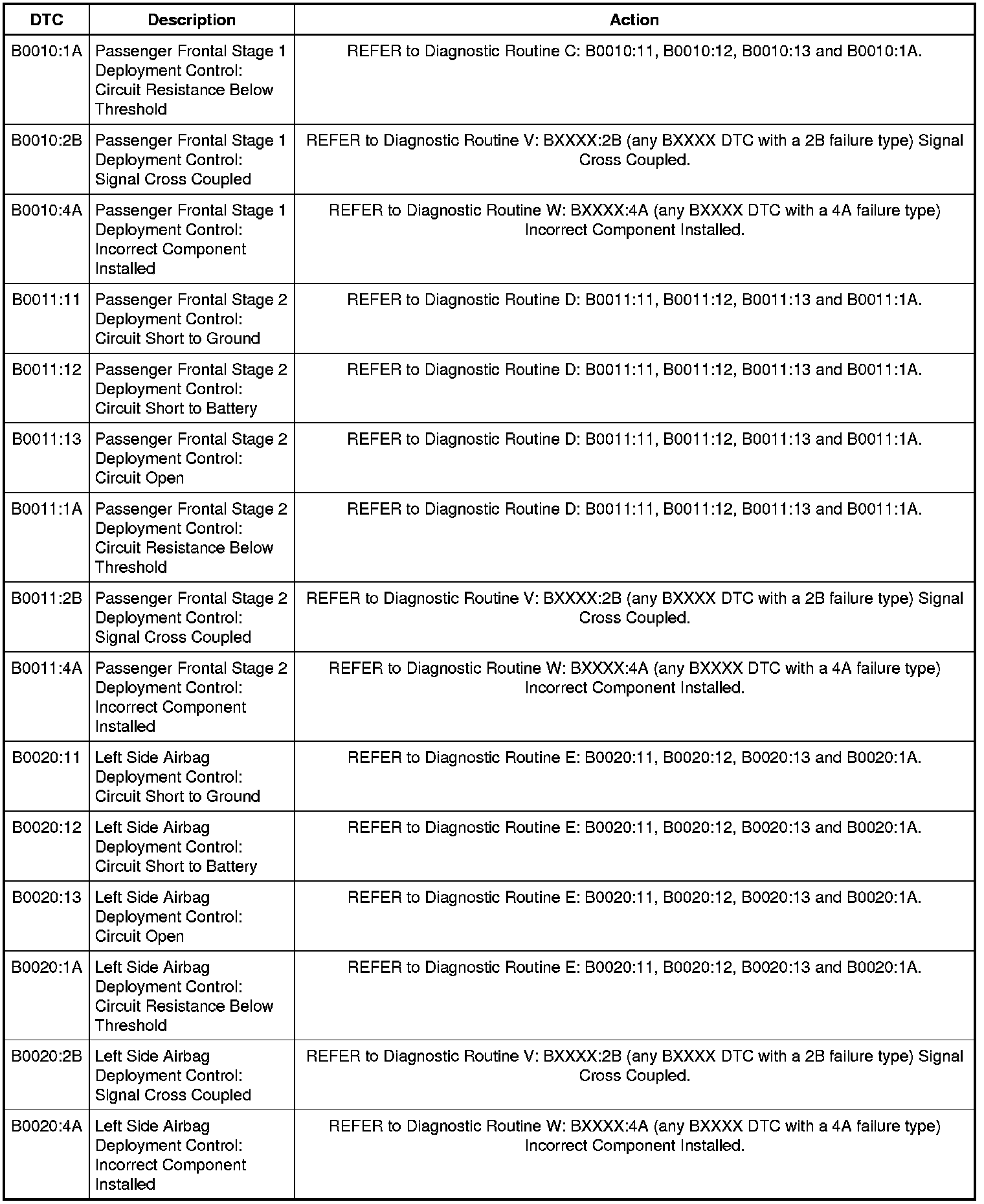

RCM (Restraints Control Module) DTC Chart
