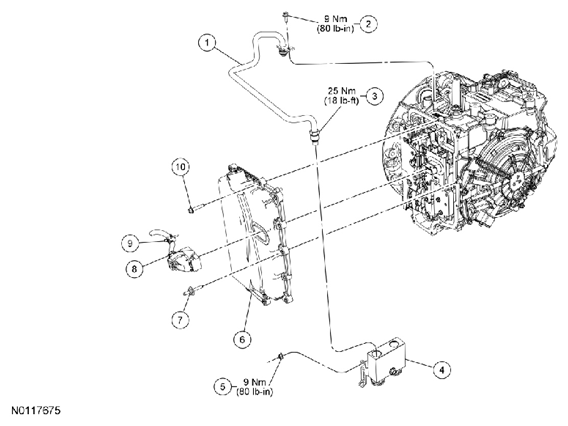

Exploded View
ITEM DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 7H420 | Transmission fluid cooler tube |
| 2 | W711538 | Transmission fluid cooler tube bolt |
| 3 | - | Transmission fluid cooler tube nut (part of 7H420) |
| 4 | 7H322 | Transmission fluid cooler thermal bypass valve |
| 5 | W520101 | Transmission fluid cooler thermal bypass valve nut (2 required) |
| 6 | 7G004 | Main control cover |
| 7 | W708442 | Main control cover studbolt (4 required) |
| 8 | 7A488 | Transaxle harness connector |
| 9 | 14A169 | Transaxle harness retainer |
| 10 | 7J289 | Main control cover bolt (10 required) |
