Ignition switch: Schematic

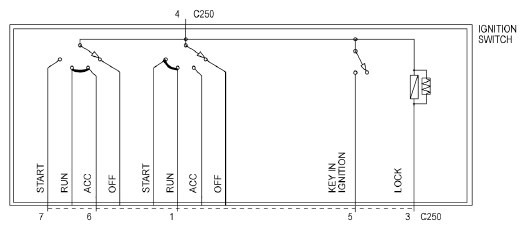

Fig 1: Ignition Switch - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
