Customer Satisfaction Program 11A01 - Application Performance Upgrade (11A01)

SUBJECT

DEMONSTRATION/DELIVERY HOLD Application Performance Upgrade 11A01 - Supplement #3

Certain 2011 Model Year Explorer, 2011-2012 Model Year Edge, MKX, and 2012 Model Year Focus Vehicles Equipped with SYNC® with MyFord/MyLincoln Touch™ Containing Early Vehicle Interface Processor (VIP) Level Software Performance Upgrade

REF

DEMONSTRATION/DELIVERY HOLD - Application Performance Upgrade 11A01 - Supplement #2  Dated May 2, 2013

REASON FOR THIS SUPPLEMENT

• Program Extension: The expiration date for Application Performance Upgrade 11A01 has been extended through August 31, 2014  .

PROGRAM TERMS

This program will be in effect through August 31, 2014  . There is no mileage limit for this program.

AFFECTED VEHICLES

Certain 2011 model year Explorer, 2011-2012 model year Edge, MKX, and 2012 model year Focus vehicles equipped with My Ford/My Lincoln Touch containing early Vehicle Interface Processor (VIP) level software.

Affected vehicles are identified in OASIS. In addition, for a list of vehicles assigned to your dealership, visit https://web.fsavinlists.dealerconnection.com  . This information was made available on March 5, 2012.

REASON FOR THIS PROGRAM

The My Ford Touch/My Lincoln Touch software has been upgraded to improve overall system functionality, voice recognition, screen refresh rates, response to touch, and to simplify screens for ease of use.

SERVICE ACTION

Before demonstrating or delivering any of the vehicles involved in this program, dealers are to:

• Perform a Full Image Reprogram of the APIM using IDS  .
  NOTE: These early VIP level vehicles are not  upgradeable with a USB flash drive.
• Insert a new A4 Navigation SD card (for vehicles equipped with Navigation)
• Insert a new updated User Guide in the vehicle glove compartment

This service must be performed on all affected vehicles at no charge to the vehicle owner.

OWNER NOTIFICATION MAILING SCHEDULE

Owner Letters were mailed the week of March 5, 2012. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter. The owner mailing included a Customer Letter, User Guide (now outdated), and Navigation Map Licensing Agreement for vehicles equipped with Navigation.

ATTACHMENTS

1. Attachment I: Administrative Information
2. Attachment II: Labor Allowances and Parts Ordering Information
3. Attachment III: Technical Information

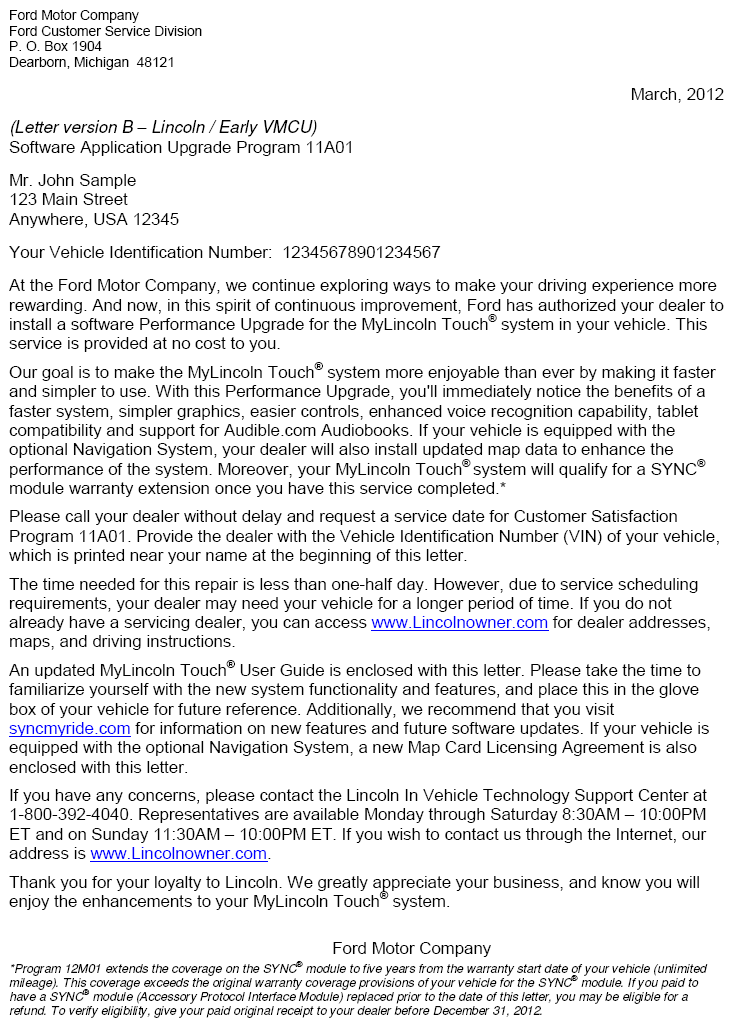

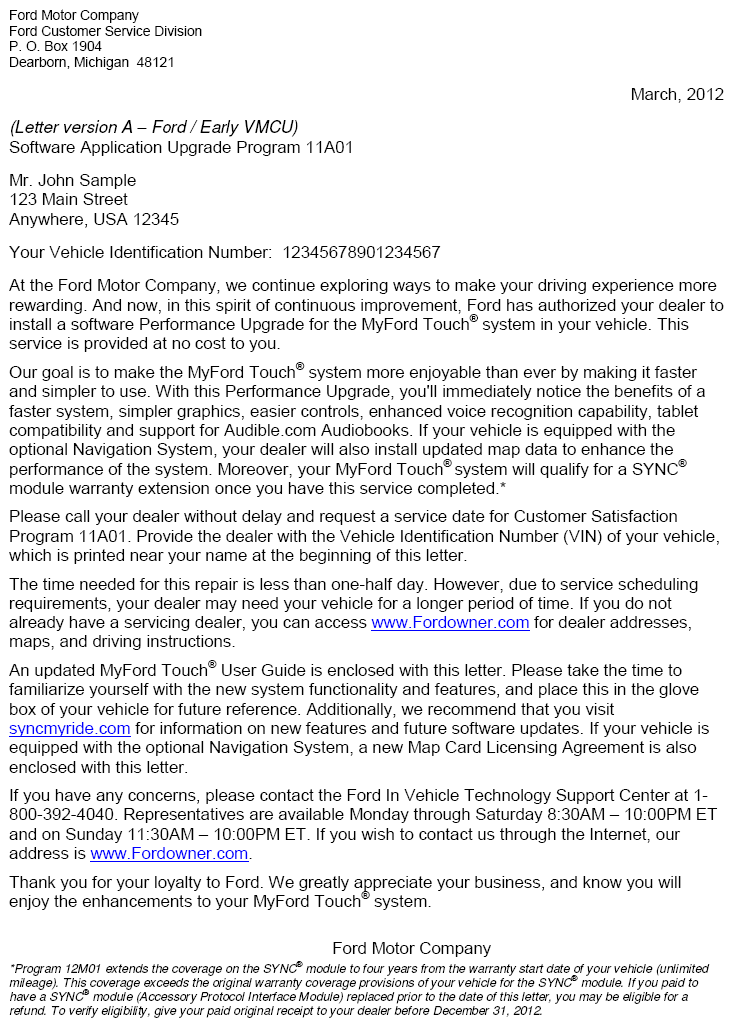

4. Customer Notification Letter

QUESTIONS & ASSISTANCE

1. Special Service Support Center (Dealer Assistance Only) ... 1-800-325-5621
2. Navigation Map SD Card Questions (Ford Component Sales) ... 1-313-390-3635

OASIS ACTIVATED?

Yes, OASIS was activated on March 5, 2012.

FSA VIN LIST ACTIVATED?

Yes, FSA VIN lists were made available through https://web.fsavinlists.dealerconnection.com  on March 5, 2012. Owner names and addresses were made available on March 12, 2012.

STOCK VEHICLES

• Correct all affected units in your new vehicle inventory before delivery.
• Use OASIS to identify any affected vehicles in your used vehicle inventory.

SOLD VEHICLES

• Owners of affected vehicles will be directed to dealers for repairs.
• Correct other affected vehicles identified in OASIS which are brought to your dealership.

TITLE BRANDED/SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

RELATED DAMAGE

If a related damage condition exists that you believe to be caused by the covered condition, call the Special Service Support Center to request approval prior  to the repair of any related damage. Requests for approval after completion of the repair will not be granted.

ADDITIONAL LABOR TIME

• If a condition exists that requires additional labor to complete the repair, call the Special Service Support Center to request approval prior  to performing any additional labor. Requests for approval after completion of the repair will not be granted.
• If you encounter aftermarket equipment or modifications to the vehicle which might prevent the repair of the covered condition, call the Special Service Support Center.

OWNER REFUNDS

Refunds are not authorized for this program.

RENTAL VEHICLES

The use of rental vehicles is not authorized under this FSA.

CLAIMS PREPARATION AND SUBMISSION

• Navigation Map SD Cards can only be claimed for a vehicle equipped with Navigation.
• For Navigation Map SD Cards claiming, use service part number DM5Z-19H449-AA (A4 level).
• Enter claims using Direct Warranty Entry (DWE).
• Refer to ACESII manual for claims preparation and submission information.
• Related damage must be claimed on a repair line that is separate from the repair line on which the FSA is claimed. Related damage requires prior approval from the Special Service Support Center.
• "MT" labor should be submitted on a separate repair line with the related damage flag checked. "MT" labor requires prior approval from the Special Service Support Center.
• PROGRAM TERMS: This program will be in effect through August 31, 2014  . There is no mileage limit for this program.

LABOR ALLOWANCES

PARTS REQUIREMENTS/ORDERING INFORMATION

Navigation SD Cards

To order Navigation Map SD Cards:

• Go to FMCDealer.com
• Select the Parts & Service tab
• Select Parts Department Tools
• Select Parts Inquiries & Forms
• Select Navigation Maps Update Order Form
• Select MyFord/MyLincoln Touch Performance Upgrade Map Upgrade
• Follow the on-screen instructions

Questions regarding Navigation Map SD Cards should be directed to 313-390-3635 or fesg@ford.com  .

User Guides

User Guides have been updated for compatibility with the new level software. The updated User Guides are available through the Dealer eStore through the following link path:

• Go to FMCDealer.com
• Marketing & Advertising (located under the sales tab)
• Dealer eStore
• Search on Myford or MyLincoln

Navigation Map SD Card Licensing Agreements

Licensing agreements previously provided for this FSA still apply. If additional licensing agreements are required, contact the Special Service Support Center at 1-800-325-5621.

DEALER PRICE

For latest prices, refer to DOES II.

EXCESS STOCK RETURN

Excess Navigation Map SD Cards to be returned for credit must have been purchased from Ford Customer Service Division/Ford Component Sales. Only new, unopened (still in shrink wrap) product will be eligible for return. Return policies and instructions will be posted to the Navigation Map SD Card ordering site during the second quarter of 2012.

OVERVIEW

Before demonstrating or delivering any of the vehicles involved in this program, dealers are to perform a Full Image Reprogram of the APIM using IDS  , provide a new user guide to the vehicle owner, and insert a new Navigation Map SD Card (A4 level) on vehicles equipped with Navigation.

SERVICE PROCEDURE

All Vehicles

1. Connect a battery charger to the vehicle.
   • When connecting the charger, the negative battery charger lead must be connected to a clean chassis ground, not the negative battery post.
2. Place the ignition in the "RUN" position, "ON" for Intelligent Access (IA) vehicles.
3. Connect the scan tool and Vehicle Communication Module (VCM) to the vehicle.
4. Open Internet Explorer on the scan tool and go to the technician service publication web site. On the OASIS tab, select "Read VIN & DTCs", and select "Go".
5. NOTE:  This procedure will clear all CMDTCs. The DTCs must be recorded now if other diagnoses are to be performed after this procedure.

   Select Toolbox from the technician service publication web site to retrieve and record all CMDTCs.

6. NOTE:  If unable to complete programming because the operation stops or errors are received, the web browser settings may need to be configured. Refer to "Software Programming v1.1" on the technician service publication web site "Service Tips" tab.

   From the OASIS tab, select the "SYNC" button. The Last Recorded State - Software is displayed.

7. Scroll to the bottom of the screen, select "Standard" and click the "Read SYNC" button to compare the current APIM VIP, CIP, and application software levels to the last reported state in the Ford online database.
   • After the compare is performed, the scan tool automatically selects software for programming. Applications with check marks next to them indicate the APIM already has the latest level installed (no re-installation required).
   • Depending on the software level required, the scan tool automatically selects either the Service Pack or Full Flash programming method.

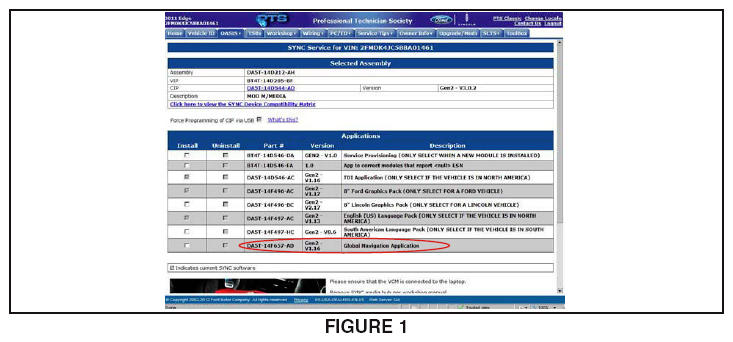

   • For vehicles equipped with Navigation, verify that the Navigation application has been selected. See Figure 1.
8. NOTE:  Only applications on a flash drive may be loaded to the APIM through the media hub.

   Remove the media hub. For additional information, refer to Workshop Manual (WSM) Section 415-00.

9. NOTE:  Do not disconnect the scan tool or cable from the APIM during programming unless directed by the scan tool on-screen prompts.

   Connect the CCMSYNC-KIT between the scan tool USB port and the vehicle USB cable.

10. NOTE:  Scan tools that have never been used to program SYNC may encounter a Hardware Wizard pop-up requesting a "WMA SBOOT" driver installation. If this request is encountered, install the driver and click the scan tool retry button to continue programming.

    Select the "Program SYNC" button to begin the APIM programming process.

    • When prompted by the scan tool, disconnect the battery charger, start the engine, and select OK. Once OK is selected, do not interrupt this step (which may take up to 20 minutes or longer).
    • The updates are downloaded to the scan tool or to the USB flash drive.
11. NOTE:  If the scan tool does not have an available USB port, the cable from the CCMSYNC-KIT can be unplugged at this time to make room for the USB flash drive. Do not disconnect the VCM from the scan tool.

    Connect the USB flash drive to the scan tool and follow the on-screen instructions for downloading service packs and applications onto the USB flash drive.

    • This step may take up to 20 minutes or longer.
12. NOTE:  If the media hub was removed, install it before connecting the USB flash drive to the vehicle. For additional information, refer to WSM Section 415-00.

    When prompted by the scan tool, remove the USB flash drive and connect it to the media hub in order to install the applications into the APIM.

    • The update should start automatically, and may take up to 20 minutes or longer once begun.
    • It is normal for the APIM to reset during this step.
13. Once scan tool programming and USB flash drive programming are complete, reinstall the flash drive into the scan tool and select "OK" to report software installation to the Ford online database.
14. Recalibrate the touchscreen by following the scan tool prompts or the steps below.
    1. While in AM/FM mode, press and hold the EJECT button, and within 1 second, press the SEEK UP button.
    2. Press and hold SEEK DOWN to enter Touch Screen Calibration.
    3. Touch the touch points (a stylus is not required) as instructed by the touchscreen.
    4. To accept the new settings, touch anywhere on the screen once "Press the Enter key to accept the new settings" is displayed.
15. Clear all CMDTCs.

    Vehicles Equipped With Navigation

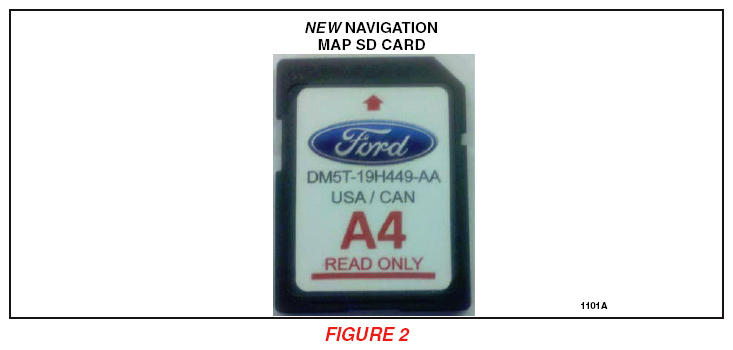

16. After the reprogramming procedure is completed, remove and discard the vehicle's Navigation Map SD Card and install a new Navigation Map SD Card (A4 level). See Figure 2.

    All Vehicles

17. Provide a new user guide to the vehicle owner.
