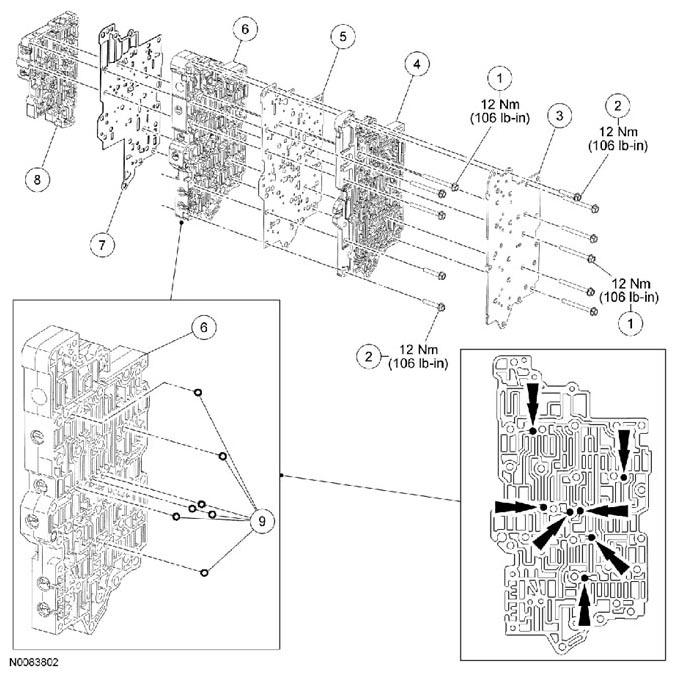

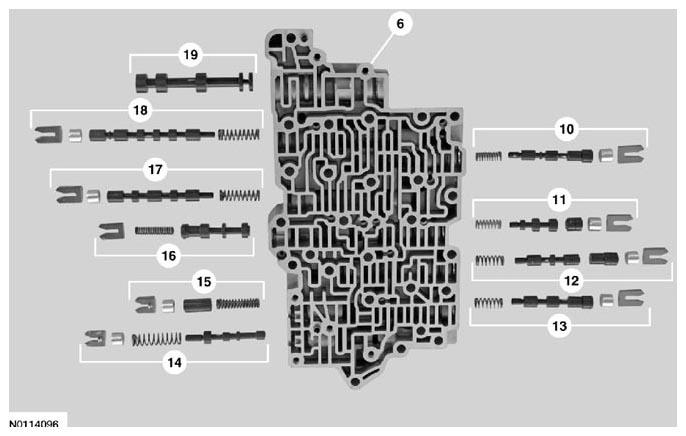

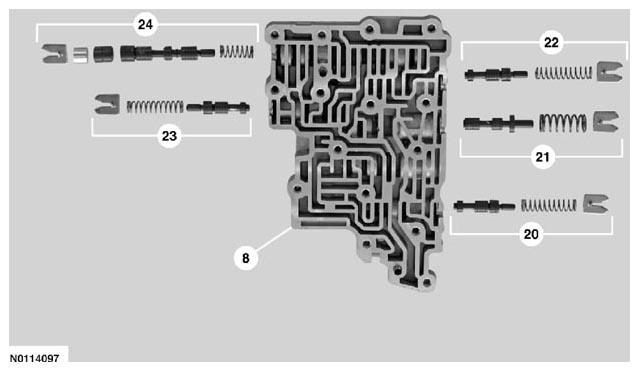

Exploded View
ITEM DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | W790097 | Bolts - M6 x 63 |
| 2 | W790091 | Bolts - M6 x 35 |
| 3 | 7Z490C | Cover - transfer plate |
| 4 | - | Case-to-valve body transfer plate (part of 7A100) |
| 5 | 7Z490B | Separator plate - valve body-to-transfer plate |
| 6 | 7A100 | Main control valve body |
| 7 | 7Z490A | Separator plate - main control valve body-to-lower valve body |
| 8 | - | Lower valve body assembly (part of 7A100) |
| 9 | 7E195 | Check balls |
| 10 | - | Low/reverse and overdrive clutch regulator valve assembly (part of 7A100) |
| 11 | - | Torque Converter Clutch (TCC) regulator apply valve assembly (part of 7A100) |
| 12 | - | Intermediate clutch regulator valve assembly (part of 7A100) |
| 13 | - | Direct clutch regulator valve assembly (part of 7A100) |
| 14 | - | Pressure regulator valve assembly (part of 7A100) |
| 15 | - | Isolator valve assembly (part of 7A100) |
| 16 | - | Torque Converter Clutch (TCC) control valve assembly (part of 7A100) |
| 17 | - | Multiplex manual valve assembly (part of 7A100) |
| 18 | - | Multiplex shift valve assembly (part of 7A100) |
| 19 | - | Manual valve (part of 7A100) |
| 20 | - | Direct clutch boost valve assembly (part of 7A100) |
| 21 | - | Solenoid regulator valve assembly (part of 7A100) |
| 22 | - | Low/reverse and overdrive clutch boost valve assembly (part of 7A100) |
| 23 | - | Forward clutch boost valve assembly (part of 7A100) |
| 24 | - | Forward clutch regulator valve assembly (part of 7A100) |
