Exploded View

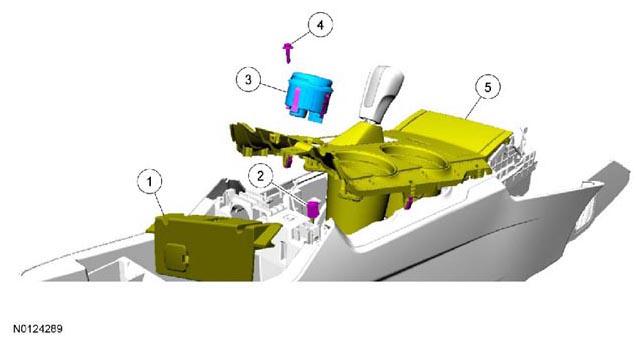

Fig 1: Identifying All Terrain Control Module Component Location
G07430762Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Service Part Number Description
1 45A76 Arm rest latch trim panel
2 - All Terrain Control Module (ATCM) electrical connector (part of 14B076)
3 14B596 All Terrain Control Module (ATCM)
4 W707628 Upper finish panel screw
5 45A76 Upper finish panel
