Exploded View

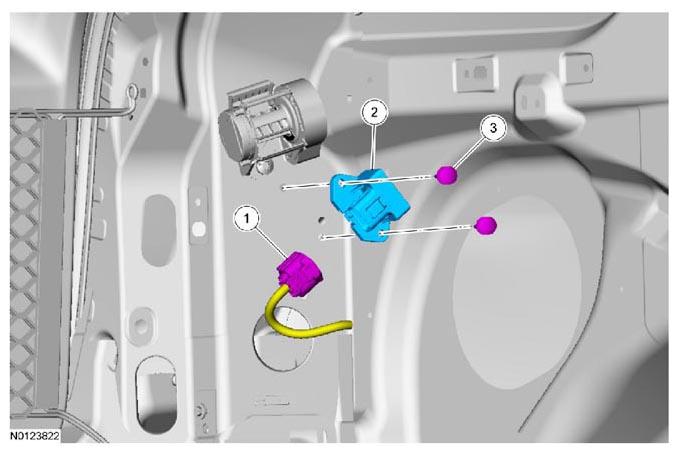

Fig 1: Identifying All-Wheel Drive (AWD) Relay Module With Pushpin And Electrical Connector
G07430761Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Service Part Number Description
1 - All-Wheel Drive (AWD) relay module electrical connector (part of 14A005)
2 7E453 All-Wheel Drive (AWD) relay module
3 W707373 All-Wheel Drive (AWD) relay module pushpin (2 required)
