Pinpoint Test

  1. CHECK THE Head Up Display (HUD) MODULE VOLTAGE SUPPLY CIRCUITS FOR AN OPEN
    1. Ignition OFF.
    2. Disconnect: Head Up Display (HUD) module.
    3. Ignition ON.
    4. Measure:

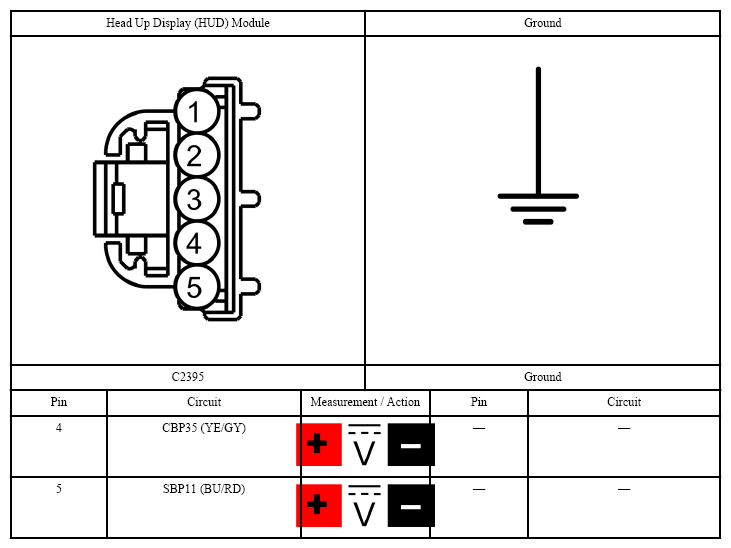

      Fig 1: Measuring Head Up Display (HUD) Connector Terminal
      G07428994Courtesy of FORD MOTOR CO.
      • Is the voltage greater than 11 volts?
      1. Yes:  GO to 2  on page 2.
      2. No:  VERIFY the Body Control Module (BCM) fuses 11 (10A) and 35 (5A) are OK. If OK, REPAIR the circuit in question. If not OK, REFER to the SYSTEM WIRING DIAGRAMS to identify the possible causes of the circuit short.
  2. CHECK THE Head Up Display (HUD) MODULE GROUND CIRCUIT FOR AN OPEN
    1. Ignition OFF.
    2. Measure:

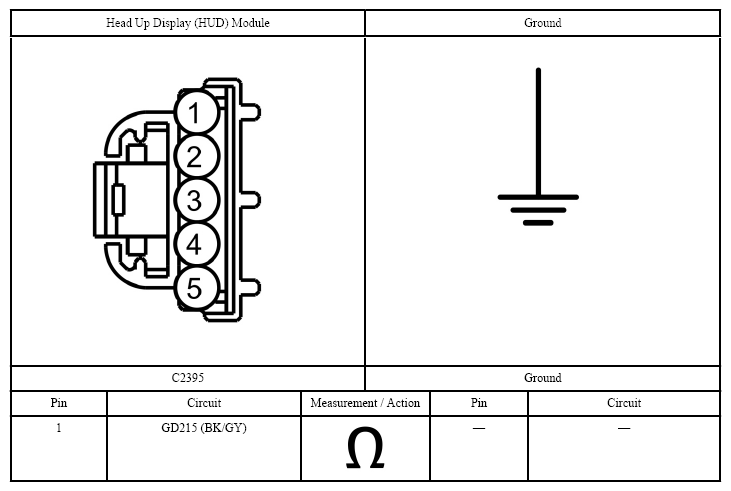

      Fig 2: Measuring Head Up Display (HUD) Connector Terminal
      G07428995Courtesy of FORD MOTOR CO.
      • Is the resistance less than 3 ohms?
      1. Yes:  GO to 3  on page 3.
      2. No:  REPAIR the circuit.
  3. CHECK THE High Speed Controller Area Network (HS-CAN) CIRCUITS BETWEEN THE Head Up Display (HUD) MODULE AND THE Data Link Connector (DLC) FOR AN OPEN
    1. Measure:

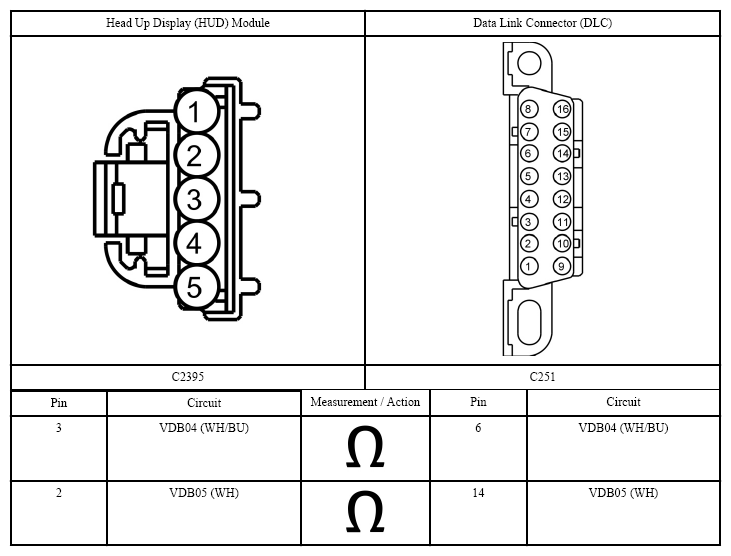

      Fig 3: Measuring High Speed Controller Area Network (HS-CAN) Connector Terminals
      G07428996Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      1. Yes:  GO to 4  on page 4.
      2. No:  REPAIR the circuit in question.
  4. CHECK FOR CORRECT Head Up Display (HUD) MODULE OPERATION
    1. Ignition OFF.
    2. Disconnect and inspect the Head Up Display (HUD) module connector.
    3. Repair:
      • corrosion (replace connector or terminals - clean module pins)
      • damaged or bent pins - replace terminals/pins
      • pushed-out pins - replace pins as necessary
    4. Reconnect the Head Up Display (HUD) module connector. Make sure it seats and latches correctly.
    5. Operate the system and verify the concern is still present.
      • Is the concern still present?
      1. Yes:  CHECK On-Line Automotive Service Information System (OASIS) for any applicable Technical Service Bulletins (TSBs). If a Technical Service Bulletin (TSB) exists for this concern, discontinue this test and follow Technical Service Bulletin (TSB) instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new Head Up Display (HUD) module. REFER to HEAD UP DISPLAY (HUD) MODULE .
      2. No:  The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector.
