Component Location Charts

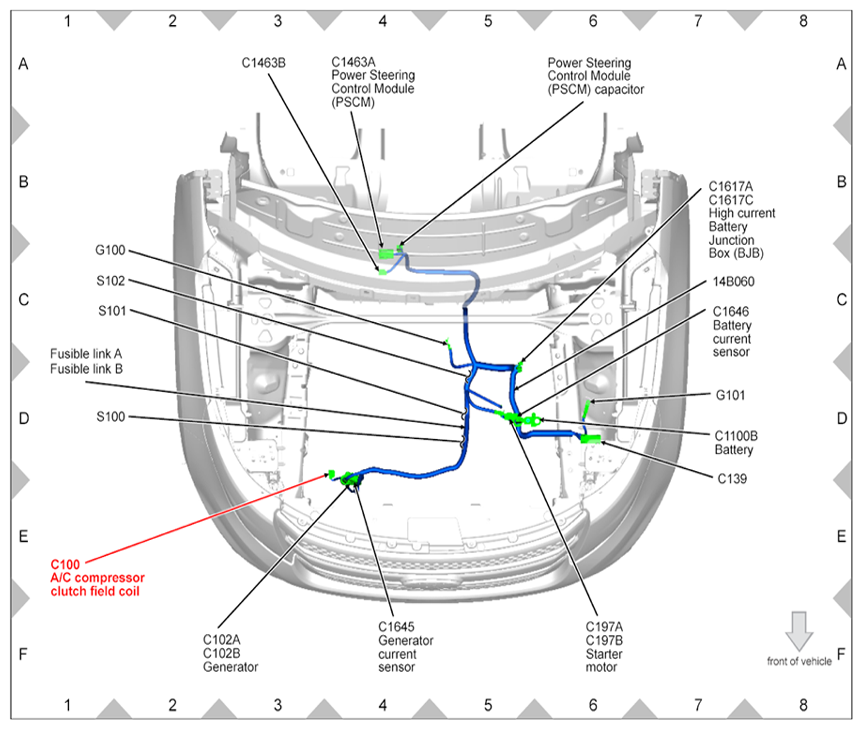

Fig 1: (C100) A/C Compressor Clutch Field Coil Location - Front Right Hand Side Of Engine
G07857594Courtesy of FORD MOTOR CO.
Fig 2: (C101) Crankshaft Position (CKP) Sensor Location - (3.5L TIVCT) Engine, Bottom Front LH Side
G07857595Courtesy of FORD MOTOR CO.

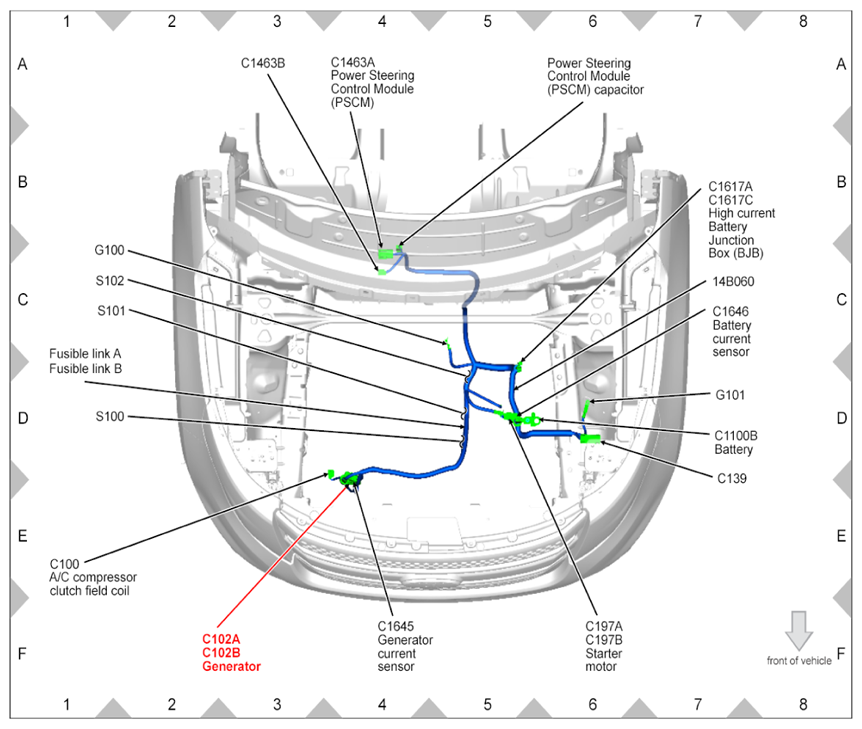

Fig 3: (C102A) Generator Location - Front Right Hand Side Of Engine
G07857596Courtesy of FORD MOTOR CO.
Fig 4: (C102B) Generator Location - Front Right Hand Side Of Engine
G07857597Courtesy of FORD MOTOR CO.

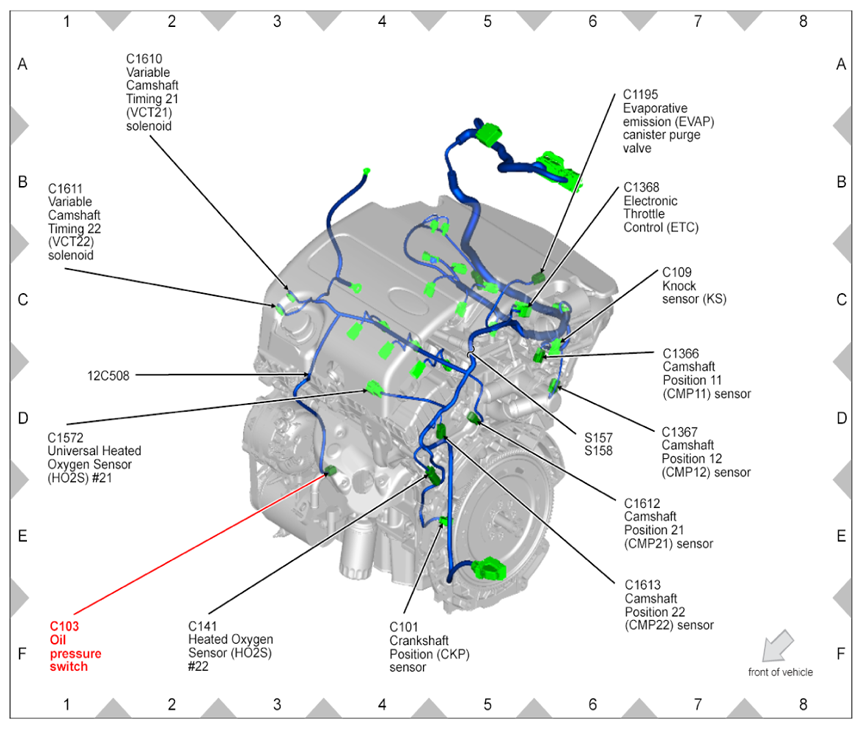

Fig 5: (C103) Oil Pressure Switch Location - (3.5L TIVCT) Engine, Bottom Front RH Side
G07857598Courtesy of FORD MOTOR CO.

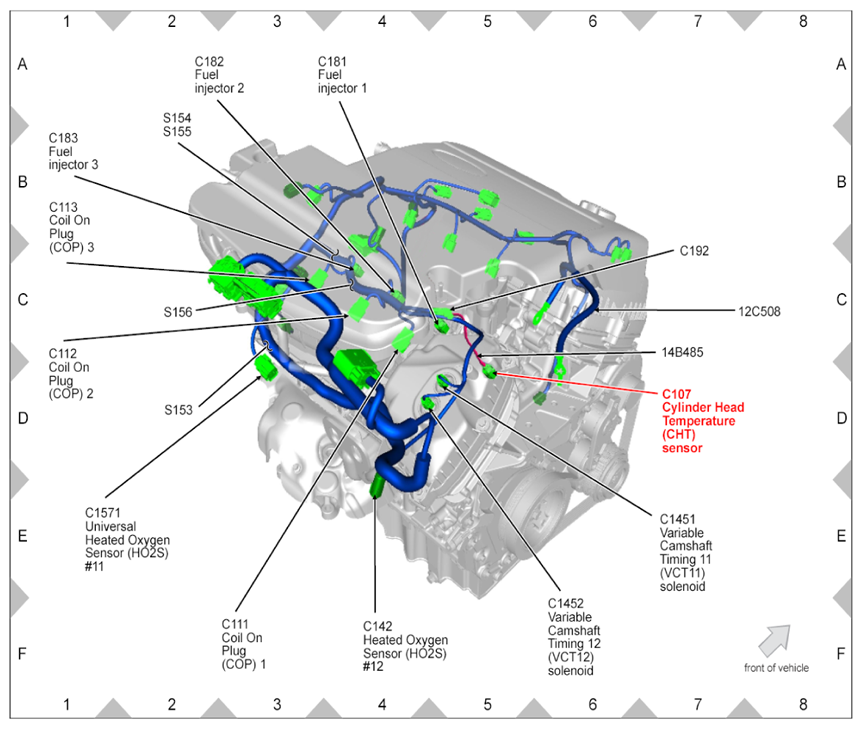

Fig 6: (C107) Cylinder Head Temperature (CHT) Sensor Location - (3.5L TIVCT) Engine, Top Rear RH Side
G07857599Courtesy of FORD MOTOR CO.

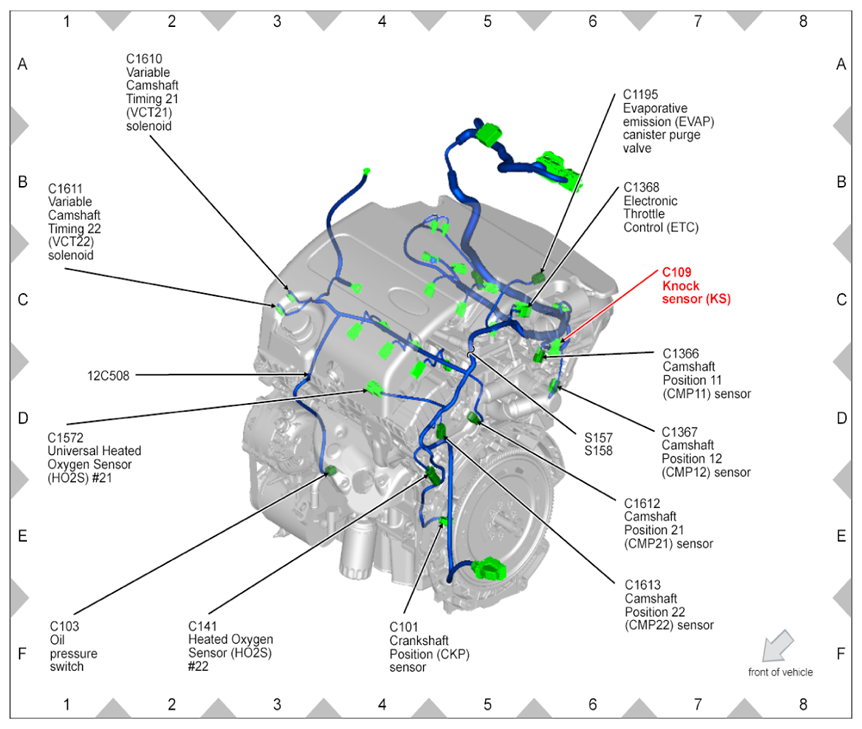

Fig 7: (C109) Knock Sensor (KS) Location - (3.5L TIVCT) Engine, Top Rear, LH Side
G07857600Courtesy of FORD MOTOR CO.
Fig 8: (C111) Coil On Plug (COP) 1 Location - (3.5L TIVCT) Engine, Top Rear RH Side
G07857601Courtesy of FORD MOTOR CO.

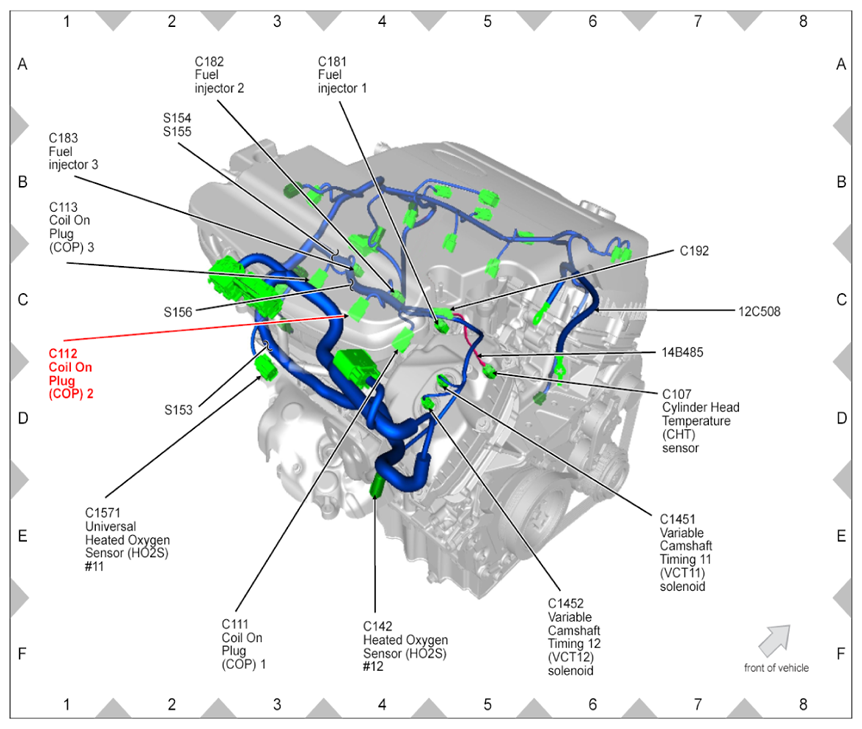

Fig 9: (C112) Coil On Plug (COP) 2 Location - (3.5L TIVCT) Engine, Top Rear
G07857602Courtesy of FORD MOTOR CO.
