Component Location Views

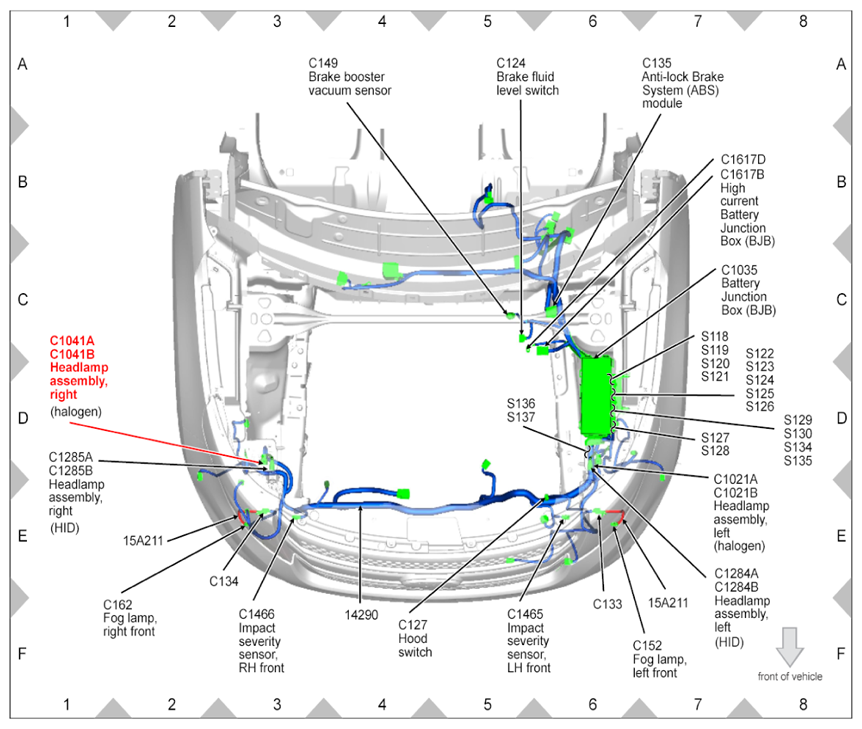

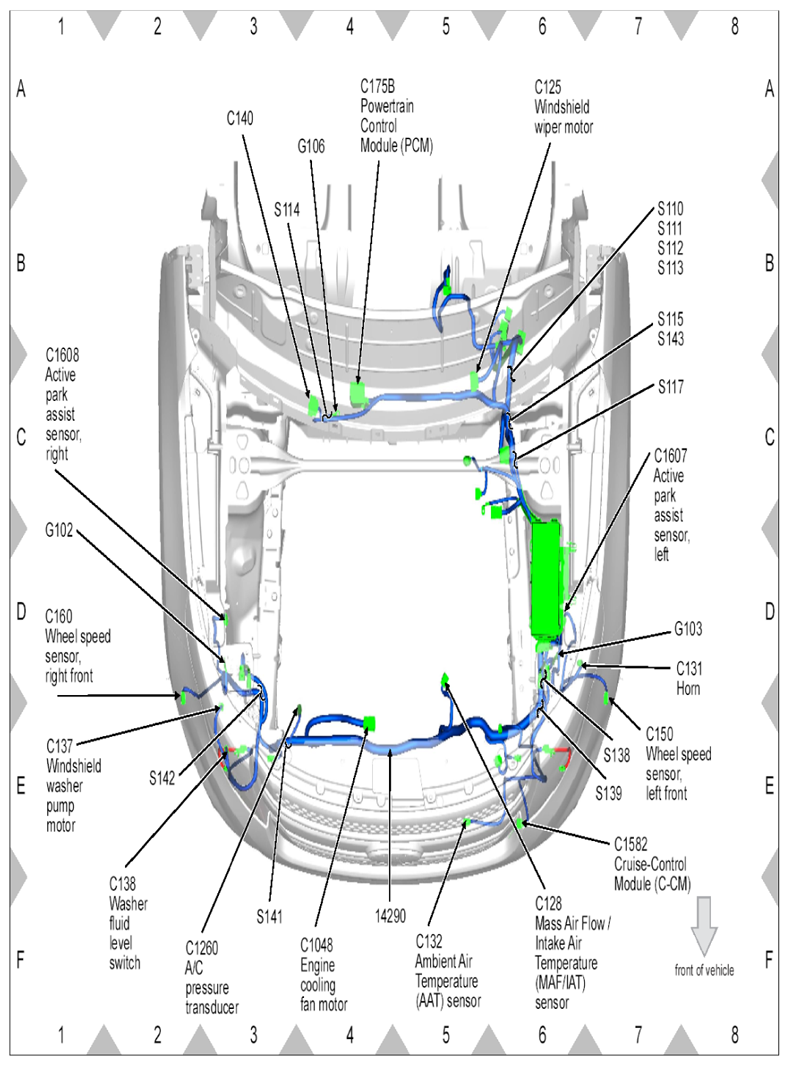

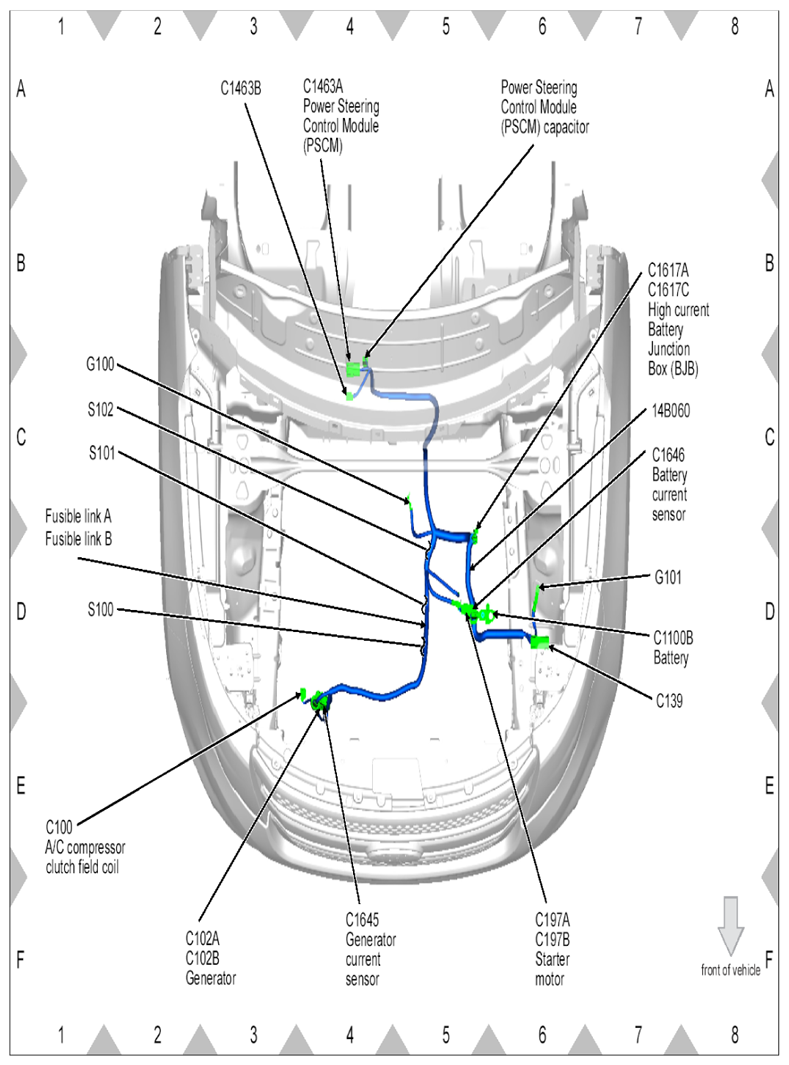

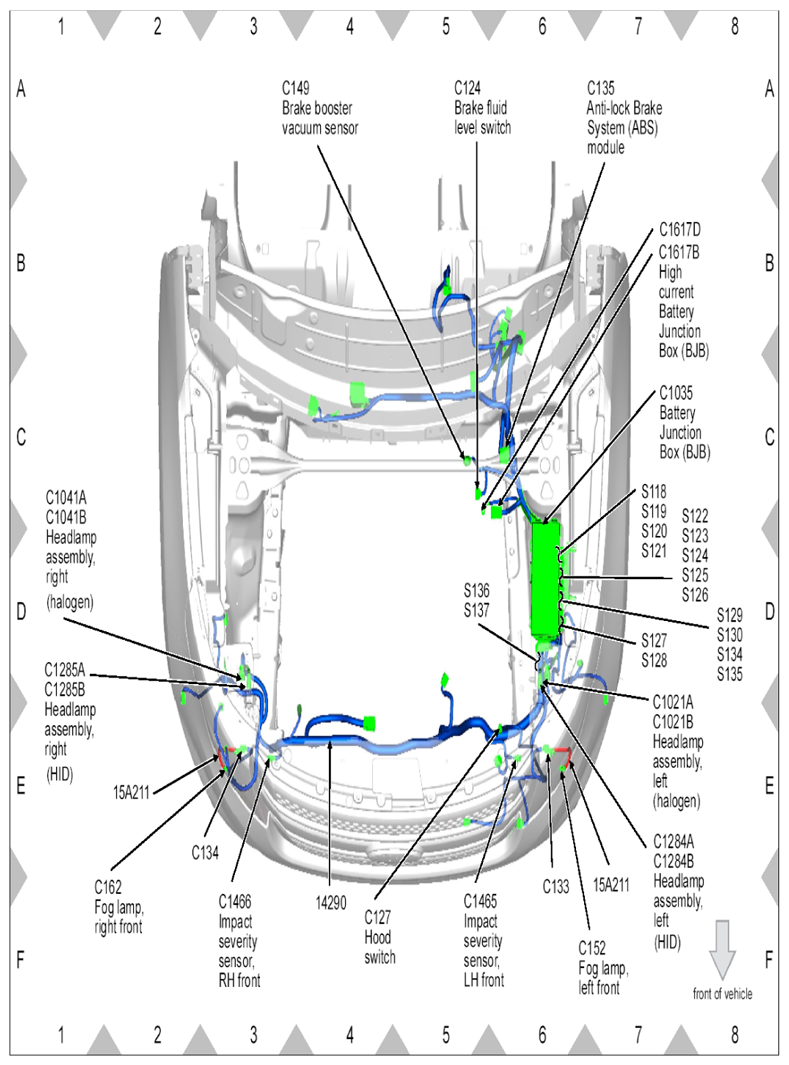

Fig 1: Identifying Engine Compartment Wiring Harness Connectors Location (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Engine Compartment Wiring Harness Connectors Location (2 Of 3)

Courtesy of FORD MOTOR CO.

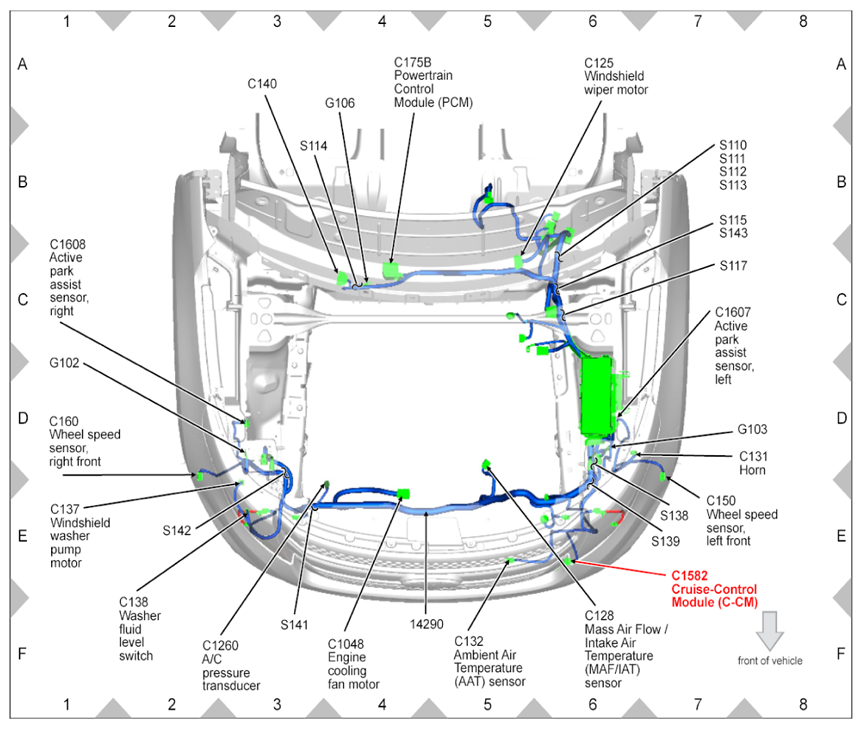

Fig 3: Identifying Engine Compartment Wiring Harness Connectors Location (3 Of 3)

Courtesy of FORD MOTOR CO.

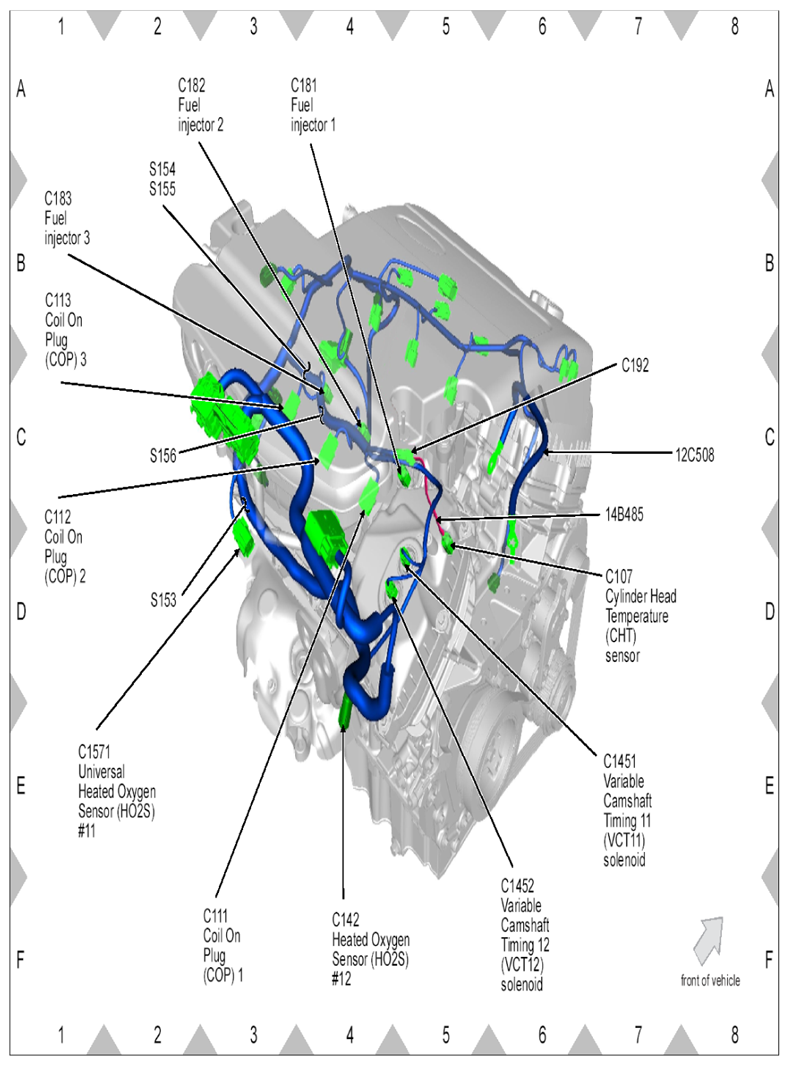

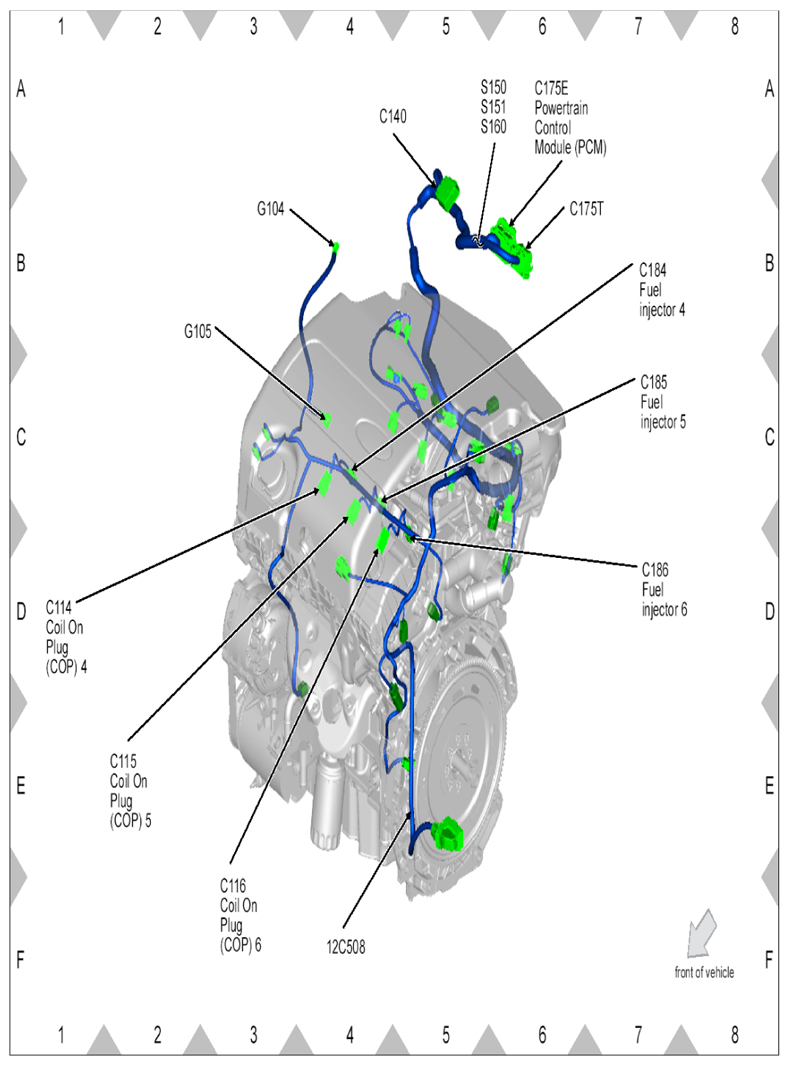

Fig 4: Identifying Engine Wiring Harness Connectors Location (1 Of 3)

Courtesy of FORD MOTOR CO.

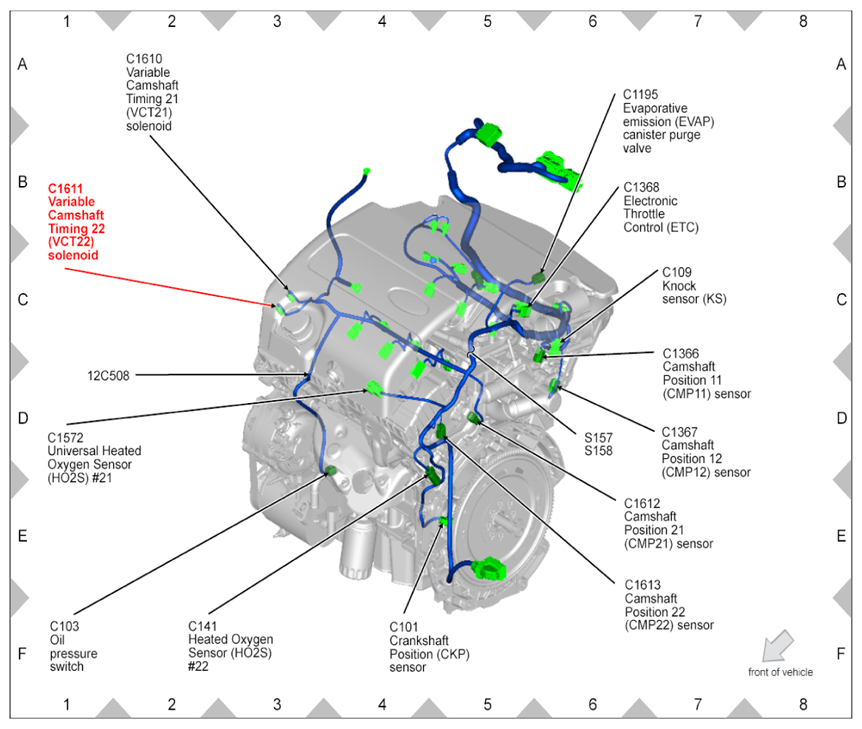

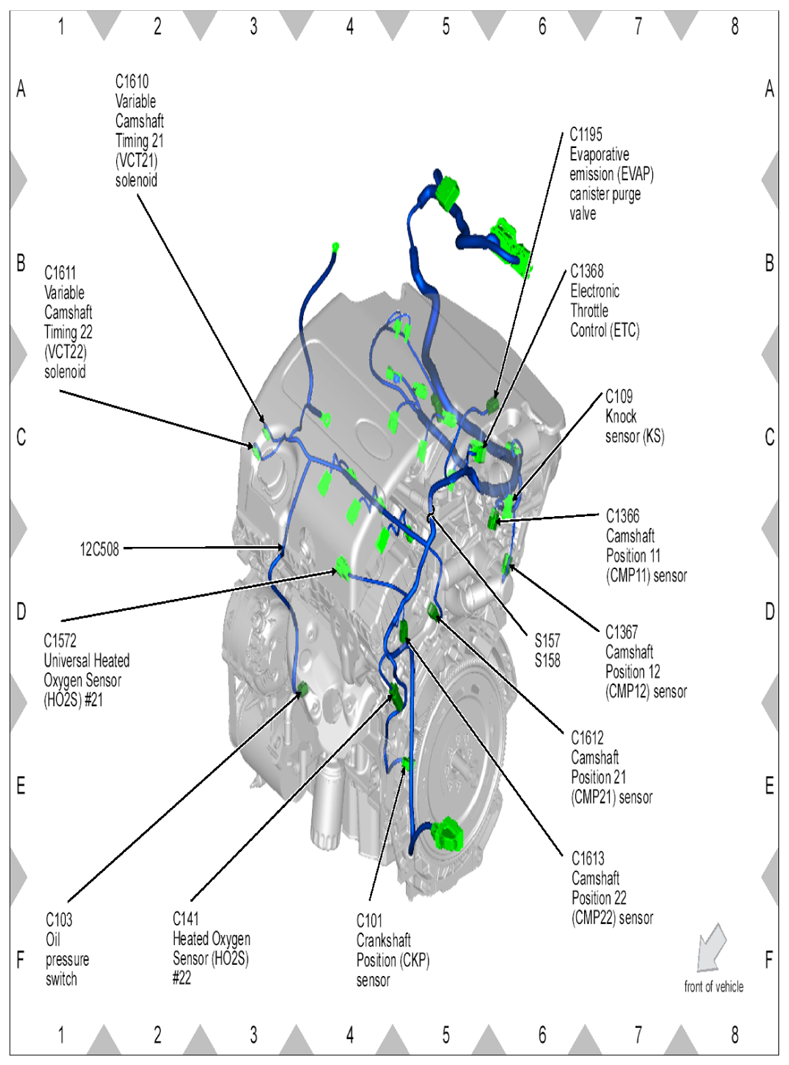

Fig 5: Identifying Engine Wiring Harness Connectors Location (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Engine Wiring Harness Connectors Location (3 Of 3)

Courtesy of FORD MOTOR CO.

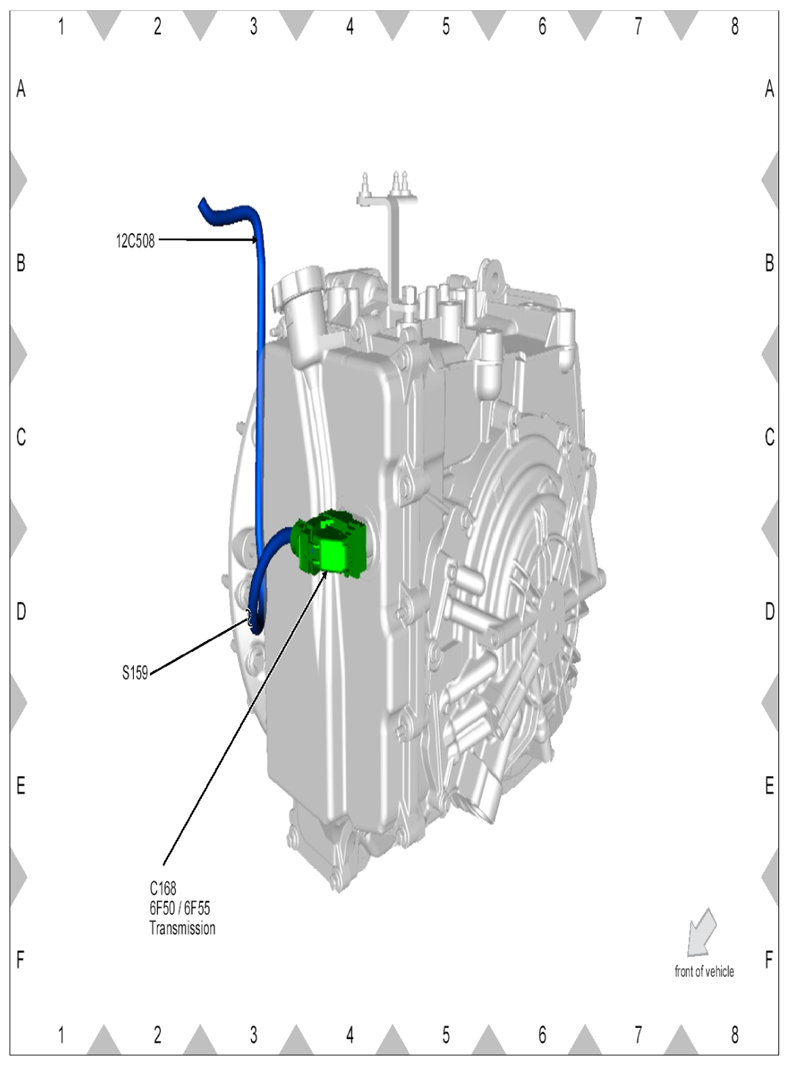

Fig 7: Identifying Transmission Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

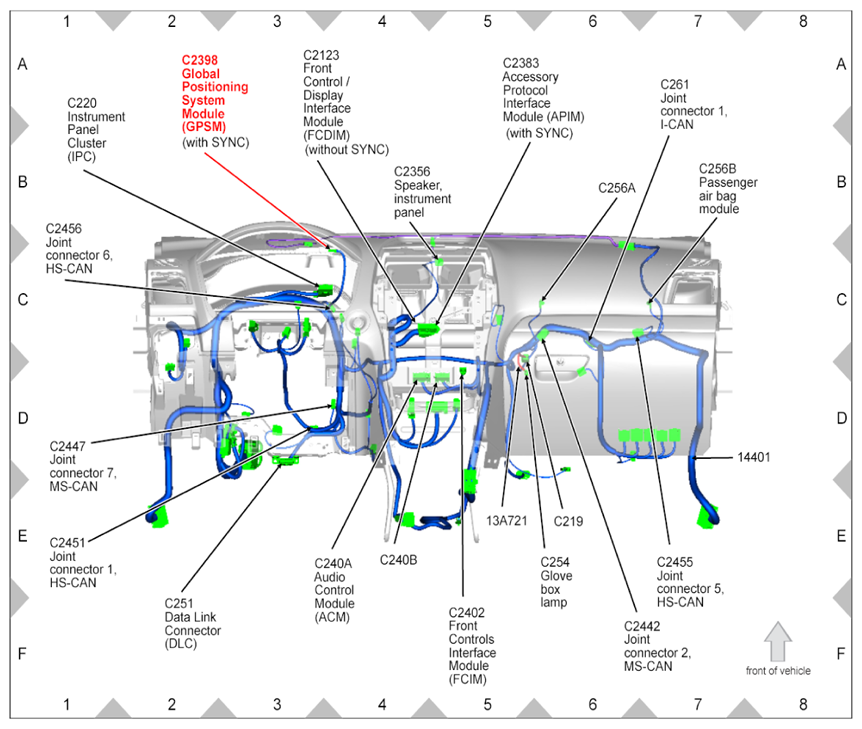

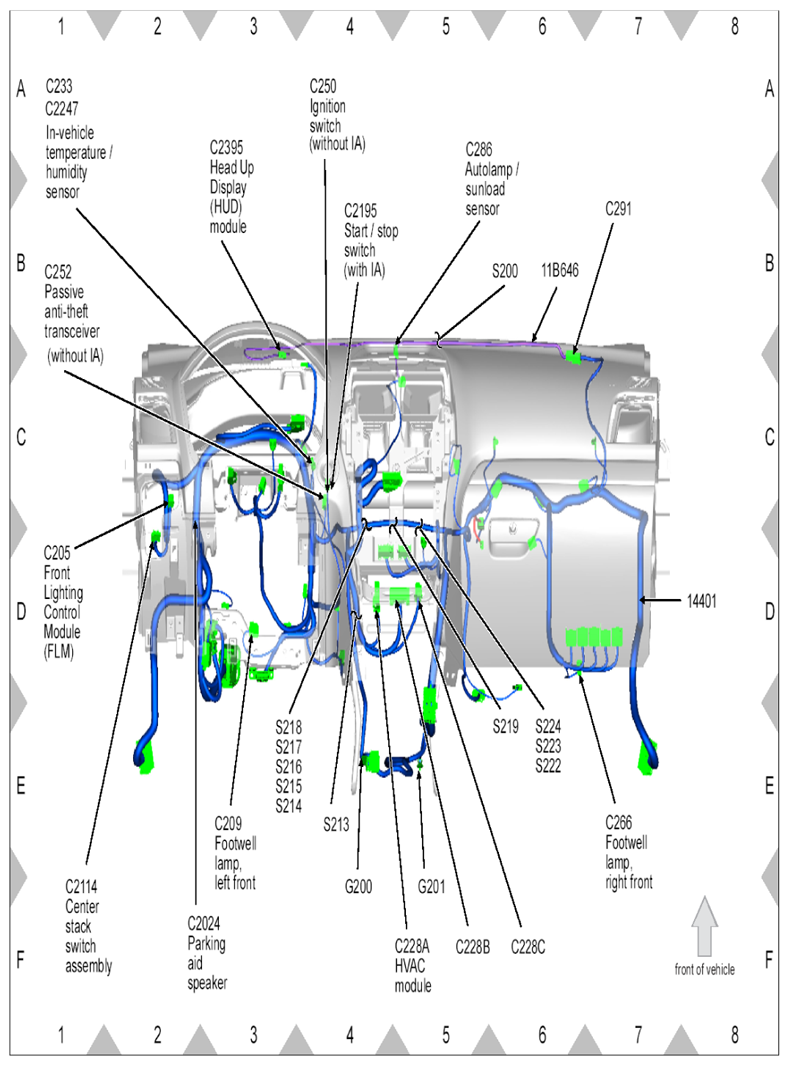

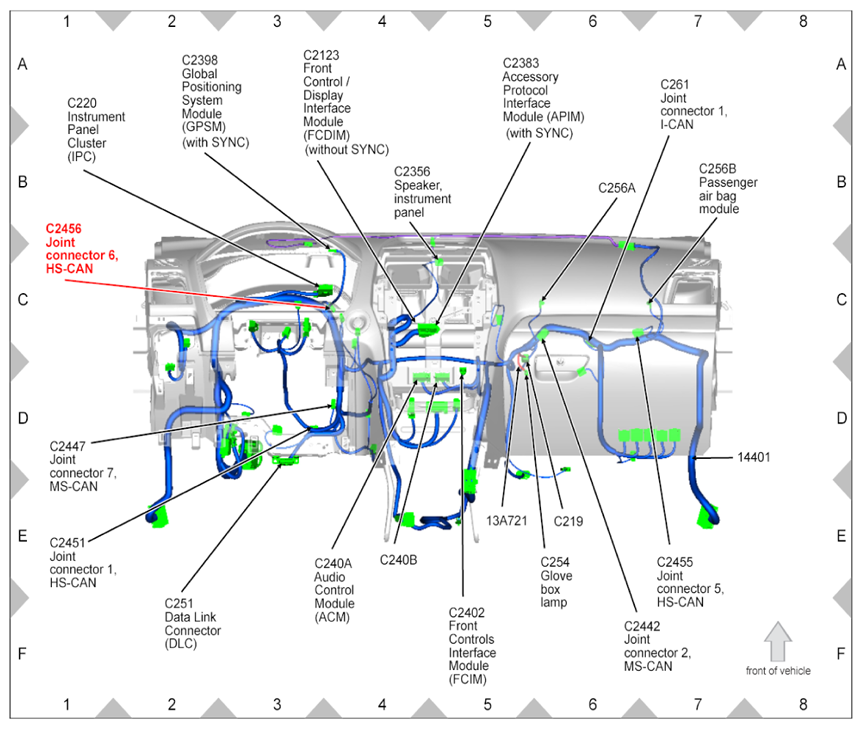

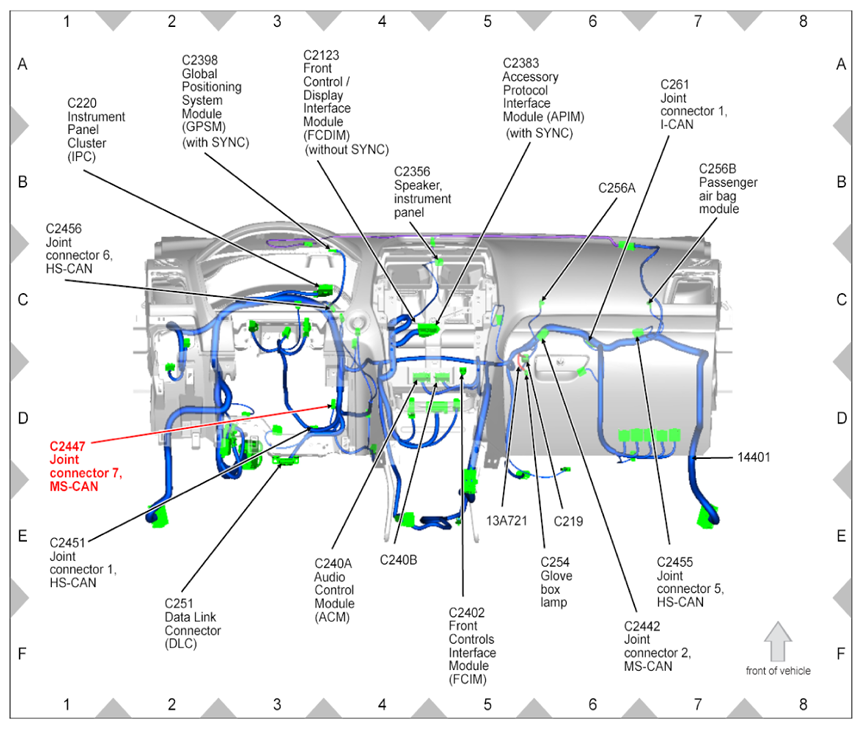

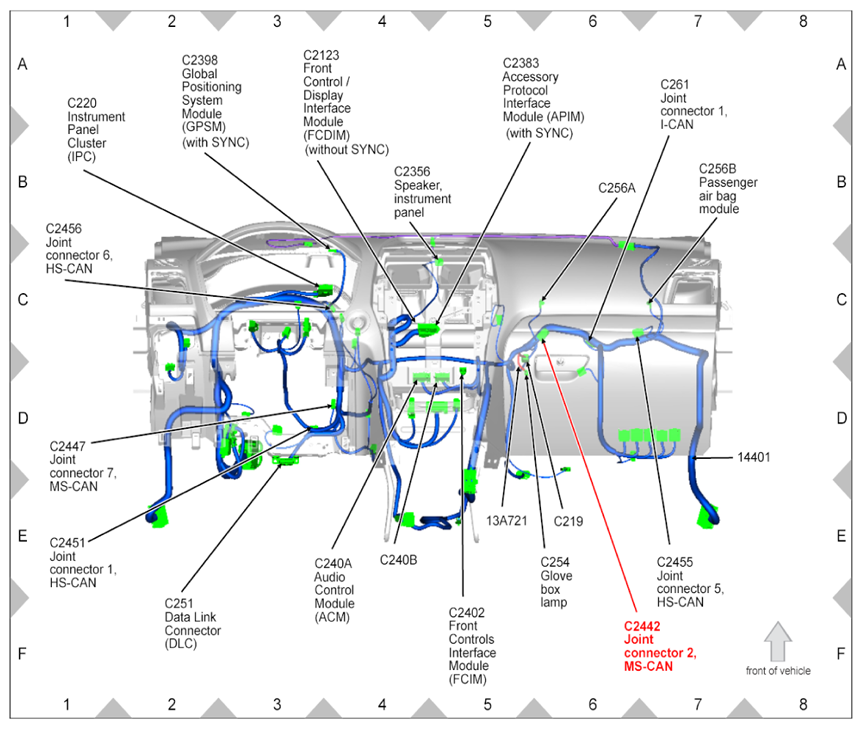

Fig 8: Identifying Dash Board Wiring Harness Connectors Location (1 Of 3)

Courtesy of FORD MOTOR CO.

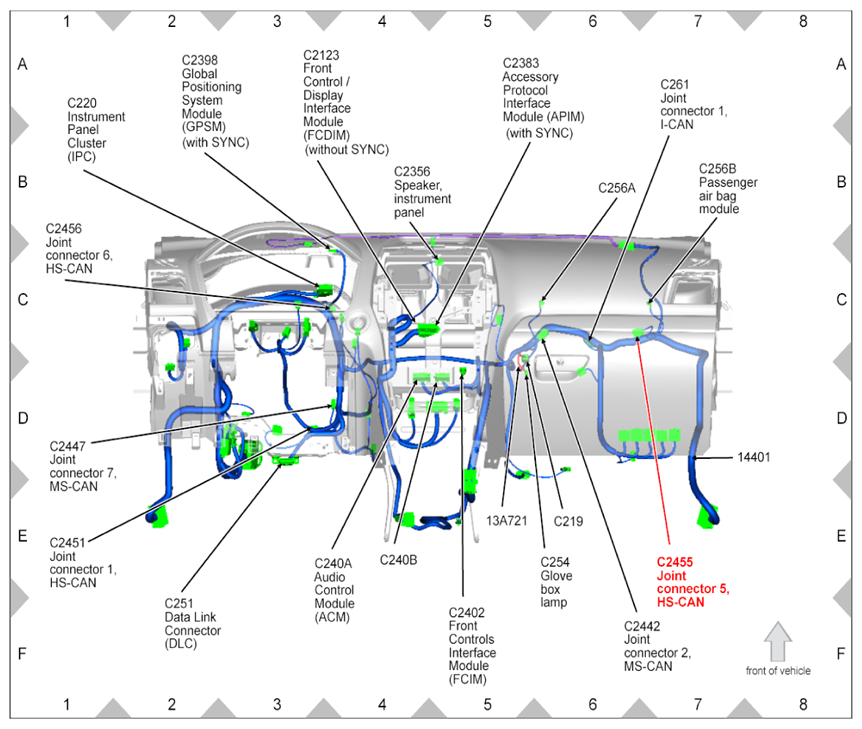

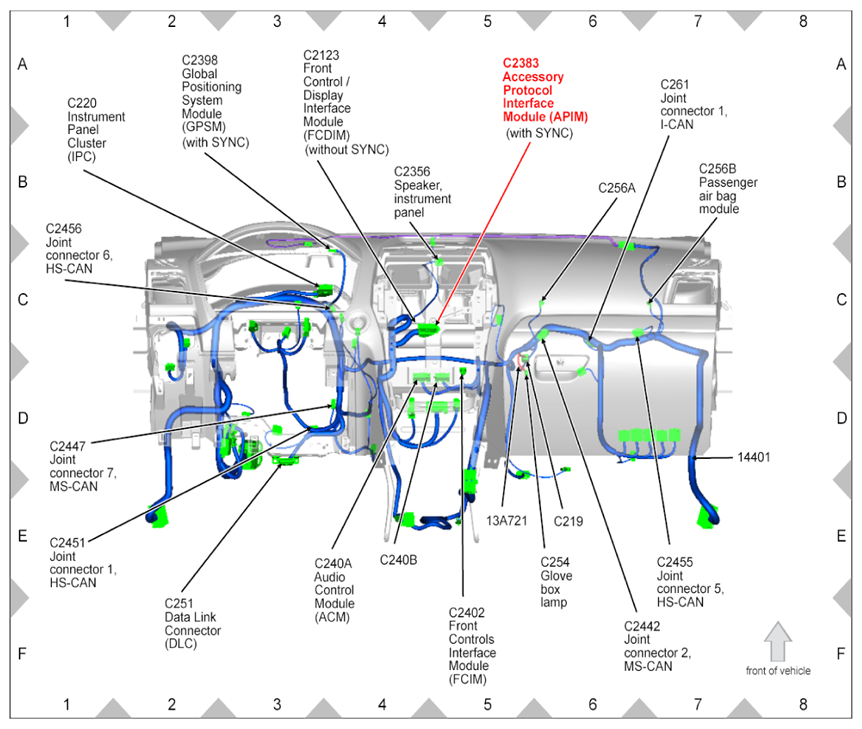

Fig 9: Identifying Dash Board Wiring Harness Connectors Location (2 Of 3)

Courtesy of FORD MOTOR CO.

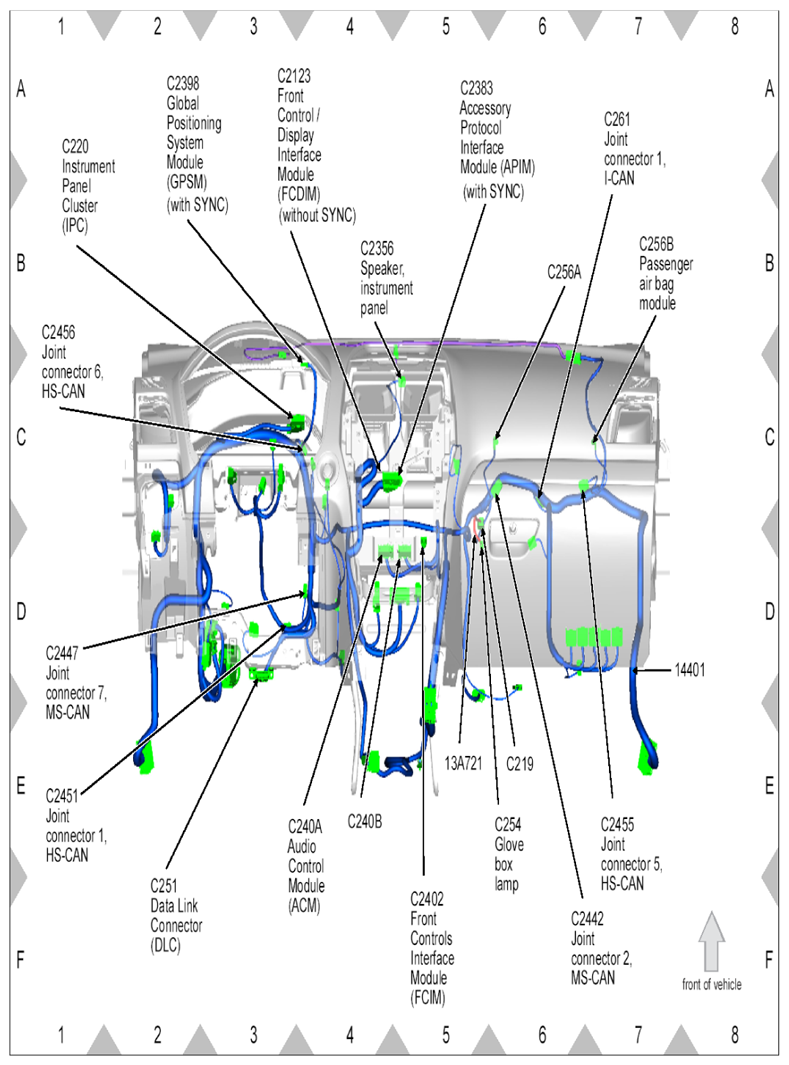

Fig 10: Identifying Dash Board Wiring Harness Connectors Location (3 Of 3)

Courtesy of FORD MOTOR CO.

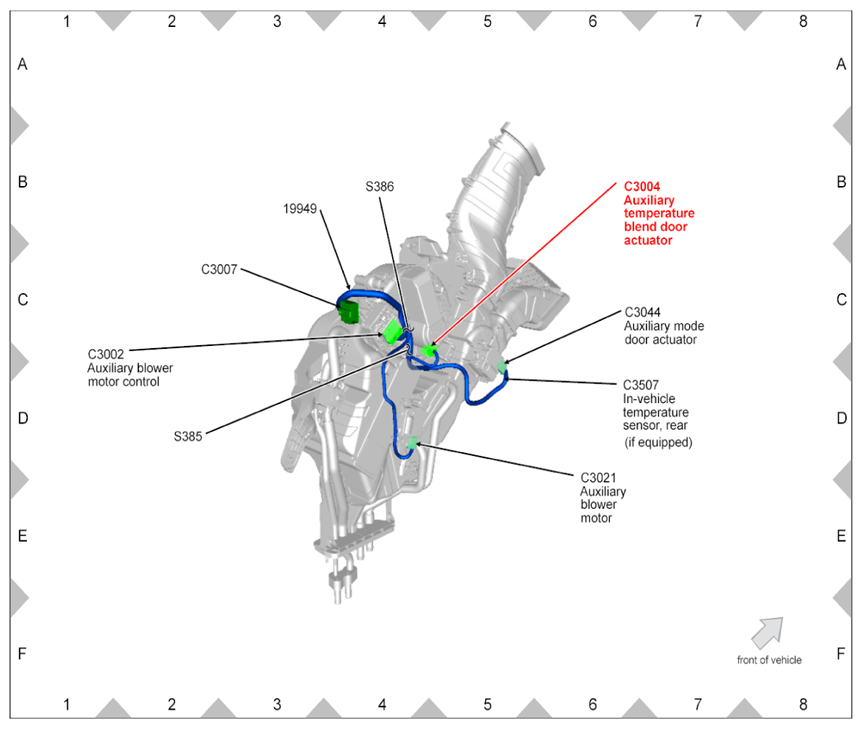

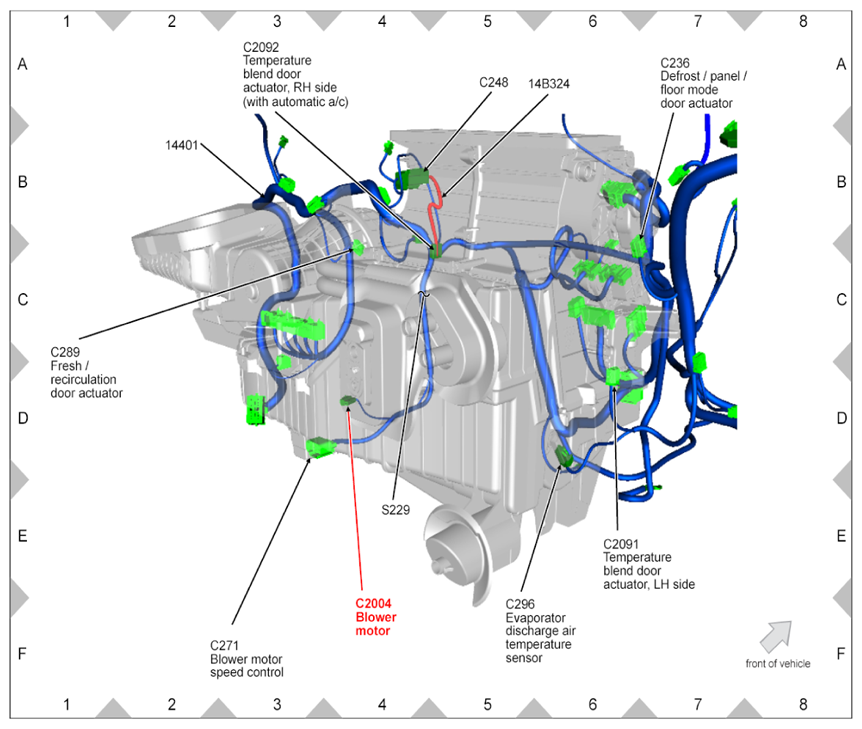

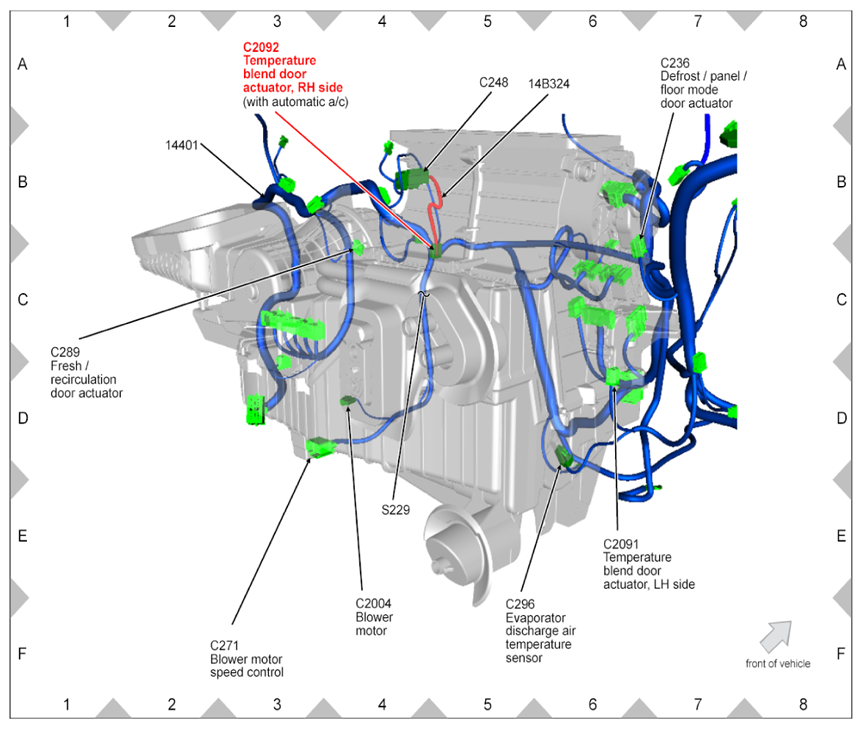

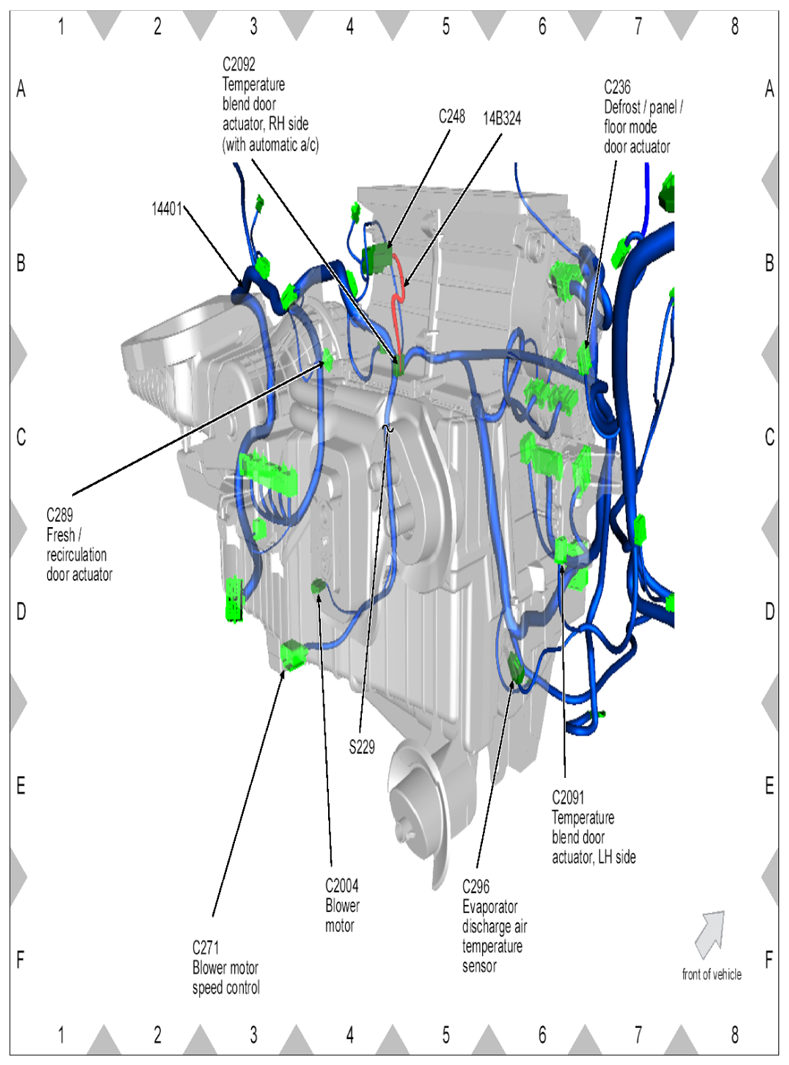

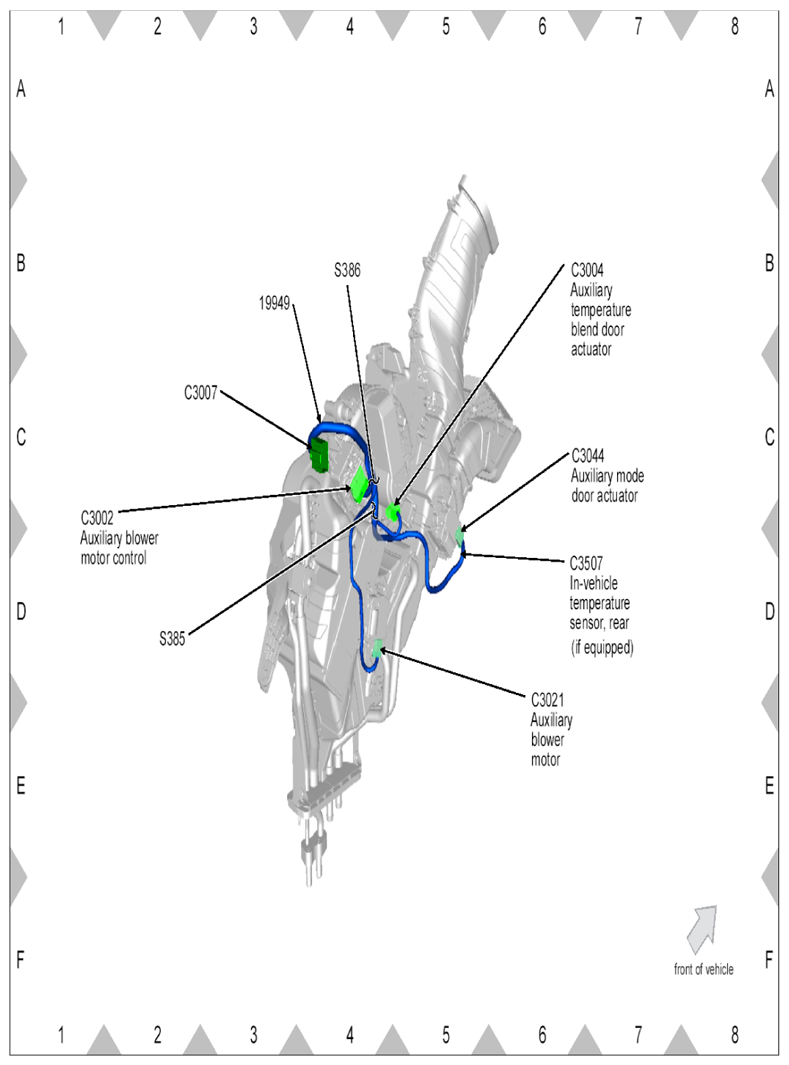

Fig 11: Identifying A/C Blower Compartment Wiring Harness Connectors Location (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 12: Identifying A/C Blower Compartment Wiring Harness Connectors Location (2 Of 2)

Courtesy of FORD MOTOR CO.

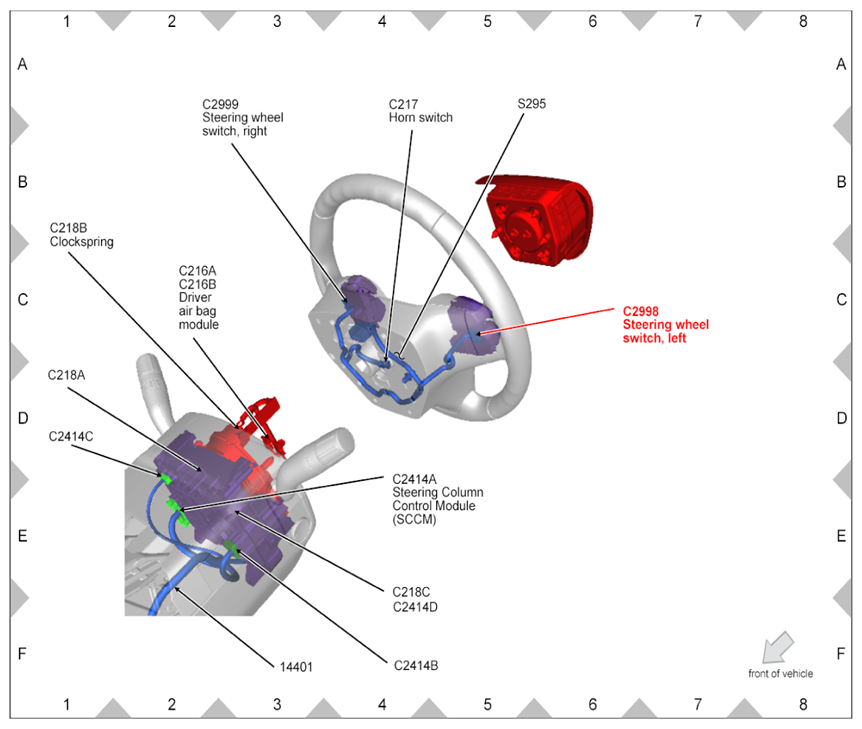

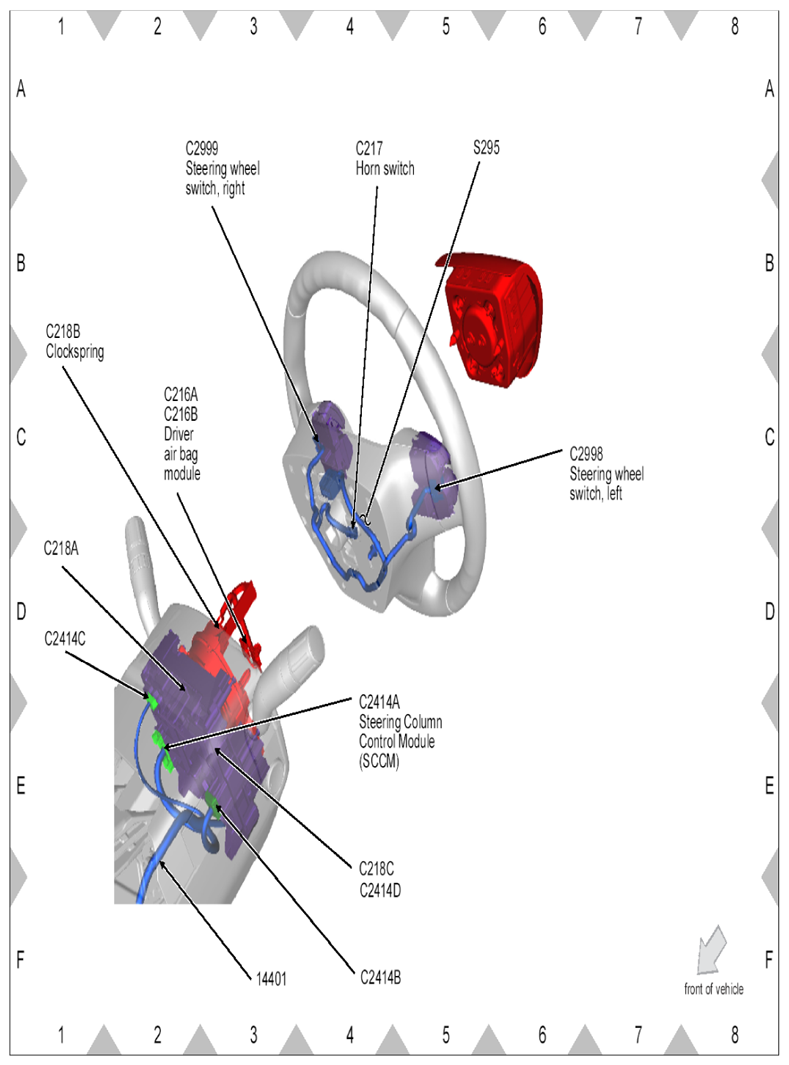

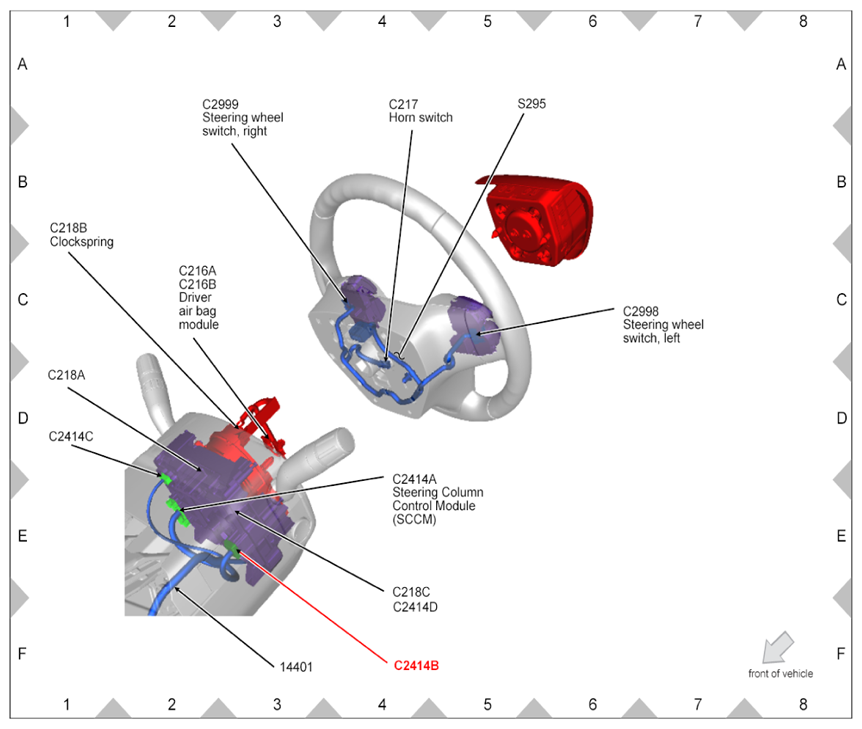

Fig 13: Identifying Steering Column Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

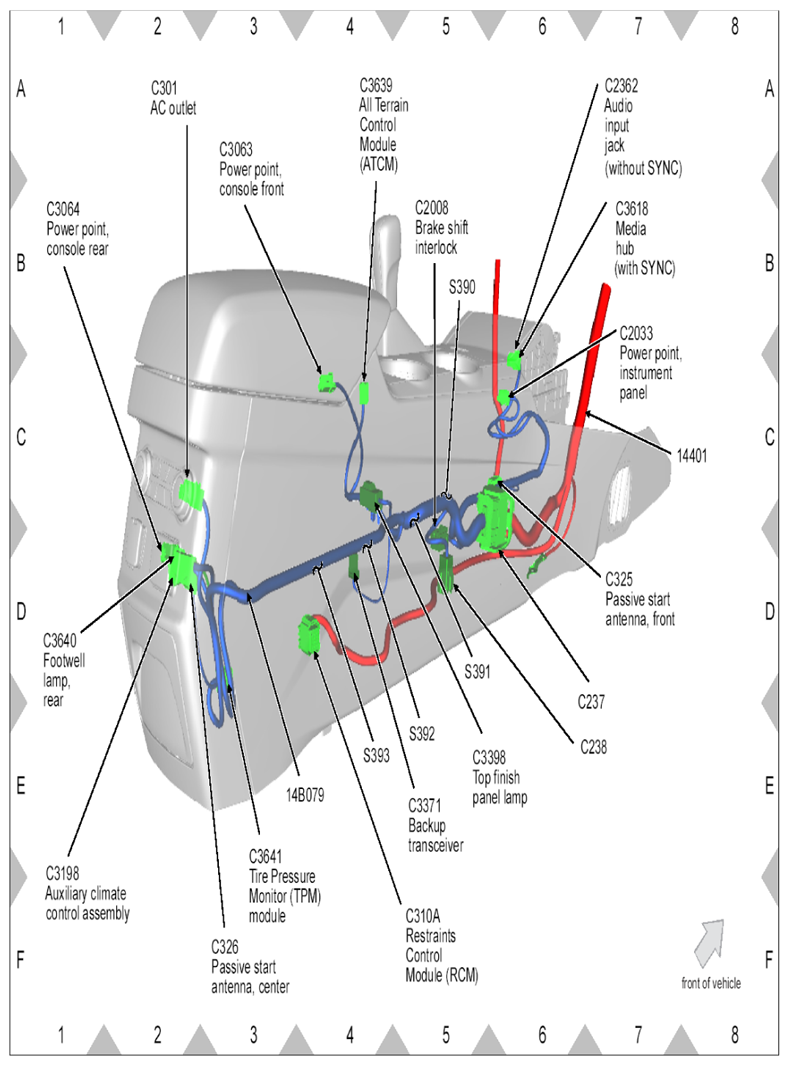

Fig 14: Identifying Center Console Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

Fig 15: Identifying LH Front Compartment Wiring Harness Connectors Location (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 16: Identifying LH Front Compartment Wiring Harness Connectors Location (2 Of 2)

Courtesy of FORD MOTOR CO.

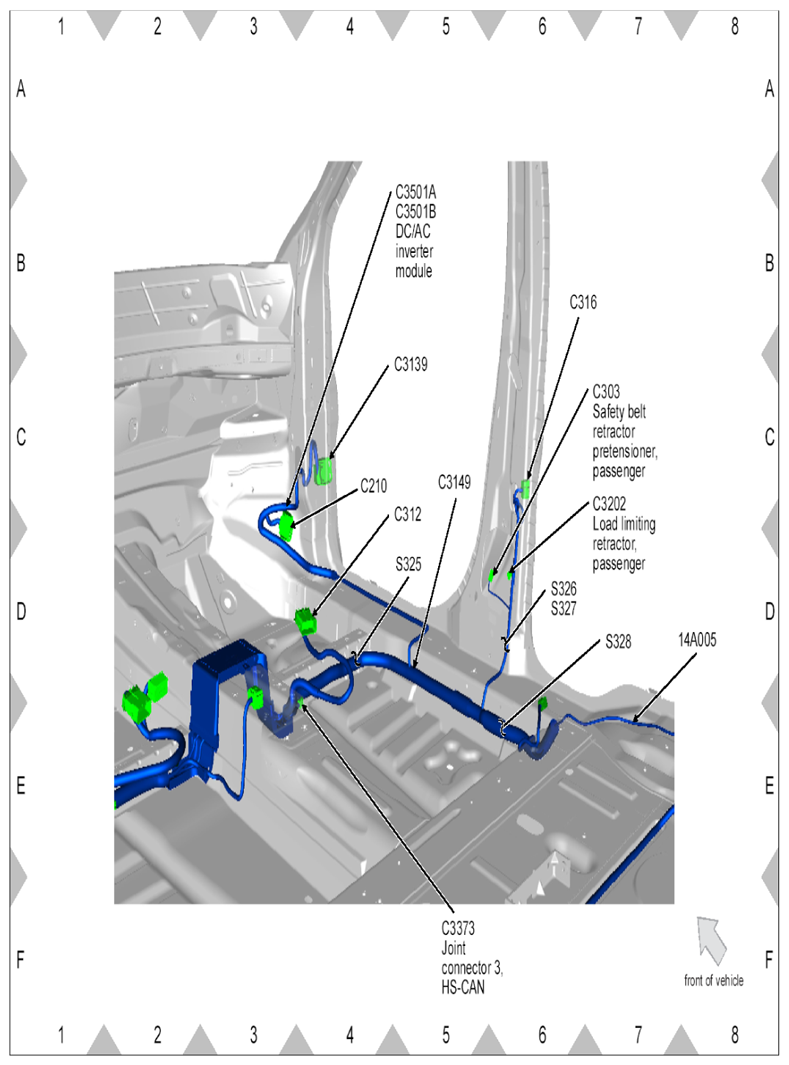

Fig 17: Identifying RH Front Compartment Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

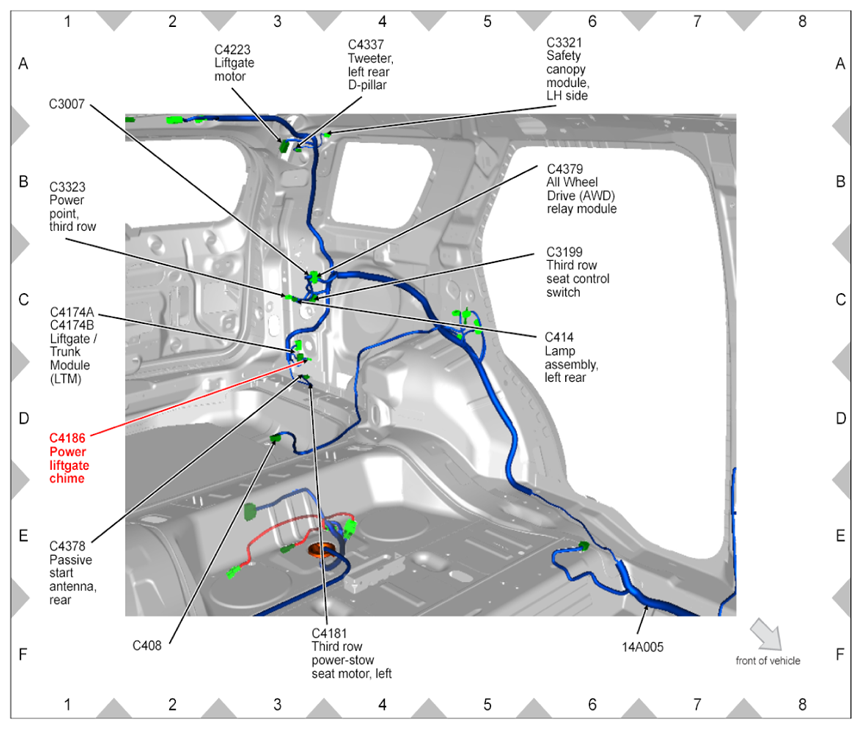

Fig 18: Identifying LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 19: Identifying LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

Courtesy of FORD MOTOR CO.

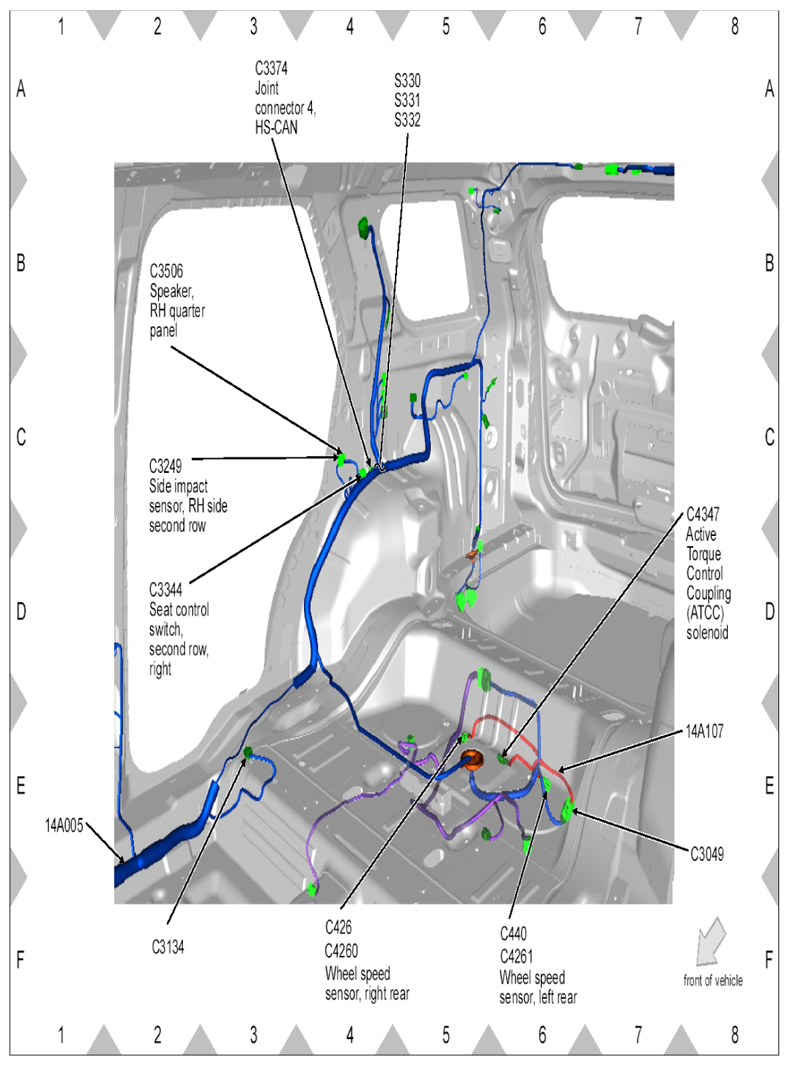

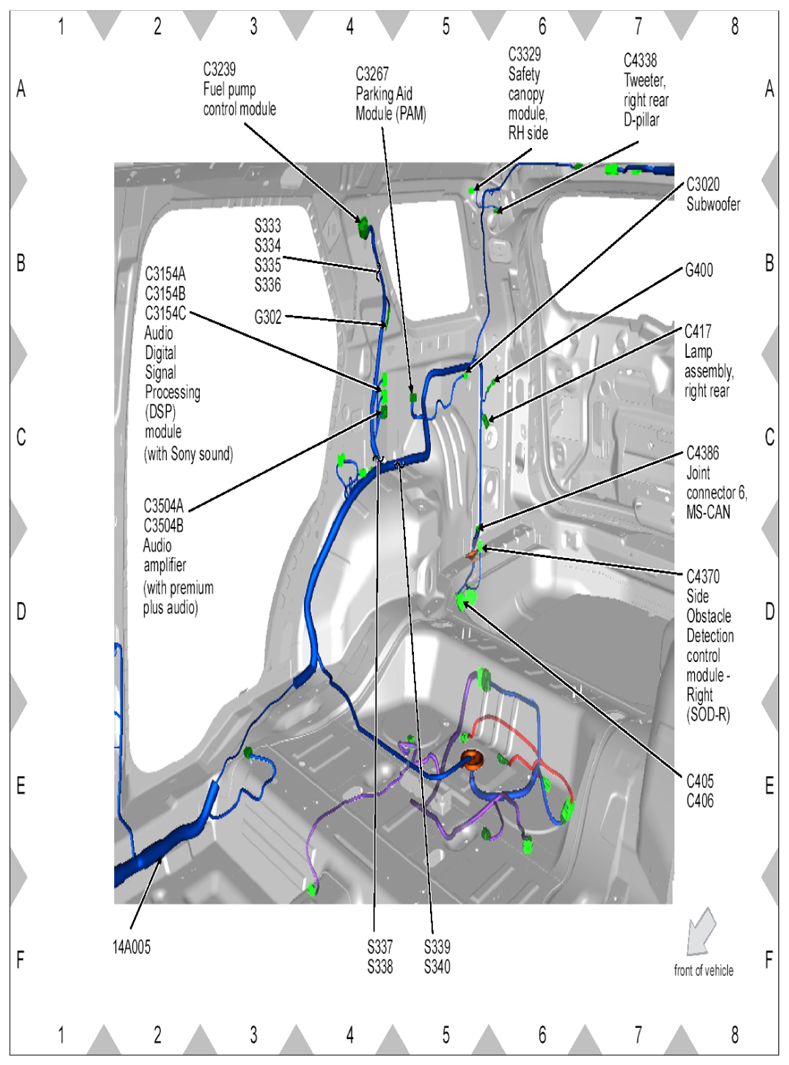

Fig 20: Identifying RH Rear Compartment Wiring Harness Connectors Location (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 21: Identifying RH Rear Compartment Wiring Harness Connectors Location (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 22: Identifying RH Rear Compartment Wiring Harness Connectors Location (3 Of 3)

Courtesy of FORD MOTOR CO.

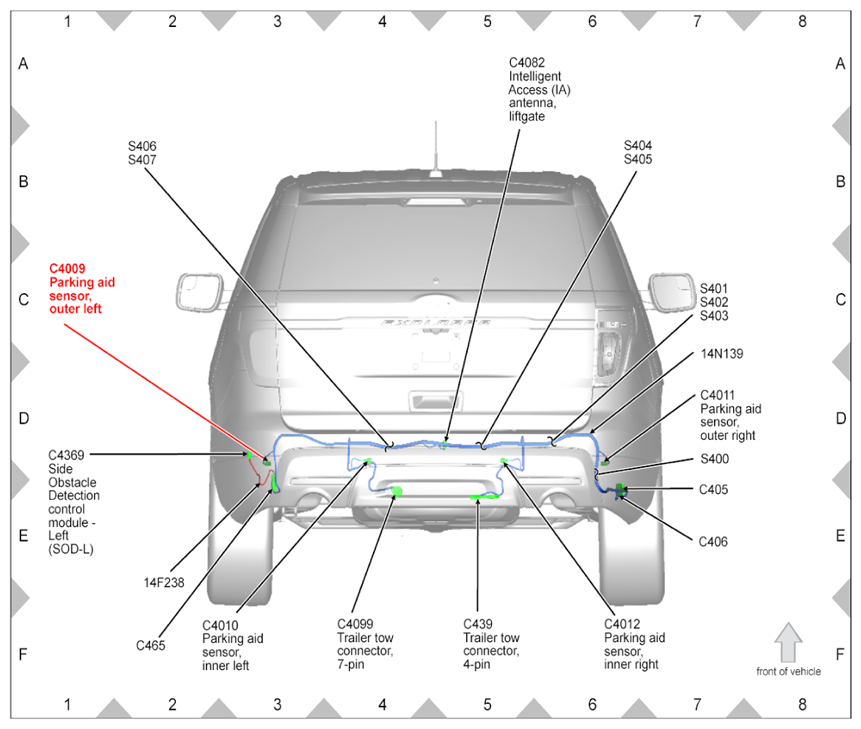

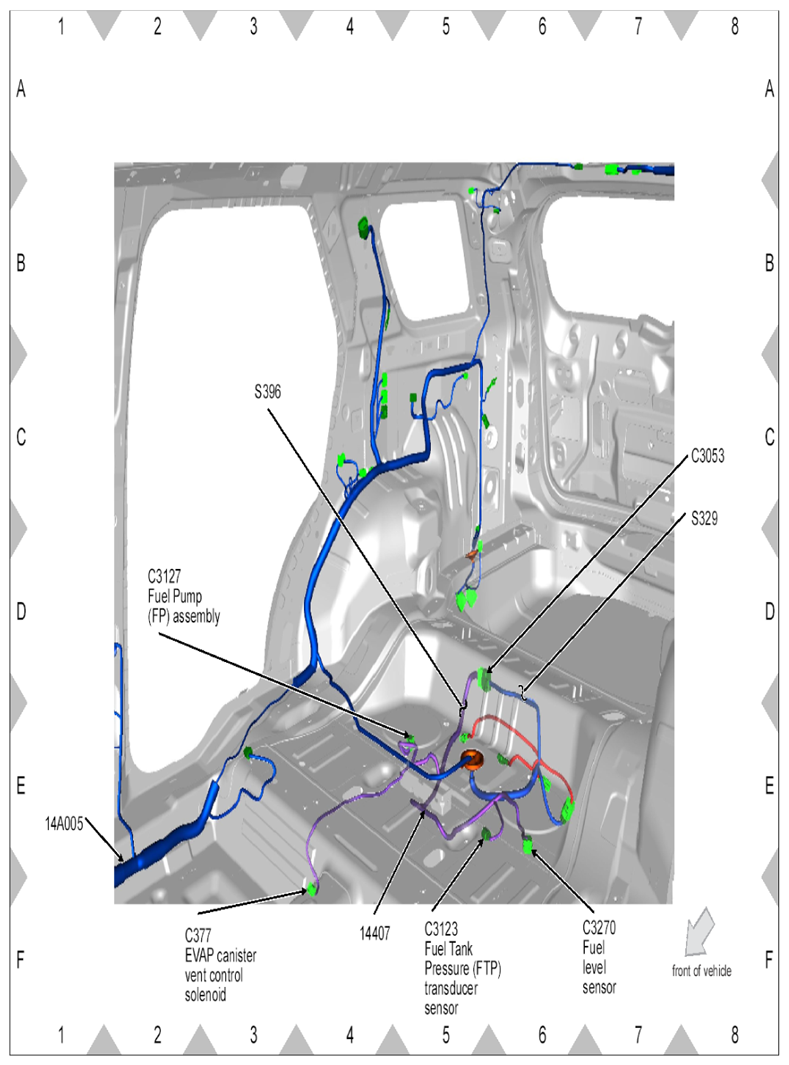

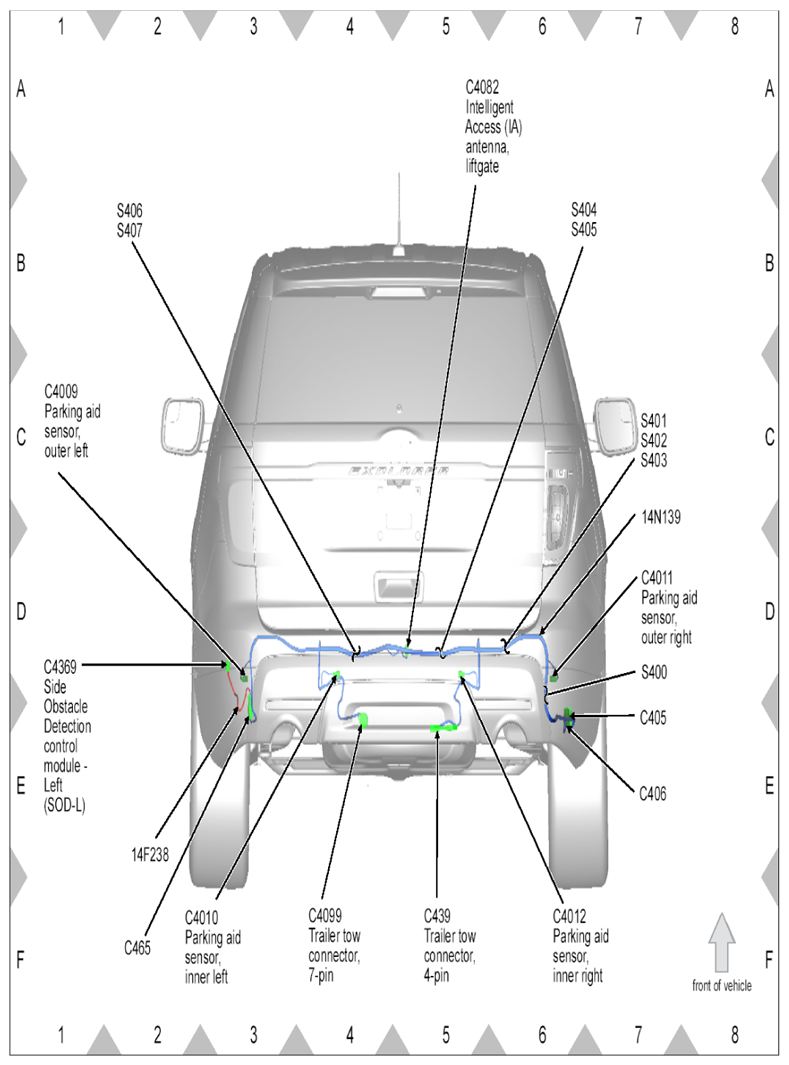

Fig 23: Identifying Rear Compartment Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

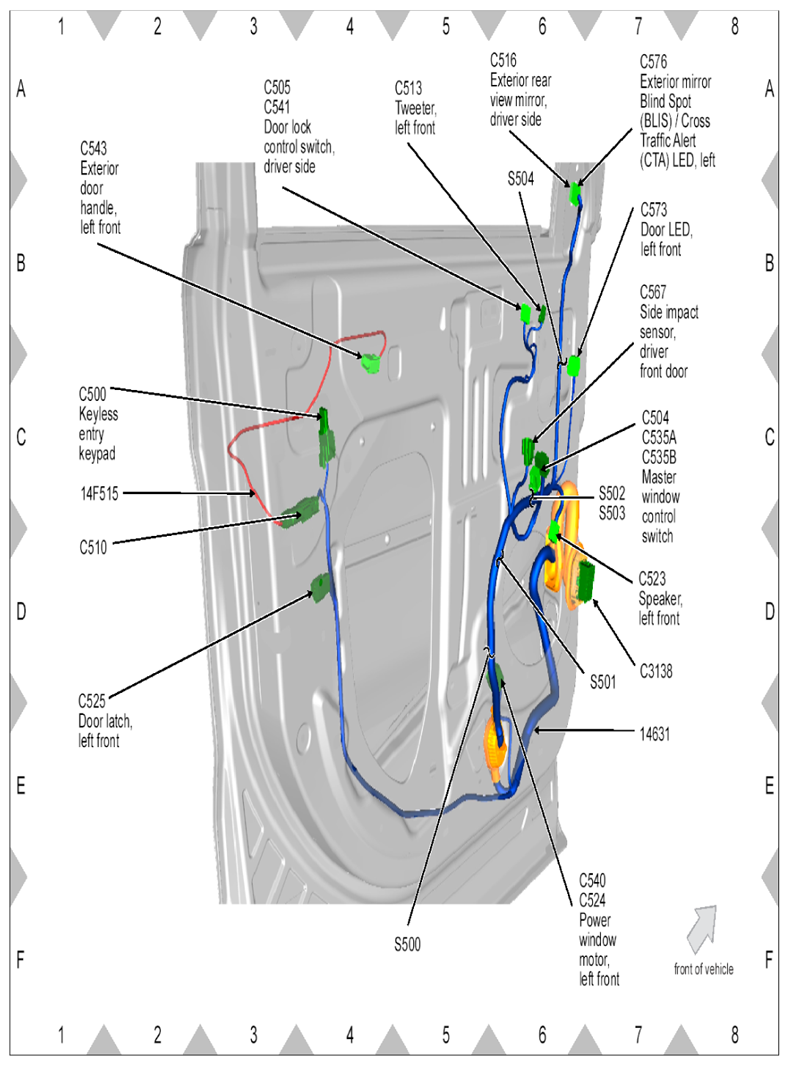

Fig 24: Identifying LH Front Door Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

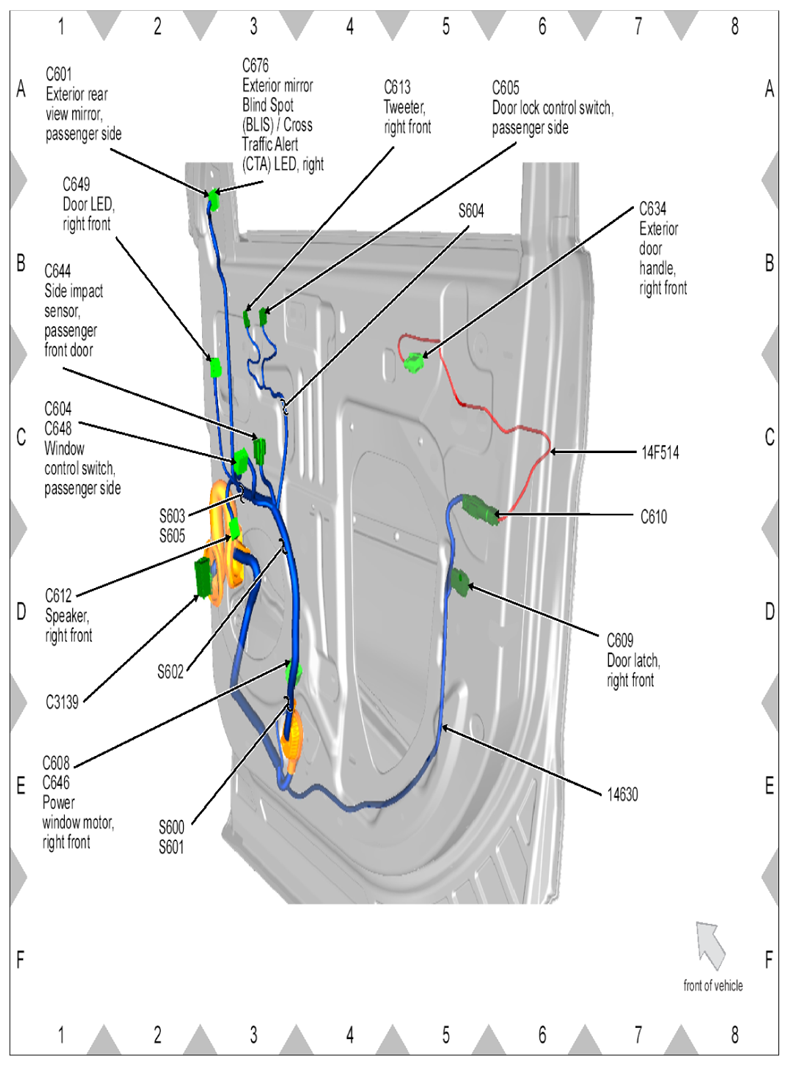

Fig 25: Identifying RH Front Door Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

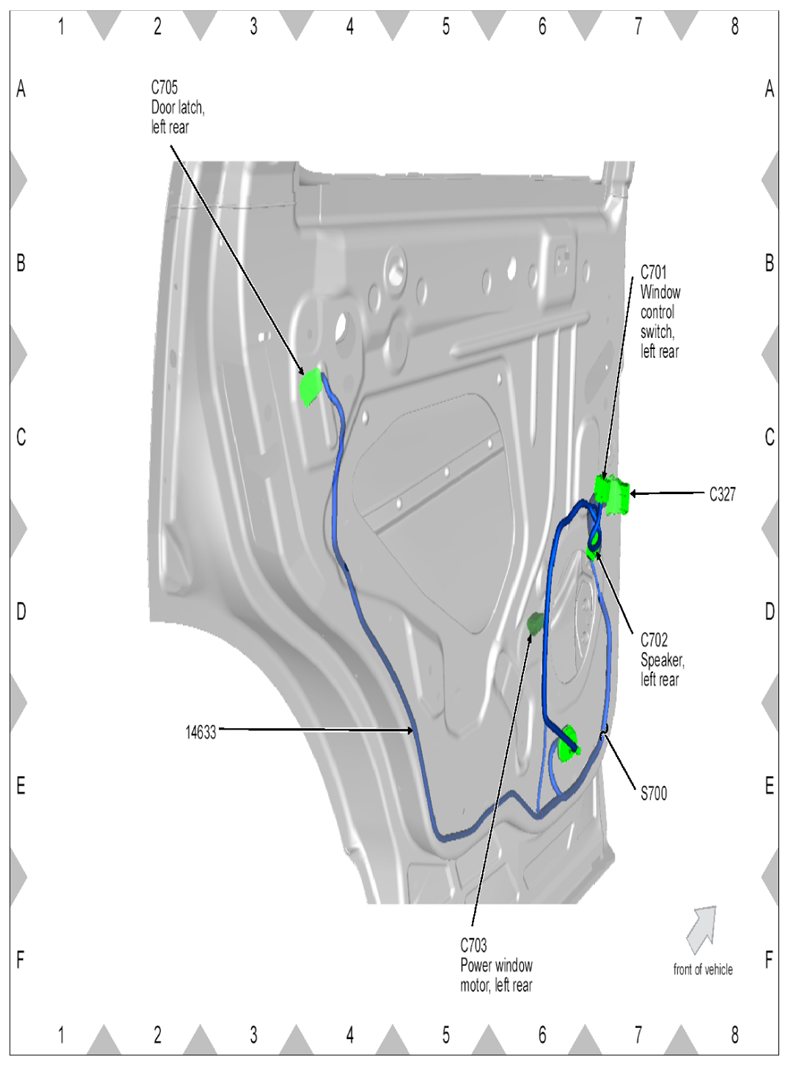

Fig 26: Identifying LH Rear Door Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

Fig 27: Identifying RH Rear Door Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

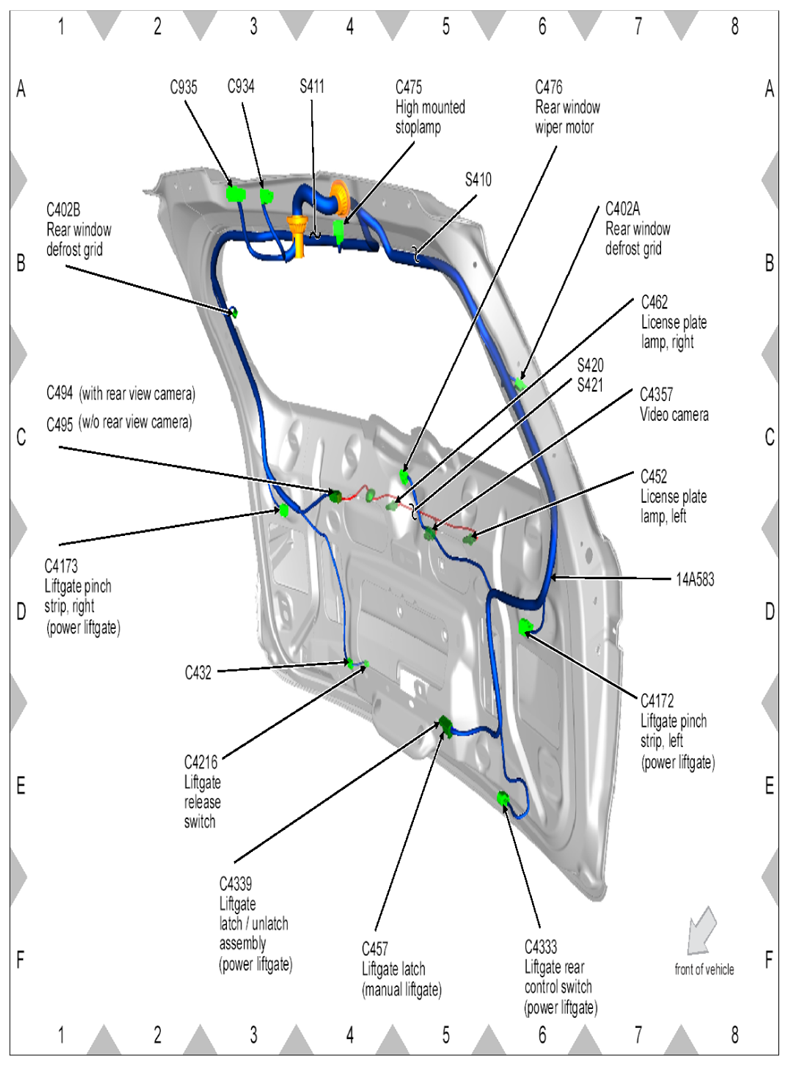

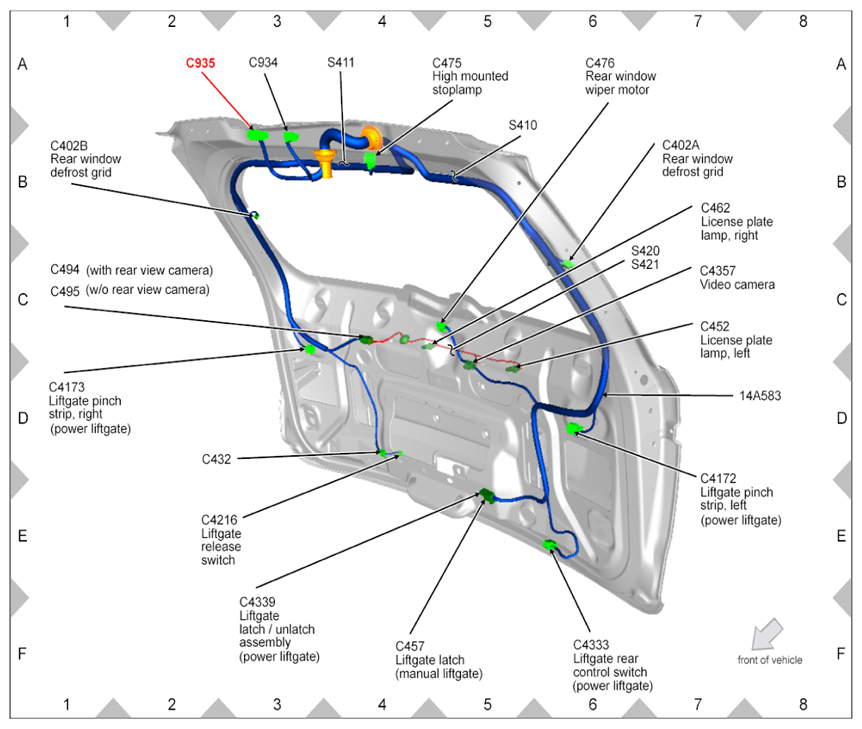

Fig 28: Identifying Back Door Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

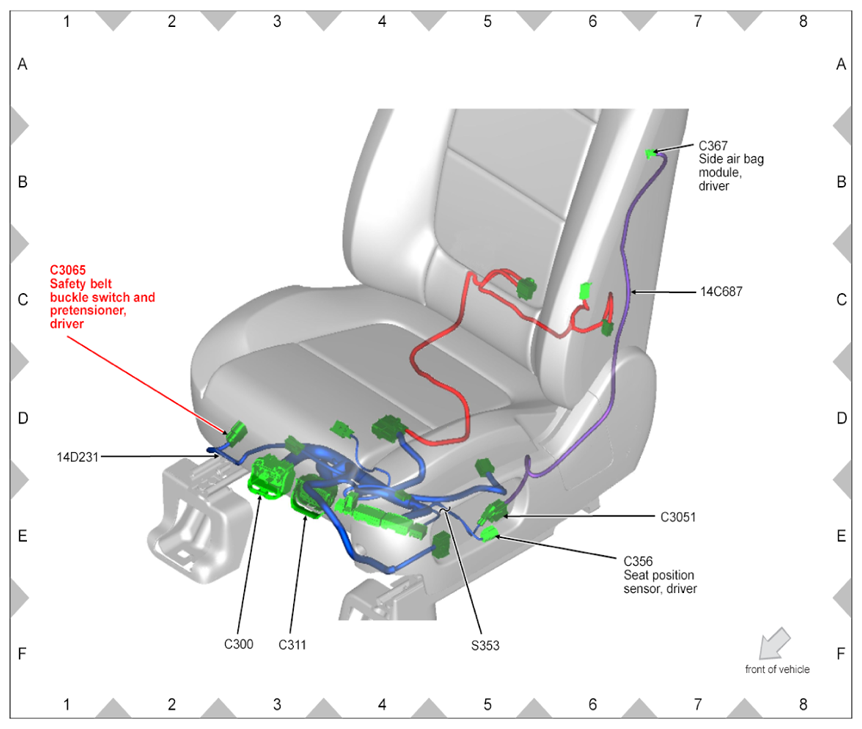

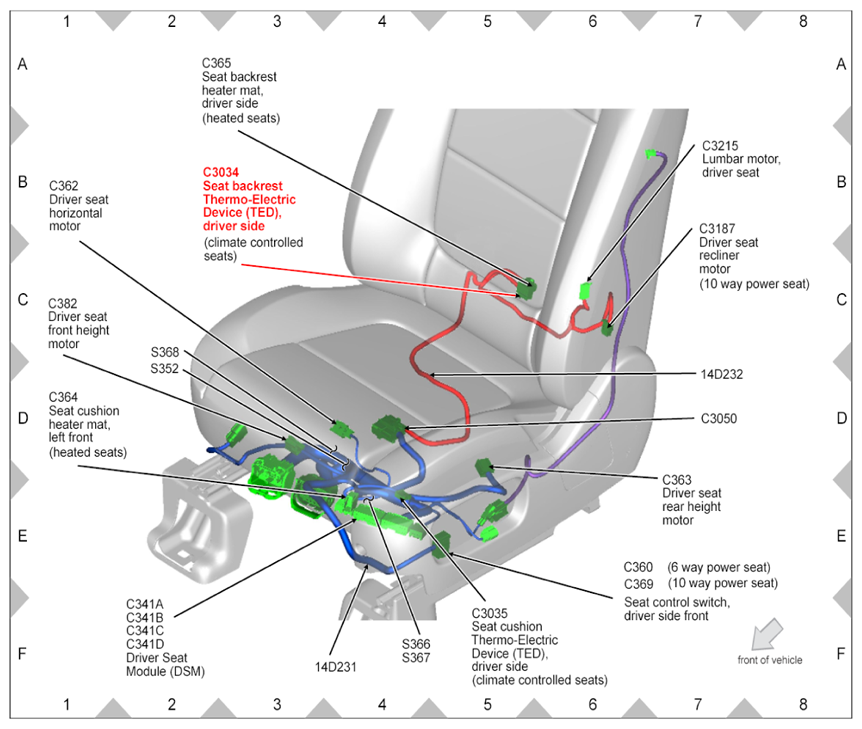

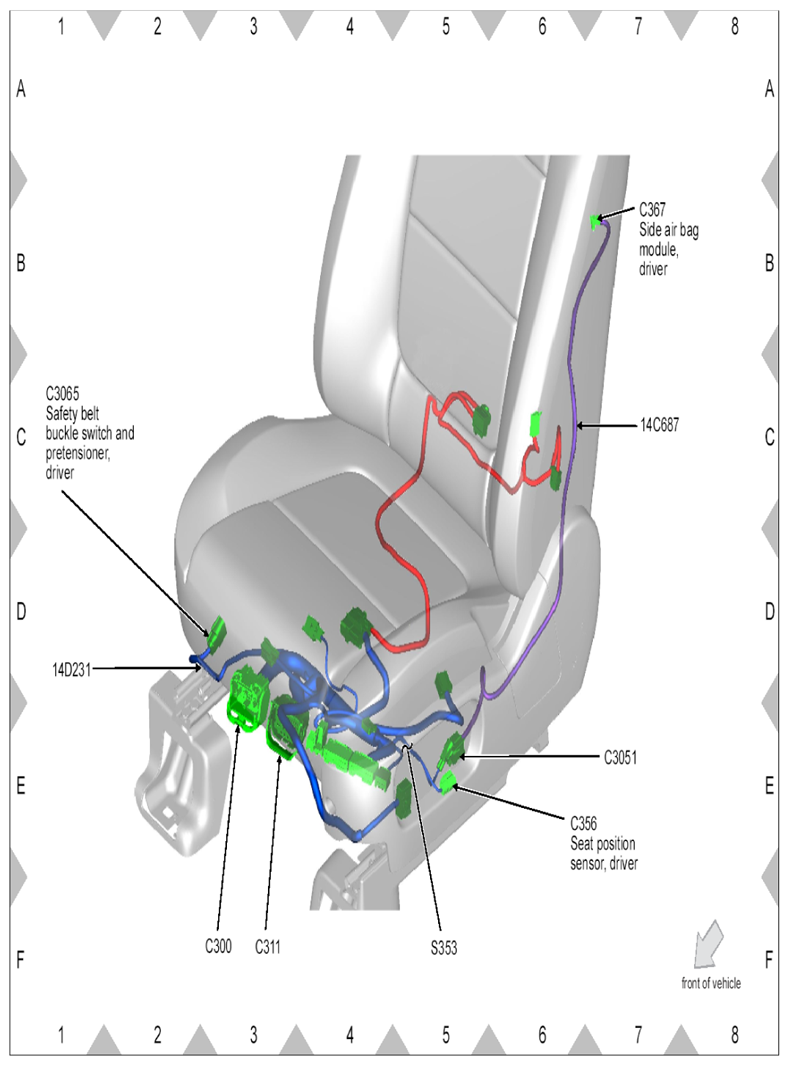

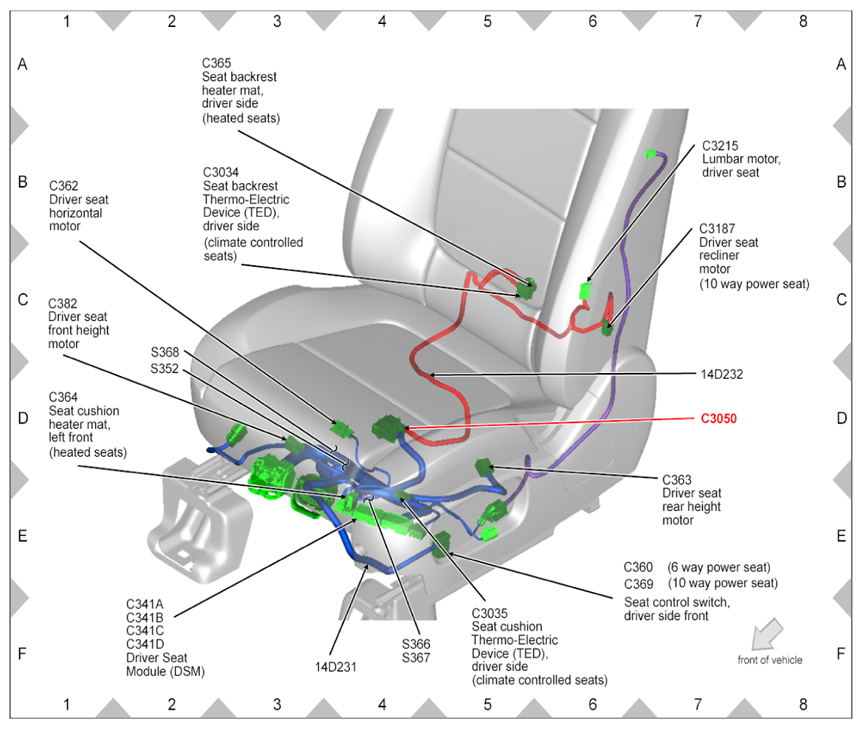

Fig 29: Identifying Driver Seat Wiring Harness Connectors Location (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Driver Seat Wiring Harness Connectors Location (2 Of 2)

Courtesy of FORD MOTOR CO.

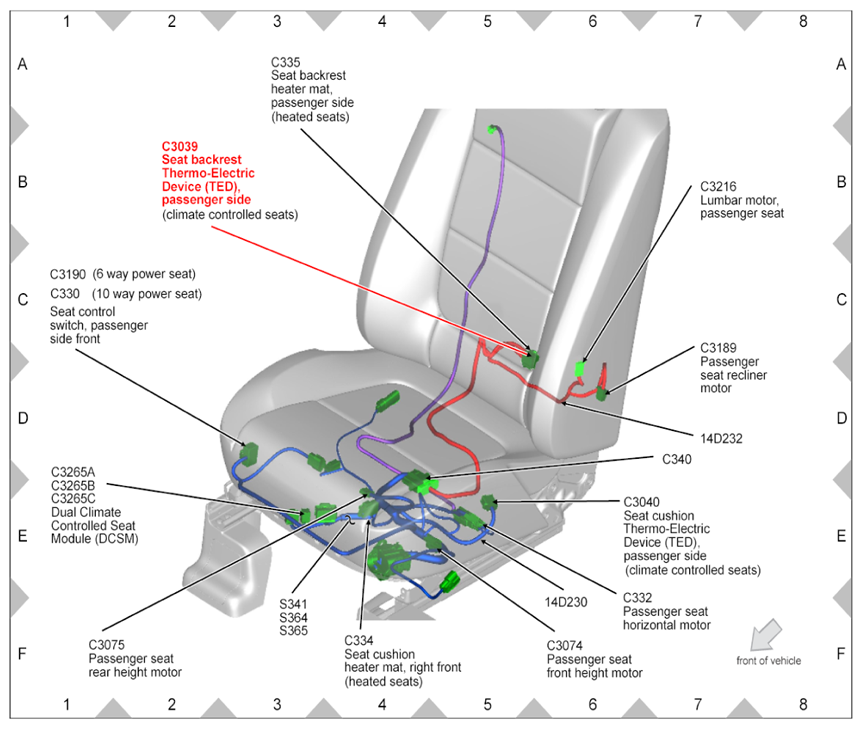

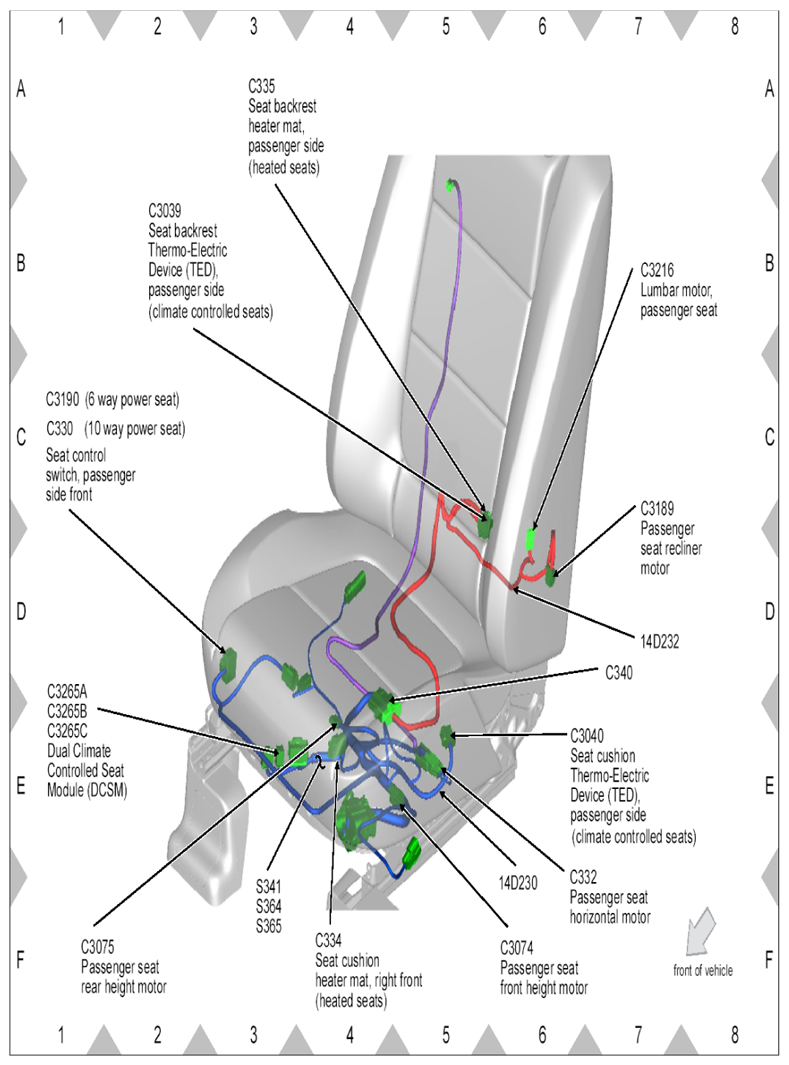

Fig 31: Identifying Passenger Seat Wiring Harness Connectors Location (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 32: Identifying Passenger Seat Wiring Harness Connectors Location (2 Of 2)

Courtesy of FORD MOTOR CO.

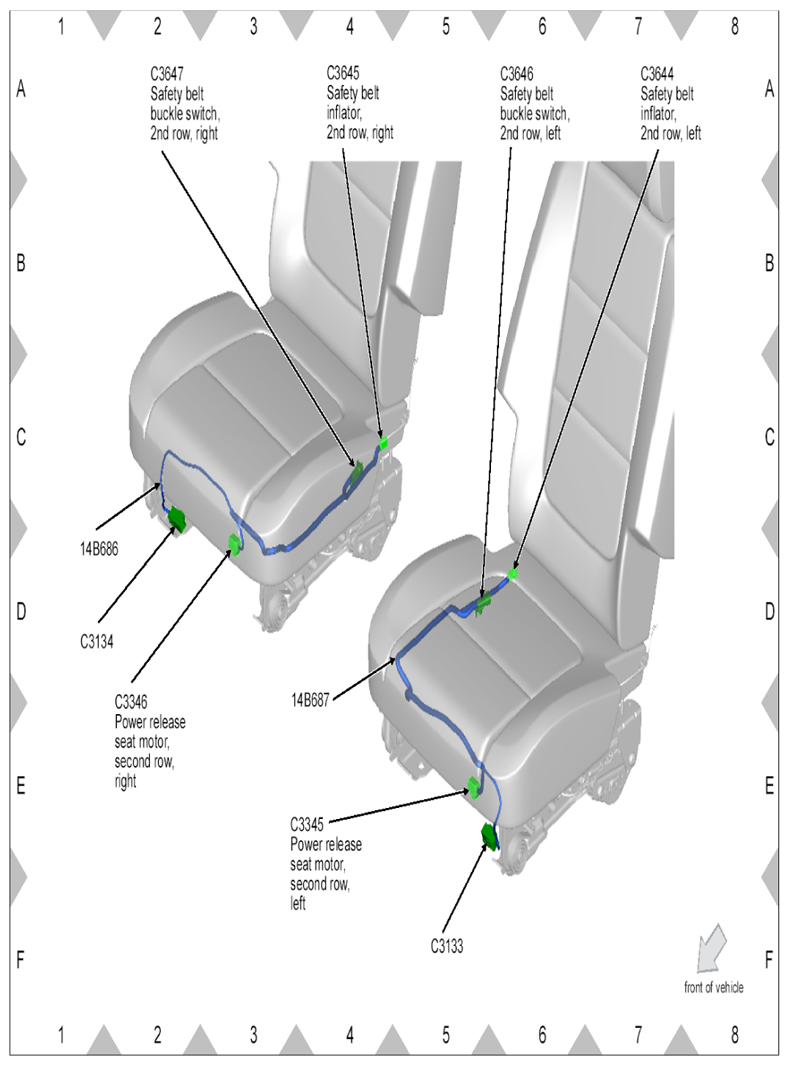

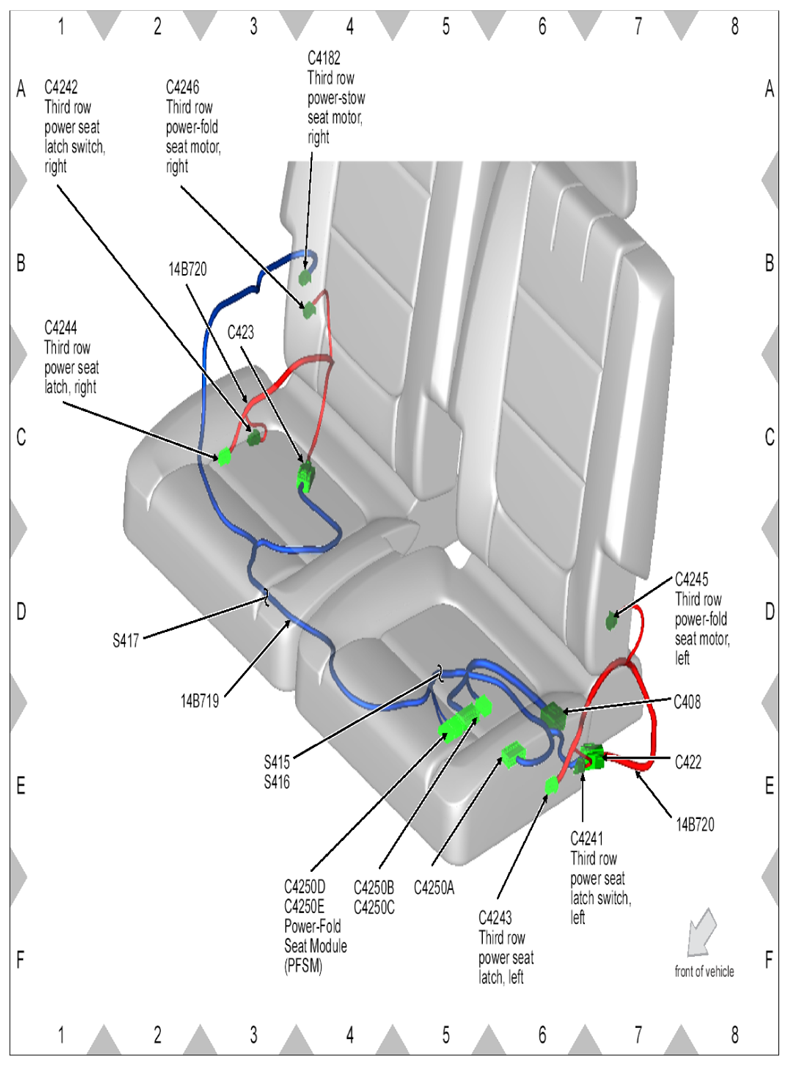

Fig 33: Identifying 2nd Row Passenger Seat Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

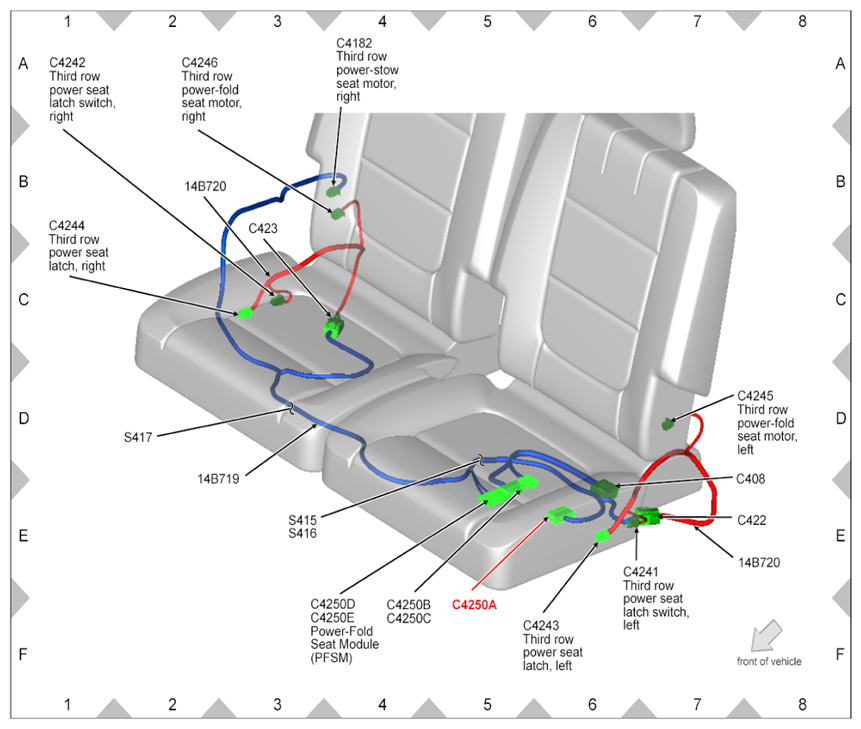

Fig 34: Identifying 3rd Row Passenger Seat Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Roof Wiring Harness Connectors Location

Courtesy of FORD MOTOR CO.

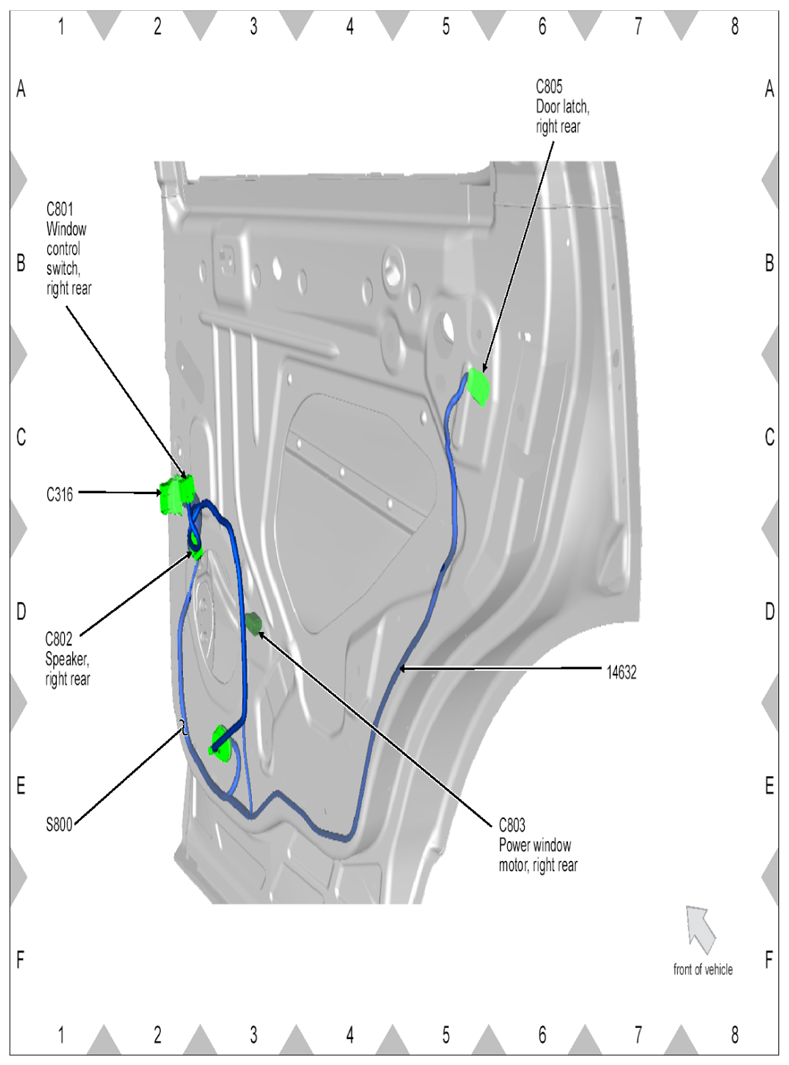

Fig 1: (C805) Door Latch, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

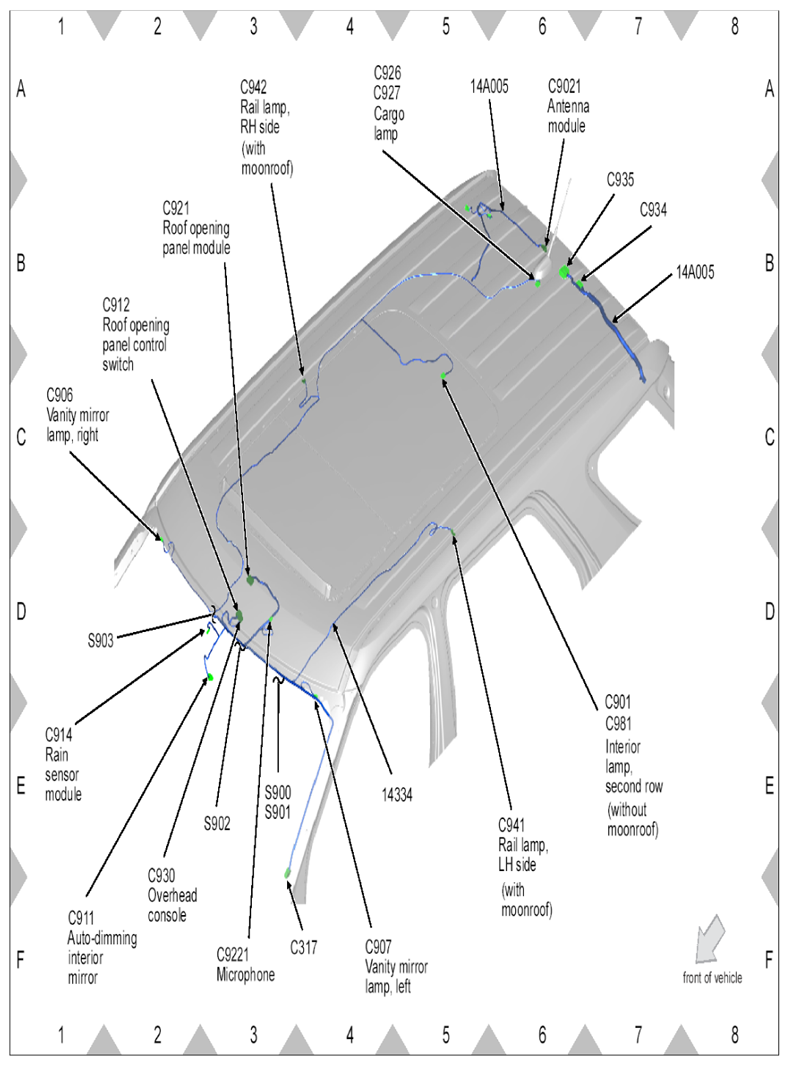

Fig 2: (C901) Connector Location - (LED Lamps Without Moonroof) Roof Panel, Middle, Center

Courtesy of FORD MOTOR CO.

Fig 3: (C906) Vanity Mirror Lamp, Right Location - Roof Panel, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 4: (C907) Vanity Mirror Lamp, Left Location - Roof Panel, Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 5: (C911) Auto-Dimming Interior Mirror Location - Roof Panel, Front

Courtesy of FORD MOTOR CO.

Fig 6: (C912) Roof Opening Panel Control Switch Location - Vehicle Roof, Front

Courtesy of FORD MOTOR CO.

Fig 7: (C914) Rain Sensor Module Location - Roof Panel, Front

Courtesy of FORD MOTOR CO.

Fig 8: (C921) Roof Opening Panel Module Location - Roof Panel, Front

Courtesy of FORD MOTOR CO.

Fig 9: (C926) Cargo Lamp Location - (Incandescent Lamps) Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 10: (C927) Cargo Lamp Location - (LED Lamps) Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 11: (C930) Overhead Console Location - Vehicle Roof, Front

Courtesy of FORD MOTOR CO.

Fig 12: (C934) Connector Location - Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 13: (C935) Connector Location - Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 14: (C941) Rail Lamp, LH Side Location - (With Moonroof) Roof Panel, LH Side, Center

Courtesy of FORD MOTOR CO.

Fig 15: (C942) Rail Lamp, RH Side Location - (With Moonroof) Roof Panel, RH Side, Center

Courtesy of FORD MOTOR CO.

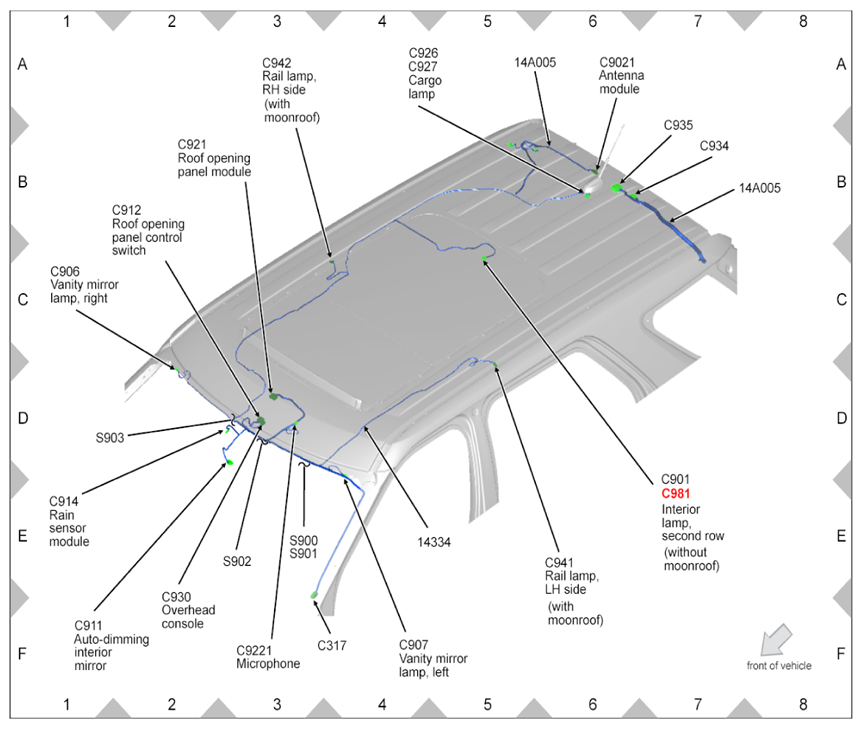

Fig 16: (C981) Connector Location - (Incandescent Lamps Without Moonroof) Roof Panel, Middle, Center

Courtesy of FORD MOTOR CO.

Fig 17: (C1021A) Headlamp Assembly, Left Location - (With Halogen Headlamps) Engine Compartment, LH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 18: (C1021B) Headlamp Assembly, Left Location - (With Halogen Headlamps) Engine Compartment, LH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 19: (C1035) Battery Junction Box (BJB) Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 20: (C1041A) Headlamp Assembly, Right Location - (With Halogen Headlamps) Engine Compartment, RH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 21: (C1041B) Headlamp Assembly, Right Location - (With Halogen Headlamps) Engine Compartment, RH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 22: (C1048) Engine Cooling Fan Motor Location - Front Of Vehicle, Center

Courtesy of FORD MOTOR CO.

Fig 23: (C1100B) Battery Location - LH Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 24: (C1195) Evaporative Emission (EVAP) Canister Purge Valve Location - (3.5L TIVCT) Engine, Top Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 25: (C1260) A/C Pressure Transducer Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 26: (C1284A) Headlamp Assembly, Left Location - (With Hid Headlamps) Engine Compartment, LH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 27: (C1284B) Headlamp Assembly, Left Location - (With Hid Headlamps) Engine Compartment, LH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 28: (C1285A) Headlamp Assembly, Right Location - (With Hid Headlamps) Engine Compartment, RH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 29: (C1285B) Headlamp Assembly, Right Location - (With Hid Headlamps) Engine Compartment, RH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 30: (C1366) Camshaft Position 11 (CMP 11) Sensor Location - (3.5L TIVCT) Engine, Top Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 31: (C1367) Camshaft Position 12 (CMP 12) Sensor Location - (3.5L TIVCT) Engine, Top Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 32: (C1368) Electronic Throttle Control (ETC) Location - (3.5L TIVCT) On Throttle Body

Courtesy of FORD MOTOR CO.

Fig 33: (C1451) Variable Camshaft Timing 11 (VCT11) Solenoid Location - (3.5L TIVCT) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 34: (C1452) Variable Camshaft Timing 12 (VCT12) Solenoid Location - (3.5L TIVCT) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 35: (C1463A) Power Steering Control Module (PSCM) Location - Behind Engine, On Steering Gear

Courtesy of FORD MOTOR CO.

Fig 36: (C1463B) Connector Location - Behind Engine, On Steering Gear

Courtesy of FORD MOTOR CO.

Fig 37: (C1465) Impact Severity Sensor, LH Front Location - Engine Compartment, LH Side, Front Corner

Courtesy of FORD MOTOR CO.

Fig 38: (C1466) Impact Severity Sensor, RH Front Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

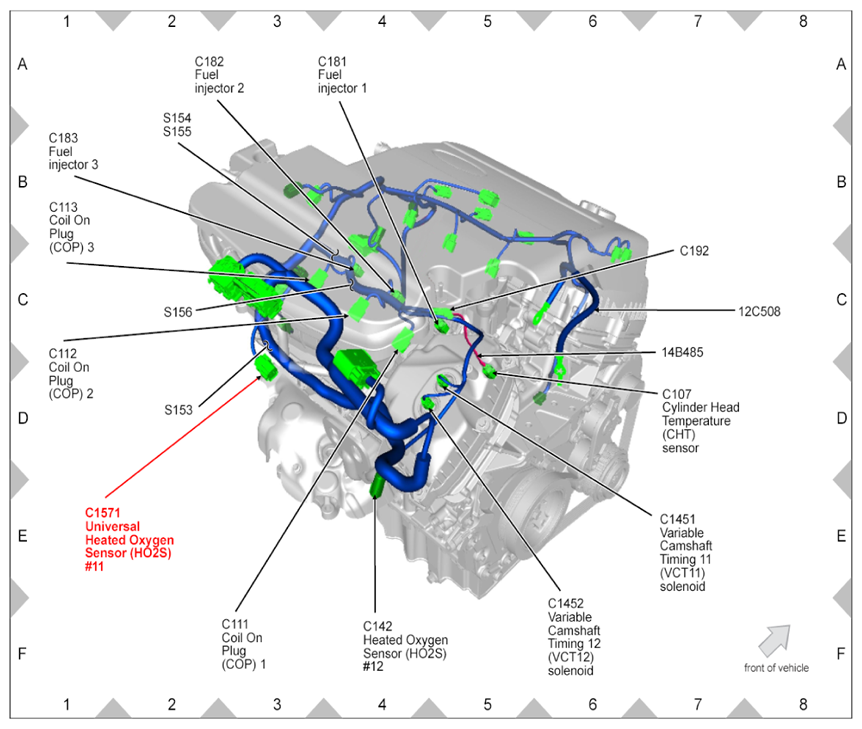

Fig 39: (C1571) Universal Heated Oxygen Sensor (HO2S) #11 Location - (3.5L TIVCT) Exhaust System

Courtesy of FORD MOTOR CO.

Fig 40: (C1572) Universal Heated Oxygen Sensor (HO2S) #21 Location - (3.5L TIVCT) Exhaust System

Courtesy of FORD MOTOR CO.

Fig 41: (C1582) Cruise-Control Module (C-CM) Location - Front Of Vehicle, LH Side Corner

Courtesy of FORD MOTOR CO.

Fig 42: (C1607) Active Park Assist Sensor, Left Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 43: (C1608) Active Park Assist Sensor, Right Location - Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 44: (C1610) Variable Camshaft Timing 21 (VCT21) Solenoid Location - (3.5L TIVCT) Engine, Top Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 45: (C1611) Variable Camshaft Timing 22 (VCT22) Solenoid Location - (3.5L TIVCT) Engine, Top Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 46: (C1612) Camshaft Position 21 (CMP21) Sensor Location - (3.5L TIVCT) Engine, Top Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 47: (C1613) Camshaft Position 22 (CMP22) Sensor Location - (3.5L TIVCT) Engine, Top Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 48: (C1617A) High Current Battery Junction Box (BJB) Location - Engine Compartment, LH Side, On Battery

Courtesy of FORD MOTOR CO.

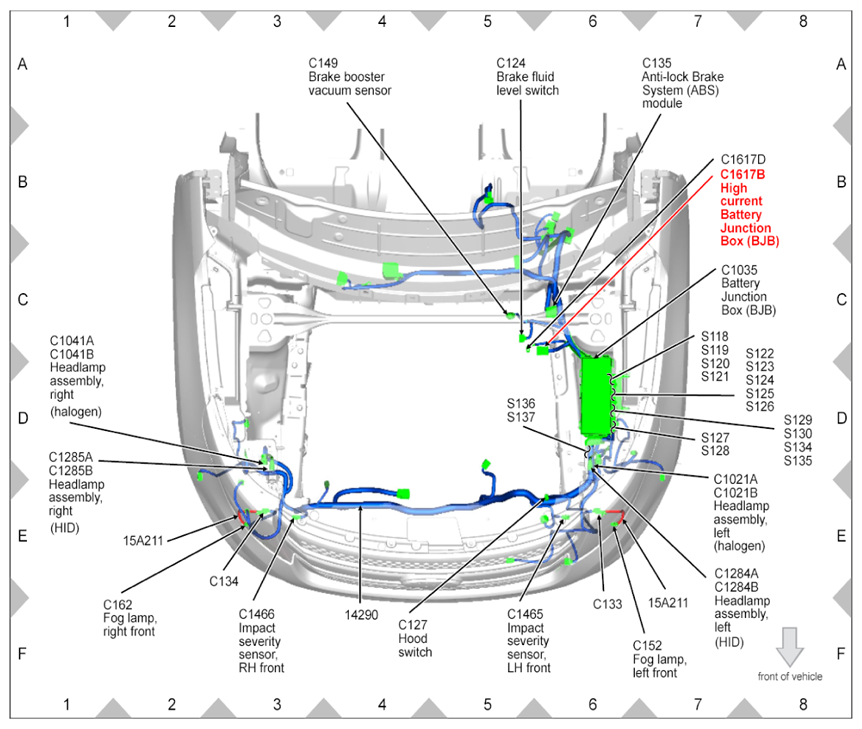

Fig 49: (C1617B) High Current Battery Junction Box (BJB) Location - Engine Compartment, LH Side, On Battery

Courtesy of FORD MOTOR CO.

Fig 50: (C1617C) High Current Battery Junction Box (BJB) Location - Engine Compartment, LH Side, On Battery

Courtesy of FORD MOTOR CO.

Fig 51: (C1617D) High Current Battery Junction Box (BJB) Location - Engine Compartment, LH Side, On Battery

Courtesy of FORD MOTOR CO.

Fig 52: (C1645) Generator Current Sensor Location - Front Right Hand Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 53: (C1646) Battery Current Sensor Location - LH Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 54: (C2003) Adjustable Pedal Motor Location - Behind Left Hand Side Of Instrument Panel, On Accelerator Pedal Bracket

Courtesy of FORD MOTOR CO.

Fig 55: (C2004) Blower Motor Location - (DATC) Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 56: (C2008) Brake Shift Interlock Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 57: (C2015) Parking Brake Switch Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 58: (C2024) Parking Aid Speaker Location - Behind Left Hand Side Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 59: (C2033) Power Point, Instrument Panel Location - In Center Console, Front

Courtesy of FORD MOTOR CO.

Fig 60: (C2040) Accelerator Pedal Position (APP) Sensor Location - Behind Left Hand Side Of Instrument Panel, On Accelerator Pedal Bracket

Courtesy of FORD MOTOR CO.

Fig 61: (C2091) Temperature Blend Door Actuator, LH Side Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 62: (C2092) Temperature Blend Door Actuator, RH Side Location - (With Automatic A/C) Behind Dash Panel, Top Right Of Center

Courtesy of FORD MOTOR CO.

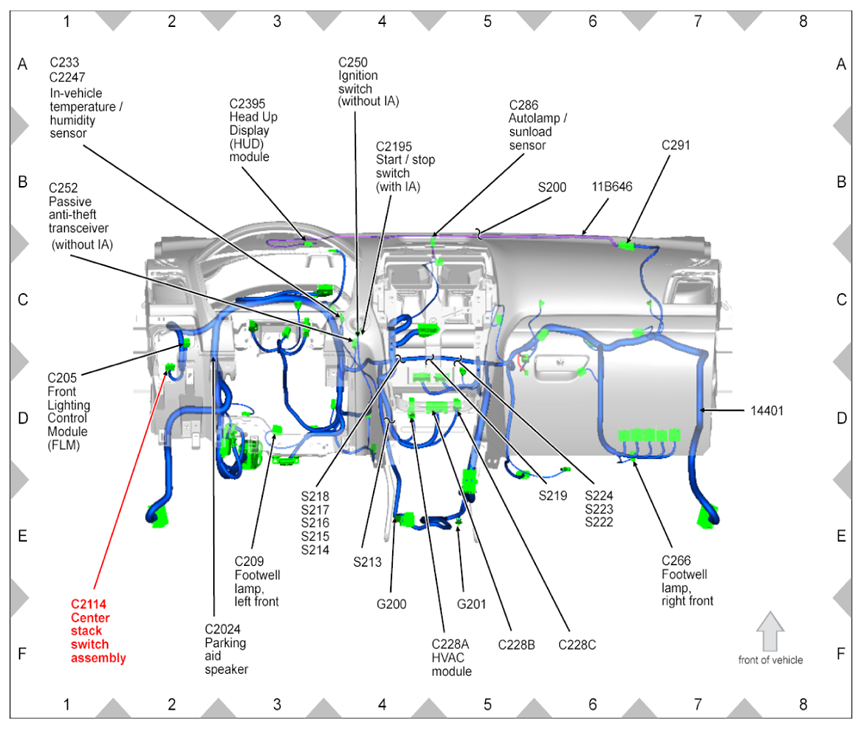

Fig 63: (C2114) Center Stack Switch Assembly Location - Behind Left Hand Side Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 64: (C2123) Front Control/Display Interface Module (FCDIM) Location - (Without Sync) Top Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 65: (C2142) Trailer Brake Control (TBC) Module Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

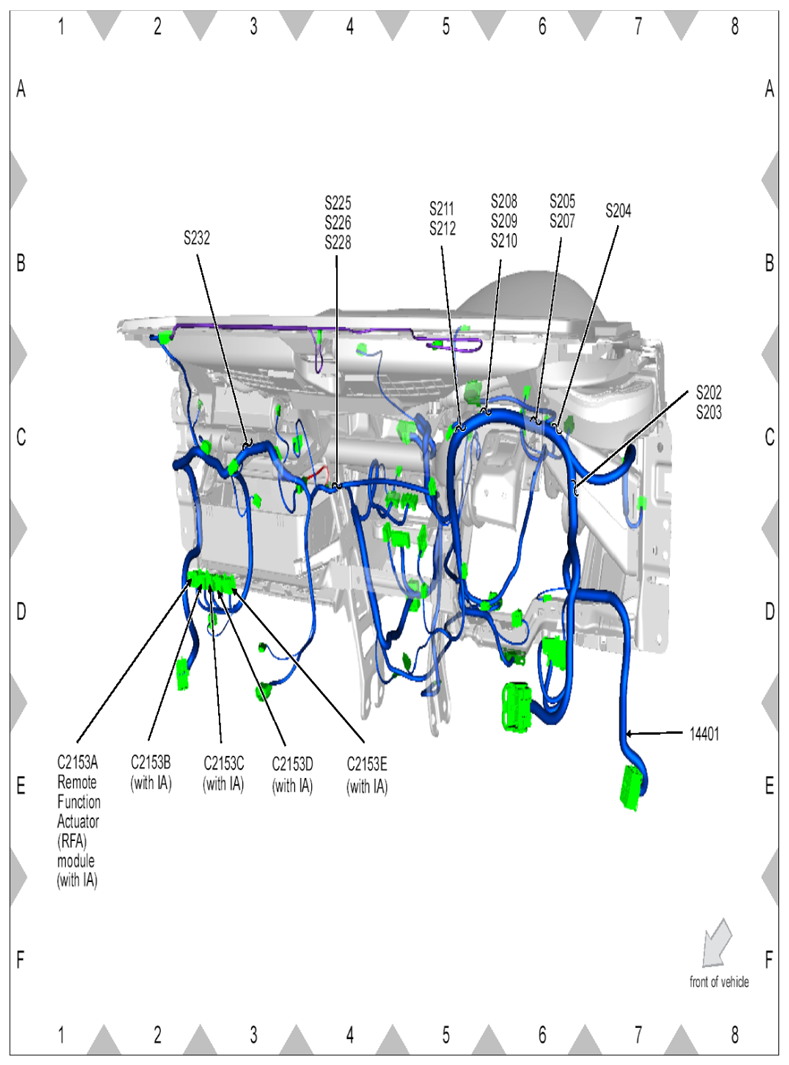

Fig 66: (C2153A) Remote Function Actuator (RFA) Module Location - (With IA) Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 67: (C2153B) Connector Location - (With IA) Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 68: (C2153C) Connector Location - (With IA) Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 69: (C2153D) Connector Location - (With IA) Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 70: (C2153E) Connector Location - (With IA) Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 71: (C2195) Start/Stop Switch Location - (With IA) Center Of Instrument Panel, Left Of Radio Opening

Courtesy of FORD MOTOR CO.

Fig 72: (C2247) In-Vehicle Temperature/Humidity Sensor Location - Center Of Instrument Panel, Left Of Radio Opening

Courtesy of FORD MOTOR CO.

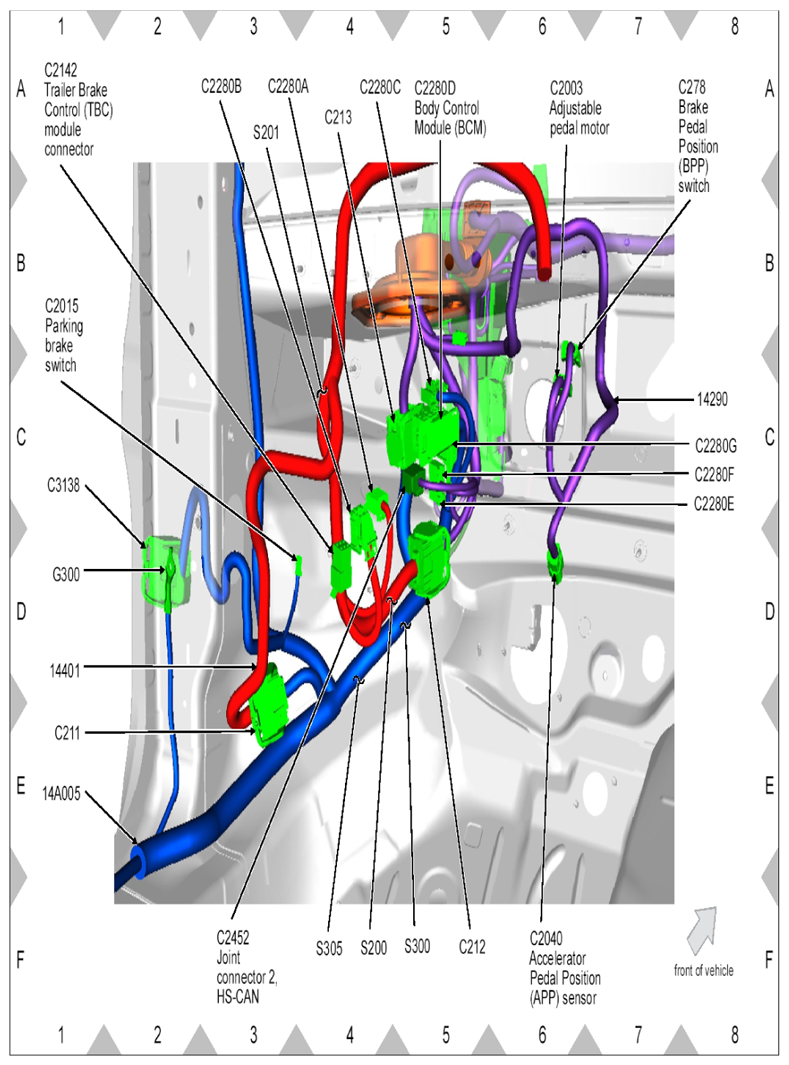

Fig 73: (C2280A) Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 74: (C2280B) Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 75: (C2280C) Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 76: (C2280D) Body Control Module (BCM) Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 77: (C2280E) Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 78: (C2280F) Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 79: (C2280G) Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 80: (C2356) Speaker, Instrument Panel Location - Top Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 81: (C2362) Audio Input Jack Location - (Without SYNC) In Center Console, Front

Courtesy of FORD MOTOR CO.

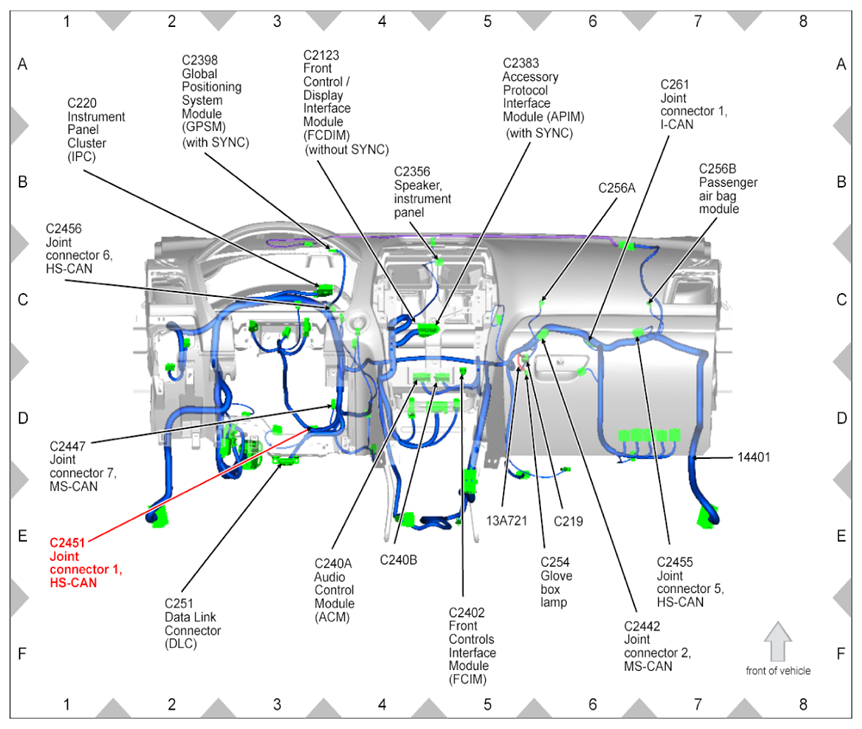

Fig 82: (C2383) Accessory Protocol Interface Module (APIM) Location - (With SYNC) Top Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 83: (C2395) Head Up Display (HUD) Module Location - Behind Top Left Hand Side Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 84: (C2398) Global Positioning System Module (GPSM) Location - (With SYNC) Behind Left Hand Side Of Instrument Panel, Above Right Hand Side Of Instrument Cluster

Courtesy of FORD MOTOR CO.

Fig 85: (C2402) Front Control Interface Module (FCDIM) Location - Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 86: (C2414A) Steering Column Control Module (SCCM) Location - On Top Of Steering Column, Behind Clockspring

Courtesy of FORD MOTOR CO.

Fig 87: (C2414B) Connector Location - On Top Of Steering Column, Behind Clockspring

Courtesy of FORD MOTOR CO.

Fig 88: (C2414C) Connector Location - On Top Of Steering Column, Behind Clockspring

Courtesy of FORD MOTOR CO.

Fig 89: (C2414D) Connector Location - On Top Of Steering Column, Behind Clockspring

Courtesy of FORD MOTOR CO.

Fig 90: (C2442) Joint Connector 2, MS-CAN Location - Behind Right Hand Side Of Instrument Panel, Above Left Side Of Glove Box

Courtesy of FORD MOTOR CO.

Fig 91: (C2447) Joint Connector 7, MS-CAN Location - Behind Left Hand Side Of Instrument Panel, Below Steering Column

Courtesy of FORD MOTOR CO.

Fig 92: (C2451) Joint Connector 1, HS-CAN Location - Behind Left Hand Side Of Instrument Panel, Below Steering Column

Courtesy of FORD MOTOR CO.

Fig 93: (C2452) Joint Connector 2, HS-CAN Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 94: (C2455) Joint Connector 5, HS-CAN Location - Behind Right Hand Side Of Instrument Panel, Above Right Side Of Glove Box

Courtesy of FORD MOTOR CO.

Fig 95: (C2456) Joint Connector 6, HS-CAN Location - Behind Left Hand Side Of Instrument Panel, Above Right Hand Side Of Instrument Cluster

Courtesy of FORD MOTOR CO.

Fig 96: (C2998) Steering Wheel Switch, Left Location - In Left Hand Poke Of Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 97: (C2999) Steering Wheel Switch, Right Location - In Right Hand Spoke Of Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 98: (C3002) Auxiliary Blower Motor Control Location - In Left Rear Of Vehicle, Near LH Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 99: (C3004) Auxiliary Temperature Blend Door Actuator Location - In Left Rear Of Vehicle, Near LH Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 100: (C3007) Connector Location - In Left Rear Of Vehicle, Near LH Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 101: (C3020) Subwoofer Location - In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 102: (C3021) Auxiliary Blower Motor Location - In Left Rear Of Vehicle, Near LH Quarter Panel

Courtesy of FORD MOTOR CO.

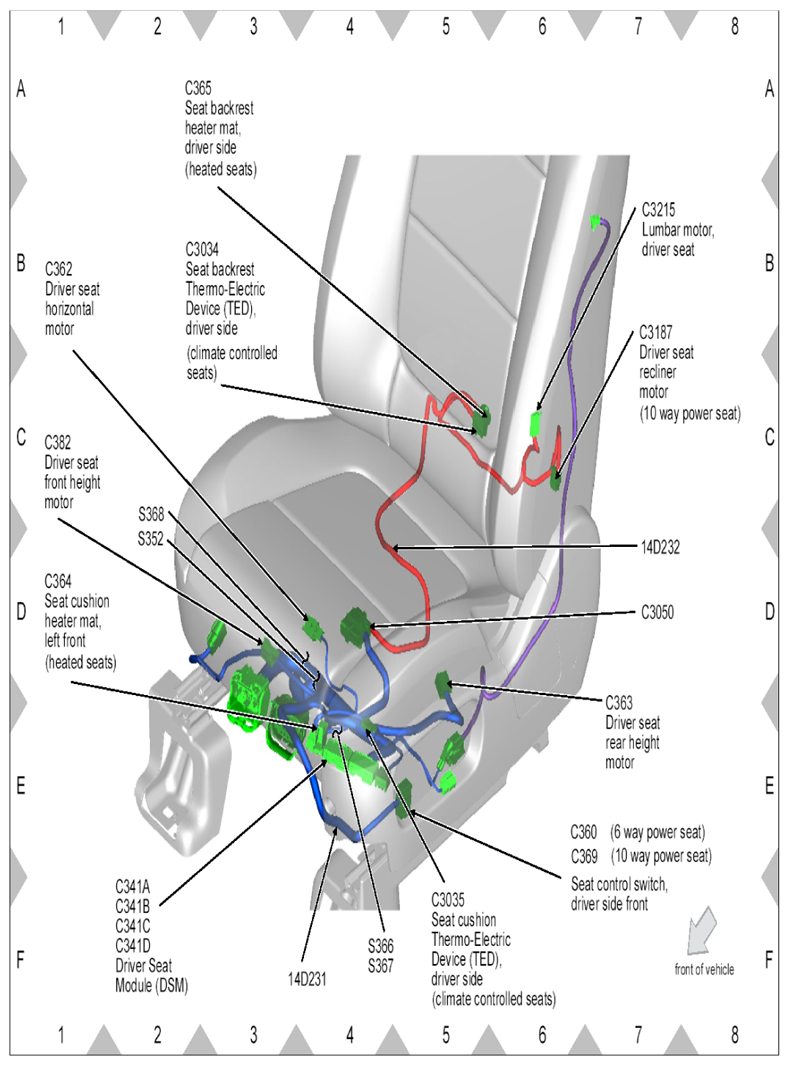

Fig 103: (C3034) Seat Backrest Thermo-Electric Device (TED), Driver Side Location - (With Climate Controlled Seats) In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 104: (C3035) Seat Backrest Thermo-Electric Device (TED), Driver Side Location - (With Climate Controlled Seats) Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 105: (C3039) Seat Backrest Thermo-Electric Device (TED), Passenger Side Location - (With Climate Controlled Seats) In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 106: (C3040) Seat Backrest Thermo-Electric Device (TED), Passenger Side Location - (With Climate Controlled Seats) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 107: (C3044) Auxiliary Mode Door Actuator Location - In Left Rear Of Vehicle, Near LH Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 108: (C3049) Connector Location - Under 2nd Row Seats, Underneath Vehicle

Courtesy of FORD MOTOR CO.

Fig 109: (C3050) Connector Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 110: (C3051) Connector Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 111: (C3053) Connector Location - Under 2nd Row Seats, Underneath Vehicle, Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 112: (C3063) Power Point, Console Front Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 113: (C3064) Power Point, Console Rear Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 114: (C3065) Safety Belt Buckle Switch And Pretensioner, Driver Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 115: (C3066) Safety Belt Buckle Switch And Pretensioner, Passenger Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 116: (C3074) Passenger Seat Front Height Motor Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 117: (C3075) Passenger Seat Rear Height Motor Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 118: (C3123) Fuel Tank Pressure (FTP) Transducer Sensor Location - Under 2nd Row Seats, Underneath Vehicle, Near Fuel Tank

Courtesy of FORD MOTOR CO.

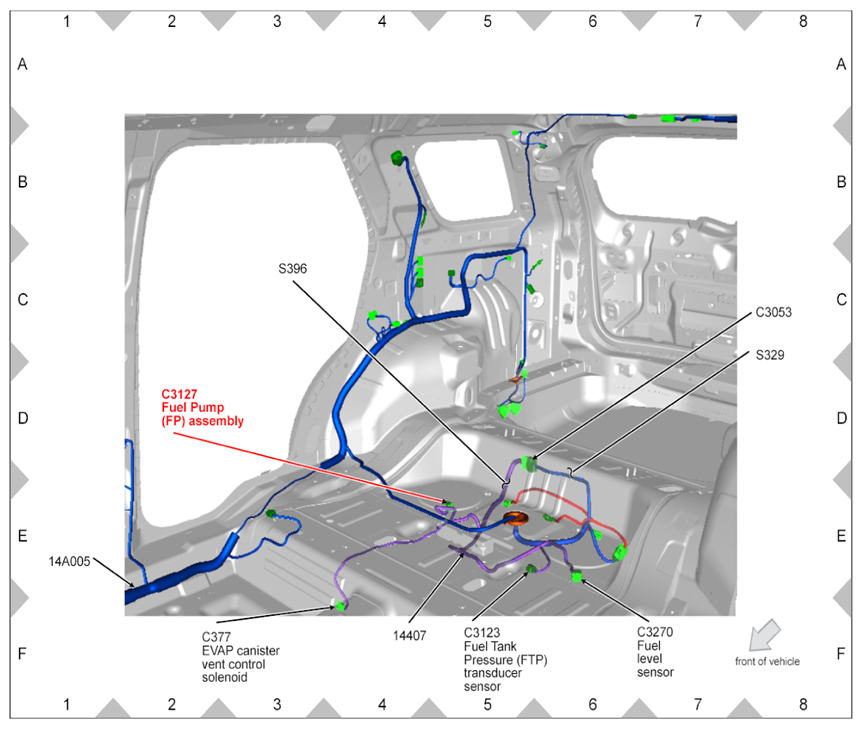

Fig 119: (C3127) Fuel Pump (FP) Assembly Location - Under 2nd Row Seats, Underneath Vehicle, Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 120: (C3133) Connector Location - Under 2nd Row Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 121: (C3134) Connector Location - Under 2nd Row Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 122: (C3138) Connector Location - Near LH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 123: (C3139) Connector Location - Near RH Kick Panel

Courtesy of FORD MOTOR CO.

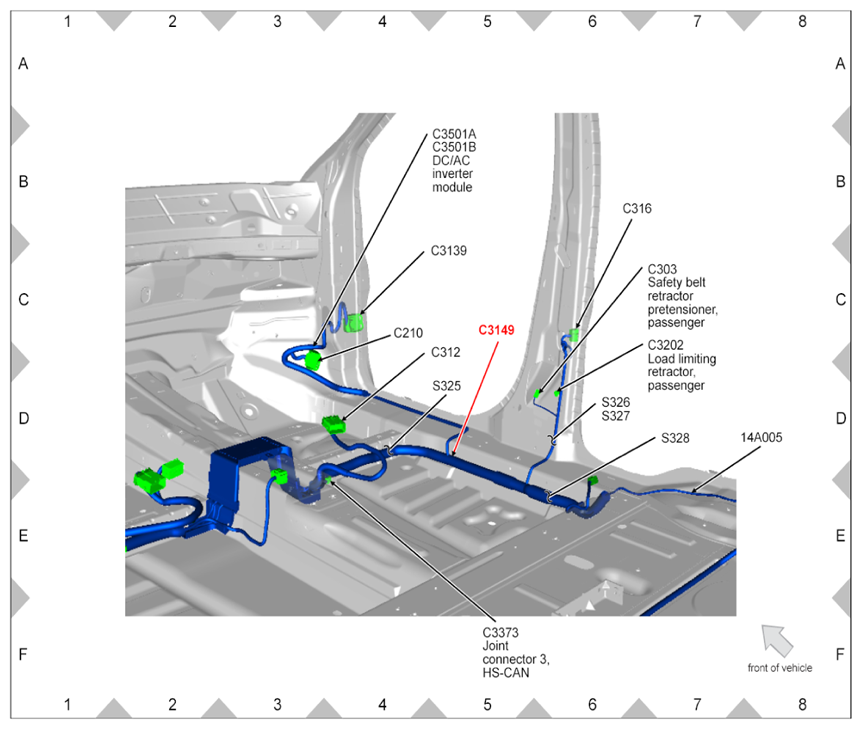

Fig 124: (C3149) Connector Location - Near RH B-pillar, Near Floor

Courtesy of FORD MOTOR CO.

Fig 125: (C3154A) Audio Digital Signal Processing (DSP) Module Location - (With Sony Sound) In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 126: (C3154B) Audio Digital Signal Processing (DSP) Module Location - (With Sony Sound) In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 127: (C3154C) Audio Digital Signal Processing (DSP) Module Location - (With Sony Sound) In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 128: (C3159) Occupant Classification System Module (OCSM) Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 129: (C3187) Driver Seat Recliner Motor Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 130: (C3189) Passenger Seat Recliner Motor Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 131: (C3190) Connector Location - (6 Way Power Seat) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 132: (C3198) Auxiliary Climate Control Assembly Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 133: (C3199) Third Row Seat Control Switch Location - In Left Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 134: (C3202) Load Limiting Retractor, Passenger Location - In RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 135: (C3215) Lumber Motor, Driver Seat Location - (10 Way Power Seat) In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 136: (C3216) Lumber Motor, Passenger Seat Location - (10 Way Power Seat) In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

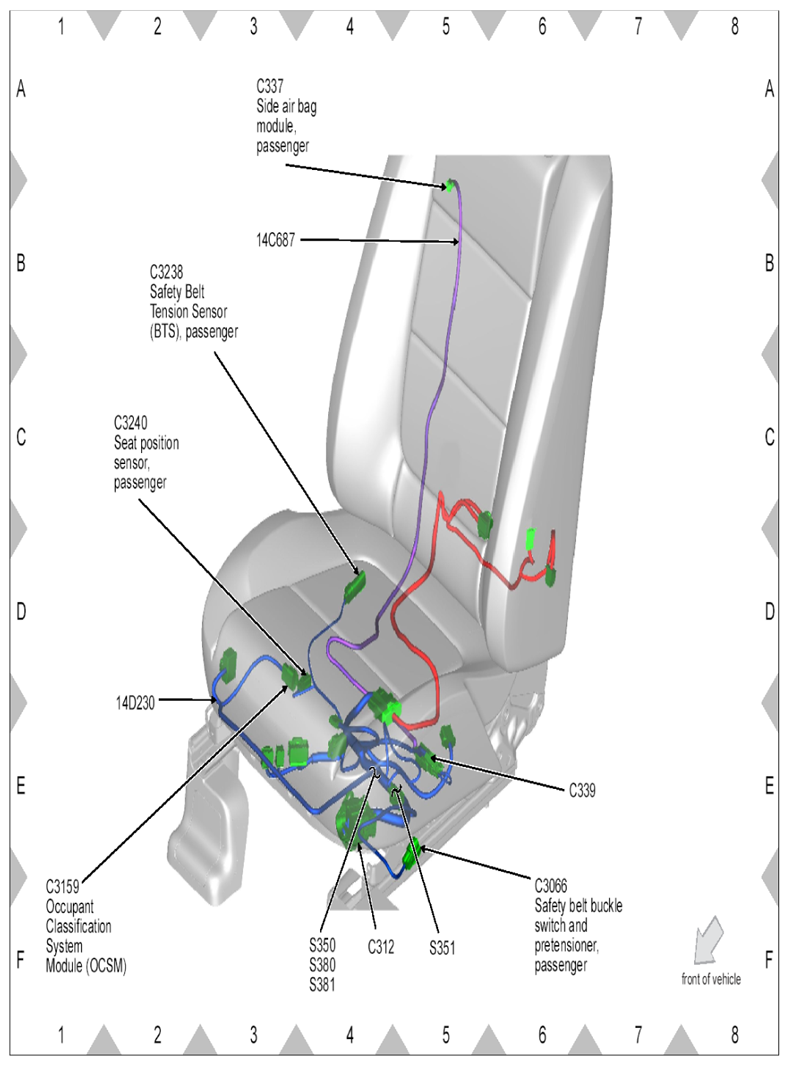

Fig 137: (C3238) Safety Belt Tension Sensor (BTS), Passenger Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

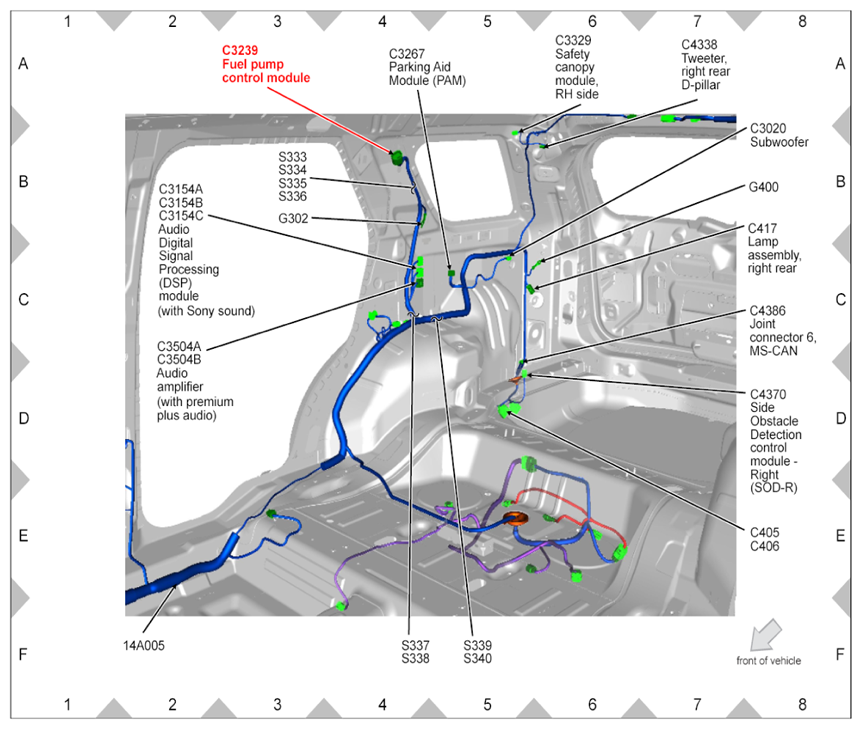

Fig 138: (C3239) Fuel Pump Control Module Location - In RH C-Pillar

Courtesy of FORD MOTOR CO.

Fig 139: (C3240) Seat Position Sensor, Passenger Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 140: (C3248) Side Impact Sensor, LH Side Second Row Location - In Left Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 141: (C3249) Side Impact Sensor, RH Side Second Row Location - In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 142: (C3265A) Dual Climate Controlled Seat Module (DCSM) Location - (With Climate Controlled Seats) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 143: (C3265B) Dual Climate Controlled Seat Module (DCSM) Location - (With Climate Controlled Seats) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 144: (C3265C) Dual Climate Controlled Seat Module (DCSM) Location - (With Climate Controlled Seats) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 145: (C3267) Parking Aid Module (PAM) Location - In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 146: (C3270) Fuel Level Sensor Location - Under 2nd Row Seats, Underneath Vehicle, Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 147: (C3321) Safety Canopy Module, LH Side Location - In LH D-Pillar

Courtesy of FORD MOTOR CO.

Fig 148: (C3323) Power Point, Third Row Location - In Left Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 149: (C3329) Safety Canopy Module, RH Side Location - In RH D-Pillar

Courtesy of FORD MOTOR CO.

Fig 150: (C3343) Seat Control Switch, Second Row, Left Location - In Left Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 151: (C3344) Seat Control Switch, Second Row, Right Location - In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 152: (C3345) Power Release Seat Motor, Second Row, Left Location - Under 2nd Row Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 153: (C3346) Power Release Seat Motor, Second Row, Right Location - Under 2nd Row Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 154: (C3371) Backup Transceiver Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 155: (C3373) Joint Connector 3, HS-CAN Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 156: (C3374) Joint Connector 4, HS-CAN Location - In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 157: (C3398) Top Finish Panel Lamp Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

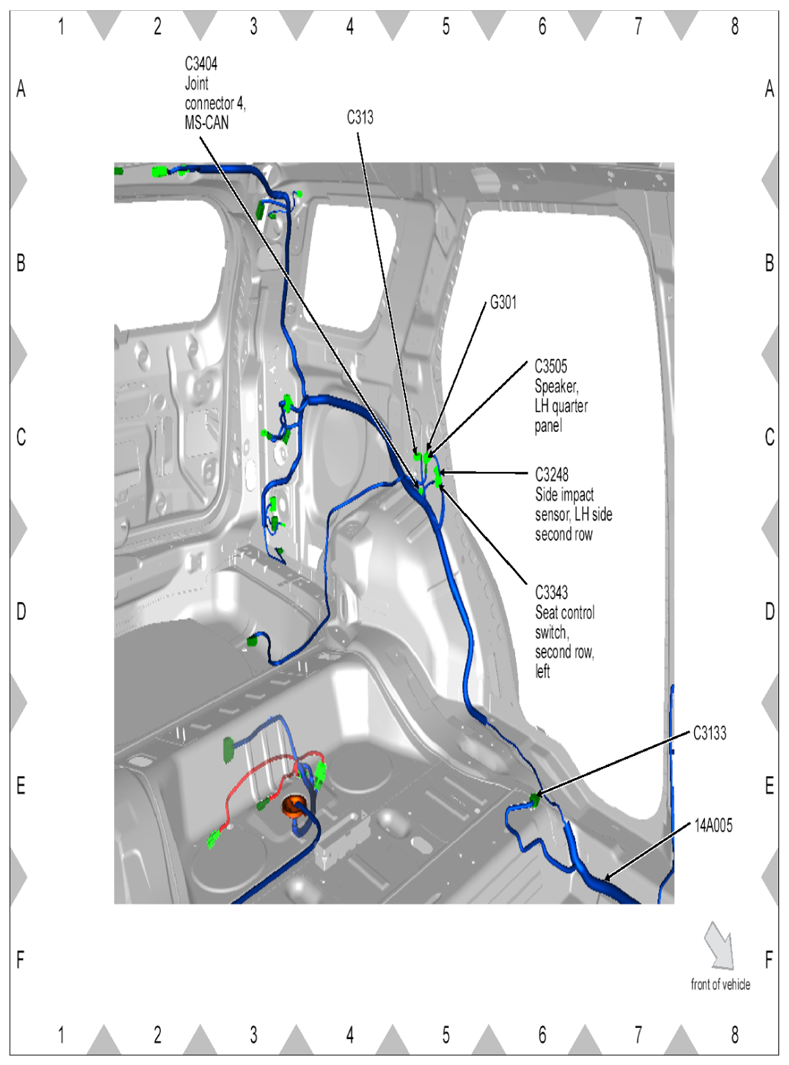

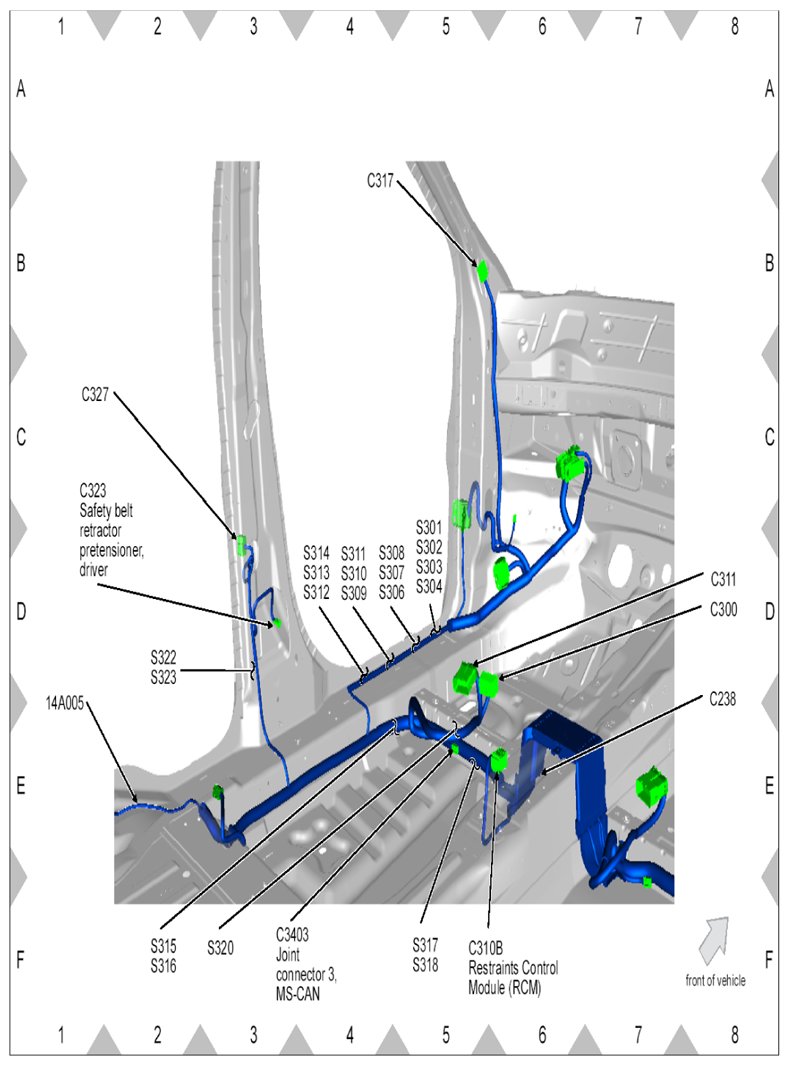

Fig 158: (C3403) Joint Connector 3, MS-CAN Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 159: (C3404) Joint Connector 4, MS-CAN Location - In Left Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 160: (C3501A) DC/AC Inverter Module Location - Near RH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 161: (C3501B) DC/AC Inverter Module Location - Near RH Kick Panel

Courtesy of FORD MOTOR CO.

Fig 162: (C3504A) Audio Amplifier Location - (With Premium Plus Audio) In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 163: (C3504B) Audio Amplifier Location - (With Premium Plus Audio) In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 164: (C3505) Speaker, LH Quarter Panel Location - In Left Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 165: (C3506) Speaker, RH Quarter Panel Location - In Right Rear Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 166: (C3507) In-Vehicle Temperature Sensor, Rear Location - (If Equipped) In Left Rear Of Vehicle, Near LH Quarter Panel

Courtesy of FORD MOTOR CO.

Fig 167: (C3618) Media Hub Location - (With Sync) In Center Console, Front

Courtesy of FORD MOTOR CO.

Fig 168: (C3639) All Terrain Control Module (ATCM) Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 169: (C3640) Footwell Lamp, Rear Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 170: (C3641) Tire Pressure Monitor (TPM) Module Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 171: (C3644) Safety Belt Inflator, 2nd Row, Left Location - Under 2nd Row Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 172: (C3645) Safety Belt Inflator, 2nd Row, Right Location - Under 2nd Row Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 173: (C3646) Safety Belt Buckle Switch, 2nd Row, Left Location - Under 2nd Row Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 174: (C3647) Safety Belt Buckle Switch, 2nd Row, Right Location - Under 2nd Row Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 175: (C4009) Parking Aid Sensor, Outer Left Location - Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 176: (C4010) Parking Aid Sensor, Inner Left Location - Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 177: (C4011) Parking Aid Sensor, Outer Right Location - Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 178: (C4012) Parking Aid Sensor, Inner Right Location - Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

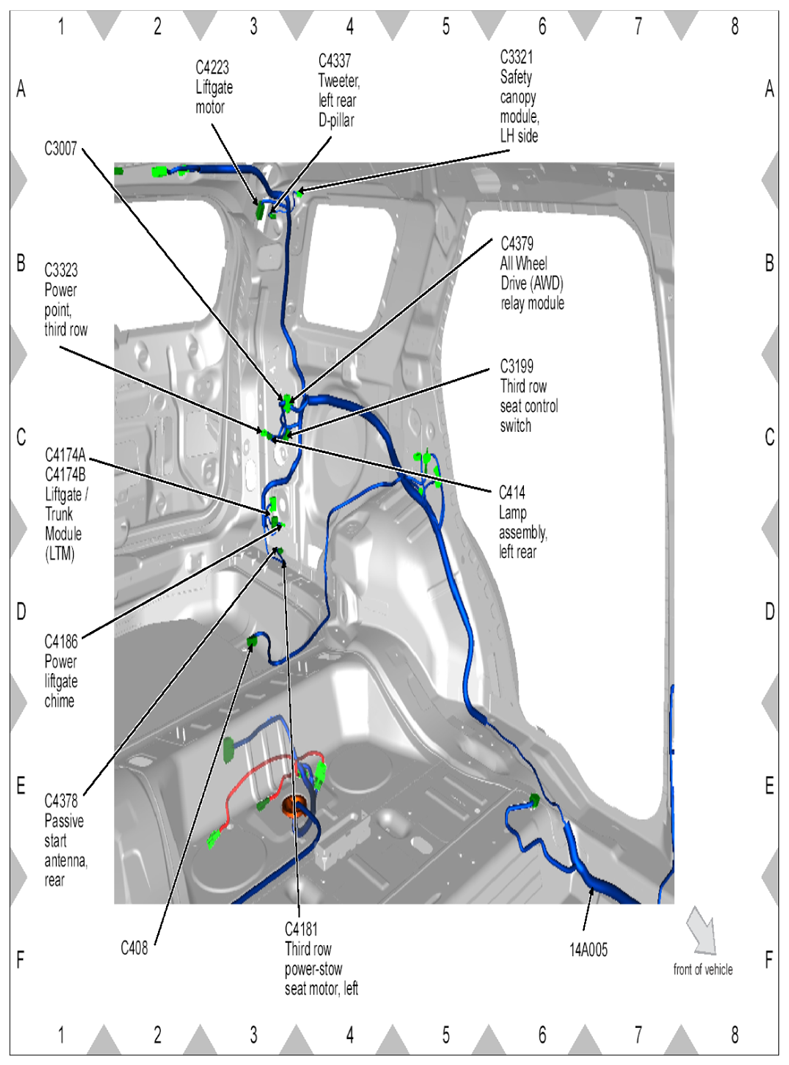

Fig 179: (C4082) Intelligent Access (IA) Antenna, Liftgate Location - Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 180: (C4099) Trailer Tow Connector, 7-pin Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 181: (C4172) Liftgate Pinch Strip, Left Location - (With Power Liftgate) In Liftgate, LH Side

Courtesy of FORD MOTOR CO.

Fig 182: (C4173) Liftgate Pinch Strip, Right Location - (With Power Liftgate) In Liftgate, RH Side

Courtesy of FORD MOTOR CO.

Fig 183: (C4174A) Liftgate/Trunk Module (LTM) Location - In Left Rear Corner Of Vehicle, Near Floor

Courtesy of FORD MOTOR CO.

Fig 184: (C4174B) Liftgate/Trunk Module (LTM) Location - In Left Rear Corner Of Vehicle, Near Floor

Courtesy of FORD MOTOR CO.

Fig 185: (C4181) Third Row Power-Stow Seat Motor, Left Location - In Left Rear Corner Of Vehicle, Near Floor

Courtesy of FORD MOTOR CO.

Fig 186: (C4182) Third Row Power-Stow Seat Motor, Right Location - Third Row Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 187: (C4186) Power Liftgate Chime Location - In Left Rear Corner Of Vehicle, Near Floor

Courtesy of FORD MOTOR CO.

Fig 188: (C4216) Liftgate Release Switch Location - In Liftgate, RH Side, Bottom

Courtesy of FORD MOTOR CO.

Fig 189: (C4223) Liftgate Motor Location - In LH D-Pillar

Courtesy of FORD MOTOR CO.

Fig 190: (C4241) Third Row Power Seat Latch Switch, Left Location - Under Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 191: (C4242) Third Row Power Seat Latch Switch, Right Location - Under Third Row Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 192: (C4243) Third Row Power Seat Latch, Left Location - Under Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 193: (C4242) Third Row Power Seat Latch, Right Location - Under Third Row Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 194: (C4245) Third Row Power-Fold Seat Motor, Left Location - Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 195: (C4246) Third Row Power-Fold Seat Motor, Right Location - Third Row Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 196: (C4250A) Connector Location - Under Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 197: (C4250B) Connector Location - Under Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 198: (C4250C) Connector Location - Under Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 199: (C4250D) Power-Fold Seat Module (PFSM) Location - Under Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 200: (C4250E) Power-Fold Seat Module (PFSM) Location - Under Third Row Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 201: (C4260) Connector Location - (With Parking Assist) Under 2nd Row Seats, Underneath Vehicle

Courtesy of FORD MOTOR CO.

Fig 202: (C4261) Connector Location - (With Parking Assist) Under 2nd Row Seats, Underneath Vehicle

Courtesy of FORD MOTOR CO.

Fig 203: (C4333) Liftgate Rear Control Switch Location - (With Power Liftgate) In Liftgate, LH Side, Bottom

Courtesy of FORD MOTOR CO.

Fig 204: (C4337) Tweeter, Left Rear D-Pillar Location - In LH D-Pillar

Courtesy of FORD MOTOR CO.

Fig 205: (C4338) Tweeter, Right Rear D-Pillar Location - In RH D-Pillar

Courtesy of FORD MOTOR CO.

Fig 206: (C4339) Liftgate Latch/Unlatch Assembly Location - (With Power Liftgate) In Liftgate, LH Side, Bottom

Courtesy of FORD MOTOR CO.

Fig 207: (C4347) Active Torque Control Coupling (ATCC) Solenoid Location - Under 2nd Row Seats, Underneath Vehicle

Courtesy of FORD MOTOR CO.

Fig 208: (C4357) Video Camera Location - In Liftgate, Center

Courtesy of FORD MOTOR CO.

Fig 209: (C4369) Side Obstacle Detection Control Module - Left (SOD-L) Location - Vehicle Rear End, LH Corner

Courtesy of FORD MOTOR CO.

Fig 210: (C4370) Side Obstacle Detection Control Module - Right (SOD-R) Location - Vehicle Rear End, RH Corner

Courtesy of FORD MOTOR CO.

Fig 211: (C4378) Passive Start Antenna, Rear Location - In Left Rear Corner Of Vehicle, Near Floor

Courtesy of FORD MOTOR CO.

Fig 212: (C4379) All Wheel Drive (AWD) Relay Module Location - In Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 213: (C4386) Joint Connector 6, MS-CAN Location - In Right Rear Corner Of Vehicle, Near Floor

Courtesy of FORD MOTOR CO.

Fig 214: (C9021) Antenna Module Location - Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 215: (C9221) Microphone Location - Roof Panel, Front

Courtesy of FORD MOTOR CO.
