Exploded View

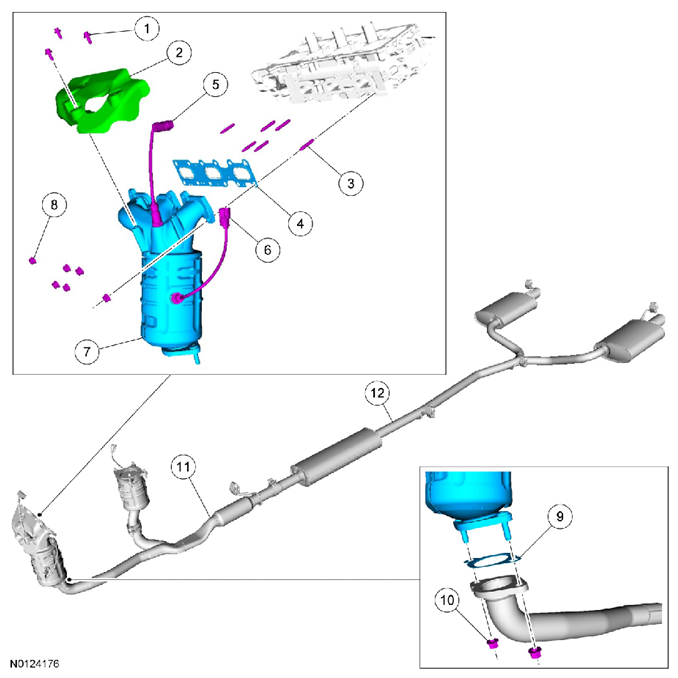

ITEM DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W714133 | Left Hand (LH) catalytic converter manifold heat shield bolt (3 required) | - | - | 12 Nm (106 lb-in) |
| 2 | 9Y427 | Left Hand (LH) catalytic converter manifold heat shield | - | - | - |
| 3 | W712244 | Left Hand (LH) catalytic converter manifold-to-cylinder head stud (6 required) | - | - | 12 Nm (106 lb-in) |
| 4 | 9448 | Gasket | - | - | - |
| 5 | - | Left Hand (LH) Heated Oxygen Sensor (HO2S) electrical connector (part of 9F472) | - | - | - |
| 6 | - | Left Hand (LH) Catalyst Monitor Sensor (CMS) electrical connector (part of 9G444) | - | - | - |
| 7 | 5G232 | Left Hand (LH) catalytic converter manifold | - | - | - |
| 8 | W701706 | Left Hand (LH) catalytic converter manifold-to-cylinder head nut (6 required) | - | - | 25 Nm (18 lb-ft) |
| 9 | 9450 | Gasket | - | - | - |
| 10 | W714265 | Exhaust Y-pipe-to-Left Hand (LH) catalytic converter manifold nut (2 required) | - | - | - |
| 11 | 5G274 | Exhaust Y-pipe | - | - | - |
| 12 | 5230 | Muffler and tailpipe assembly | - | - | - |

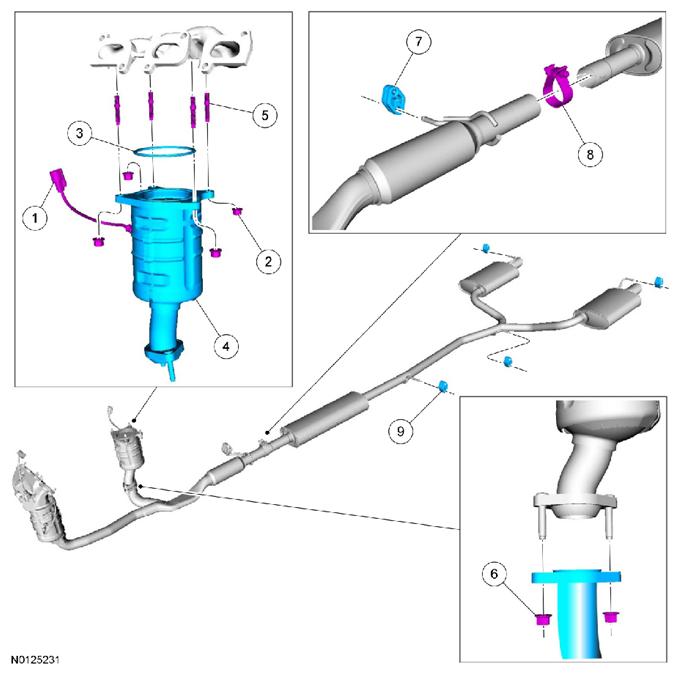

ITEM DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Right Hand (RH) Catalyst Monitor Sensor (CMS) electrical connector (part of 9G444) | - | - | - |
| 2 | W714265 | Right Hand (RH) catalytic converter-to-exhaust manifold nut (4 required) | - | - | - |
| 3 | 5F263 | Gasket | - | - | - |
| 4 | 5E212 | Right Hand (RH) catalytic converter | - | - | - |
| 5 | W712458 | Right Hand (RH) catalytic converter-to-exhaust manifold stud (4 required) | - | - | 25 Nm (18 lb-ft) |
| 6 | W714265 | Exhaust Y-pipe-to-Right Hand (RH) catalytic converter nut (2 required) | - | - | - |
| 7 | 5F262 | Exhaust Y-pipe isolator | - | - | - |
| 8 | 5221 | Torca® clamp | - | - | 55 Nm (41 lb-ft) |
| 9 | 5F262 | Muffler and tailpipe assembly exhaust isolator (4 required) | - | - | - |
Refer to the procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
