Connector Locations

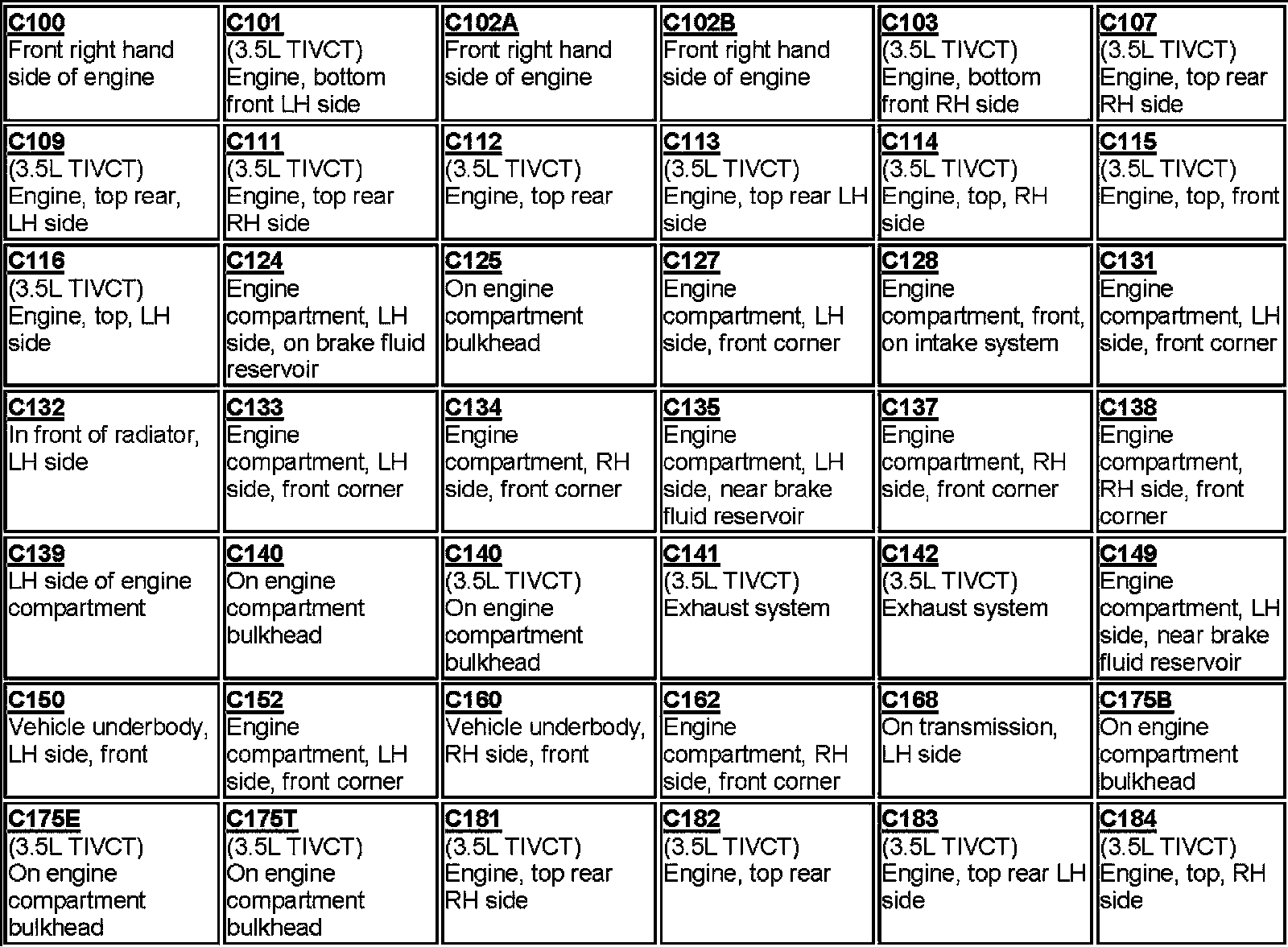

C100-C184:

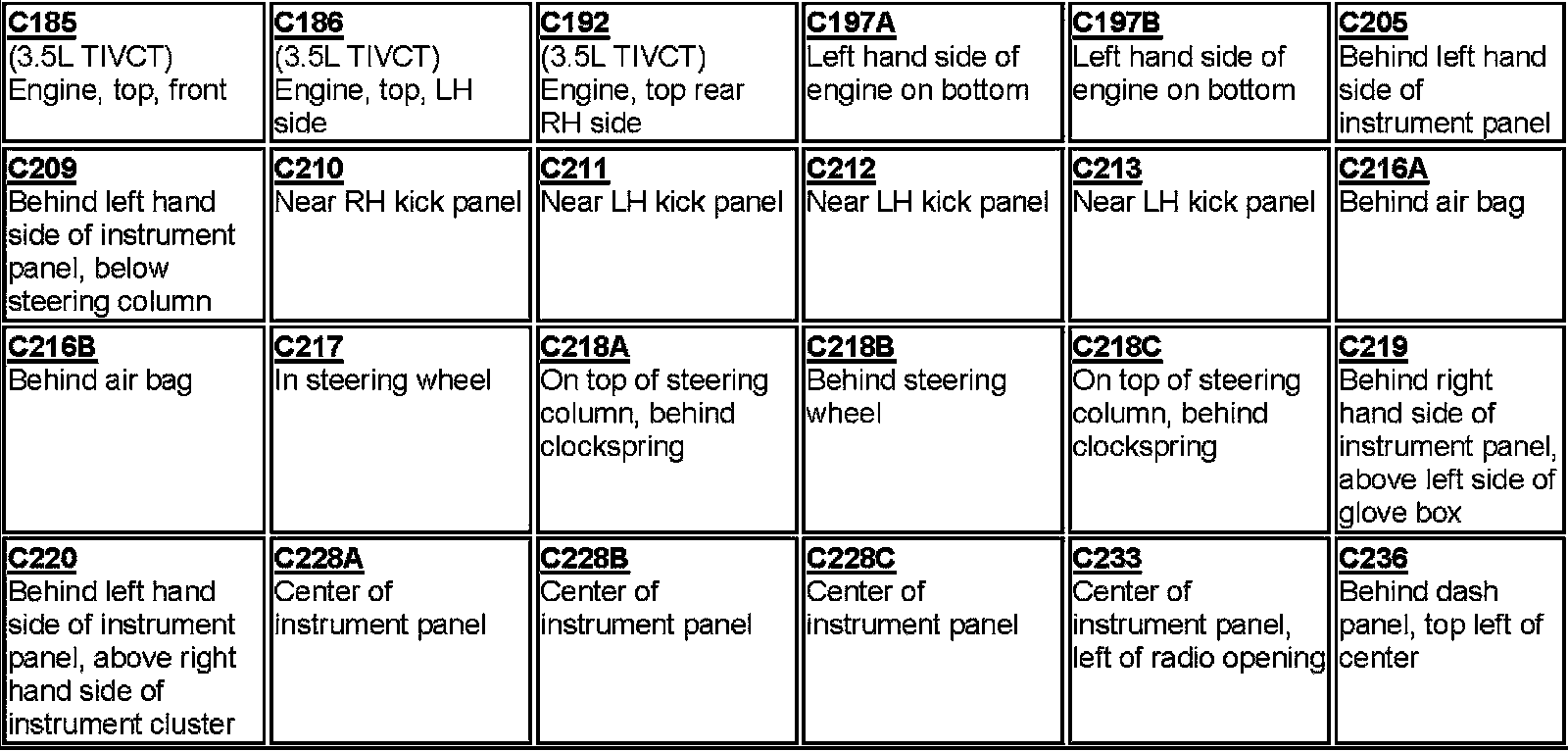

C185-C236:

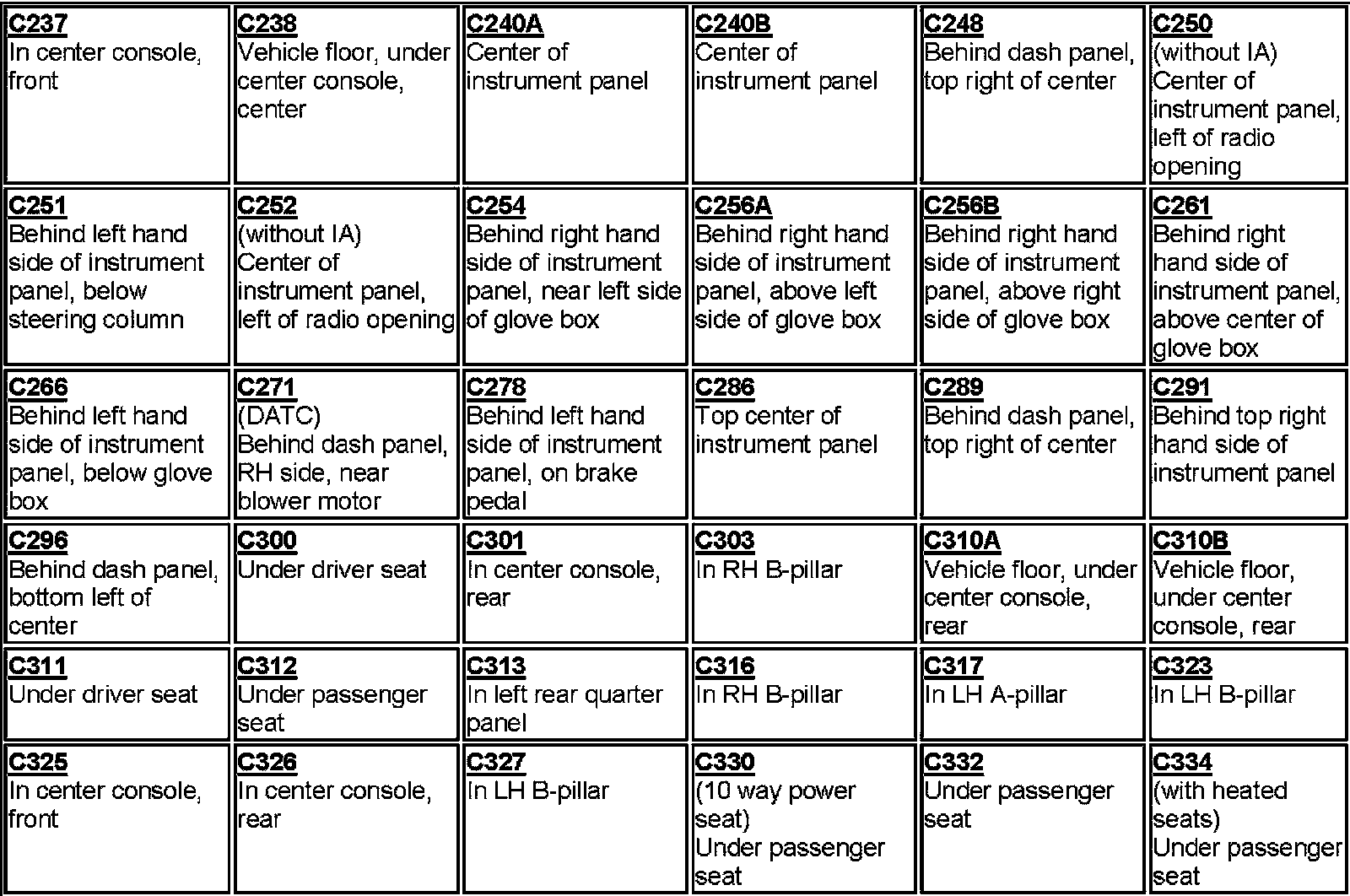

C237-C334:

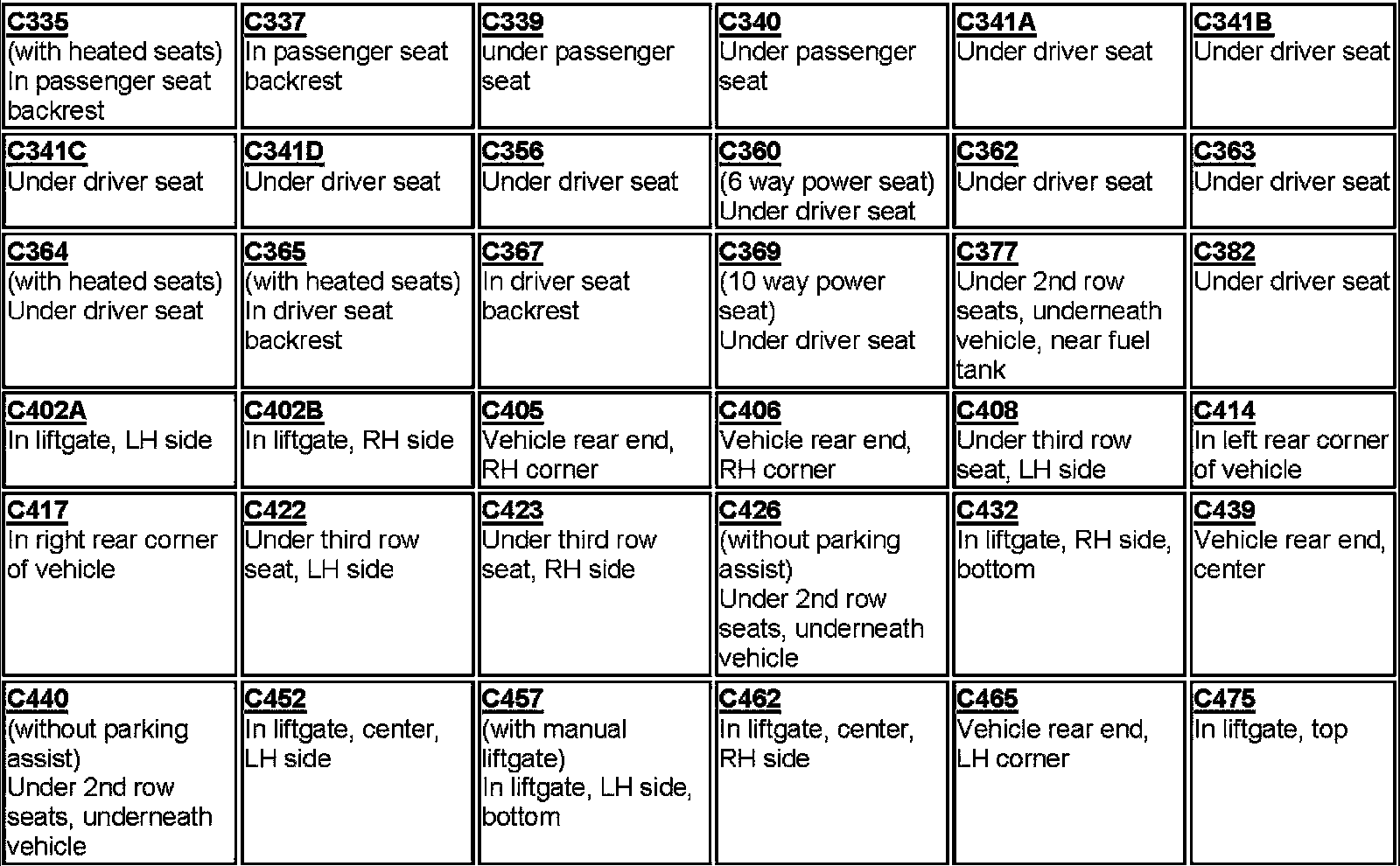

C335-C475:

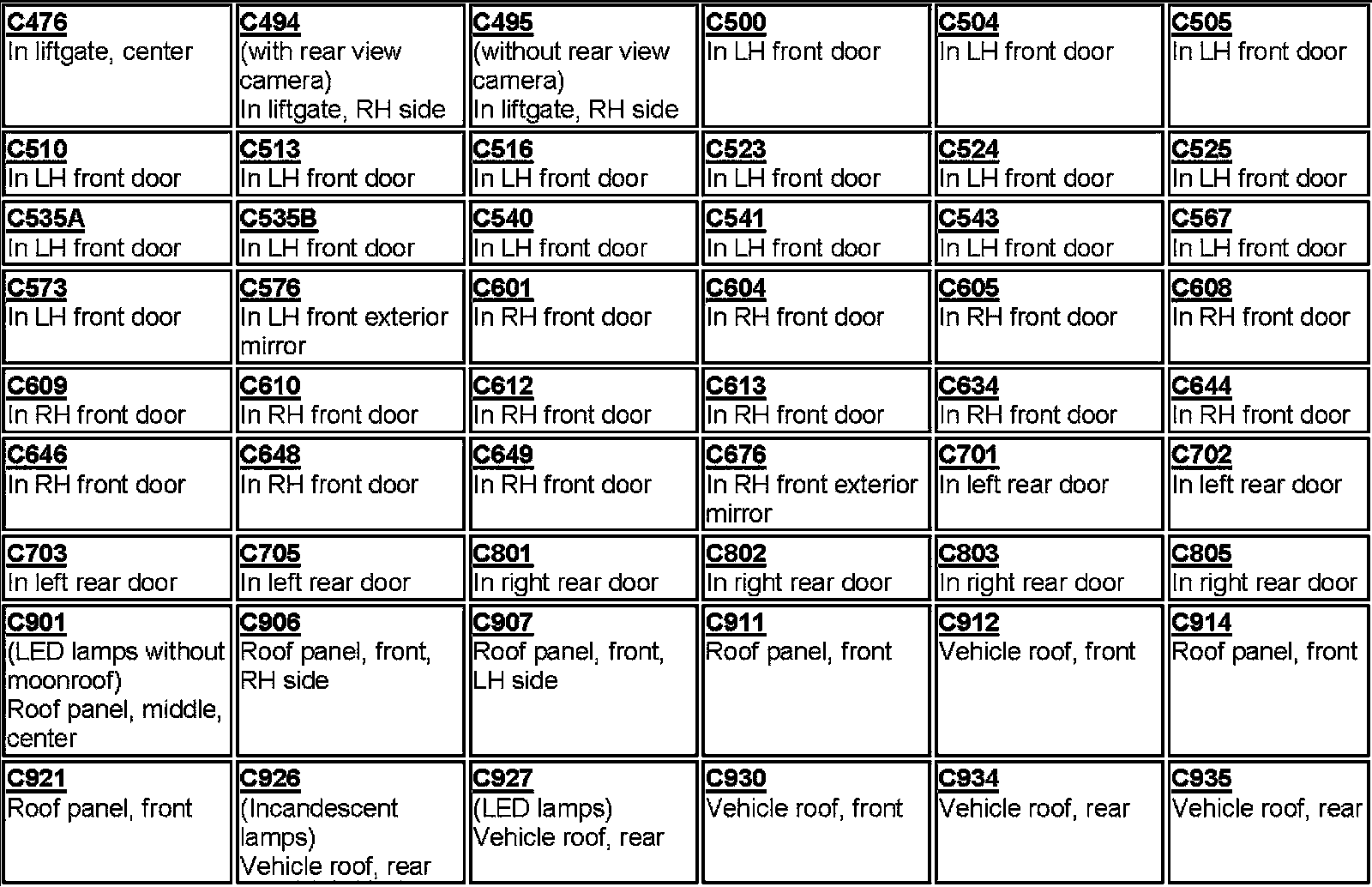

C476-C935:

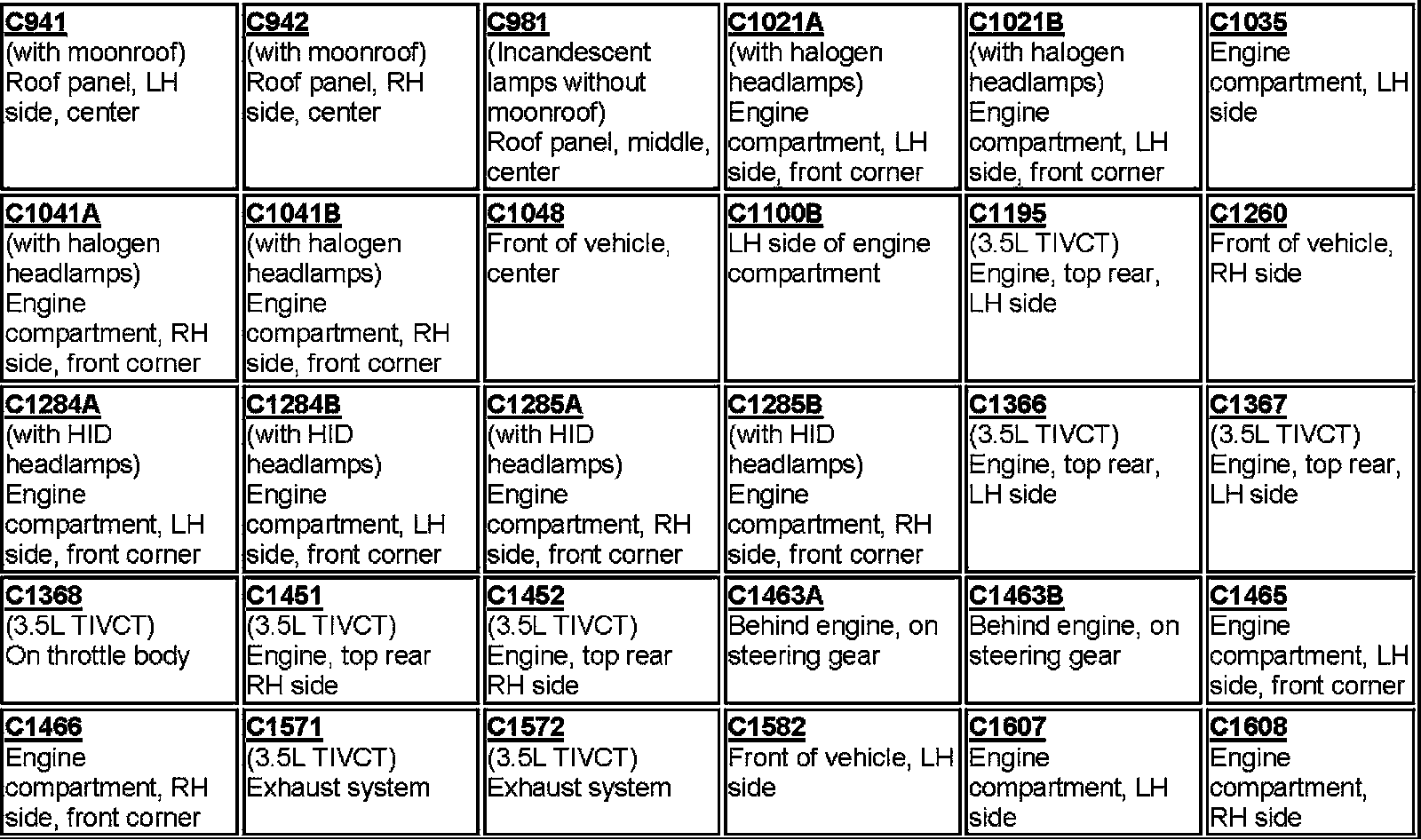

C941-C1608:

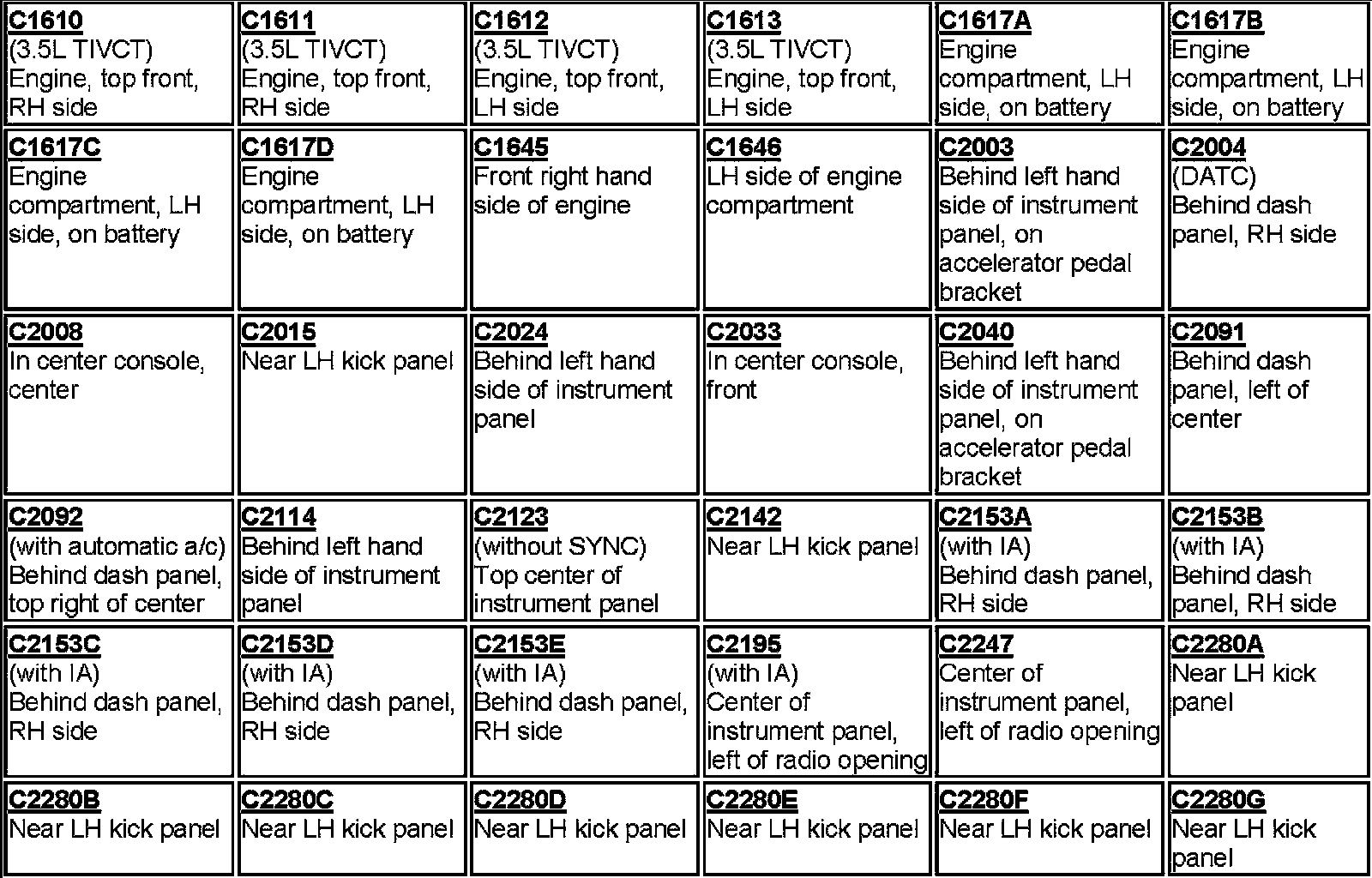

C1610-C2280G:

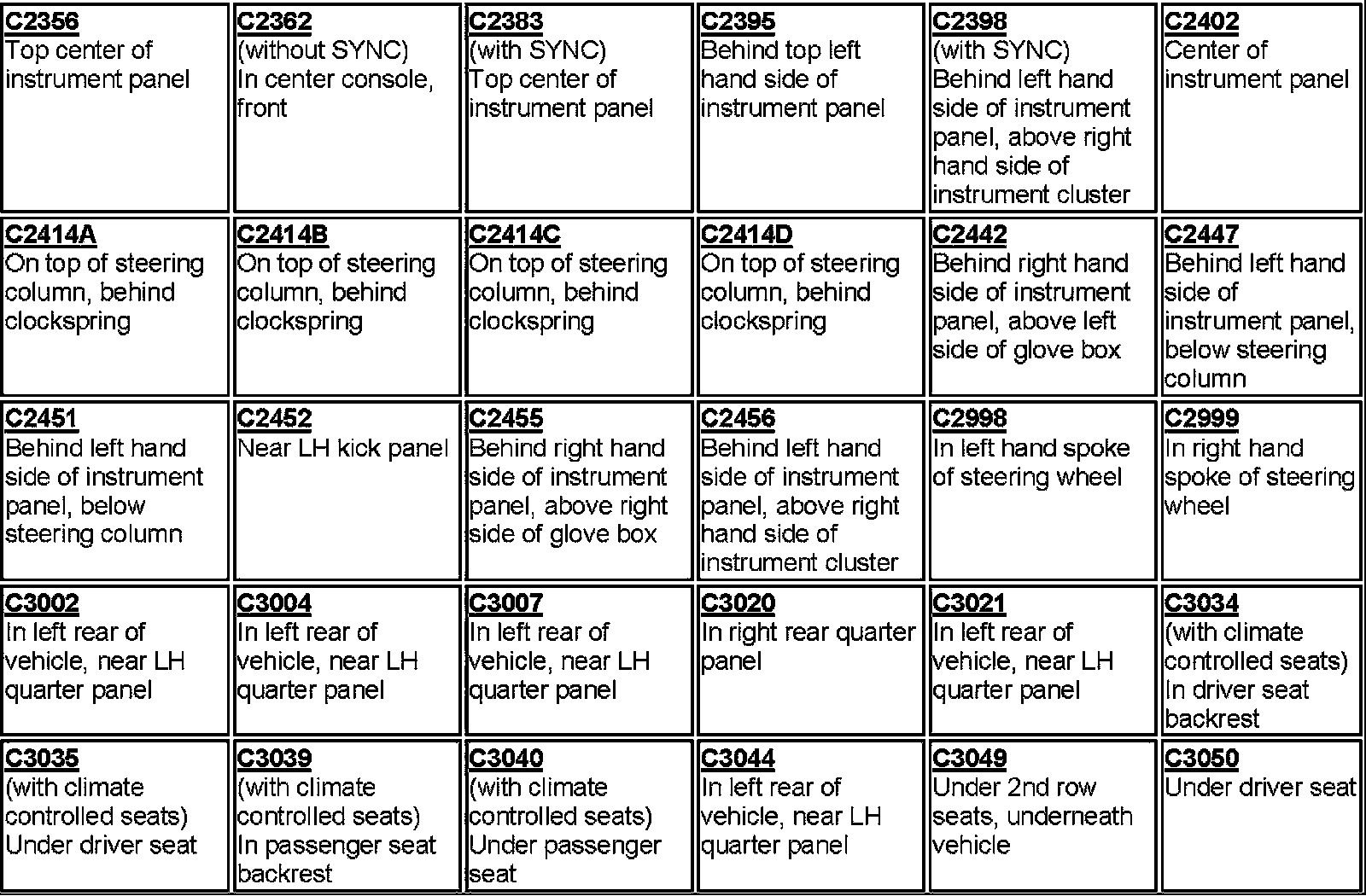

C2356-C3050:

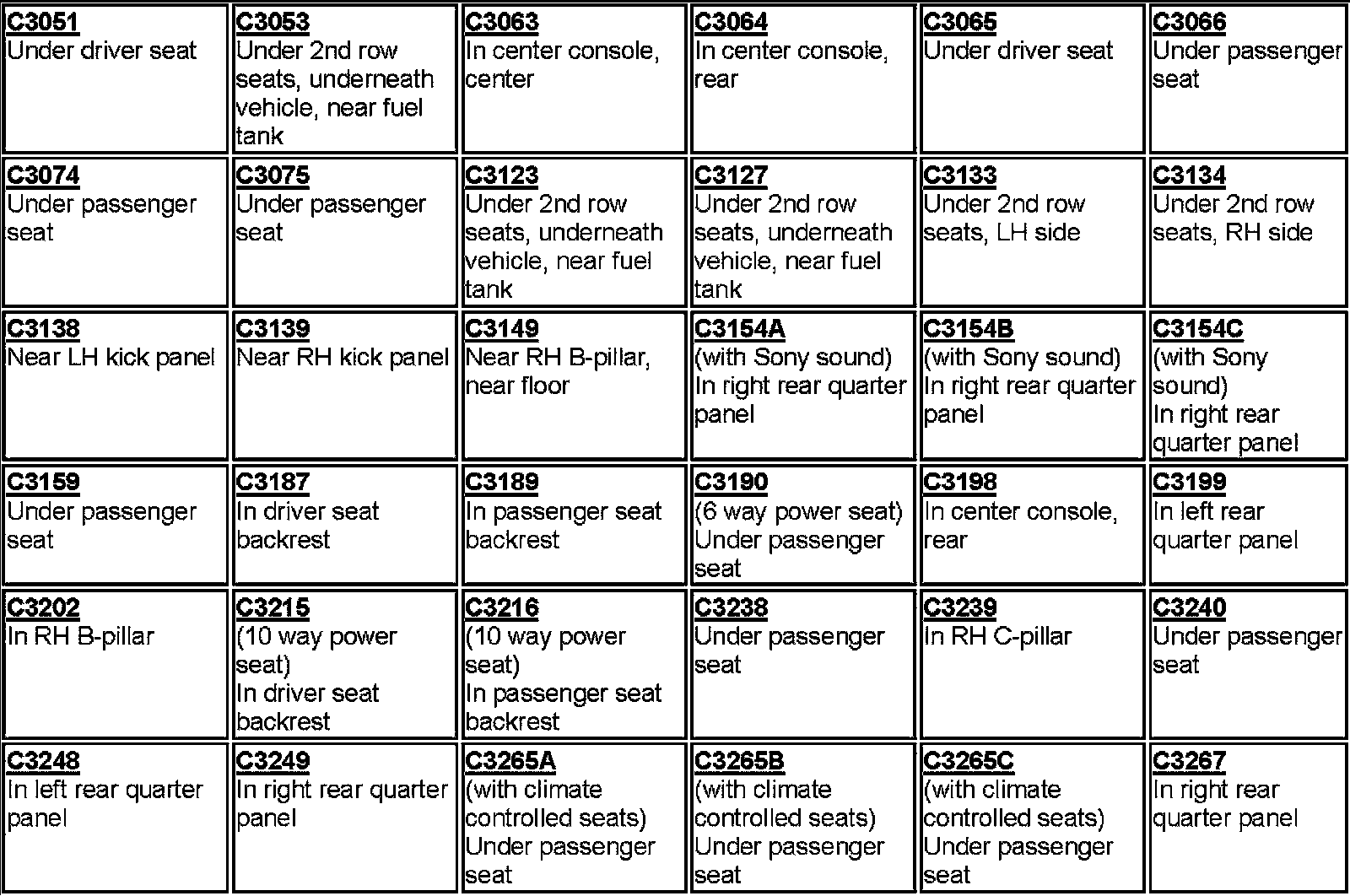

C3051-C3267:

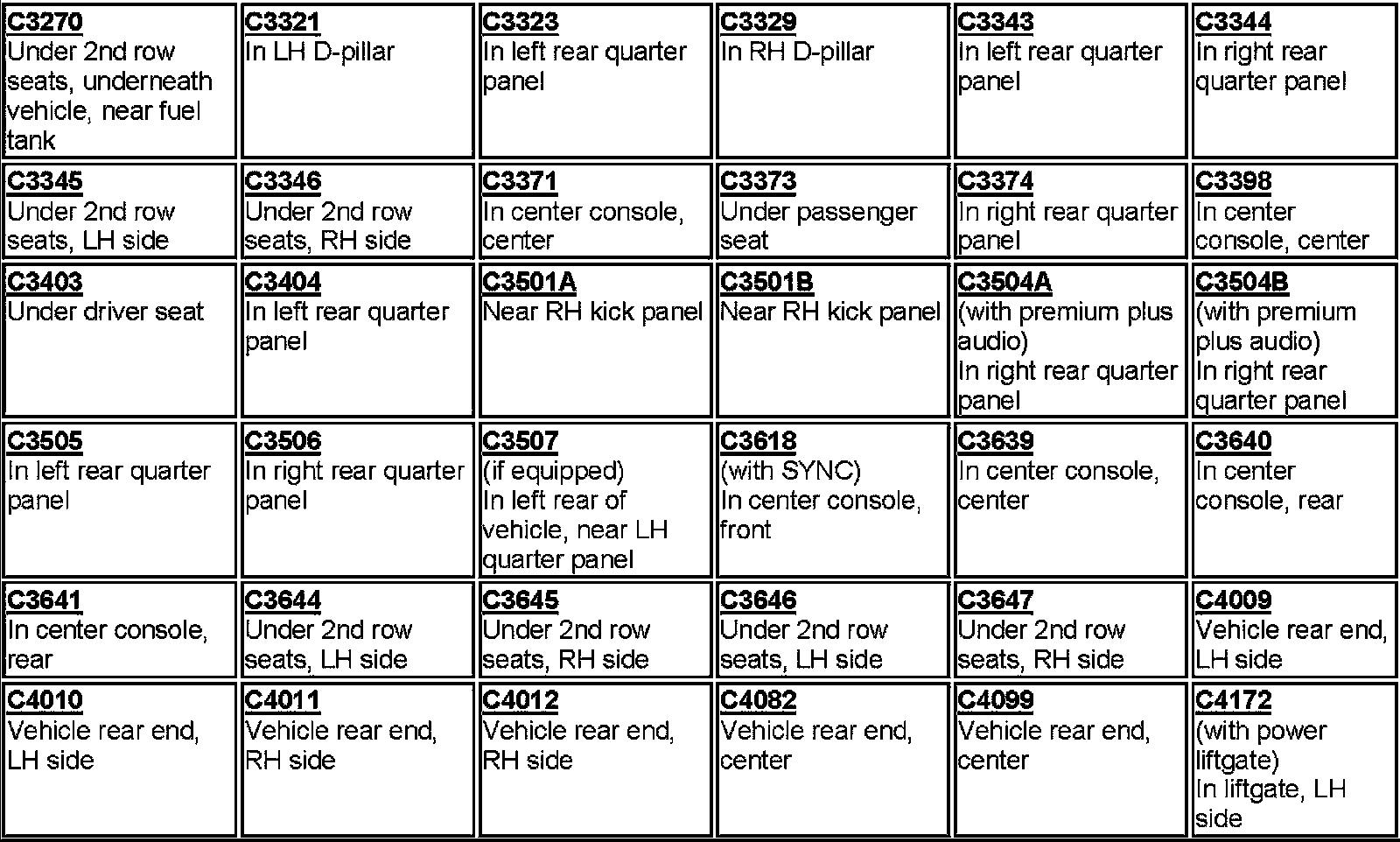

C3270-C4172:

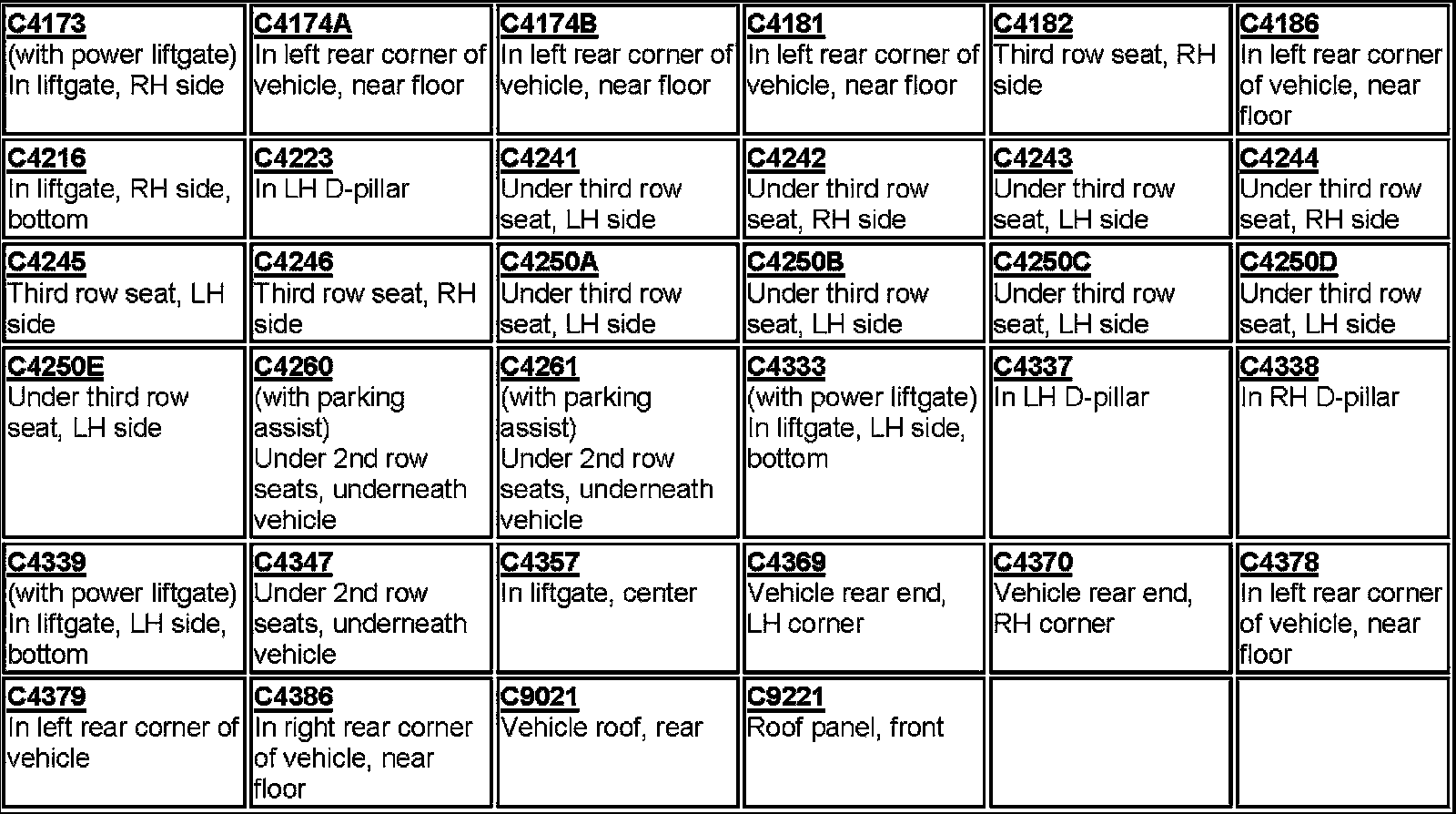

C4173-C9221:
