Electronic Engine Controls




Electronic Engine Controls

Component Location

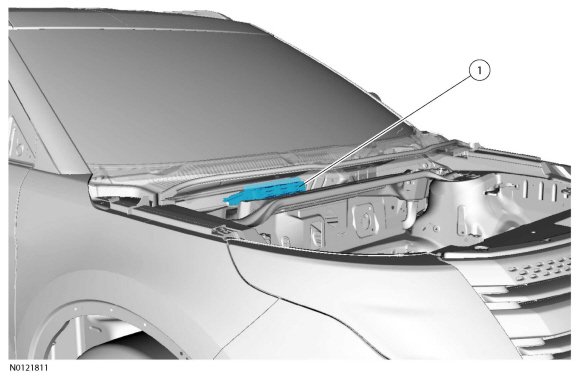

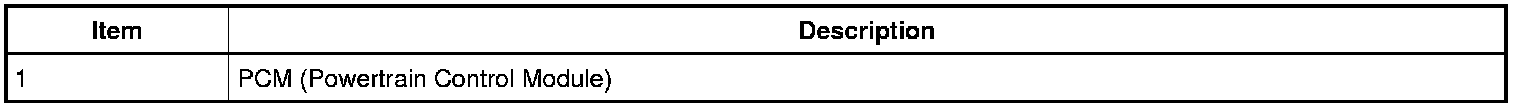

PCM Location

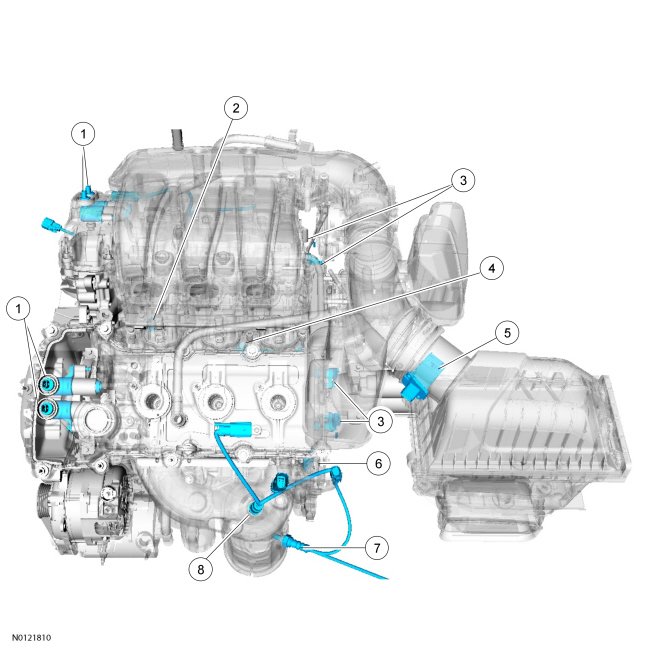

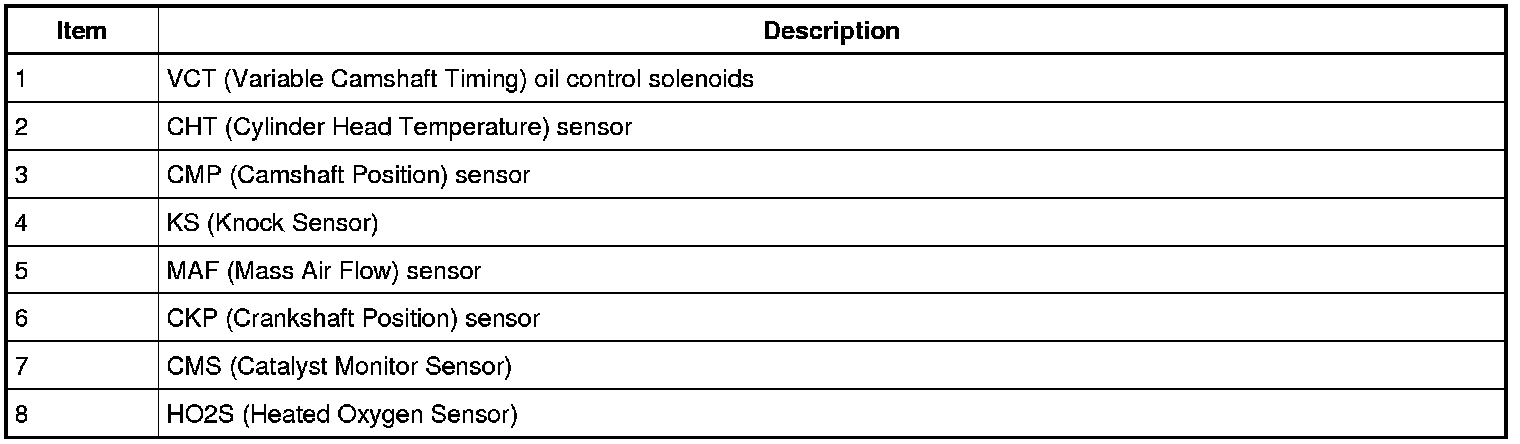

Sensor Locations










Overview

Refer to Computers and Control Systems, Description and Operation.
