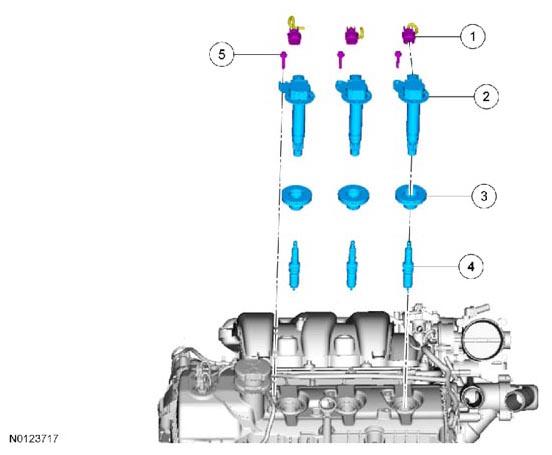

Exploded View
Left Hand (LH) shown, Right Hand (RH) similar. REFER to ENGINE IGNITION COMPONENTS
ITEM DESCRIPTION TABLE
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector part of (12A581) (3 required) | - | - | - |
| 2 | 12029 | Ignition coil-on-plug (3 required) | - | Silicone Brake Caliper Grease and Dielectric Compound | - |
| 3 | 12025 | Ignition coil-on-plug seal (3 required) | - | - | - |
| 4 | 12405 | Spark plug (3 required) | 15 Nm (133 lb-in) | - | - |
| 5 | W714507 | Ignition coil-on-plug bolt (3 required) | 7 Nm (62 lb-in) | - | - |
