Engine Temperature Sensor

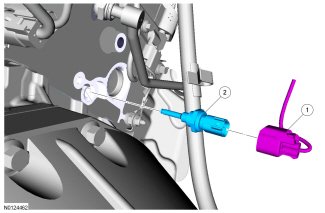

Engine Control Components - Exploded View, 3.5L GTDI

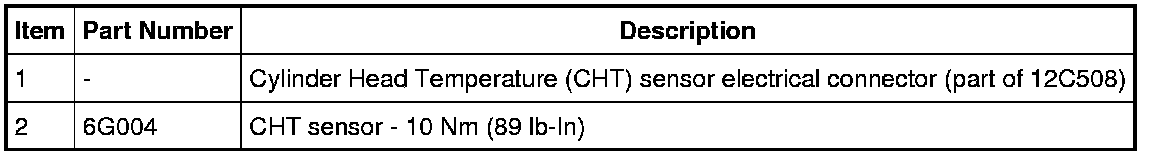

Cylinder Head Temperature (CHT) Sensor

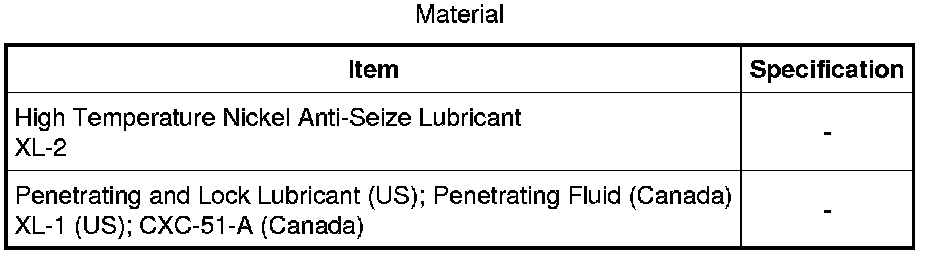

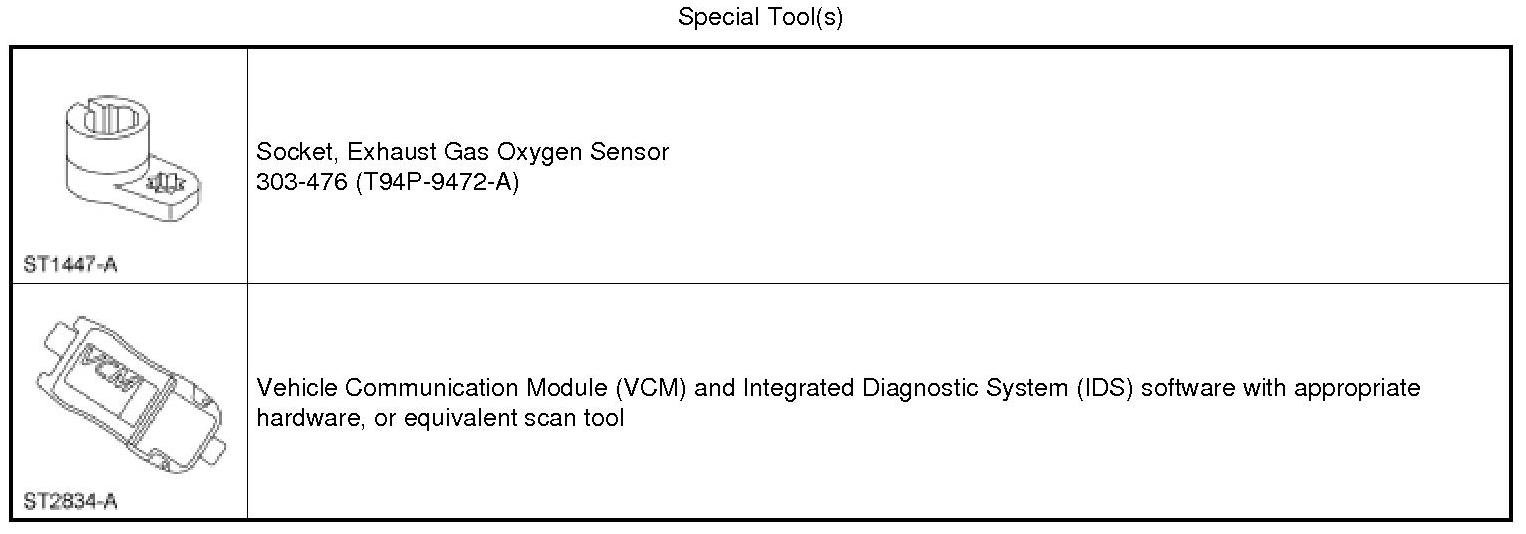

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
