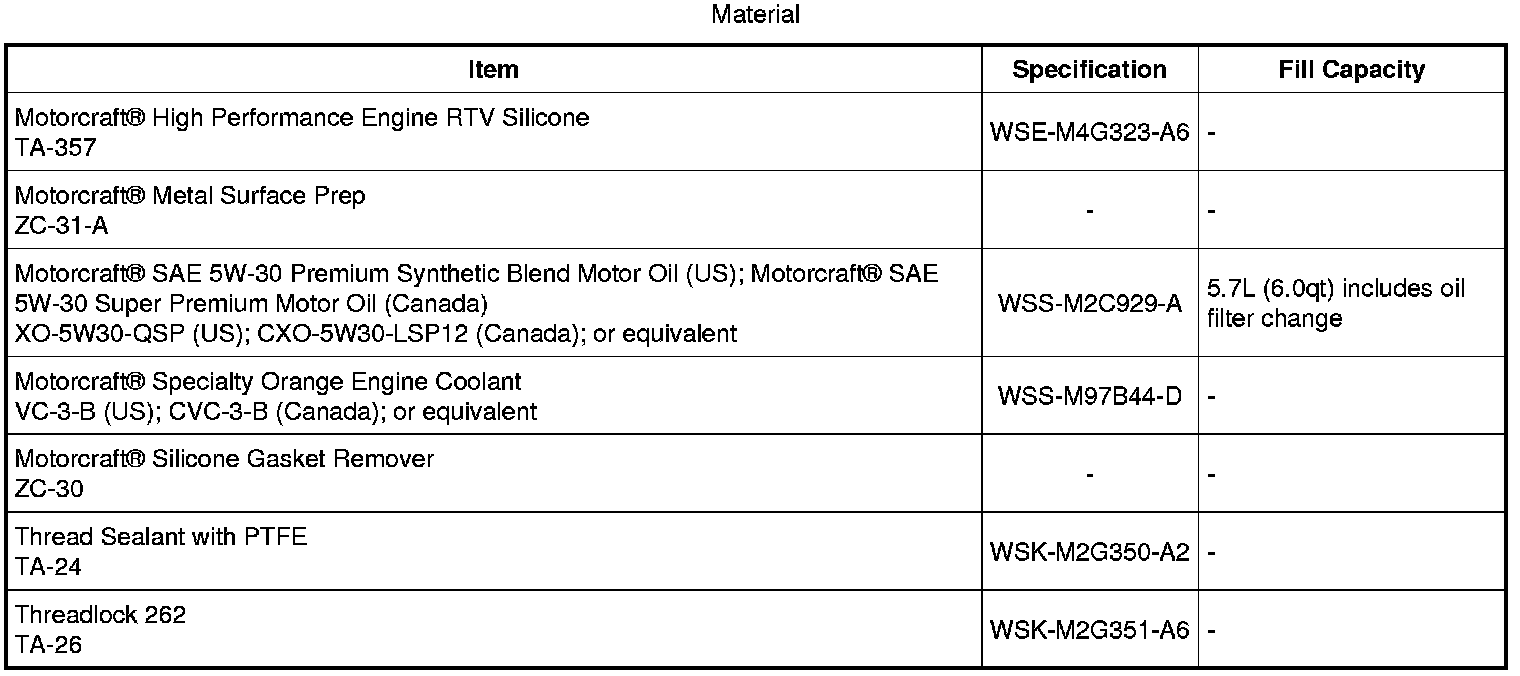

System Specifications

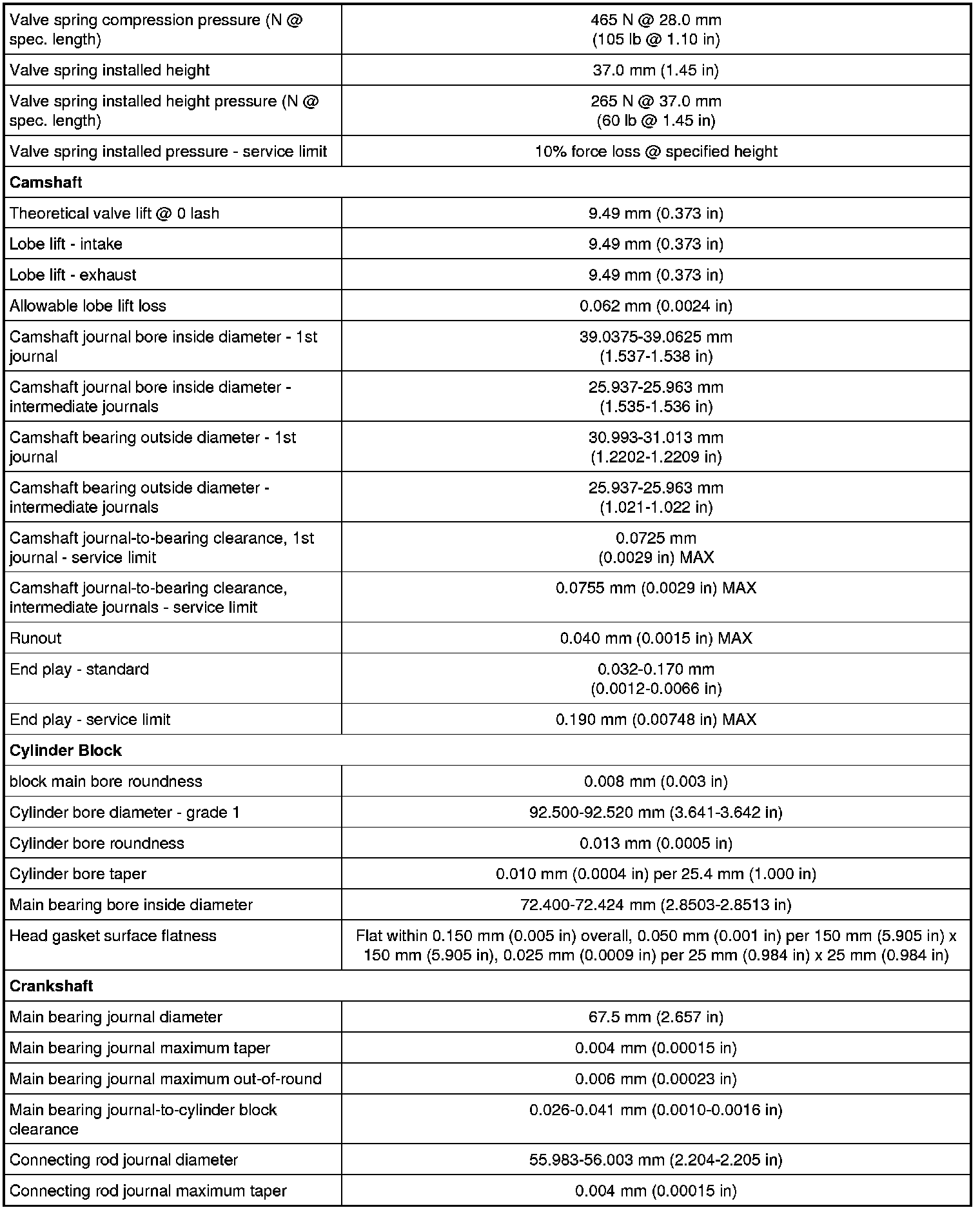

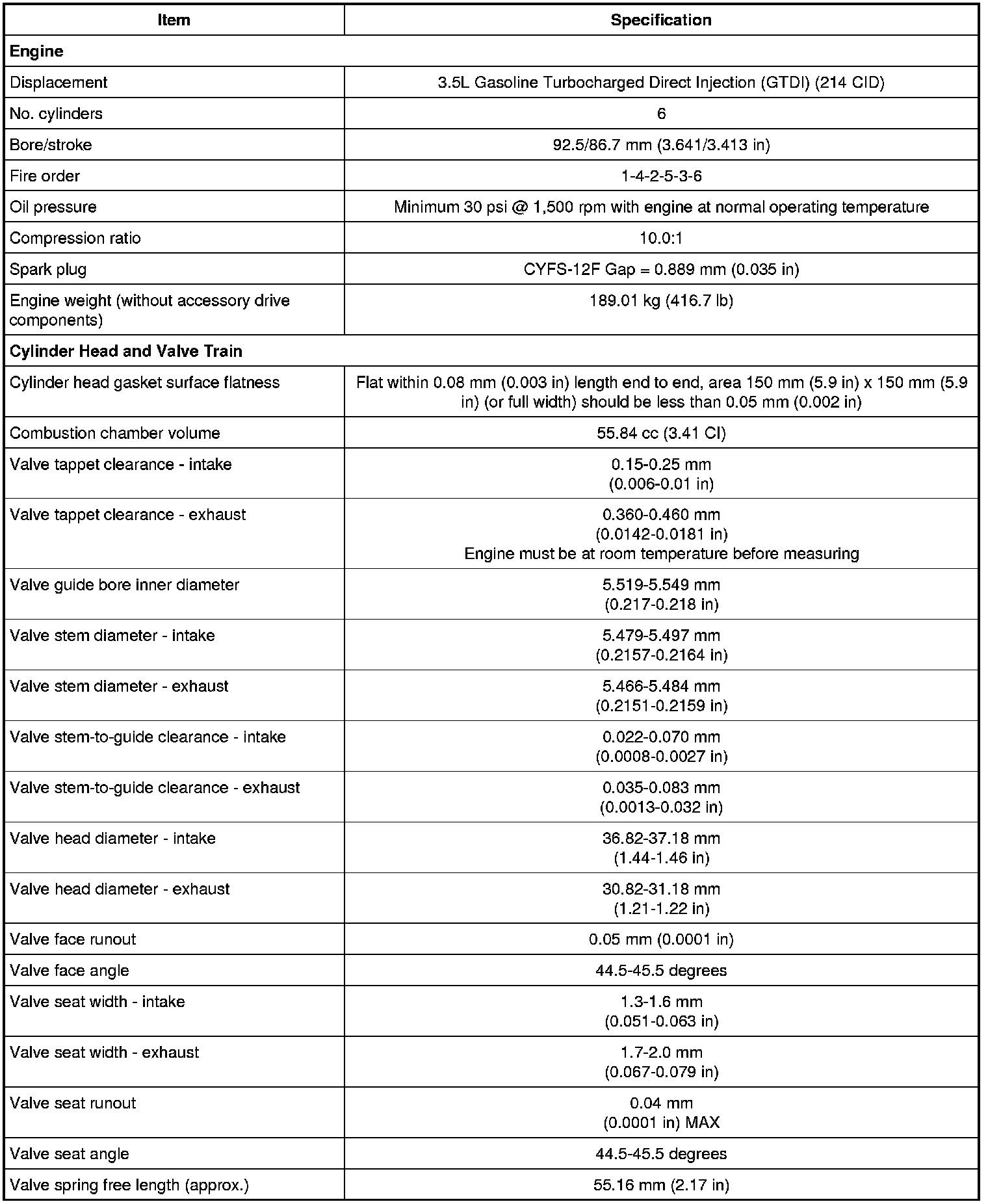

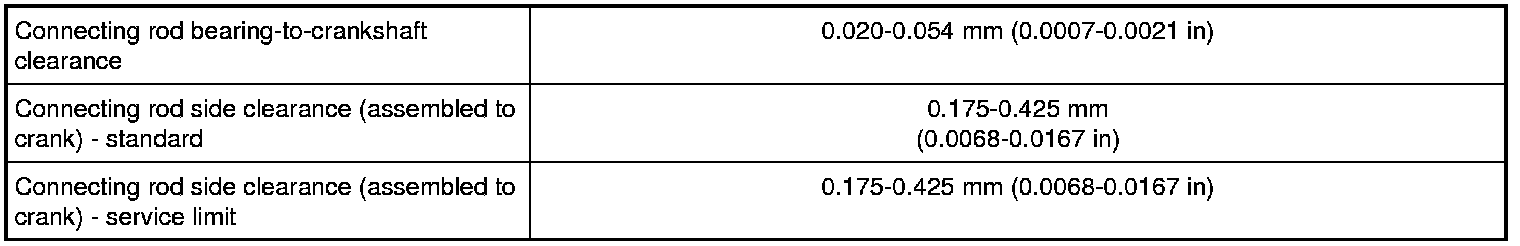

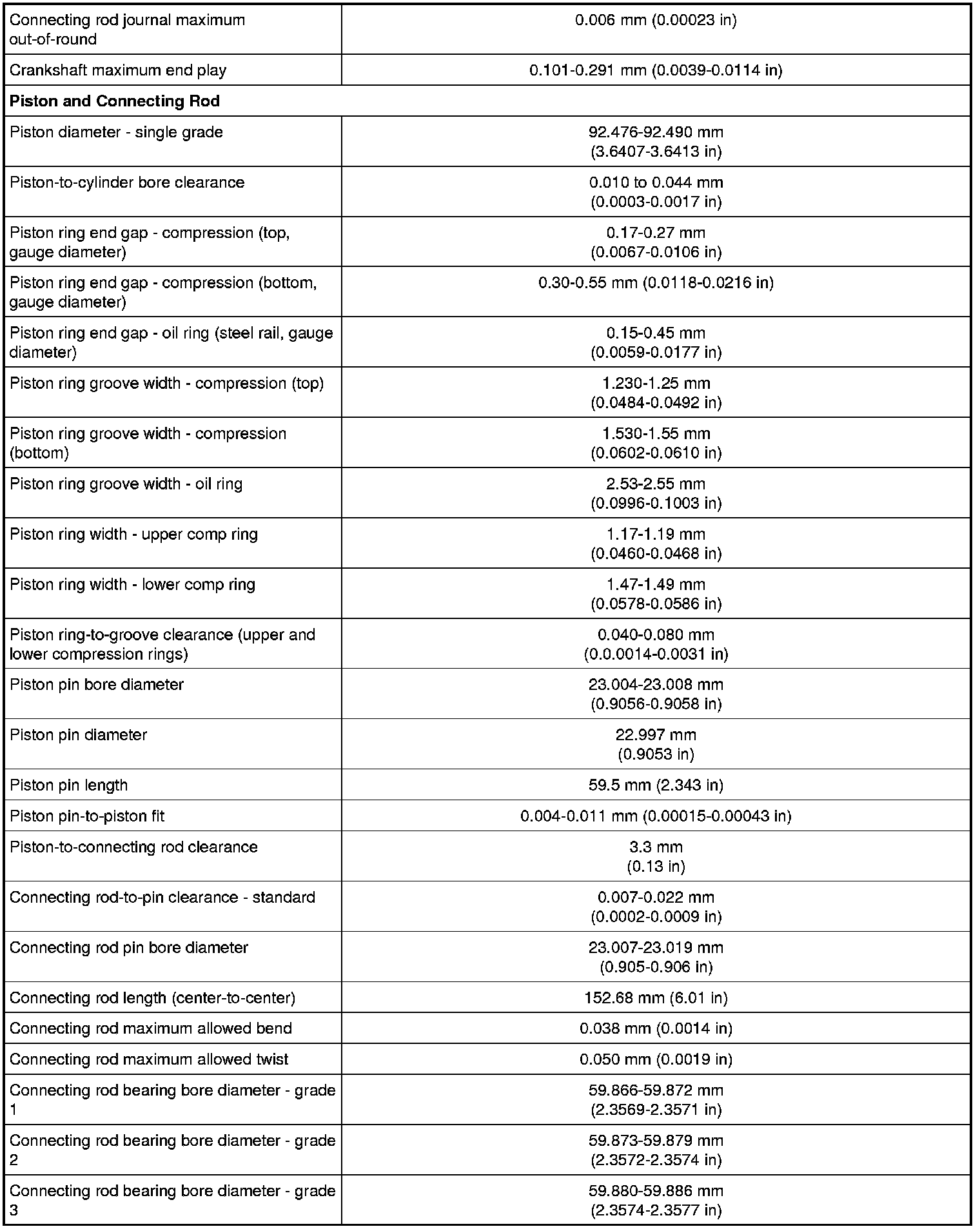

General Specifications

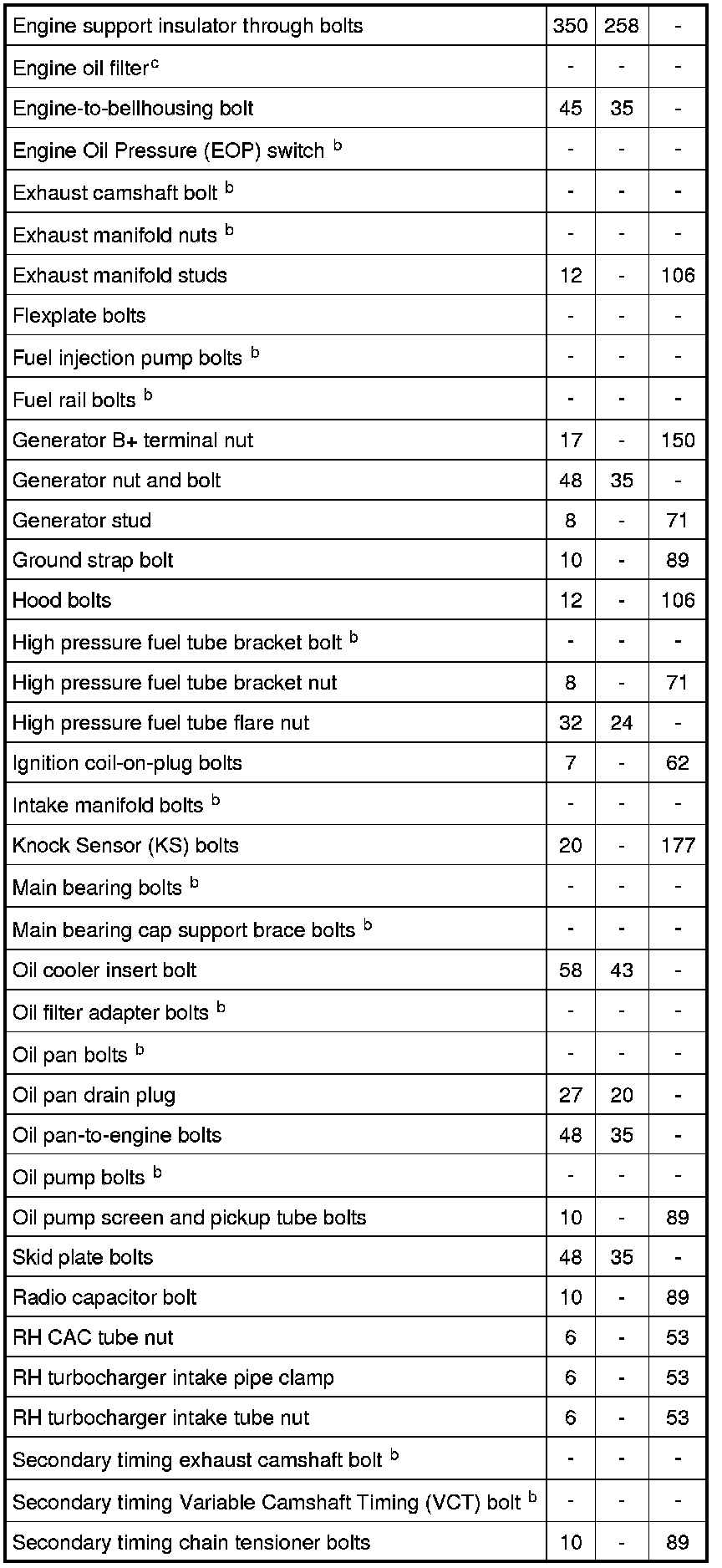

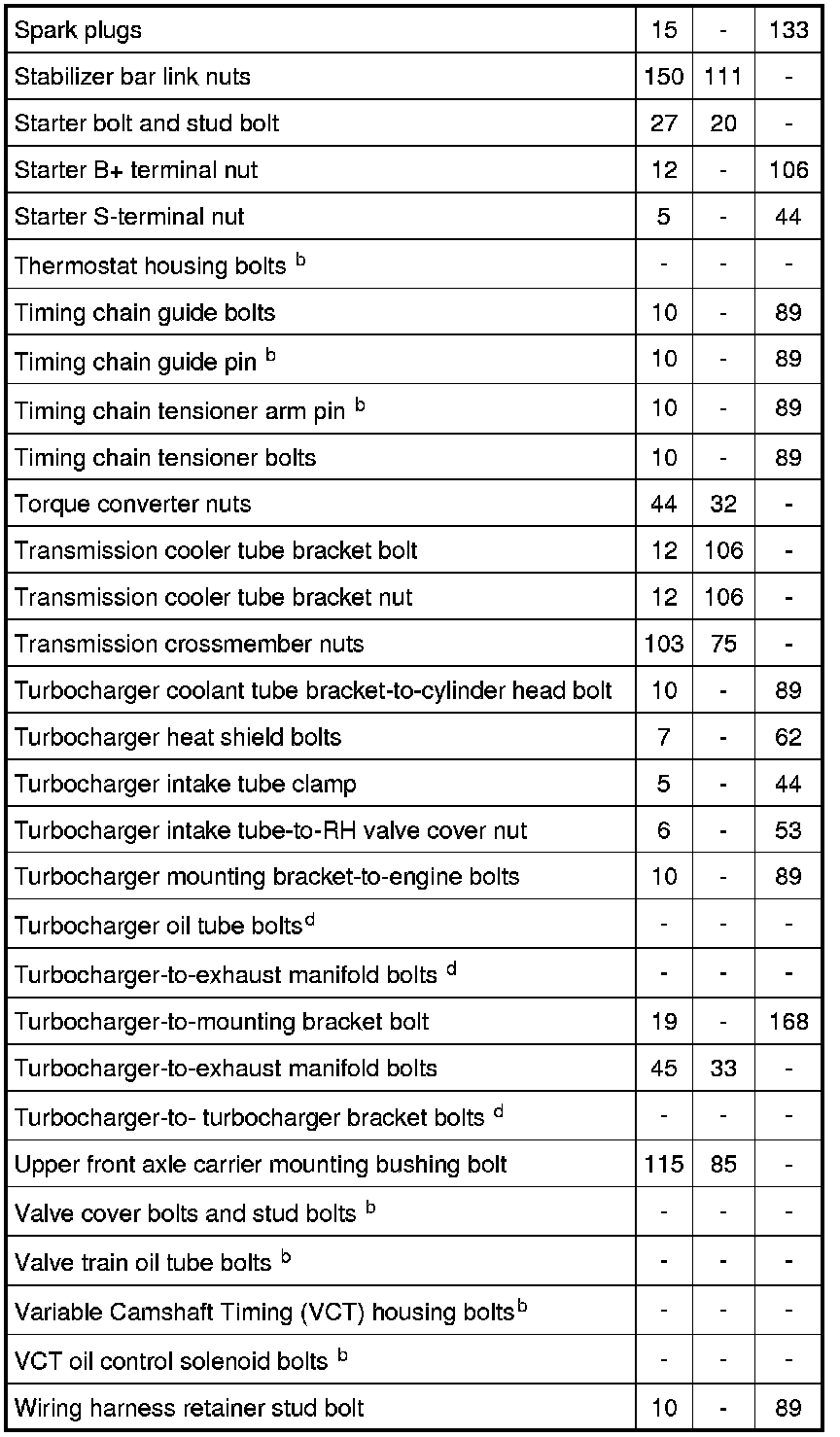

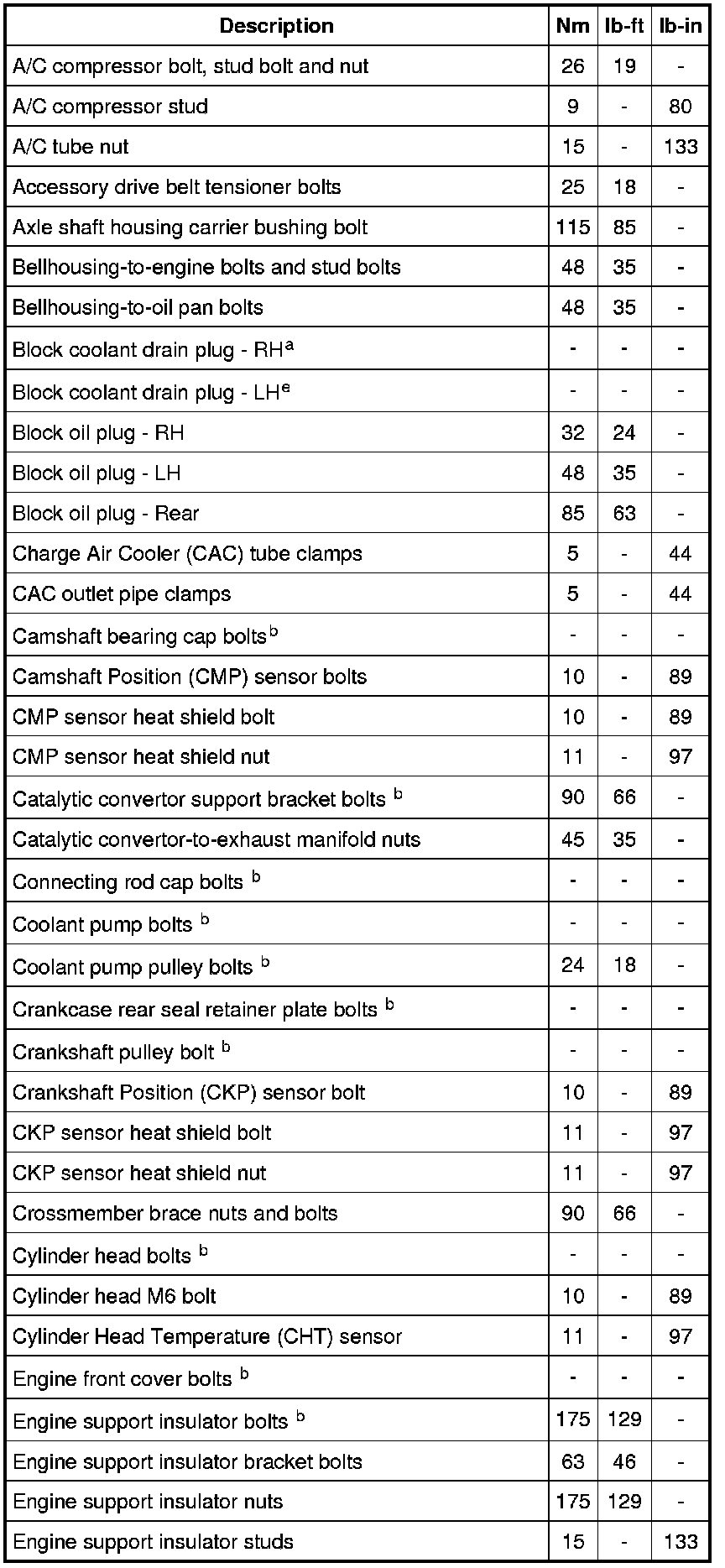

Torque Specifications













a Tighten to 16 Nm (142 lb-in) plus an additional 180 degrees.

e Tighten to 10 Nm (89 lb-in) plus an additional 720 degrees

b Refer to the procedure.

c Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.

d Refer to the assembly procedure.
