Pinpoint Test Notes




External Controls - Column Shift

Pinpoint Tests

Refer to Wiring Diagram Set 30, Transmission Controls for schematic and connector information. Diagrams By Number

Refer to Wiring Diagram Set 37, Shift Interlock for schematic and connector information. Diagrams By Number

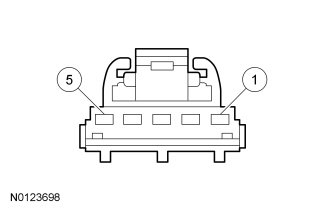

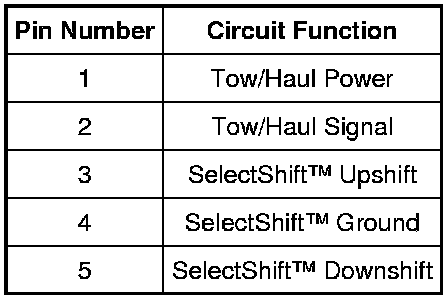

Tow/Haul Connector - C2399
