Rear Disc Brake




Disc Brake System - Exploded View

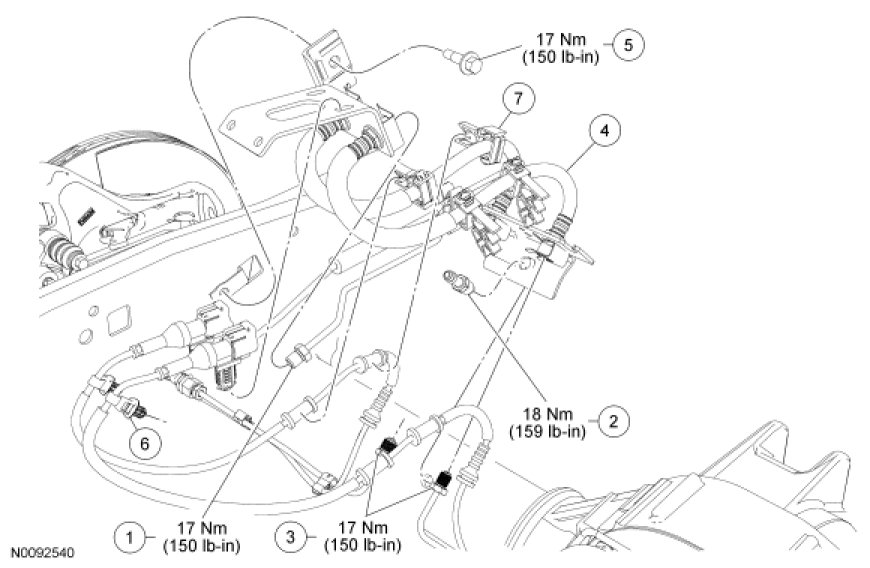

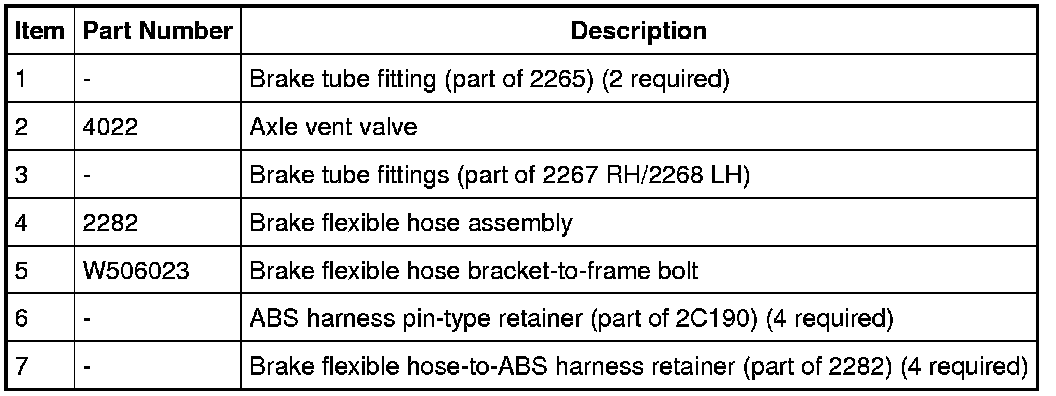

Rear Disc Brakes (View 1 of 3)

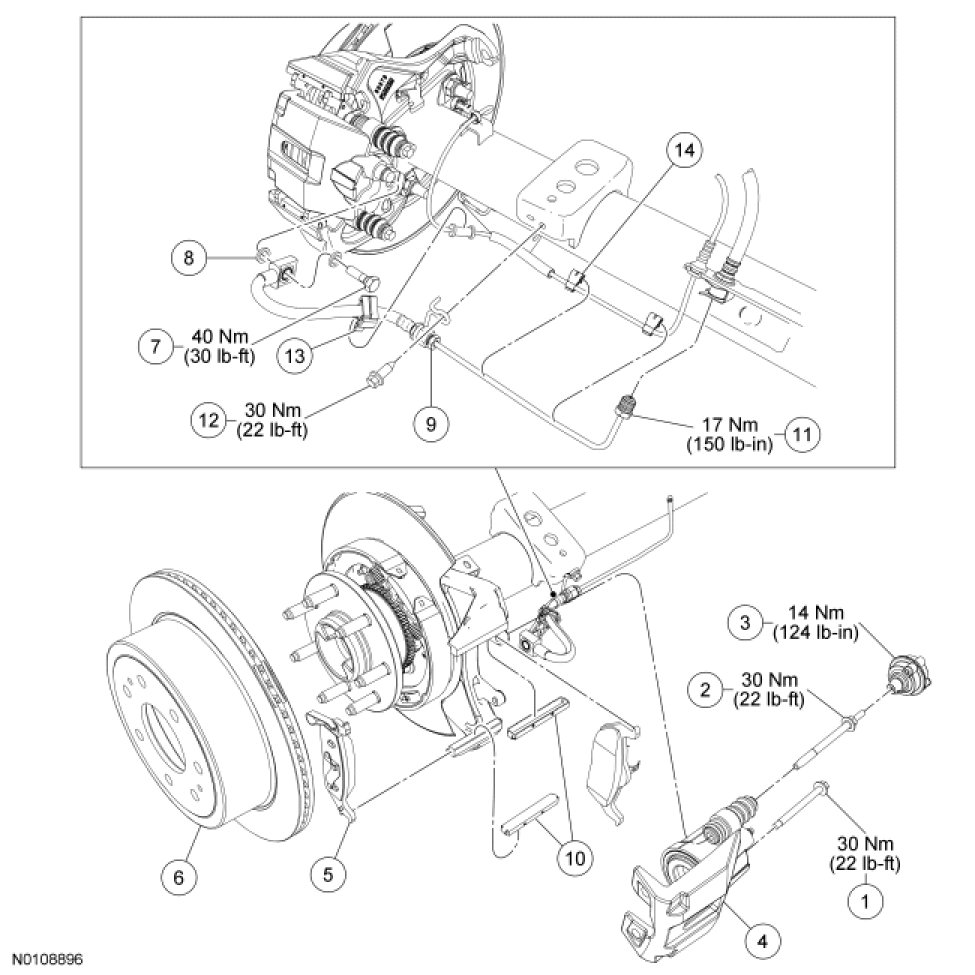

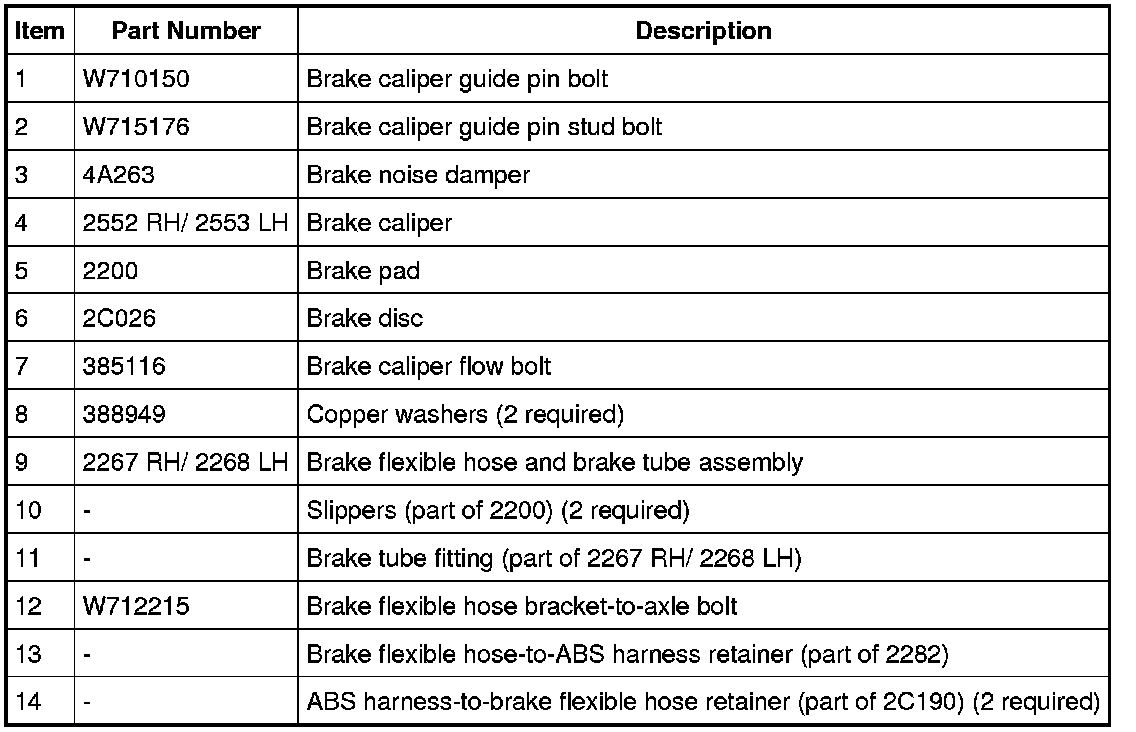

Rear Disc Brakes (View 2 of 3)

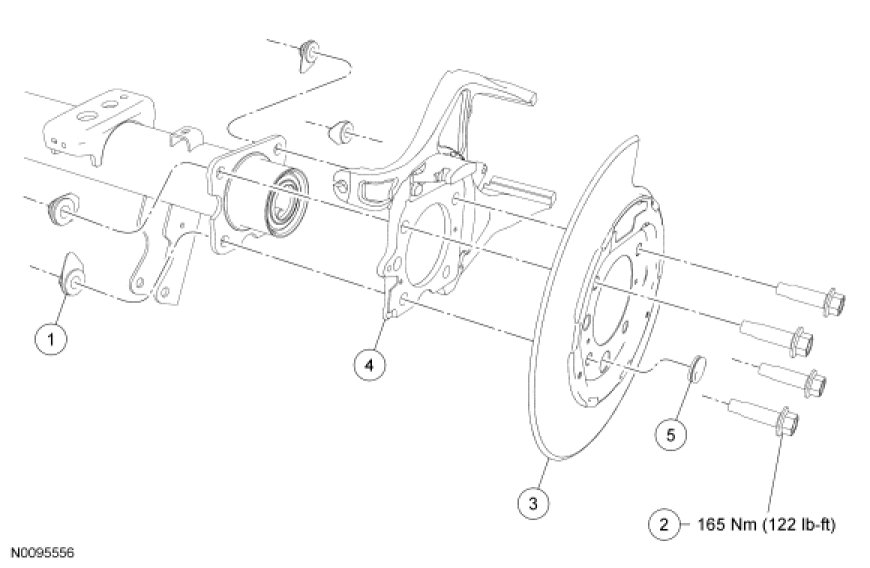

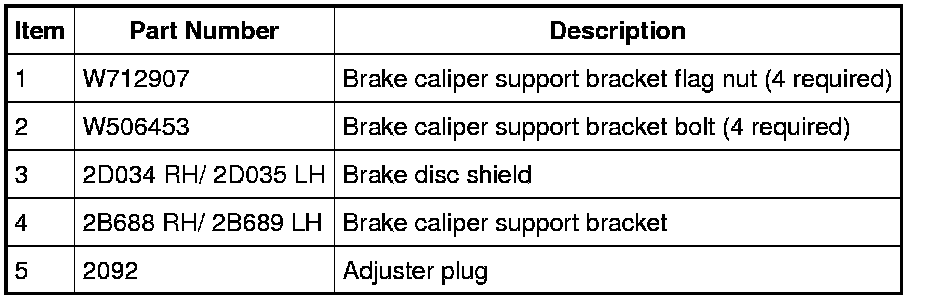

Rear Disc Brakes (View 3 of 3)
