System Specifications

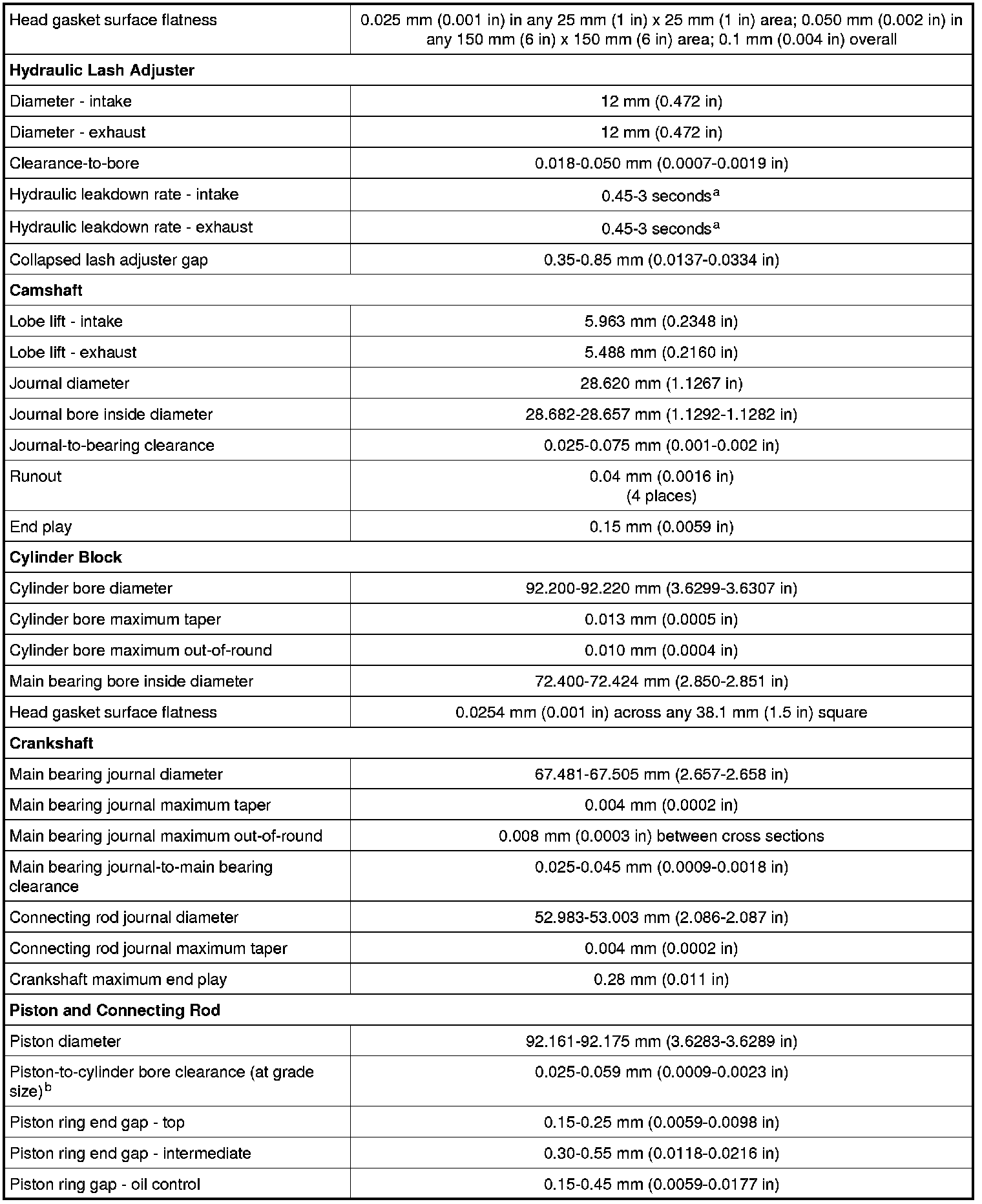

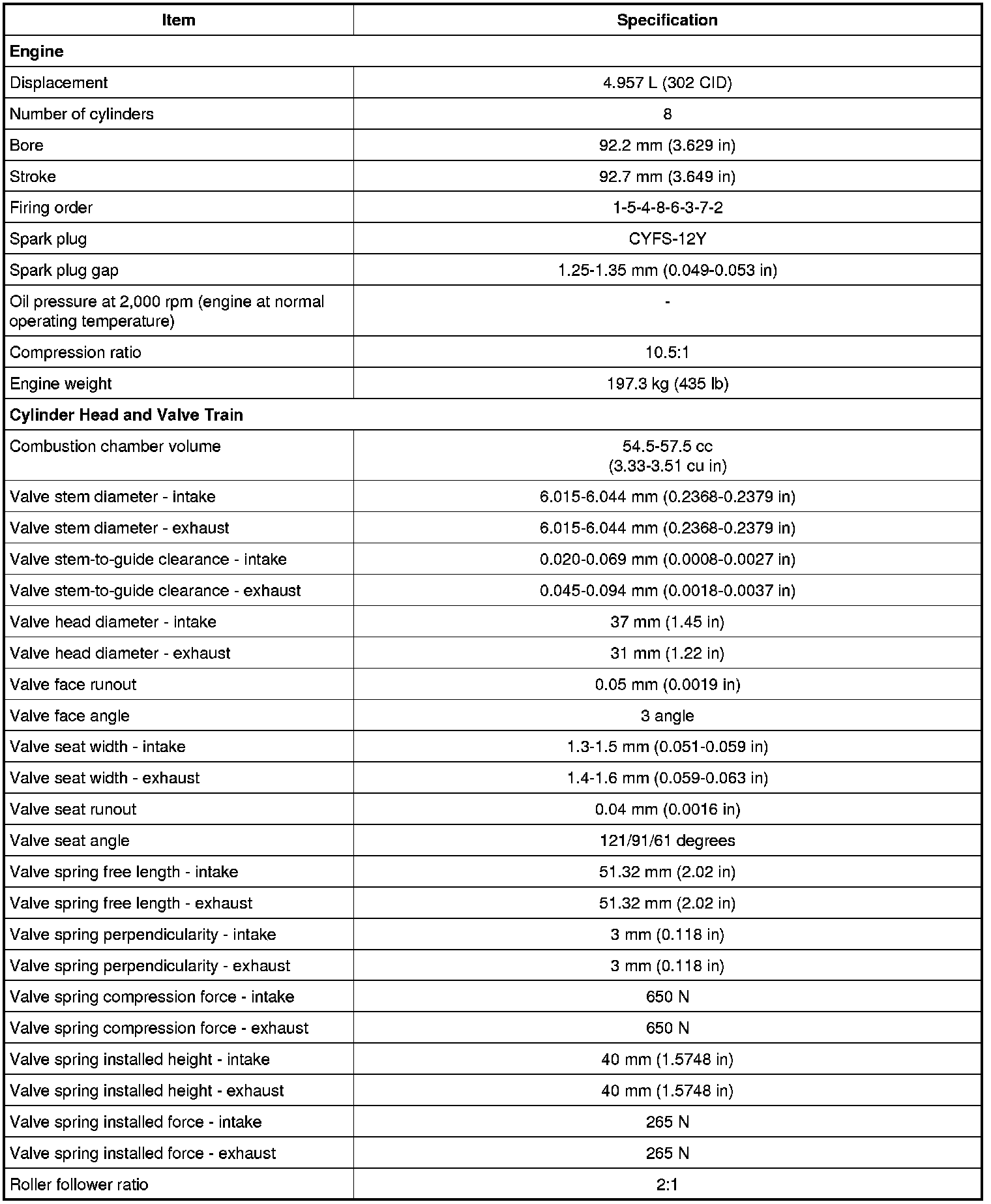

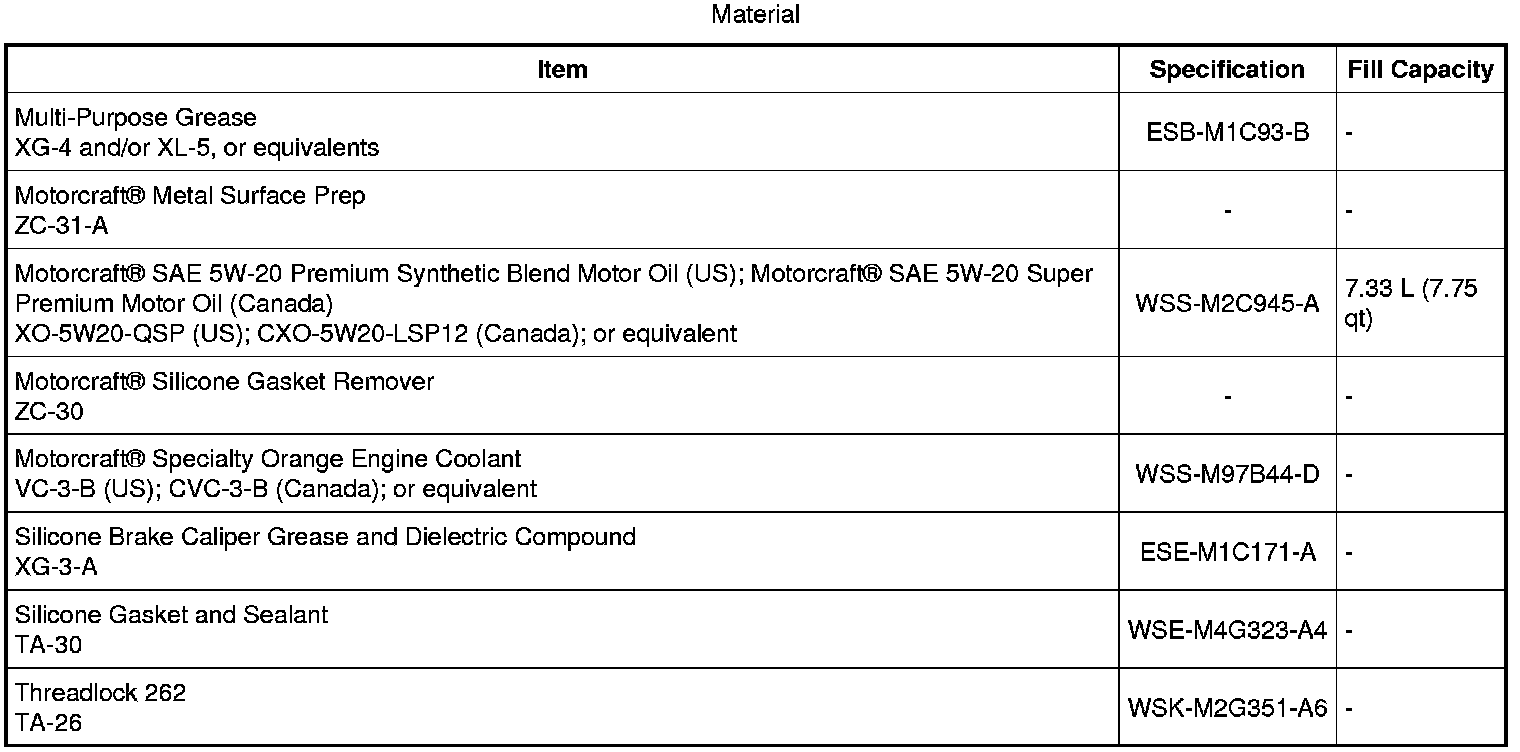

General Specifications













a Time required for the plunger to leak down 1.6 mm of travel with 222 N force and leakdown fluid in the lash adjuster.

b Before Grafal coating.

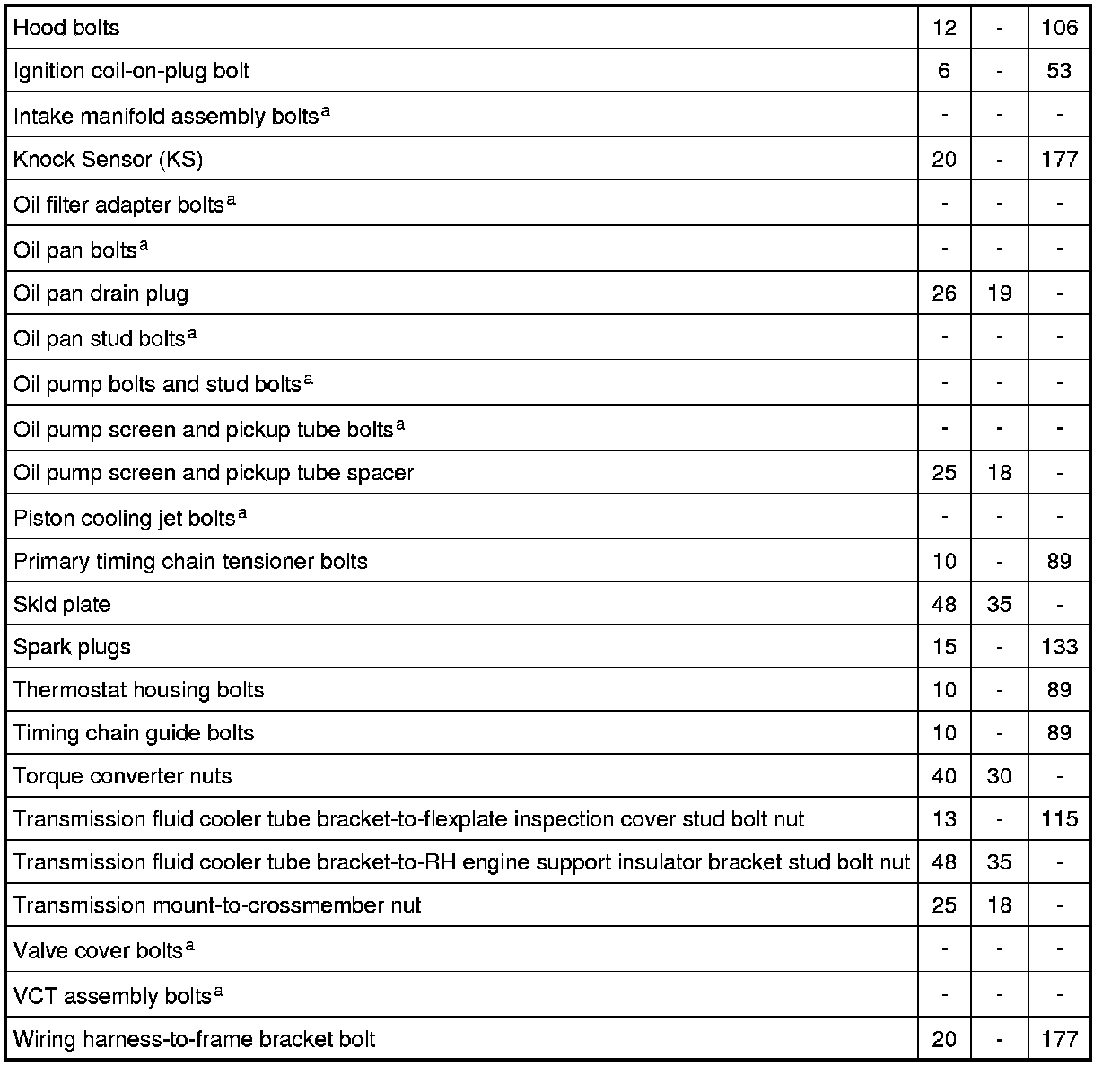

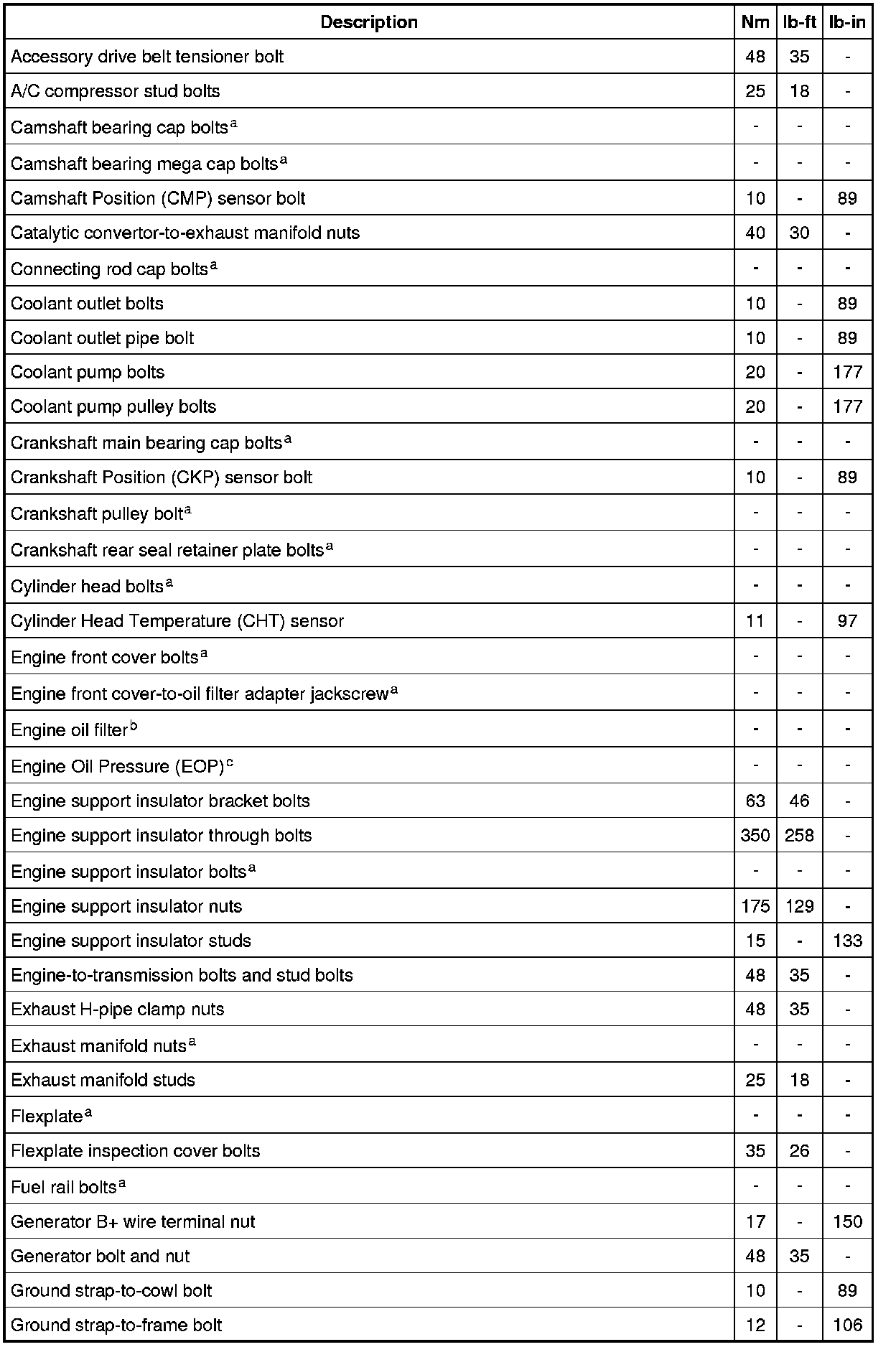

Torque Specifications









a Refer to the procedure.

b Do not lubricate O-ring seal, tighten to 16 Nm (142 lb-in).

c Tighten to 14 Nm (124 lb-in) plus an additional 180 degrees.
