Transmission - Disassembled Views
Transmission
Disassembled Views

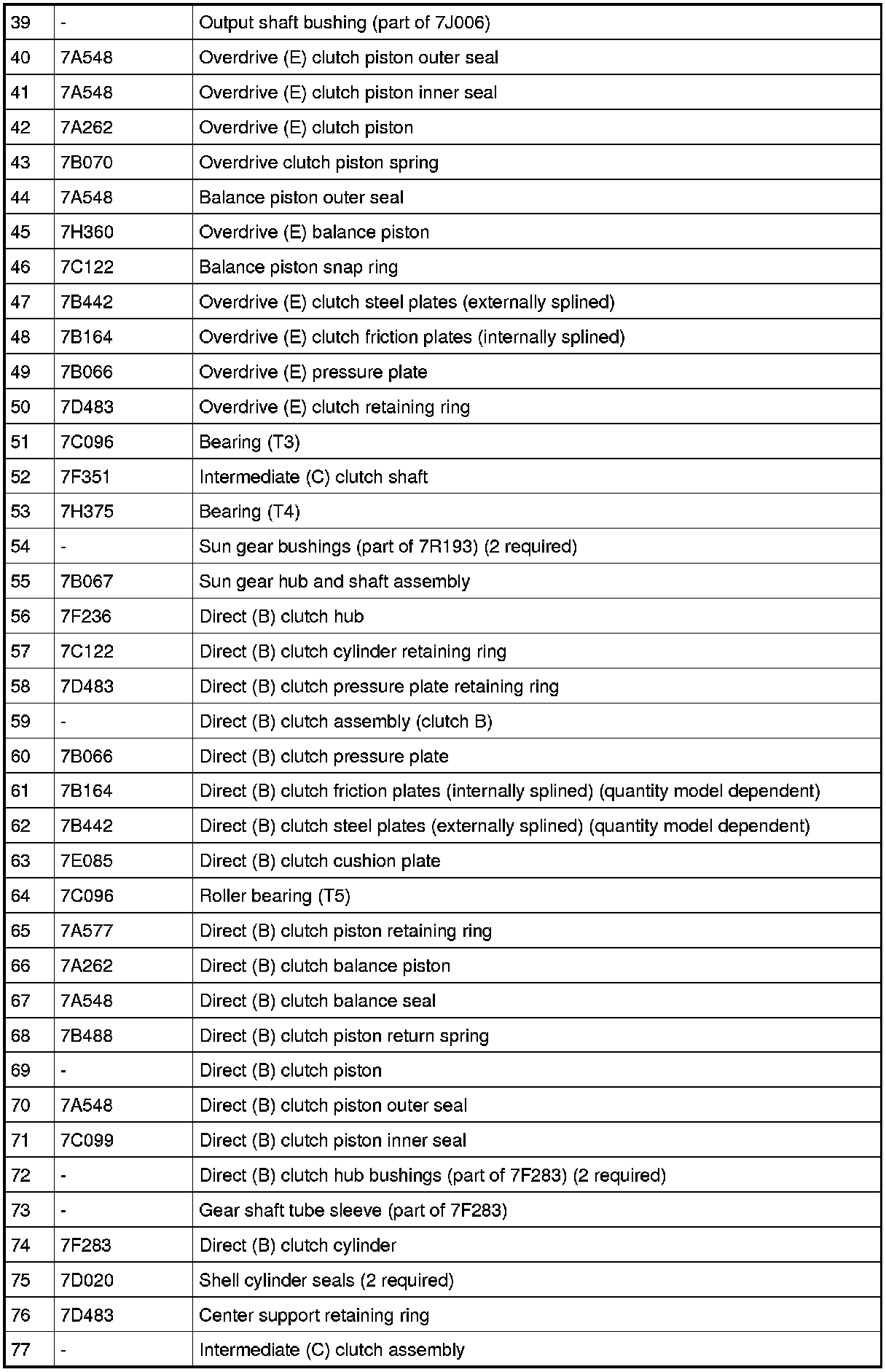

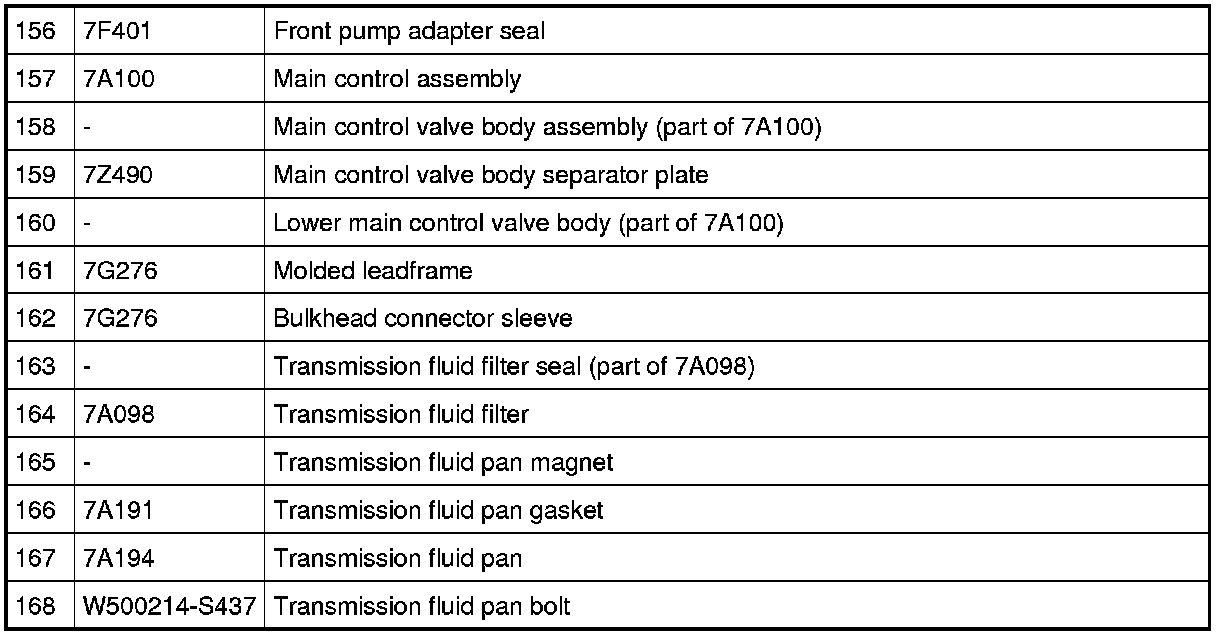

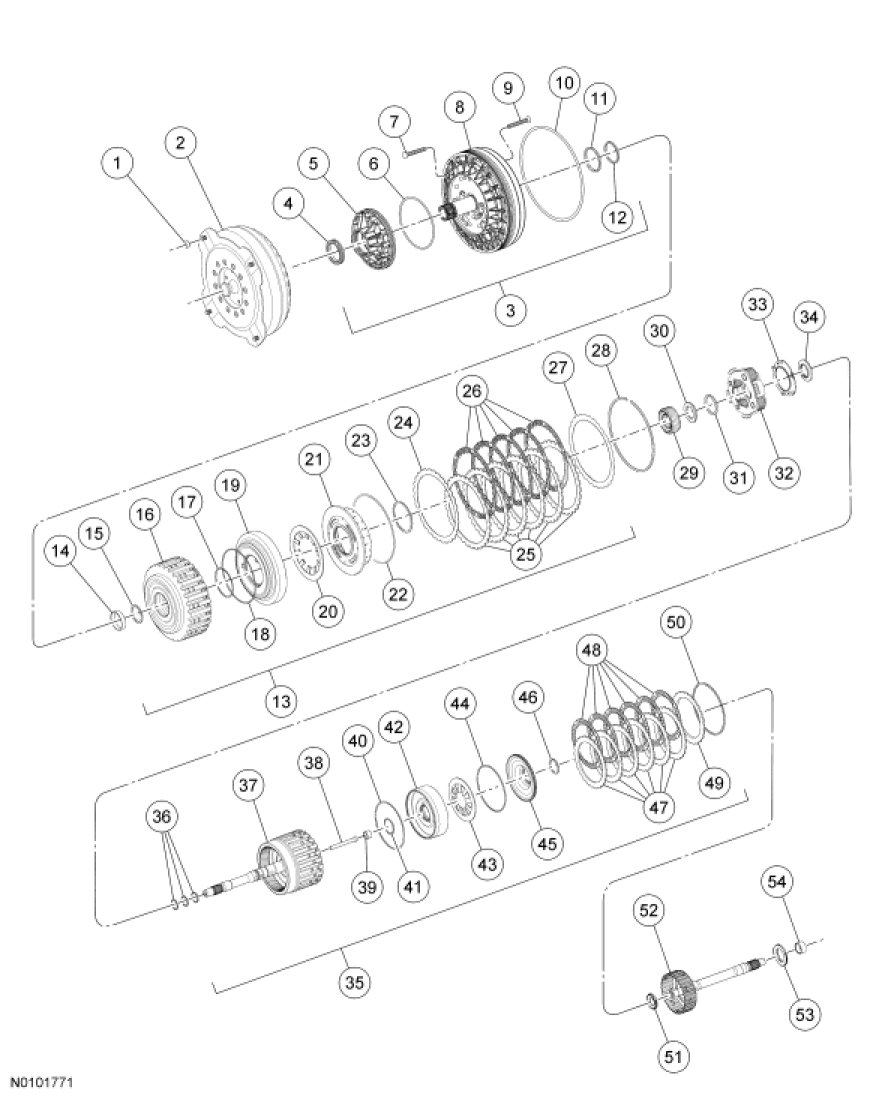

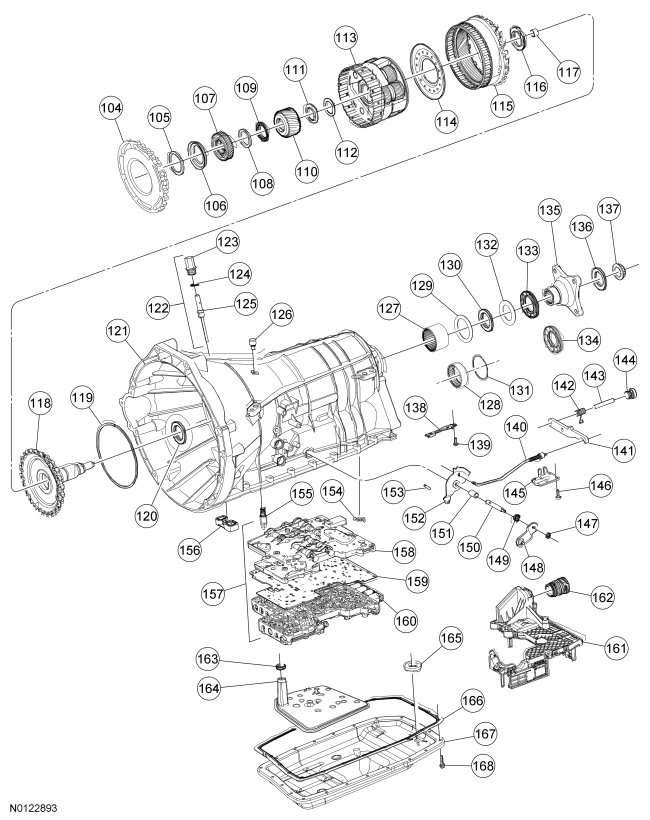

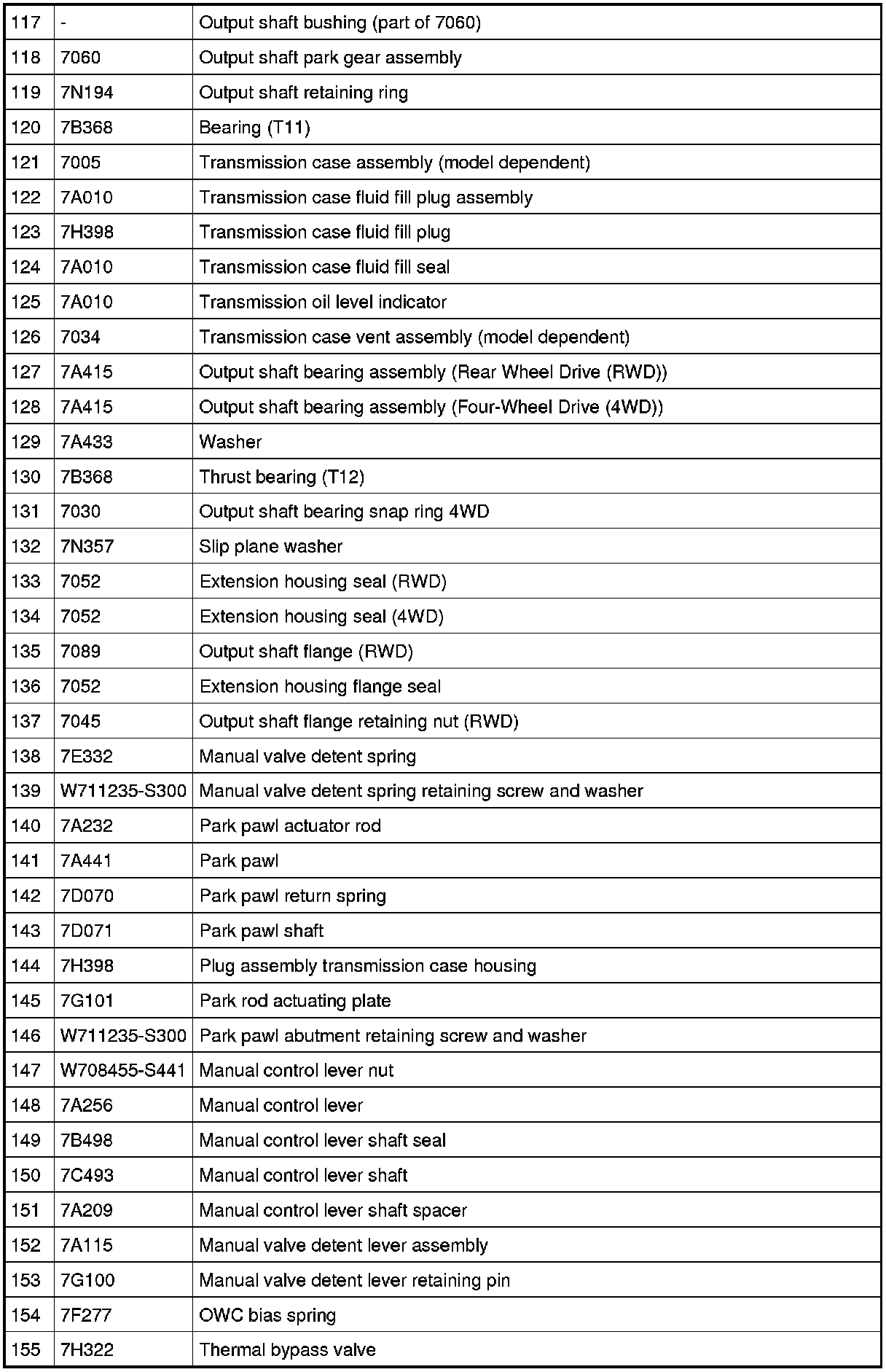

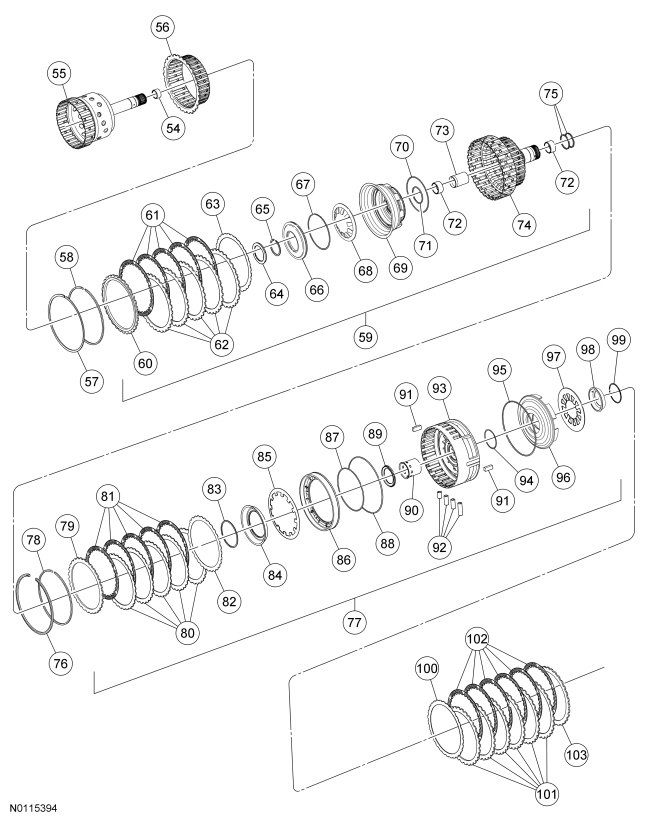

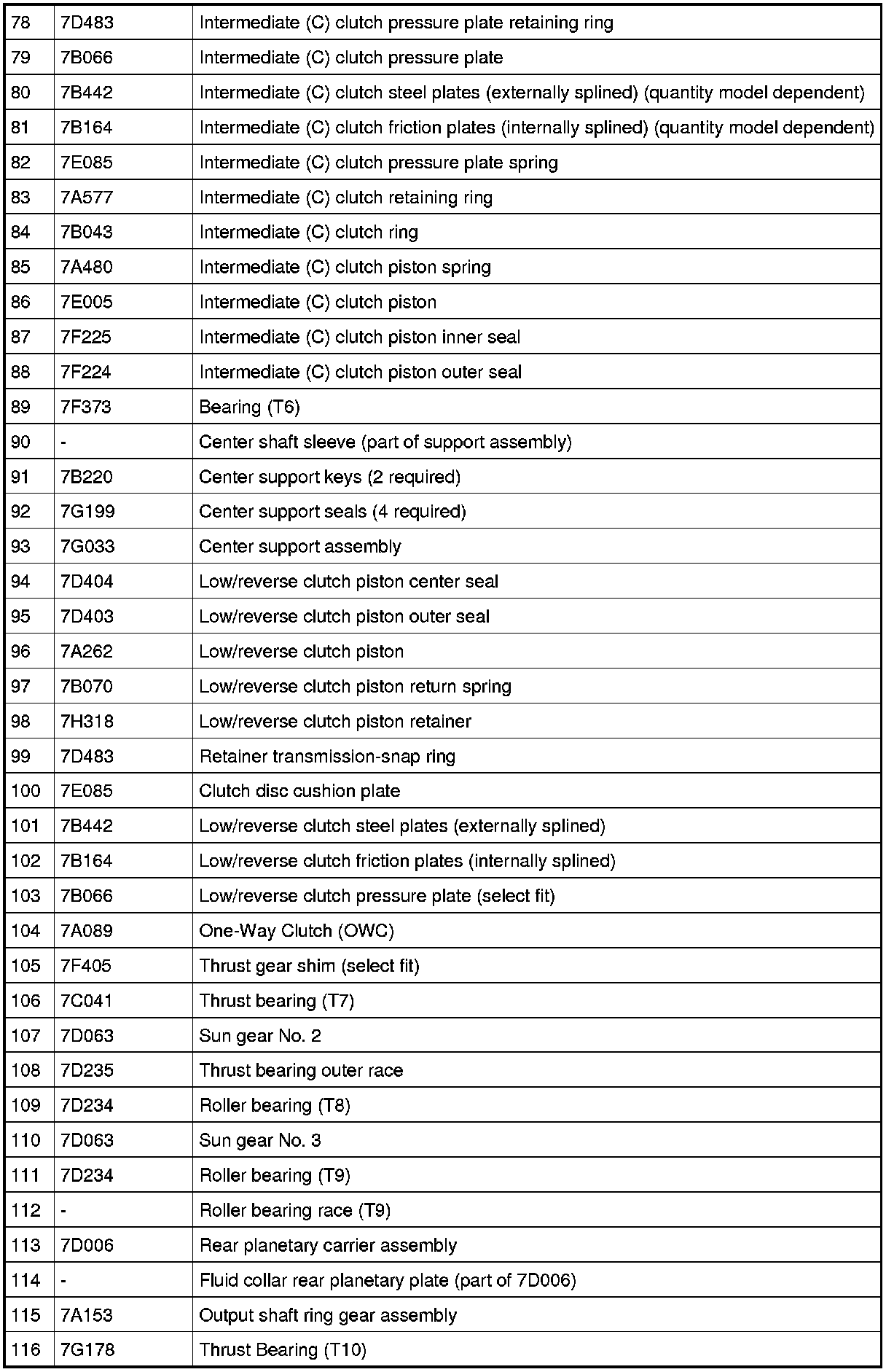

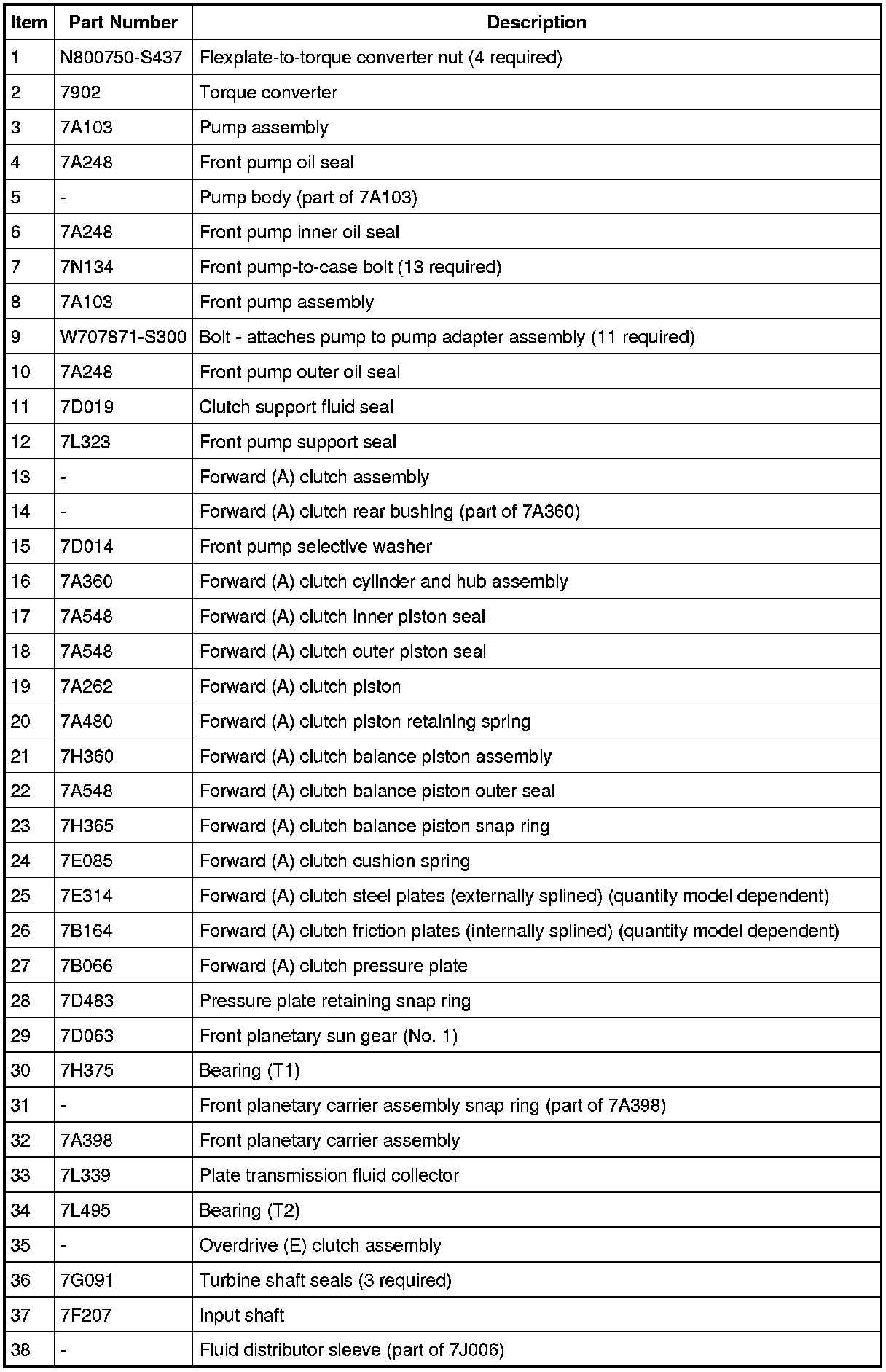

Transmission Disassembled View (Part 1):
