Seat - Exploded View, Front, Center
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Seat - Exploded View, Front, Center
Seat - Exploded View, Front, Center

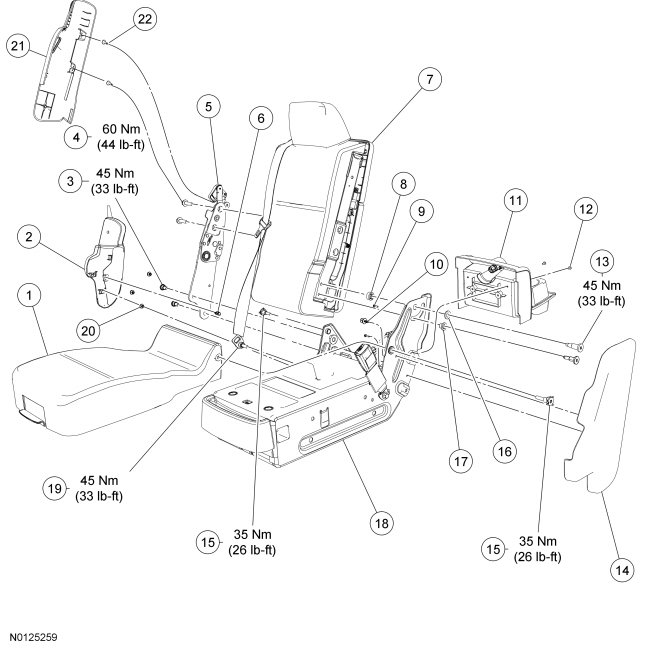

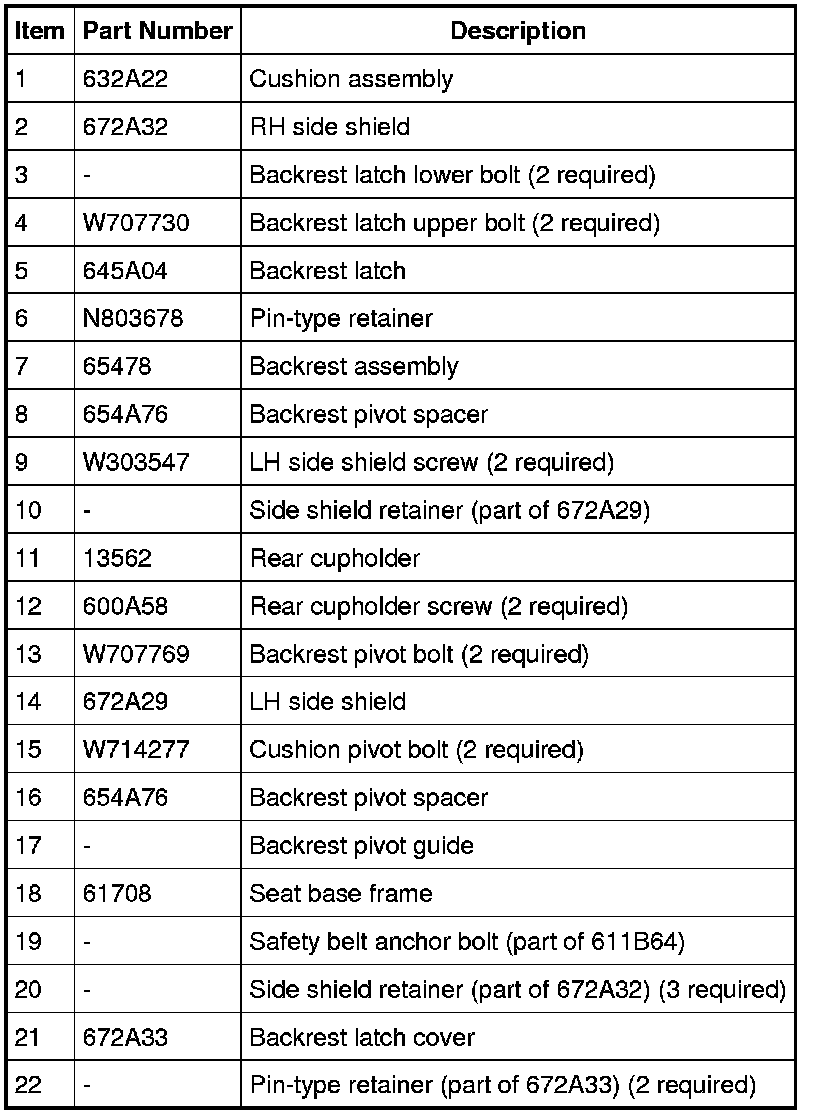

Seat Backrest and Cushion

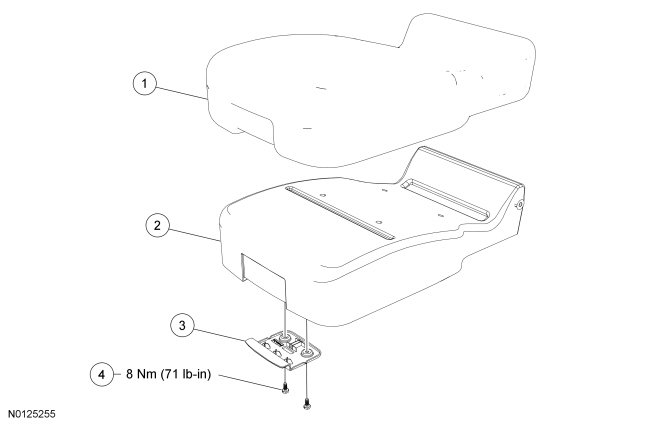

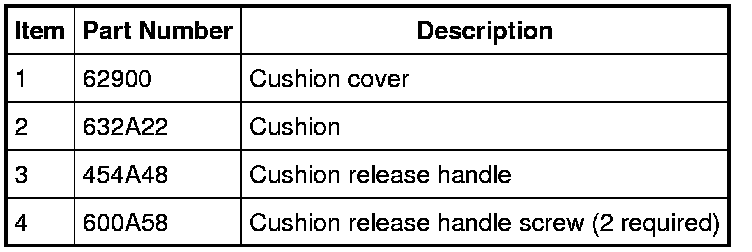

Seat Cushion

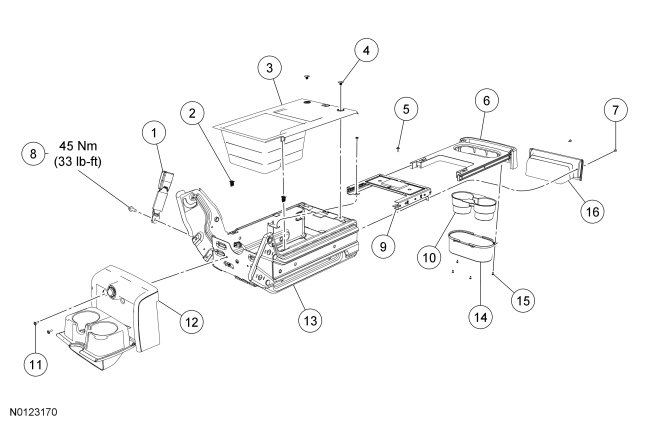

Seat Base
