Air Conditioning - Exploded View

Air Conditioning - Exploded View

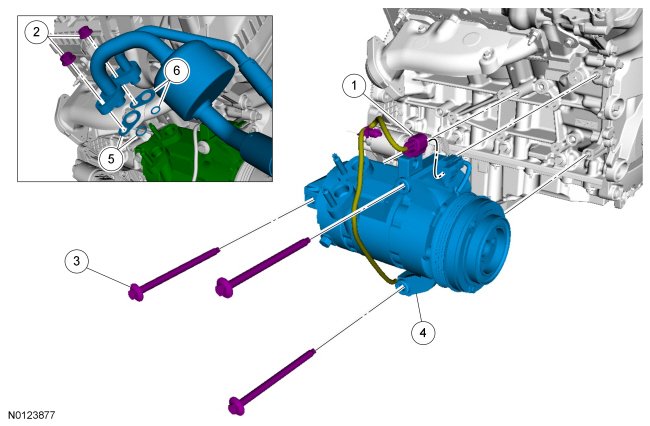

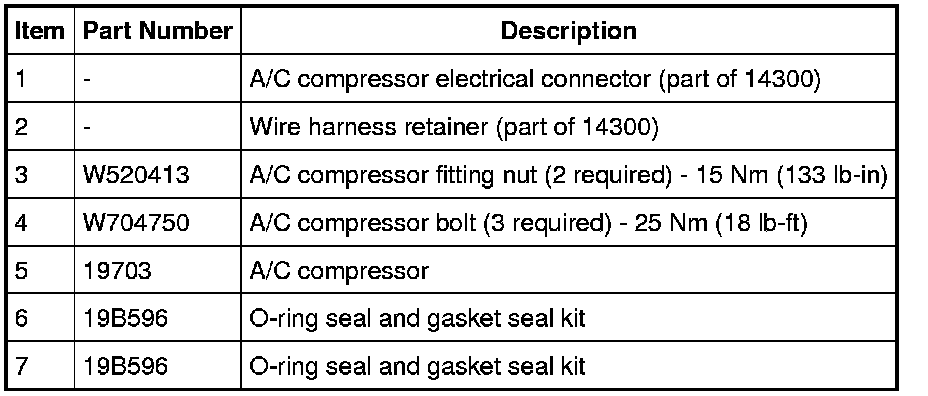

A/C Compressor - 3.5L GTDI, 3.7L

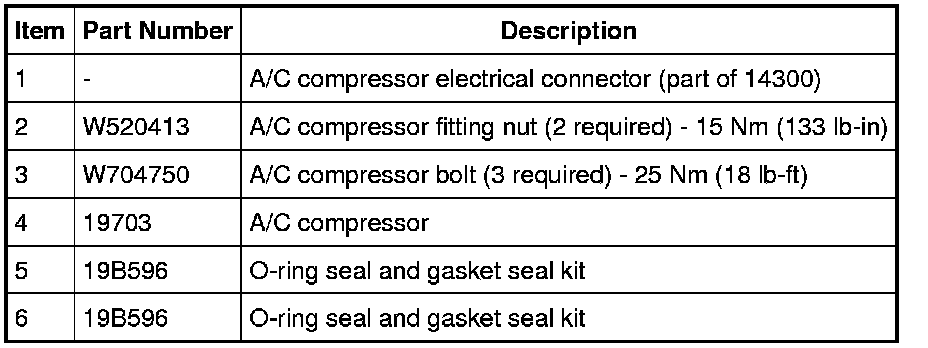

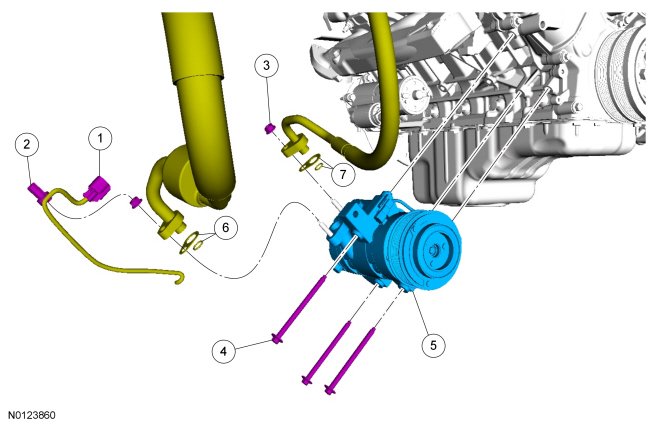

A/C Compressor 5.0L (4V), 6.2L (2V)

NOTE: 5.0L (4V) shown, 6.2L (2V) similar.









1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
