Suspension System - General Information

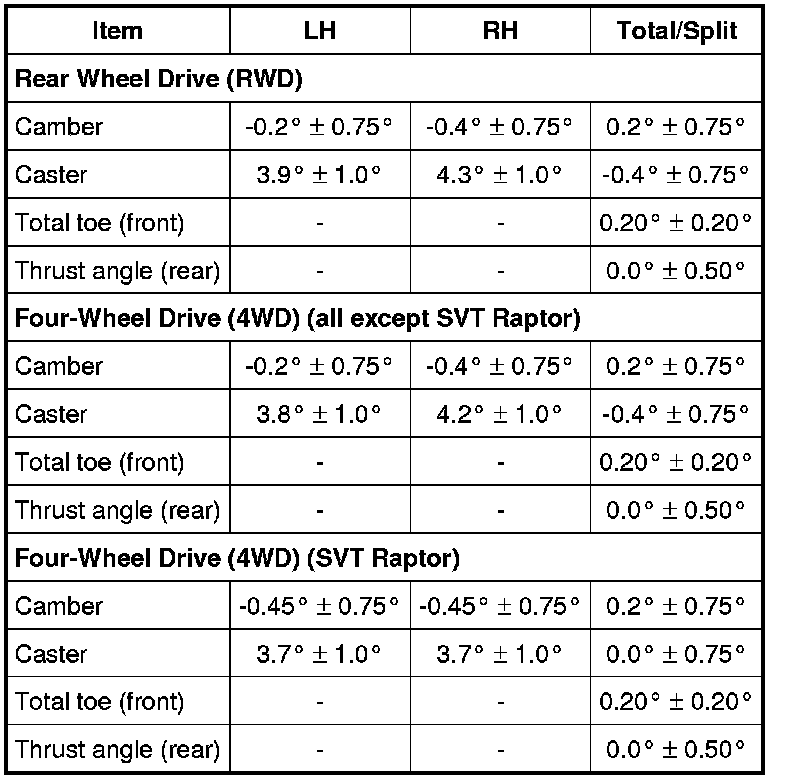

Alignment Specifications

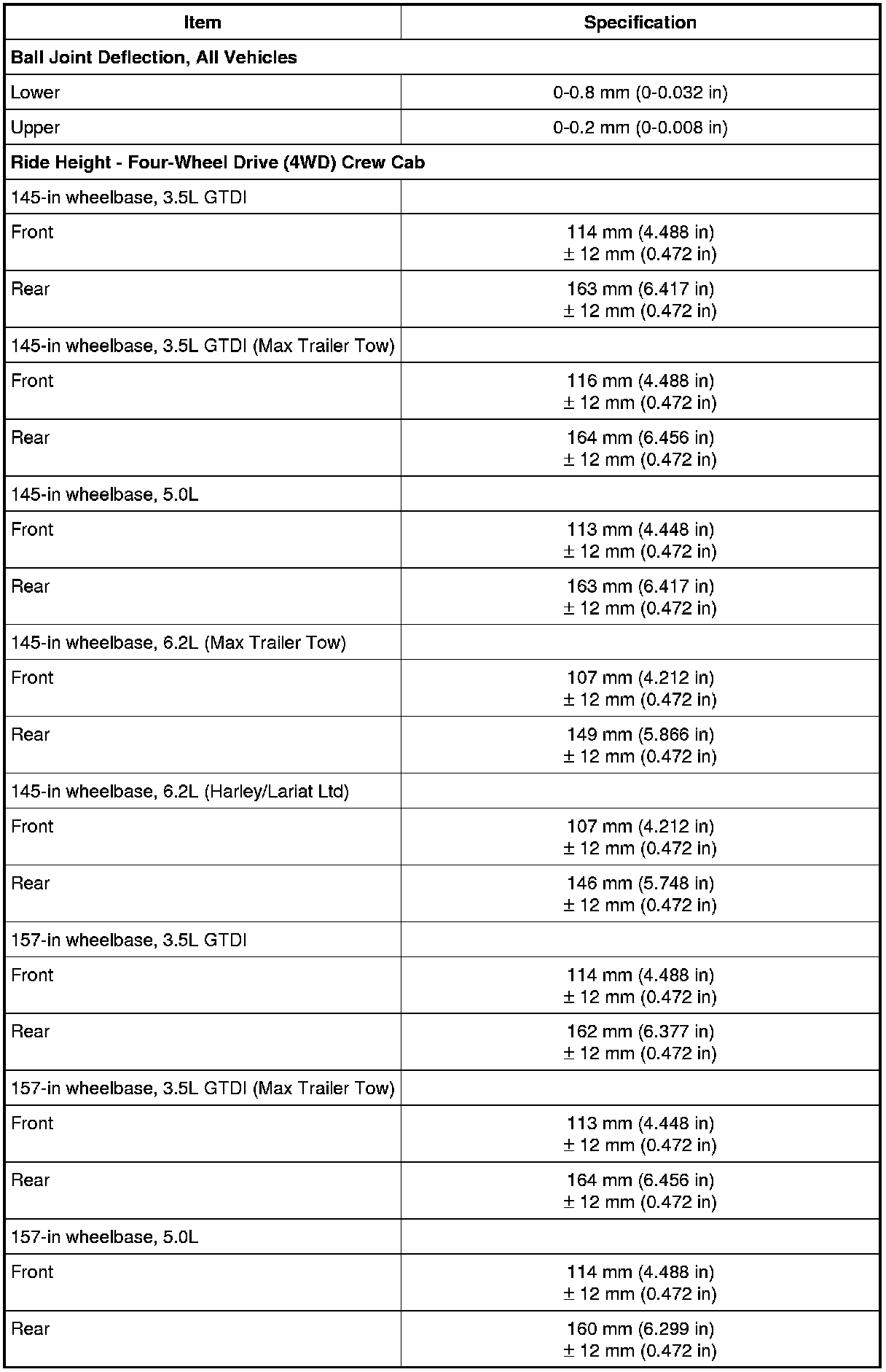

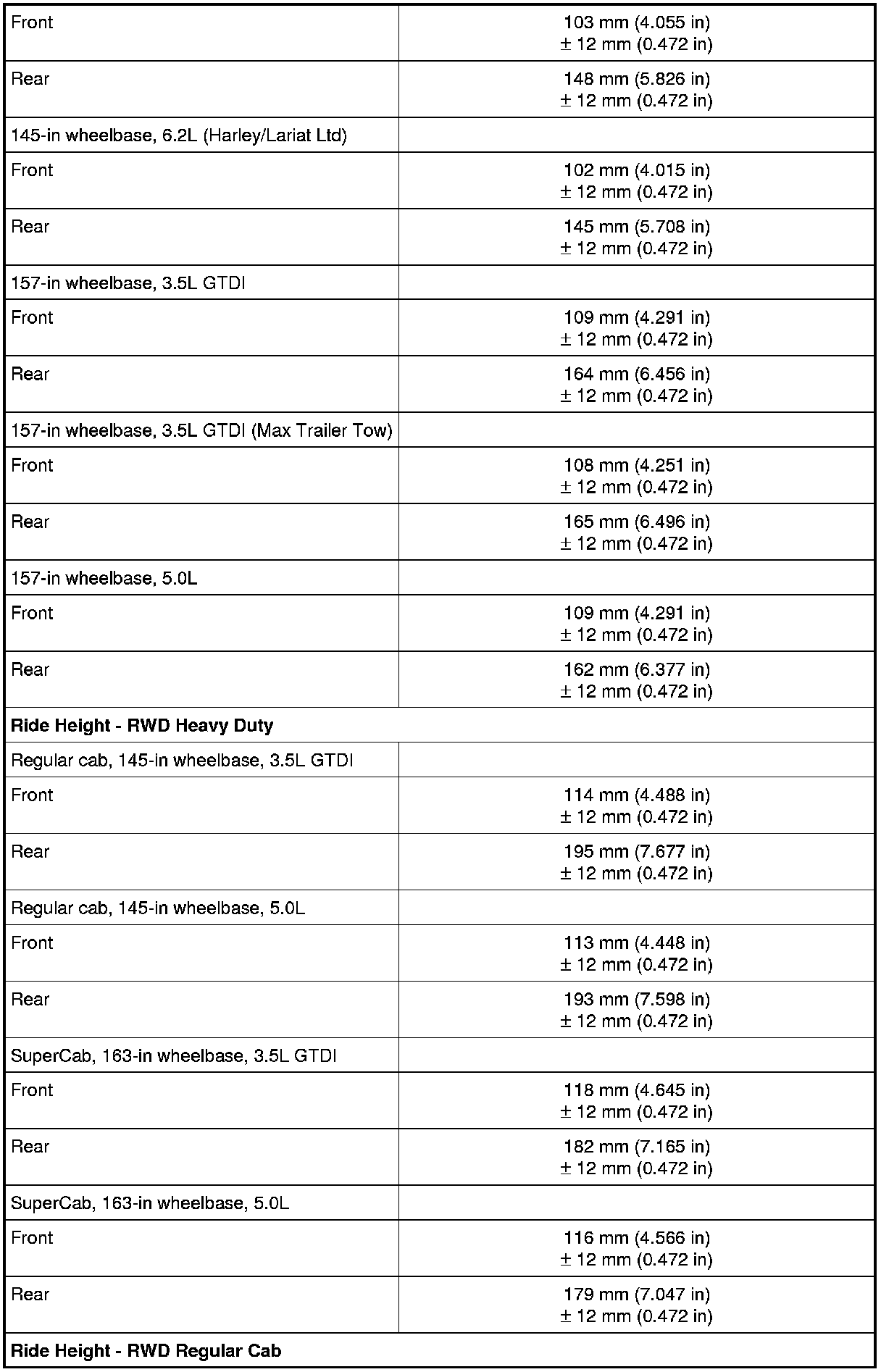

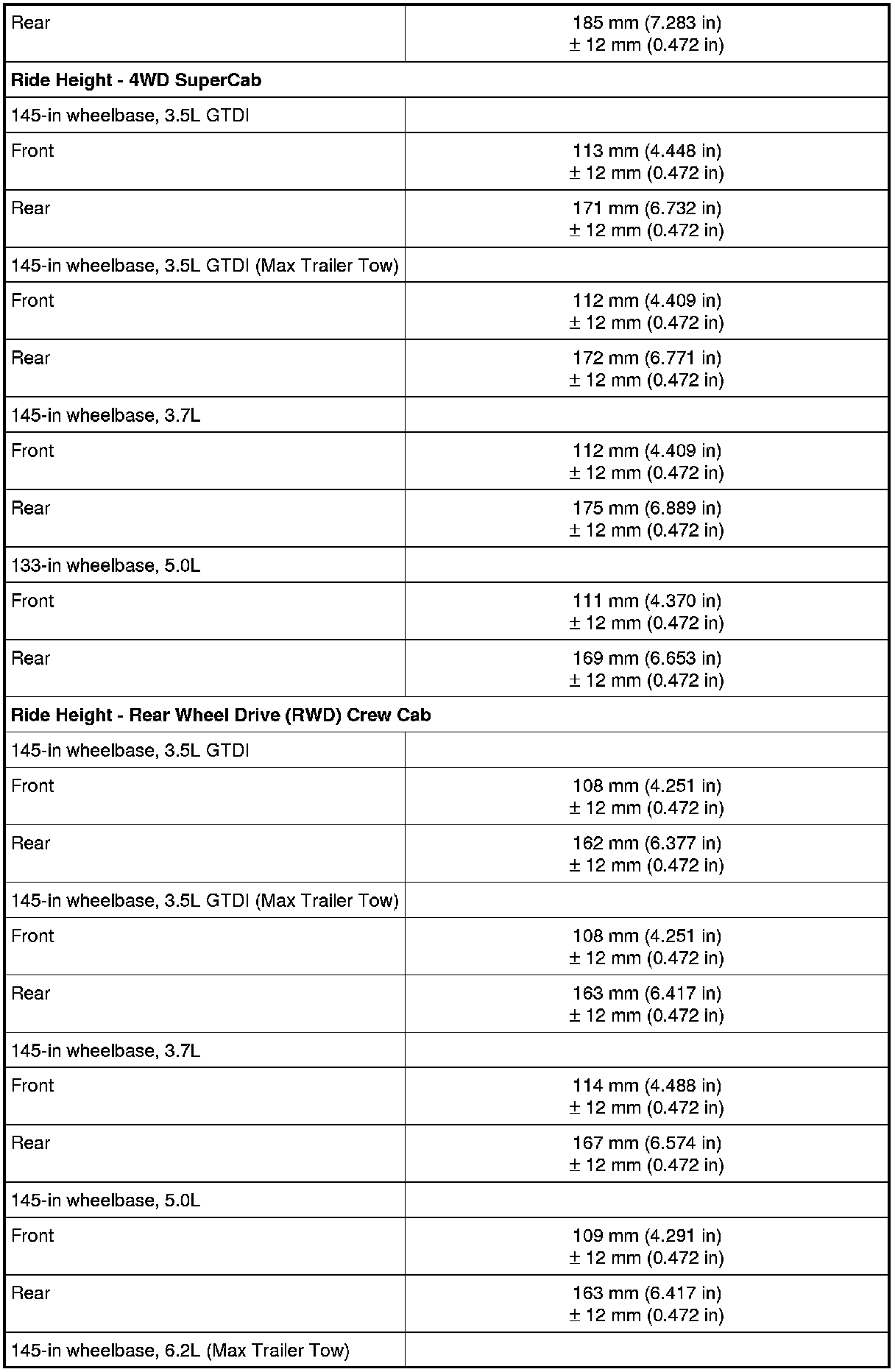

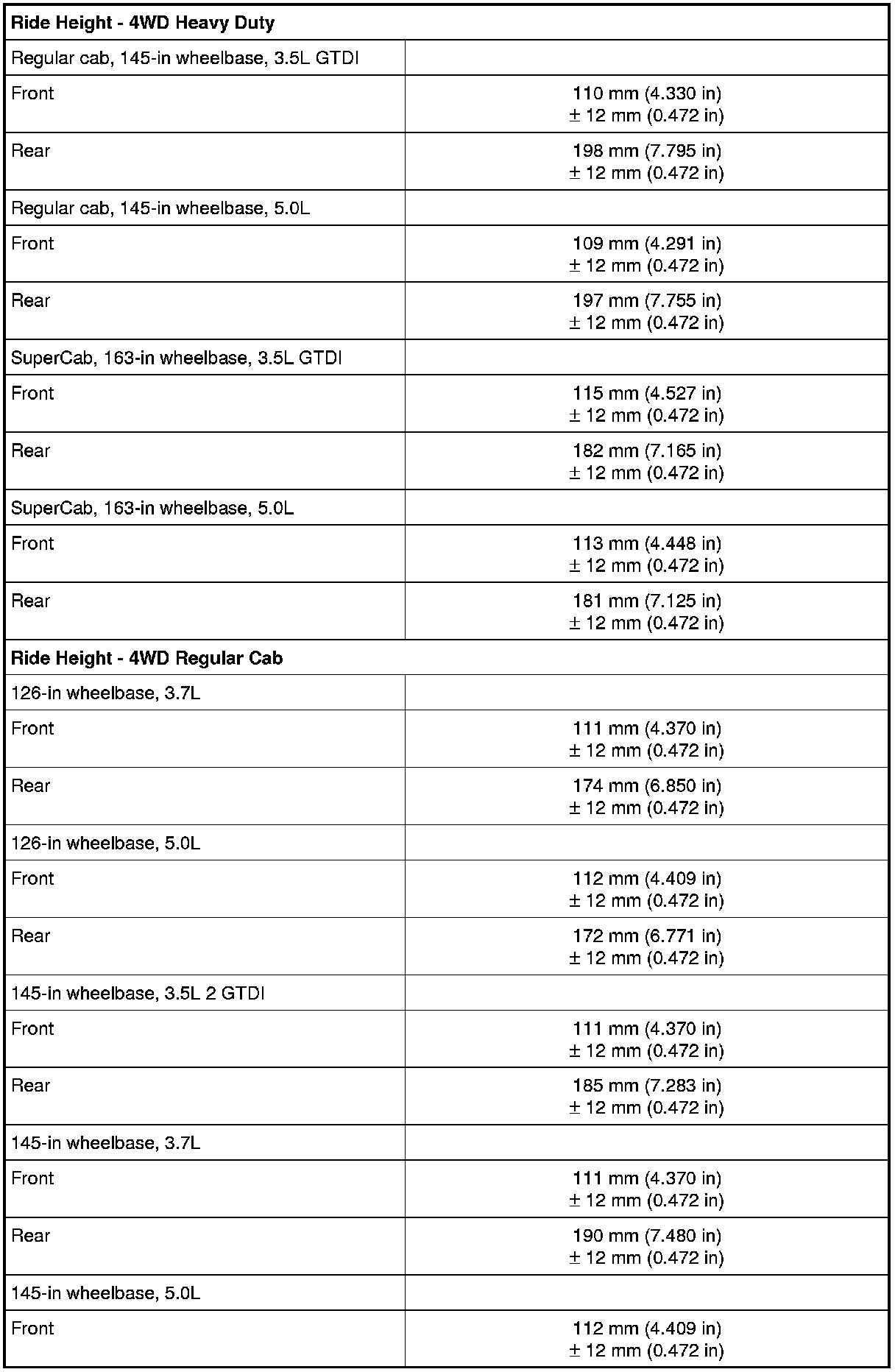

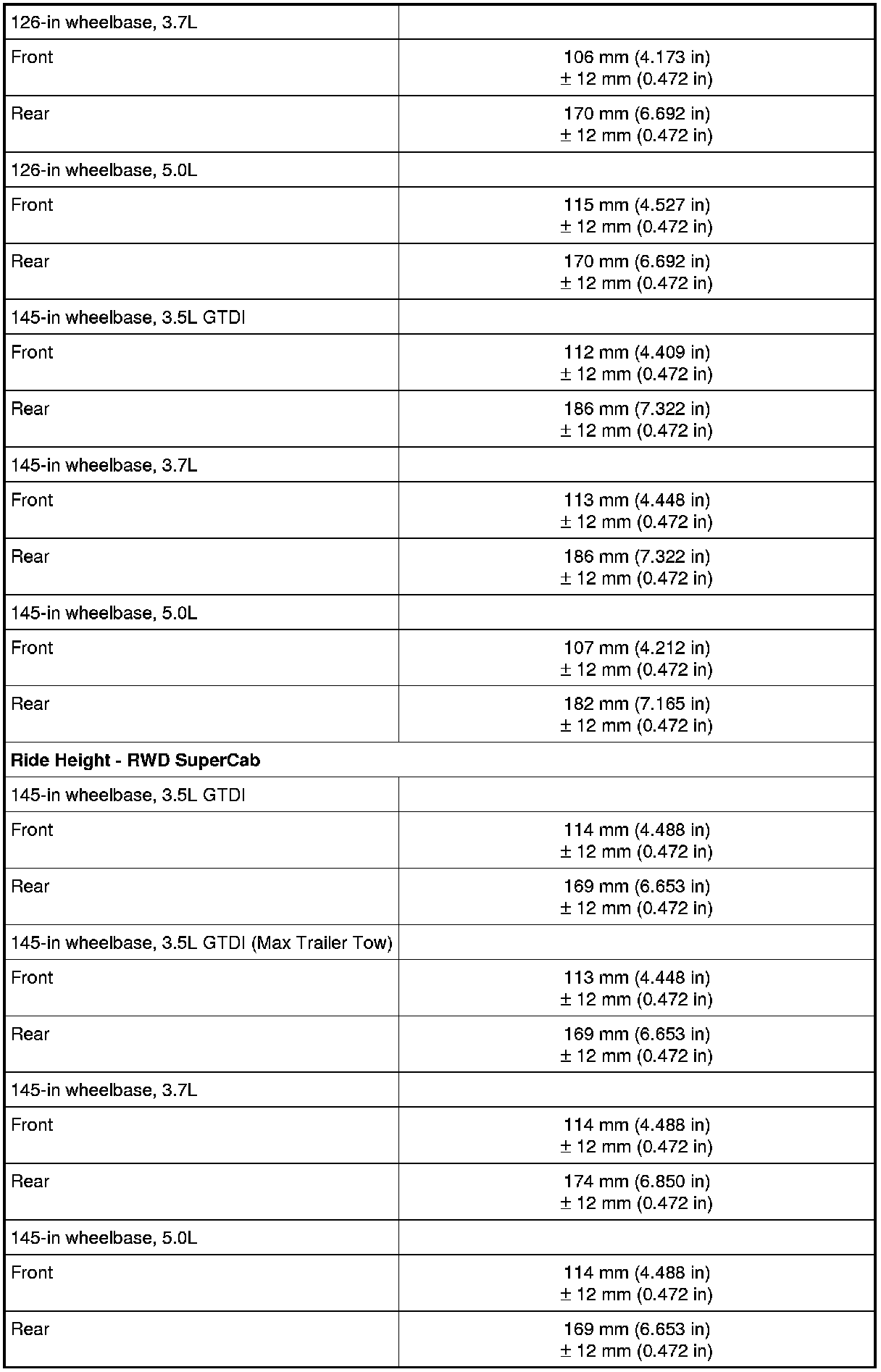

Ball Joint Deflection / Ride Height

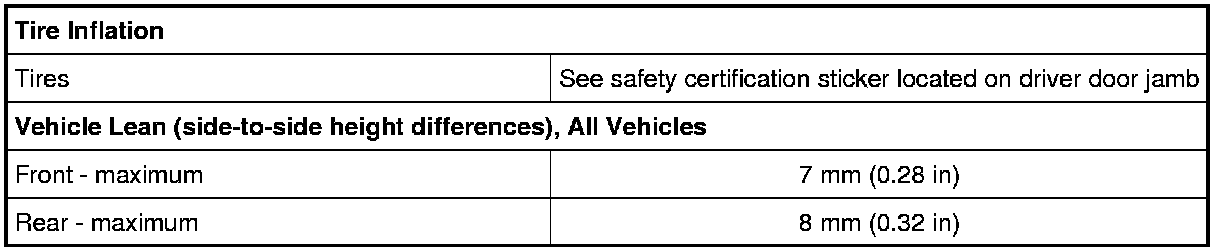

Tire Inflation / Vehicle Lean

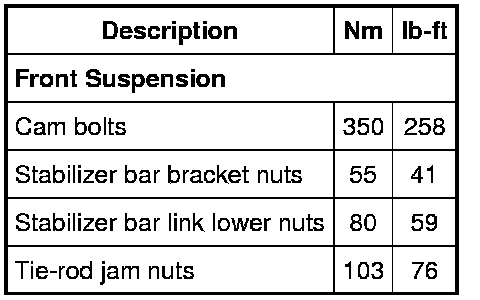

Torque Specifications
