Home >> Ford >> 2011 >> F 150 4WD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case >> C2371B Transfer Case Control Module (TCCM)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

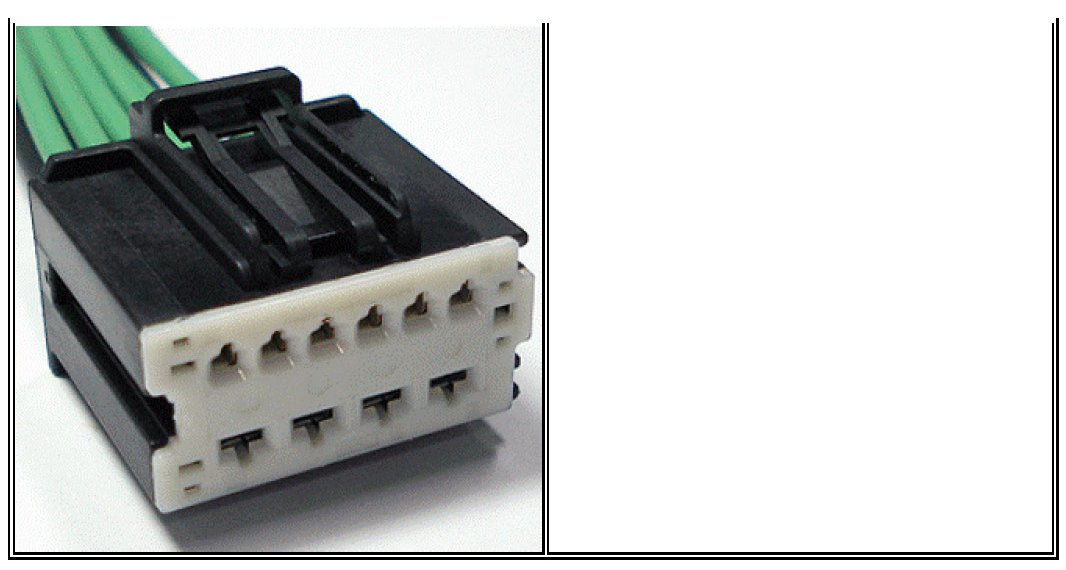

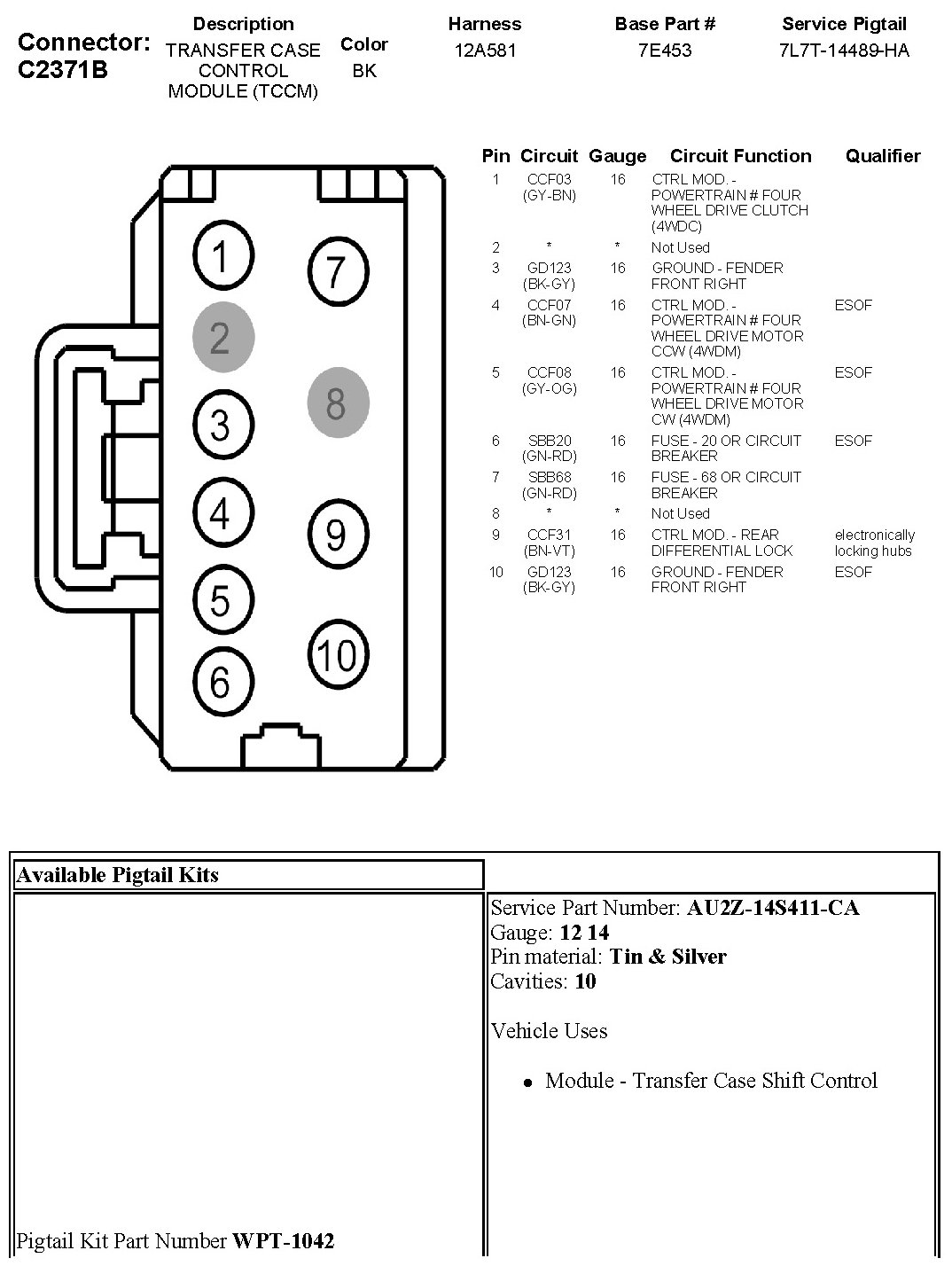

C2371B Transfer Case Control Module (TCCM)
