Engine Temperature Sensor

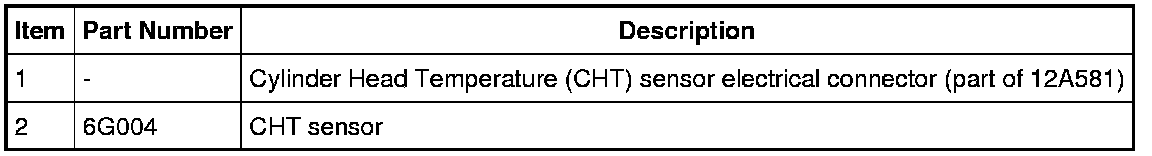

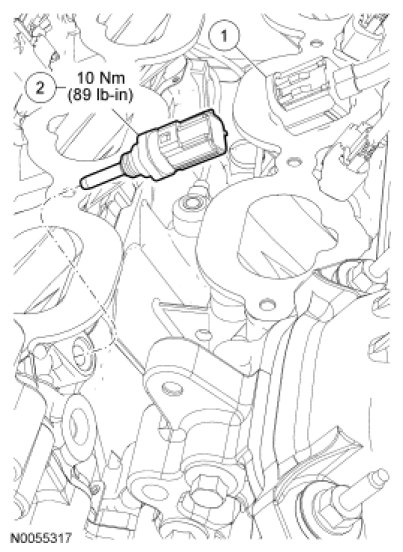

Engine Control Components - Exploded View, 3.7L









Cylinder Head Temperature (CHT) Sensor

NOTE: It is necessary to remove the lower intake manifold to access the Cylinder Head Temperature (CHT) sensor. For additional information, refer to Engine - 3.7L Intake Manifold.

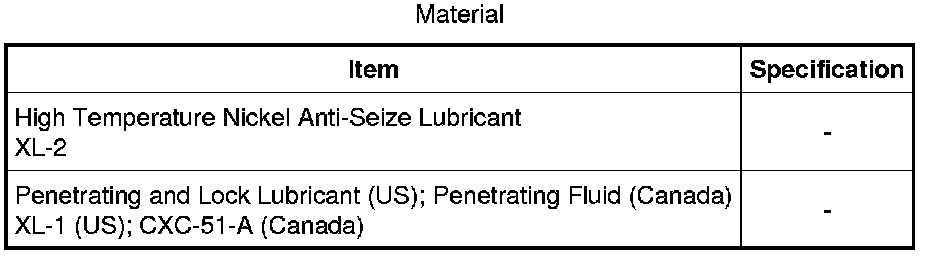

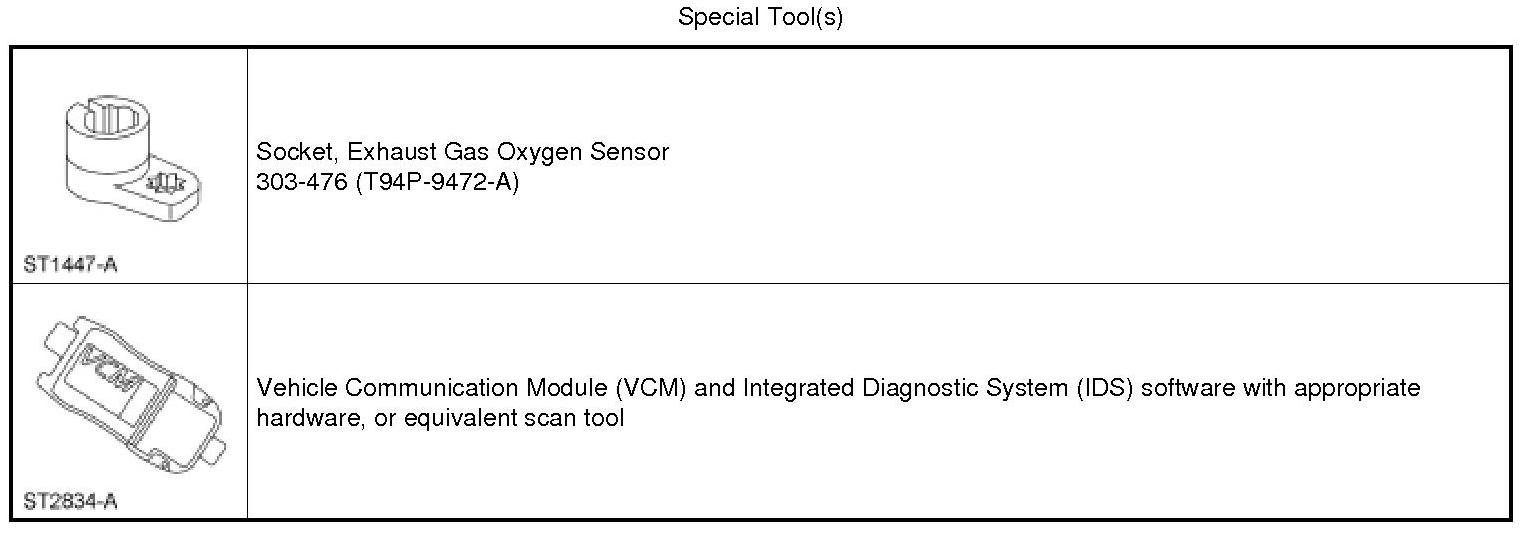

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
