Front Disc Brake

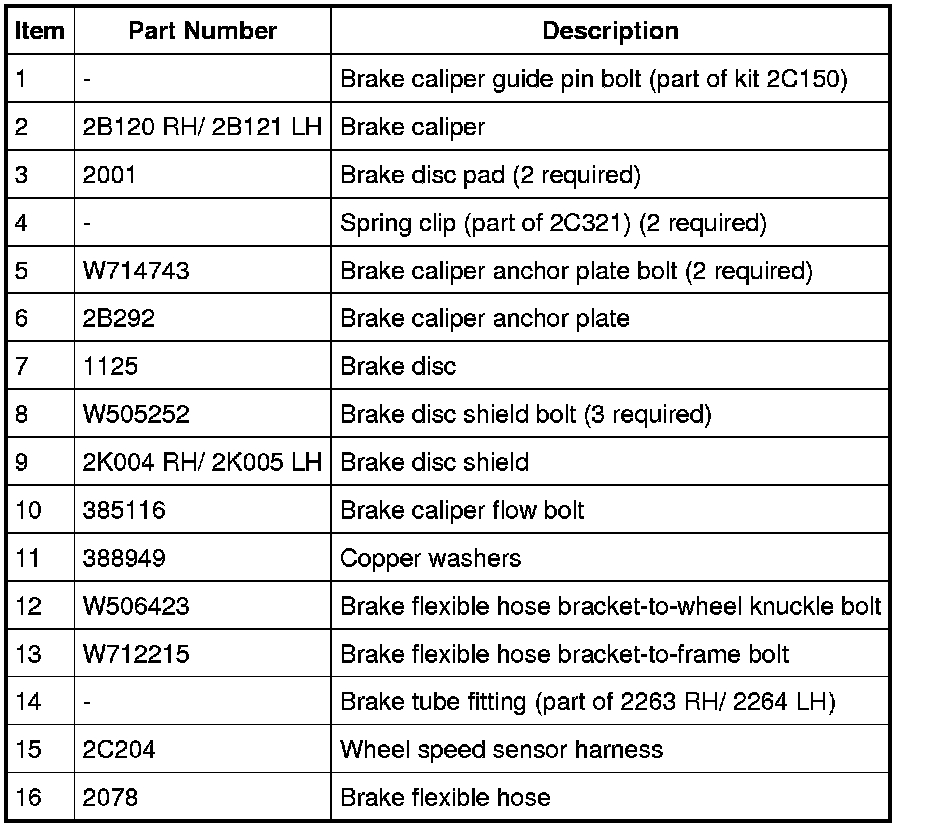

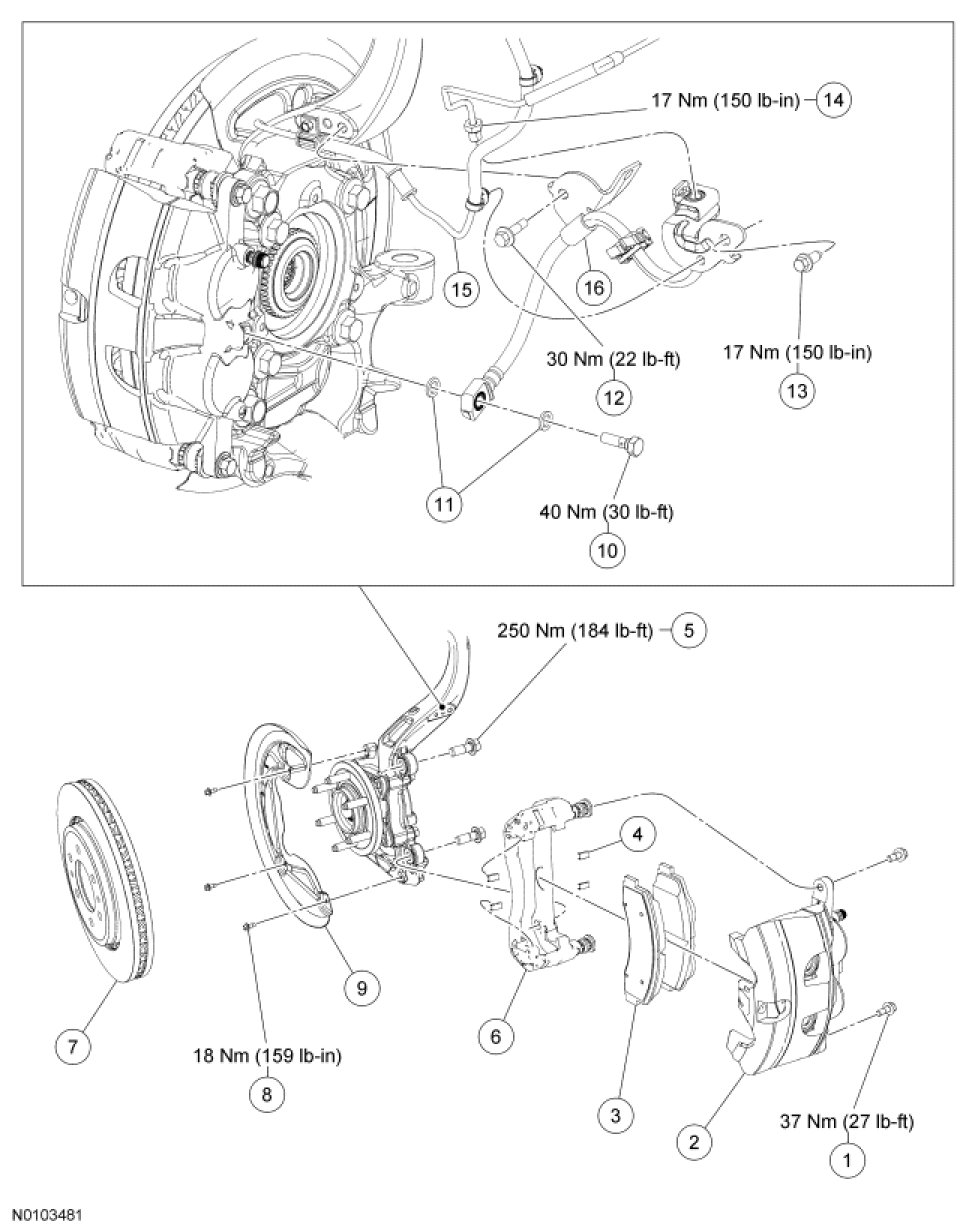

Disc Brake System - Exploded View

NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.
