Air Flow Meter/Sensor: Service and Repair

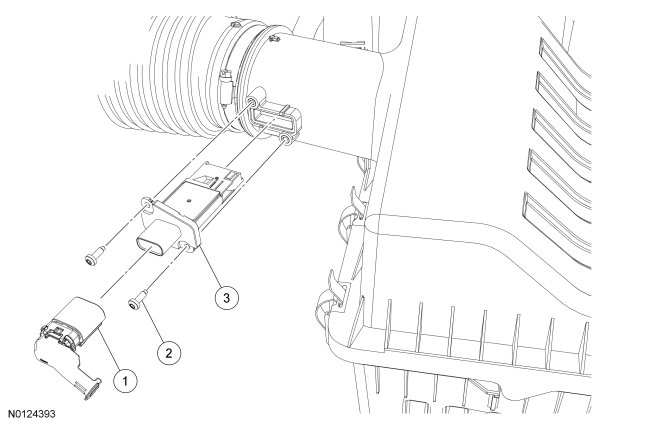

Mass Air Flow (MAF) Sensor - 3.7L, 5.0L (4V), 6.2L (2V)









Removal and Installation

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

2. Remove the 2 screws and the MAF sensor.

3. To install, reverse the removal procedure.
