Steering Column Control Module: Service and Repair

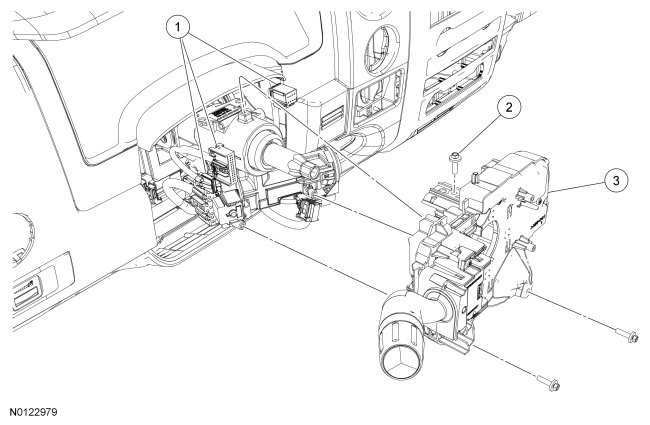

Steering Column Control Module (SCCM)









Removal and Installation

1. Remove the steering wheel rotation sensor. For additional information, refer to Vehicle Dynamic Systems Service and Repair.

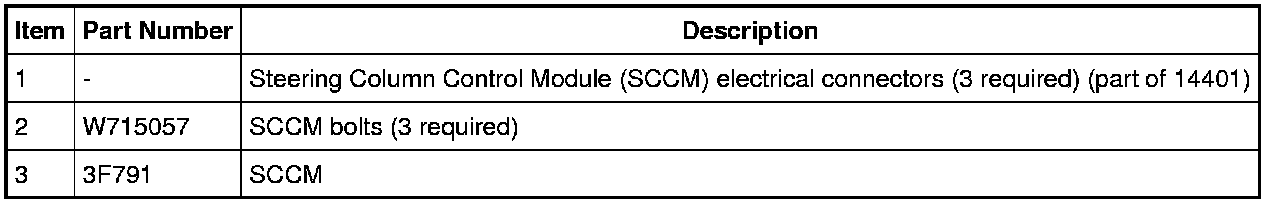

2. Disconnect the 3 Steering Column Control Module (SCCM) electrical connectors.

3. Remove the 3 screws and the SCCM.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
