Keyless Entry Key-Pad: Service and Repair

Keyless Entry Keypad









Removal and Installation

1. Remove the exterior front door handle. For additional information, refer to Exterior Front Door Handle Exterior Front Door Handle.

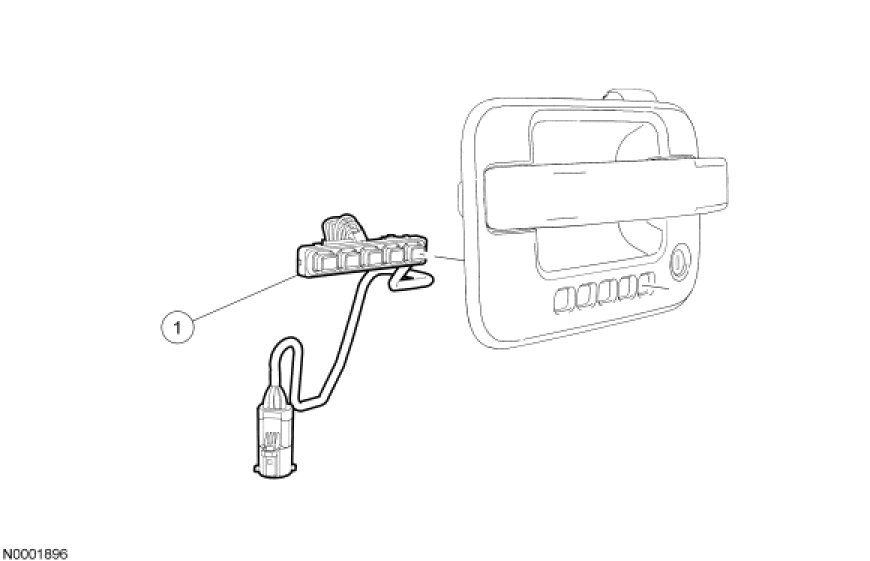

2. Release the locking tabs and remove the keyless entry keypad.

3. To install, reverse the removal procedure.
