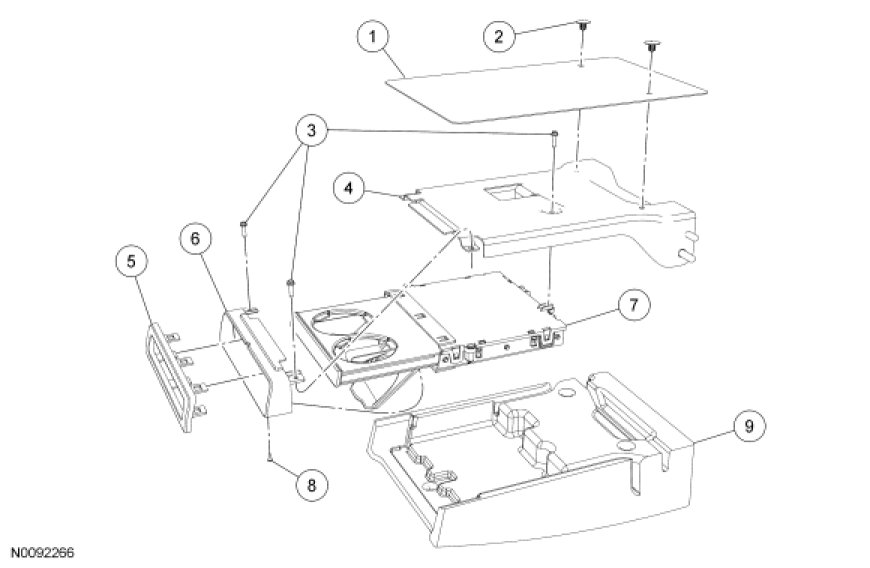

Arm Rest

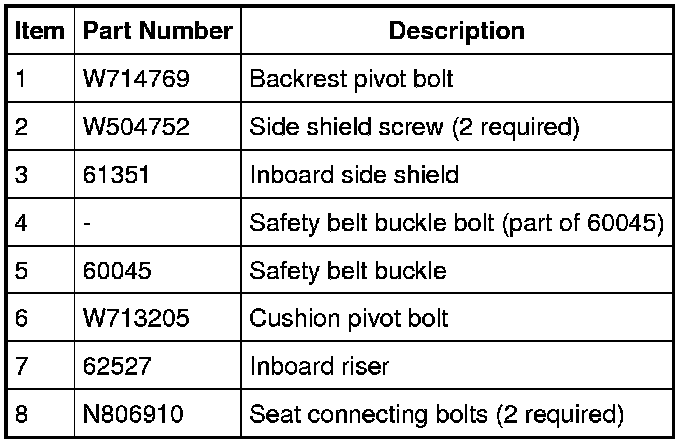

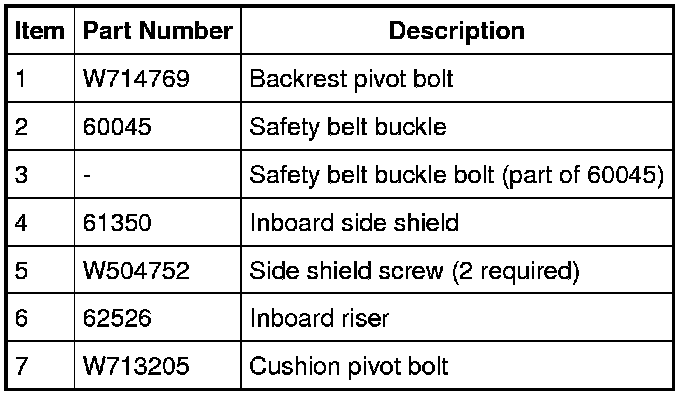

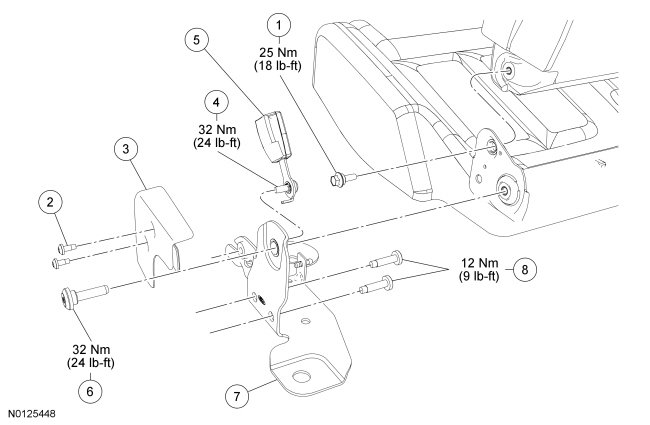

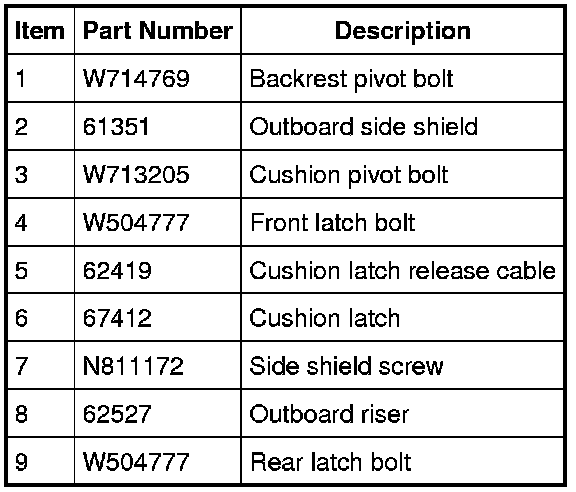

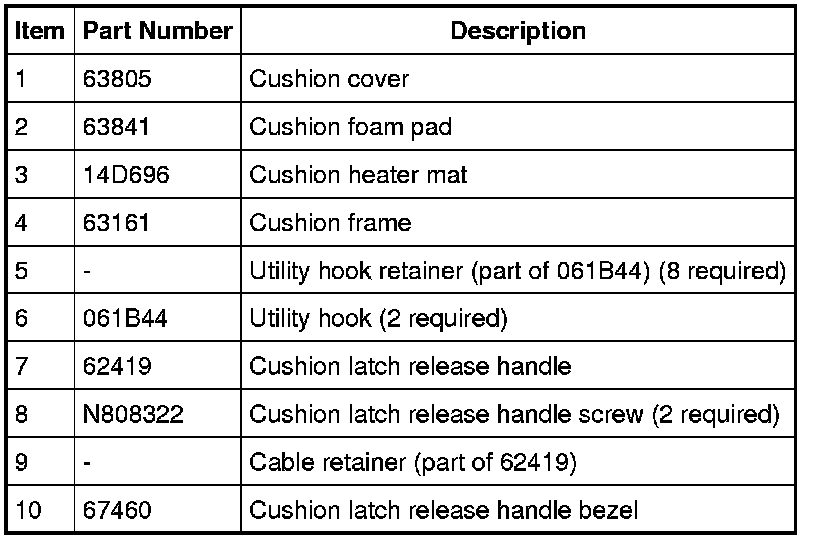

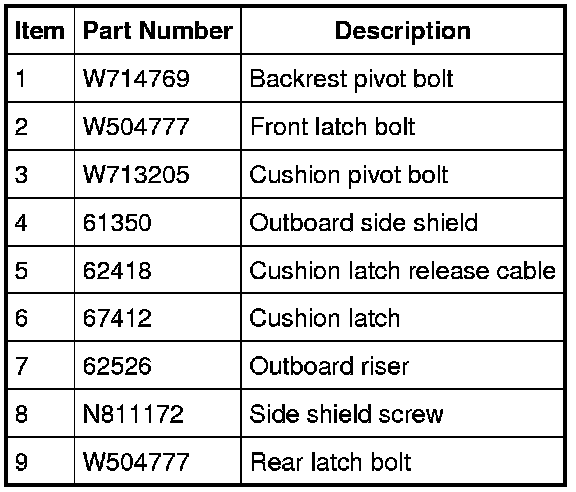

Seat - Exploded View, Rear, Crew Cab

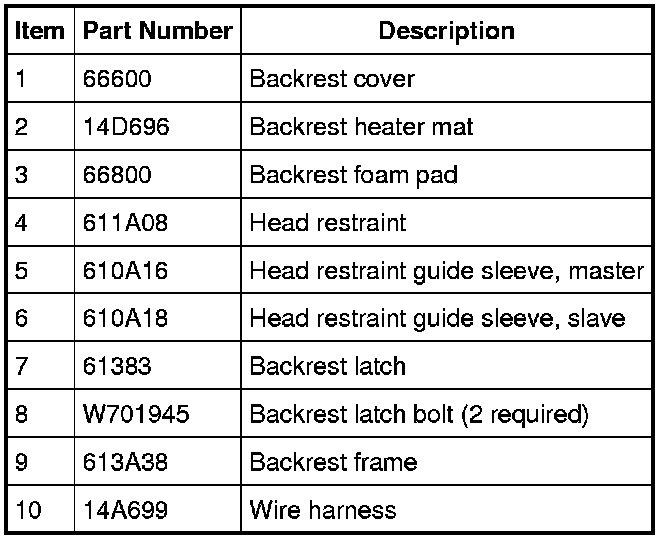

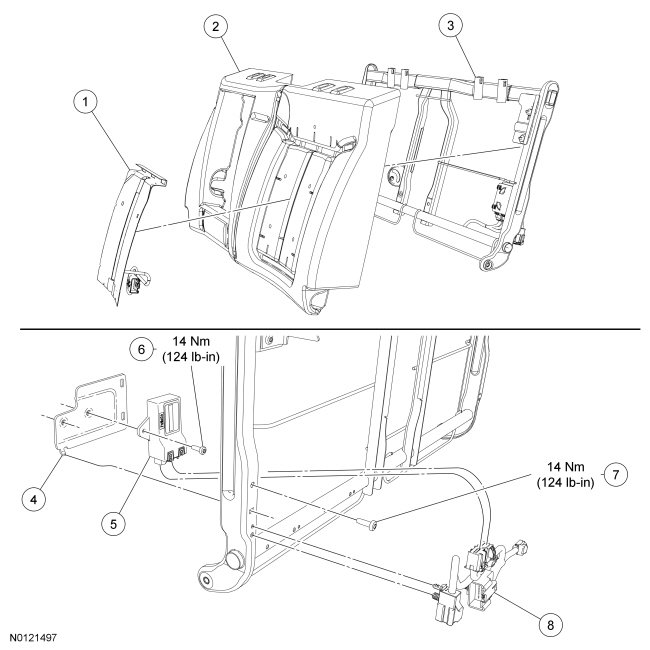

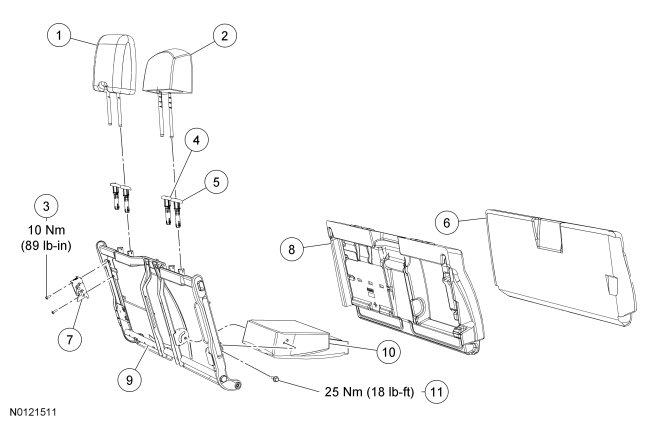

Seat Backrest - 40 Percent

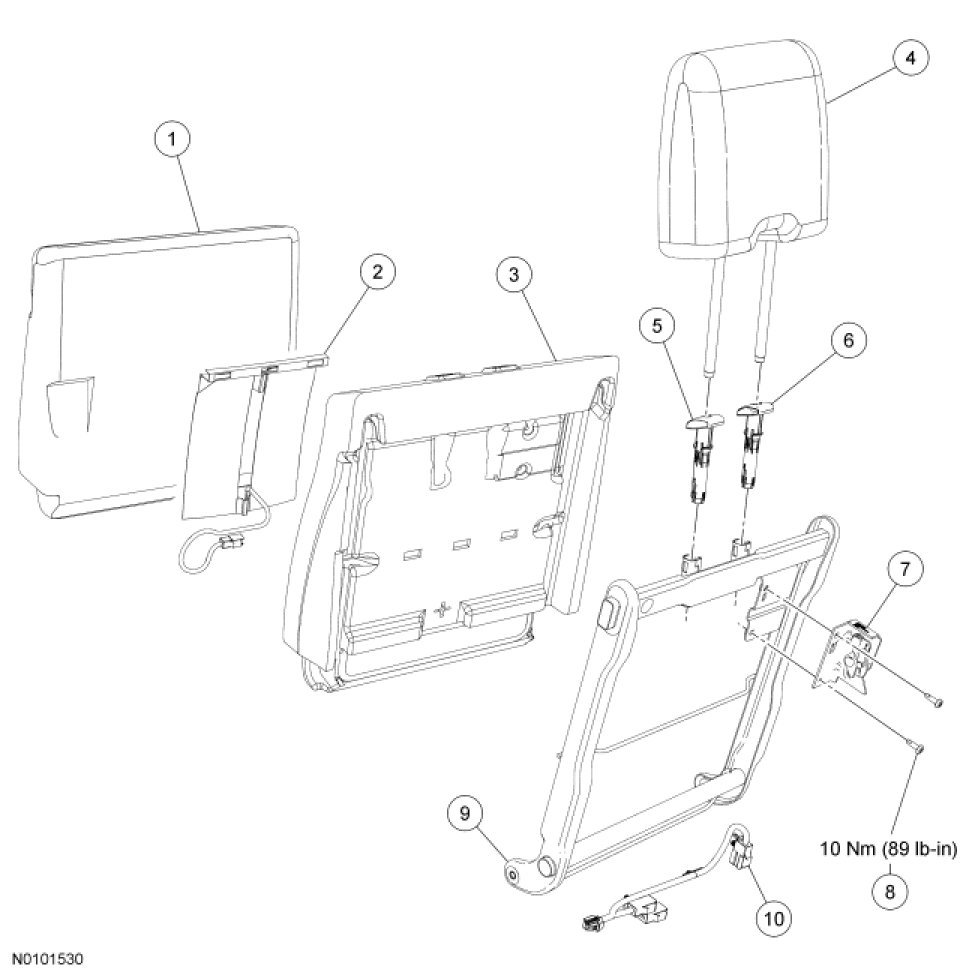

Seat Backrest - 60 Percent

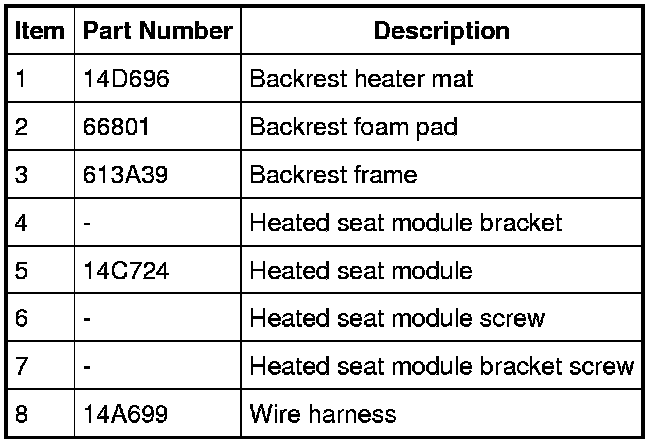

Heated Seat System - 60 Percent Backrest

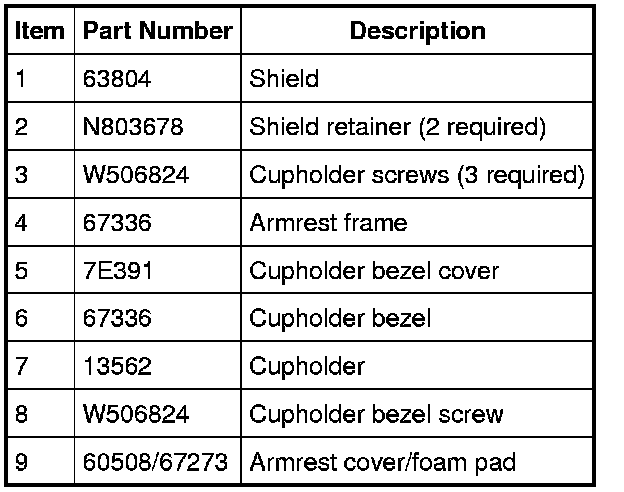

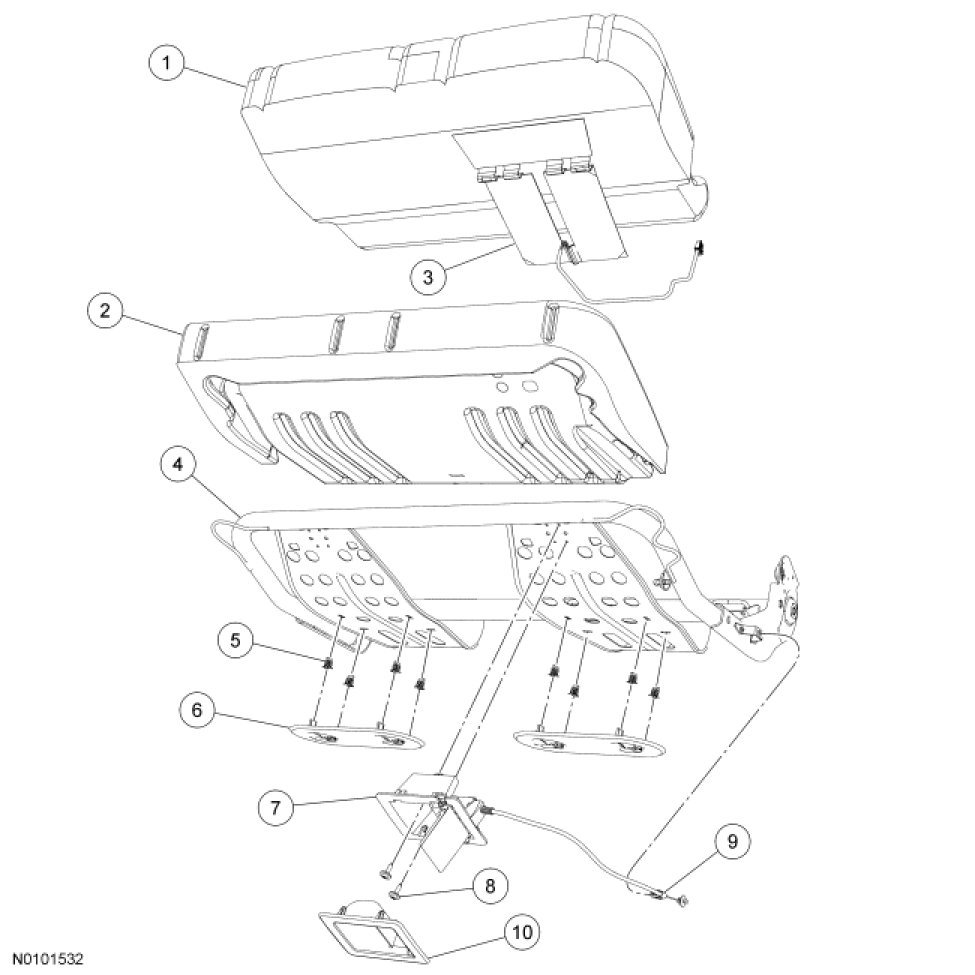

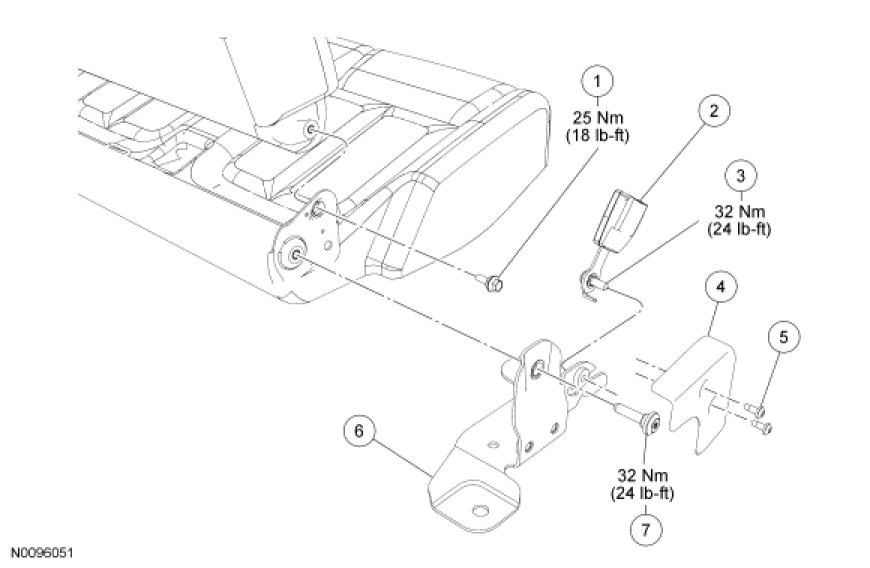

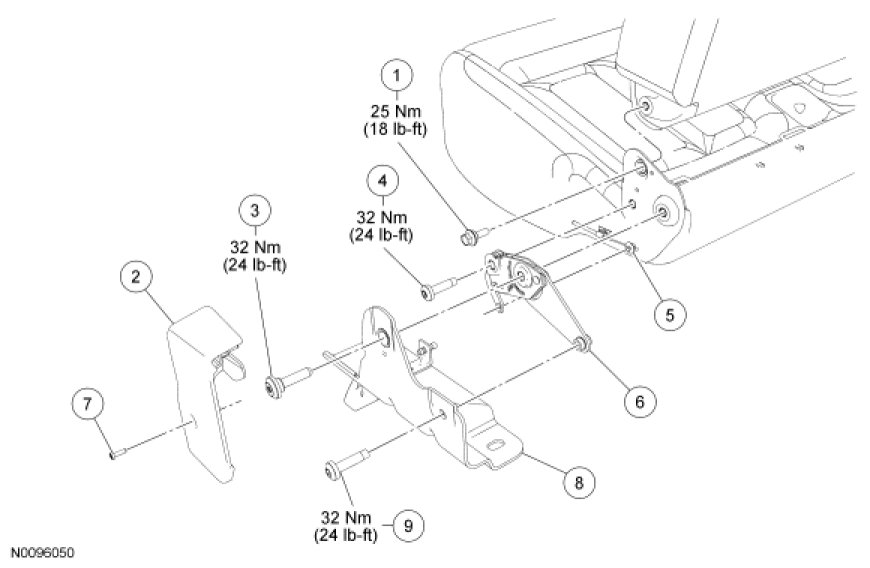

Seat Armrest - 60 Percent









Outboard Cushion Latch - 40 Percent









Inboard Cushion Latch - 40 Percent









Outboard Cushion Latch - 60 Percent









Inboard Cushion Latch - 60 Percent

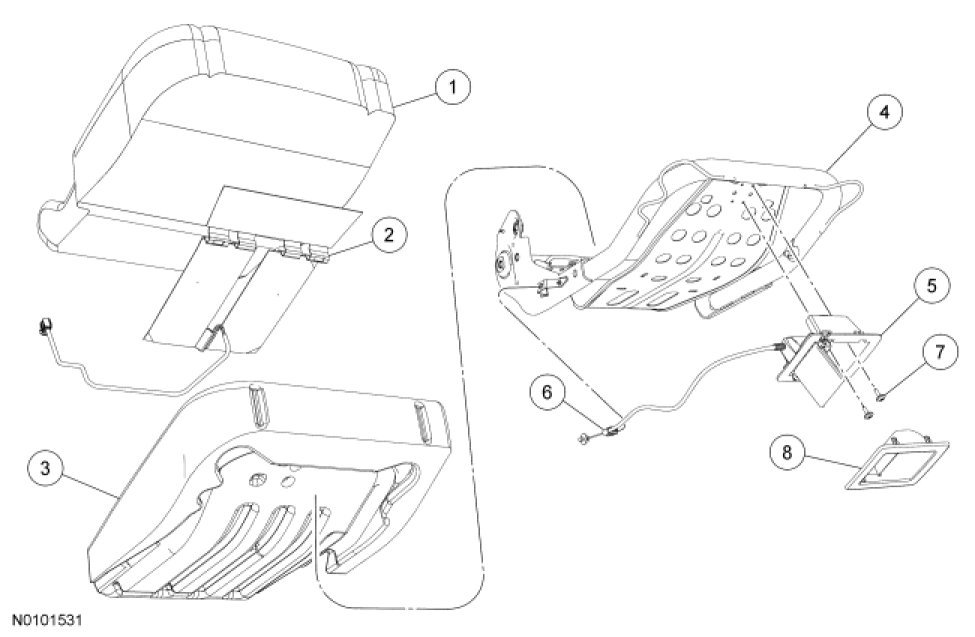

Seat Cushion - 40 Percent









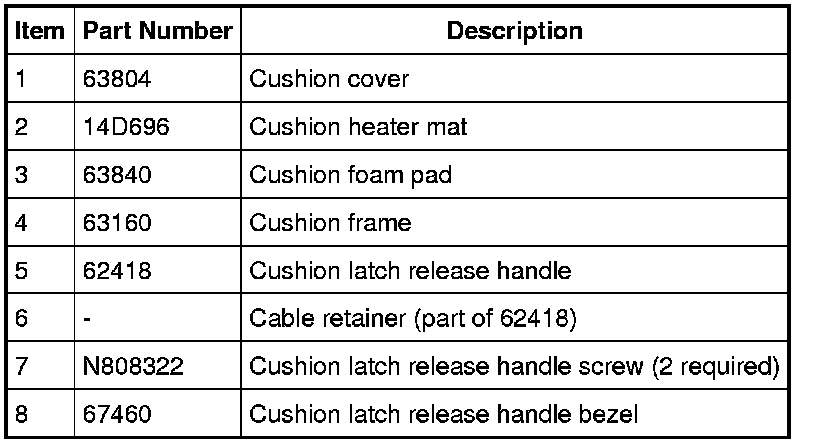

Seat Cushion - 60 Percent
