Engine Temperature Sensor

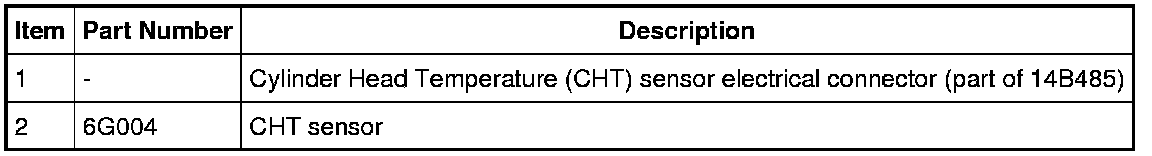

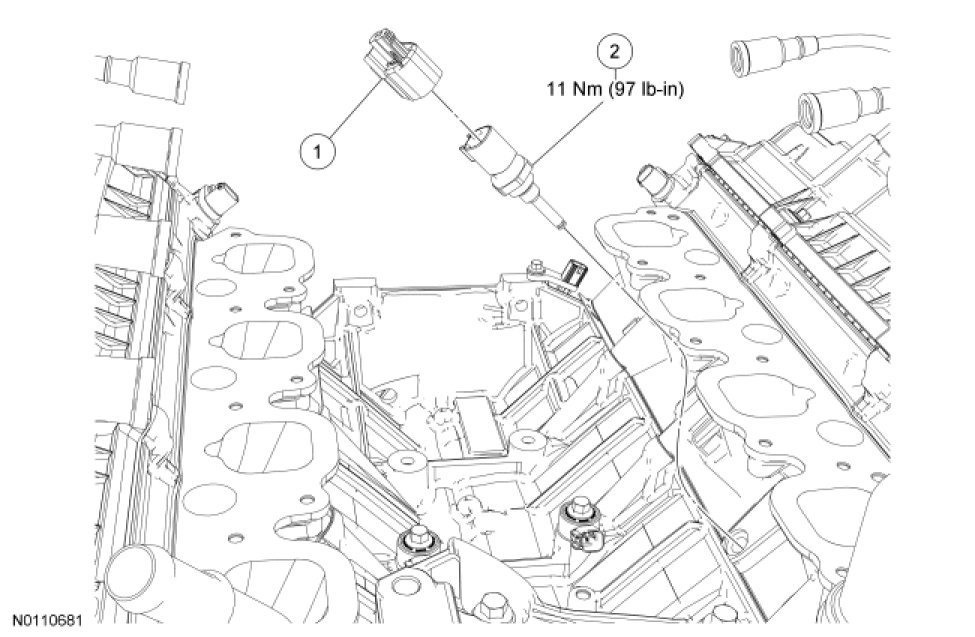

Engine Control Components - Exploded View, 6.2L (2V)









Cylinder Head Temperature (CHT) Sensor

NOTE: The intake manifold must be removed to perform this procedure. For additional information, refer to Engine - 6.2L (2V) Service and Repair.









Removal and Installation

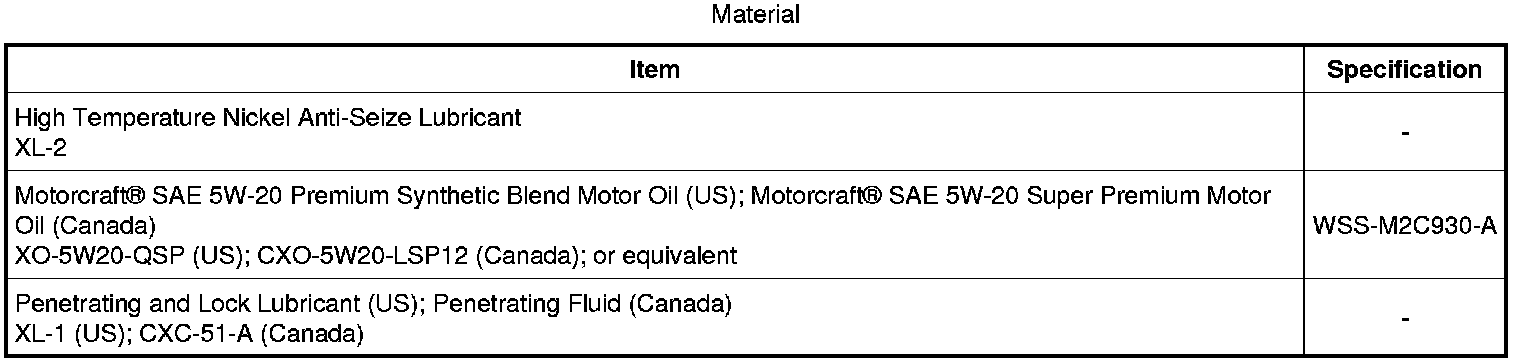

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
