Remote Function Actuator (RFA) Module

Remote Function Actuator (RFA) Module

DTC Charts

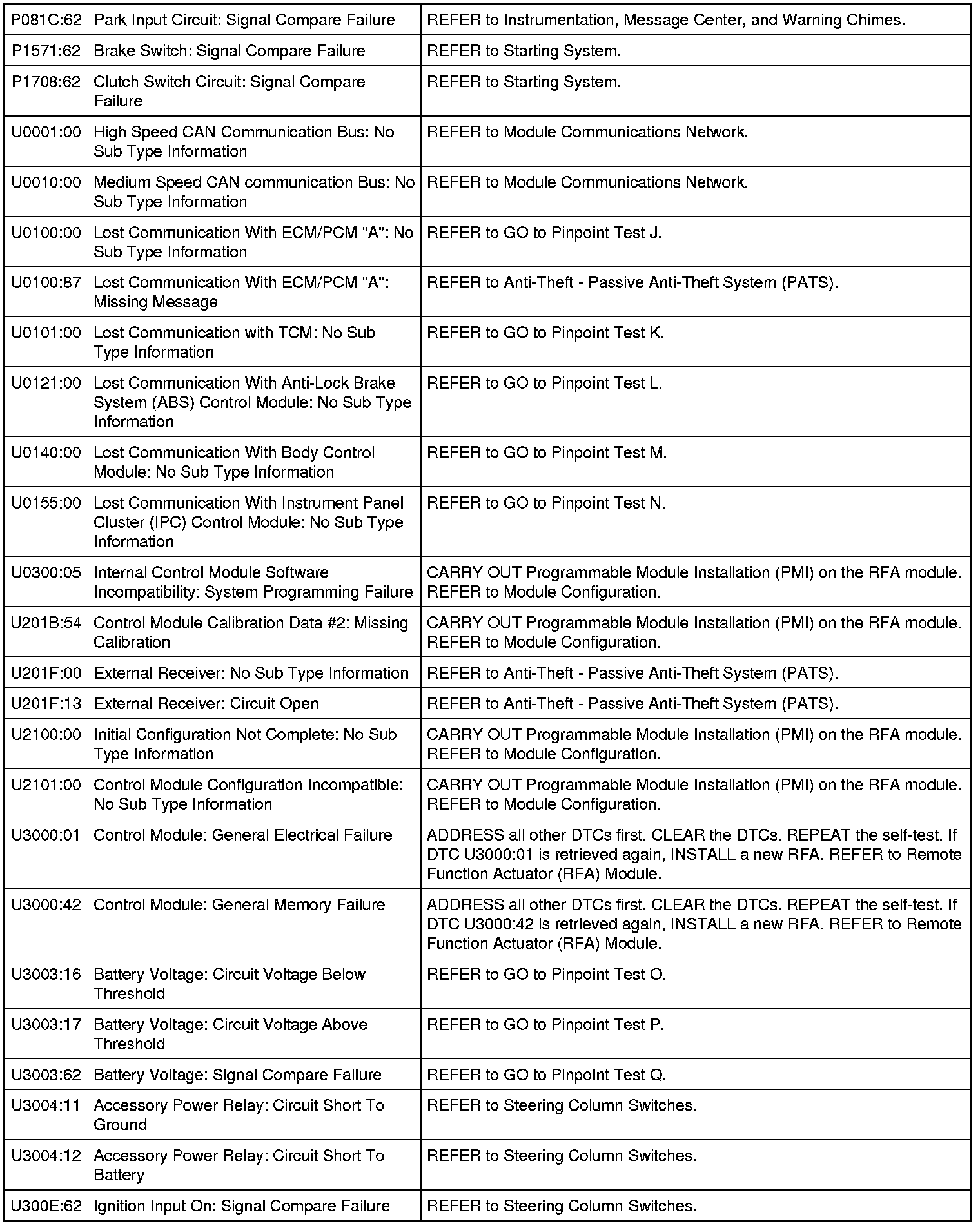

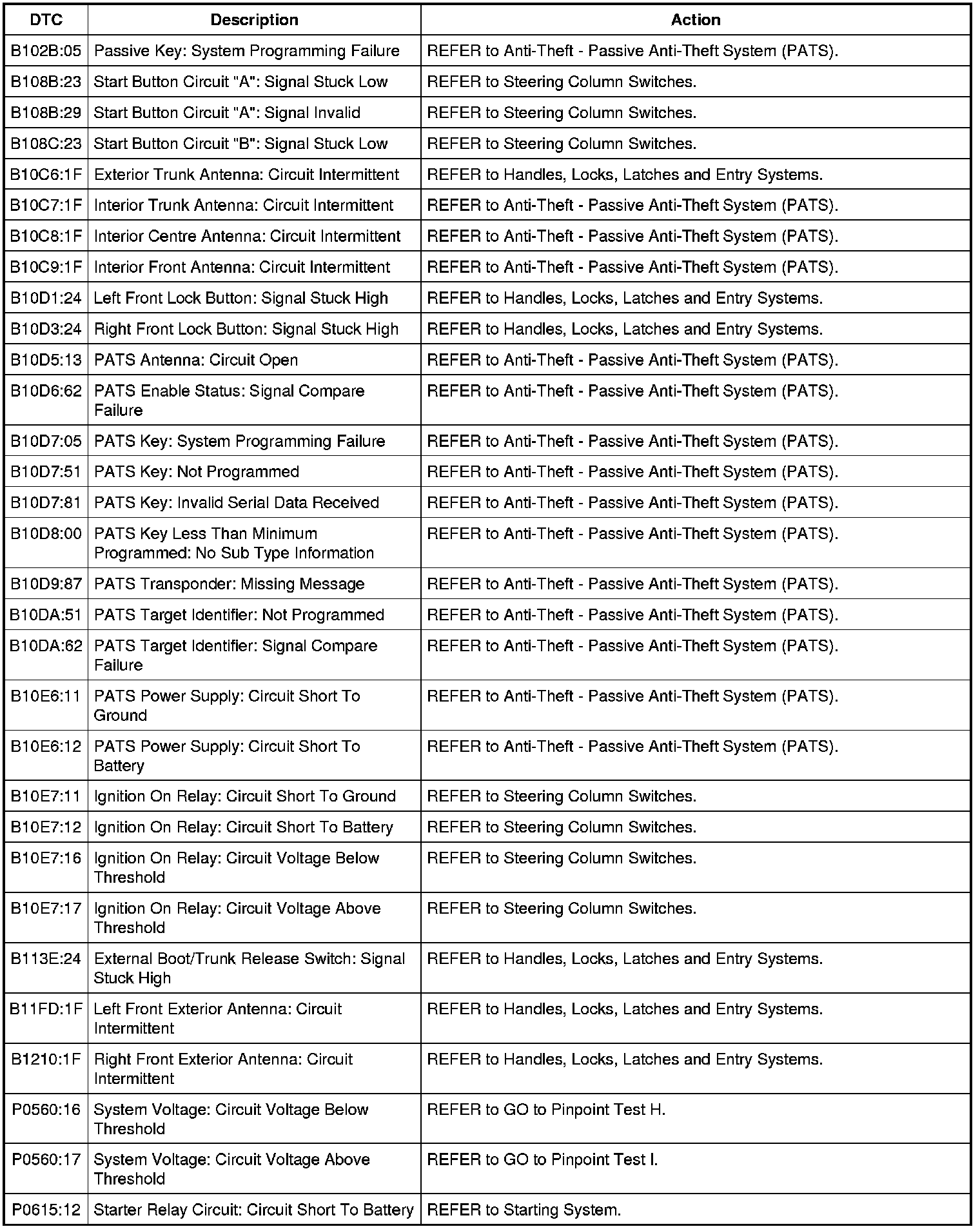

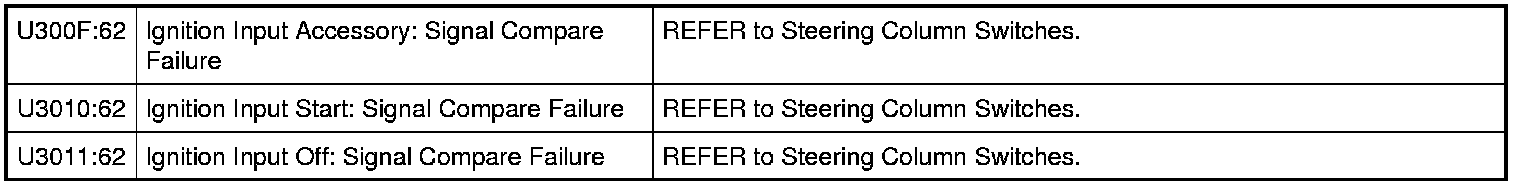

Remote Function Actuator (RFA) Module DTC Chart

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition states (ignition off, ignition on, ignition start) on vehicles with this feature.
