C356 Seat Track Position Sensor, Left Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

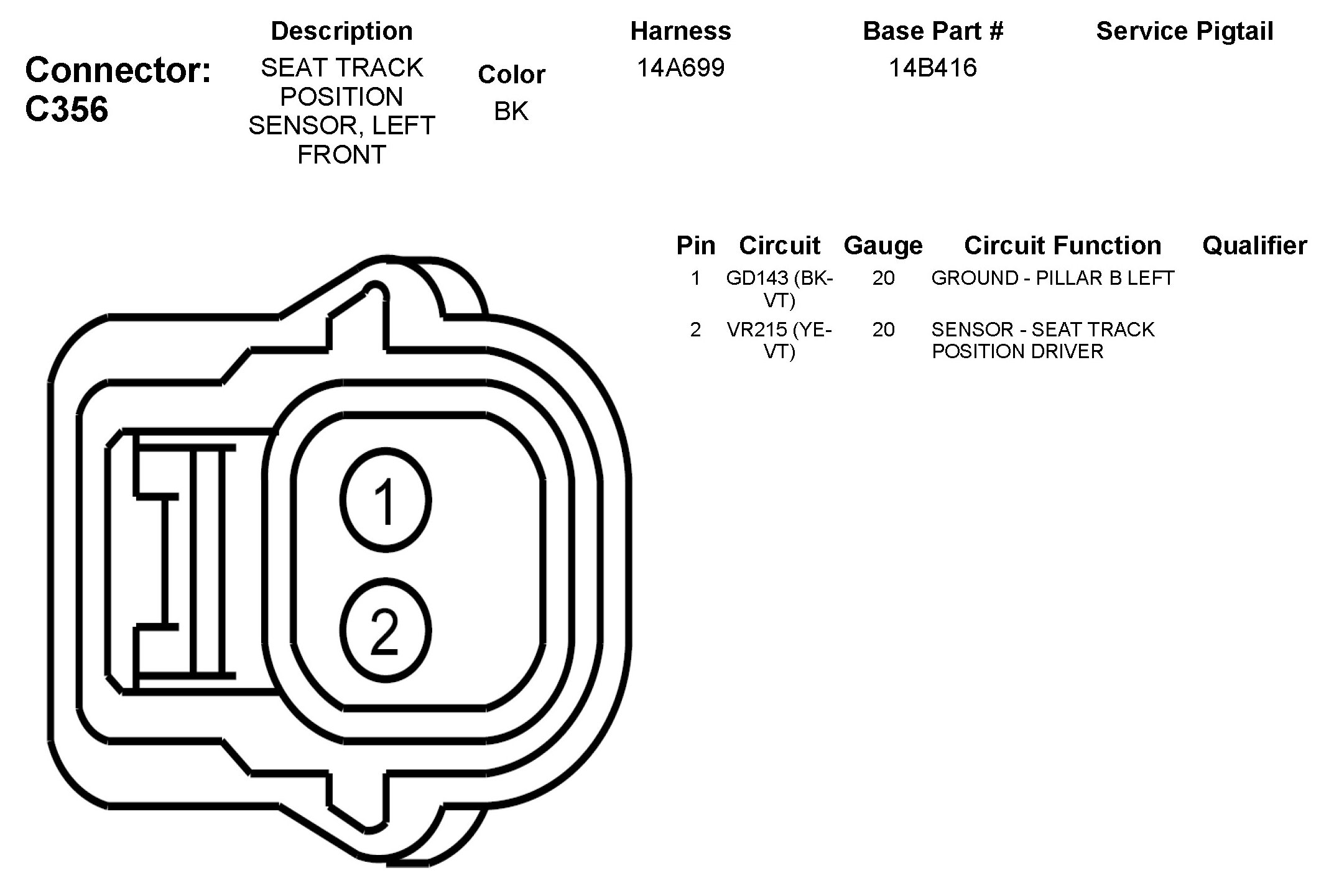

C356 Seat Track Position Sensor, Left Front
