C4321B Tire Pressure Monitor/Vehicle Security Module (TPM/VSM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

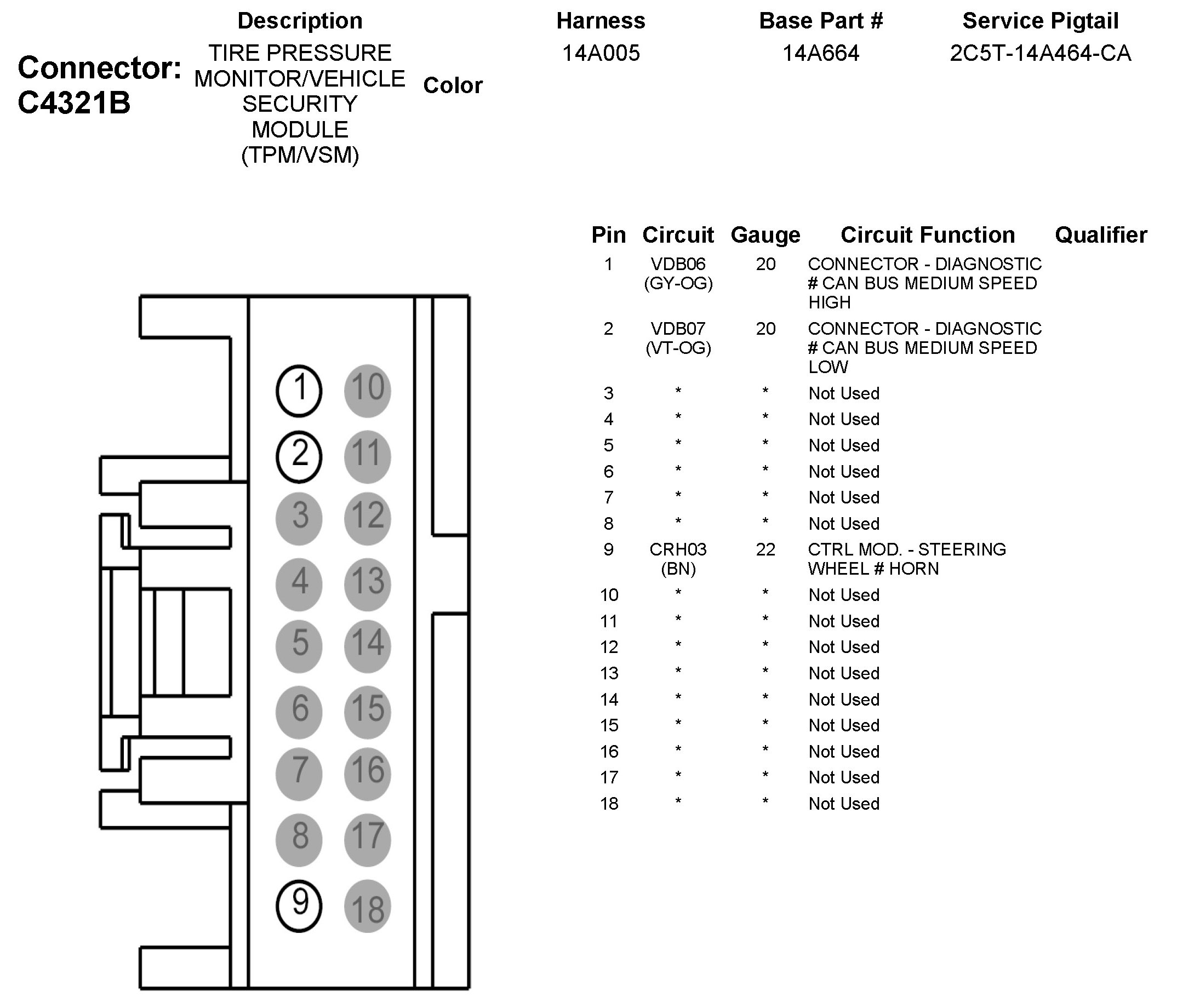

C4321B Tire Pressure Monitor/Vehicle Security Module (TPM/VSM)
