Ford
>>
2011
>>
Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Sunroof / Moonroof Frame
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Sunroof / Moonroof Frame

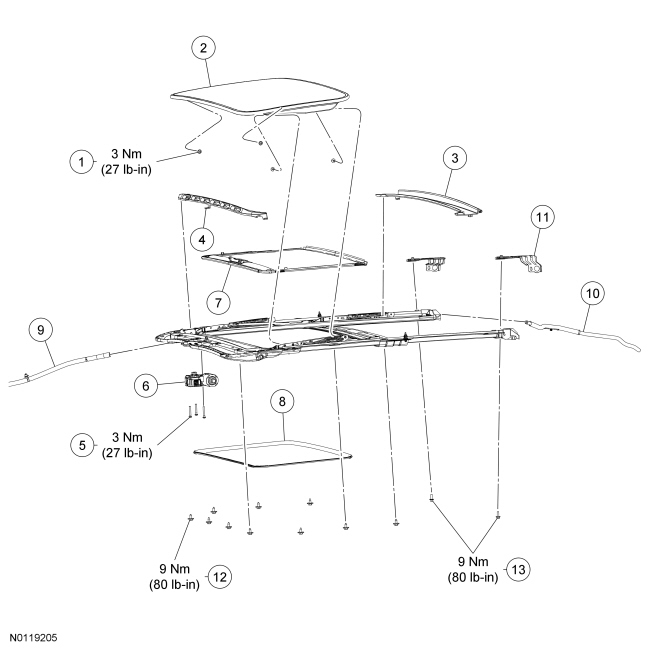

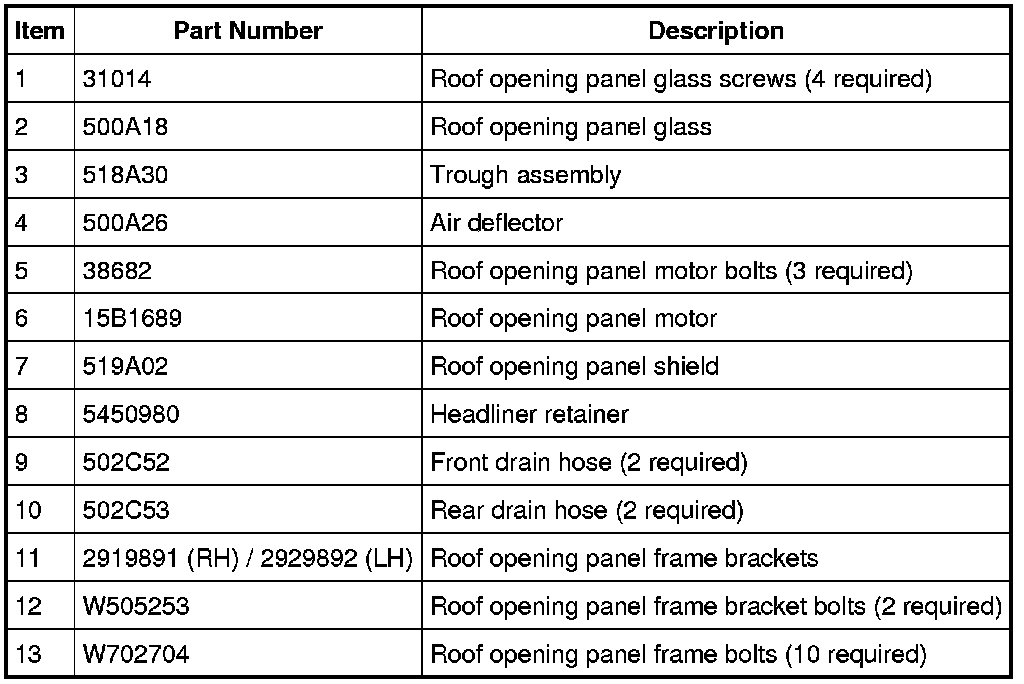

Roof Opening Panel - Exploded View
