Heating Ventilation Air Conditioning (HVAC) Module

Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

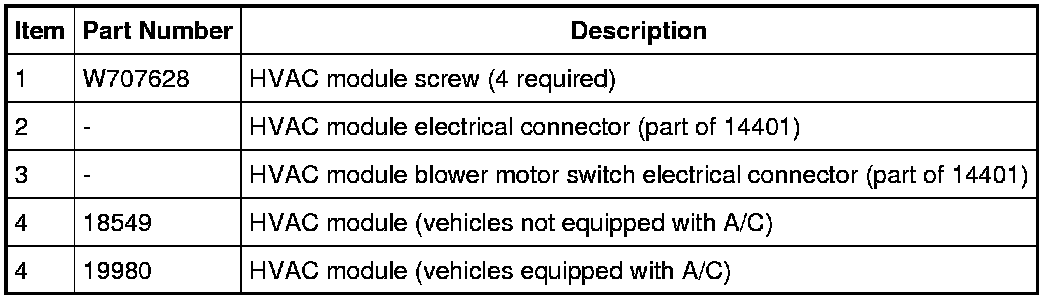

1. Remove the lower instrument panel finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel.

2. Remove the 4 HVAC module screws.

3. Disconnect the 2 HVAC module electrical connectors.

4. Remove the HVAC module.

5. To install, reverse the removal procedure.
