Toe Adjustment - Front

Toe Adjustment - Front

1. Using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.

2. Using alignment equipment and the manufacturer's instructions, measure the toe.

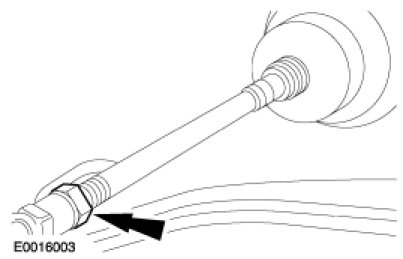

3. Loosen the tie-rod end jam nuts.

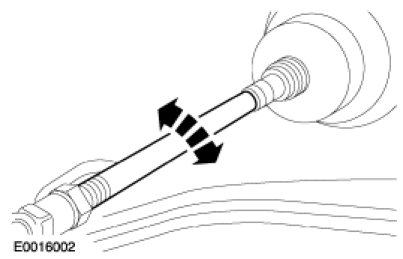

4. Rotate the tie rods as necessary to adjust the toe setting.





5. Tighten the tie-rod end jam nuts to 85 Nm (63 lb-ft).





6. Recheck the toe settings, adjust as necessary.
