Occupant Classification System Module (OCSM) DTC Chart

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition states on vehicles with this feature.

The DTCs can be retrieved from the RCM and the OCSM with a scan tool via the DLC.

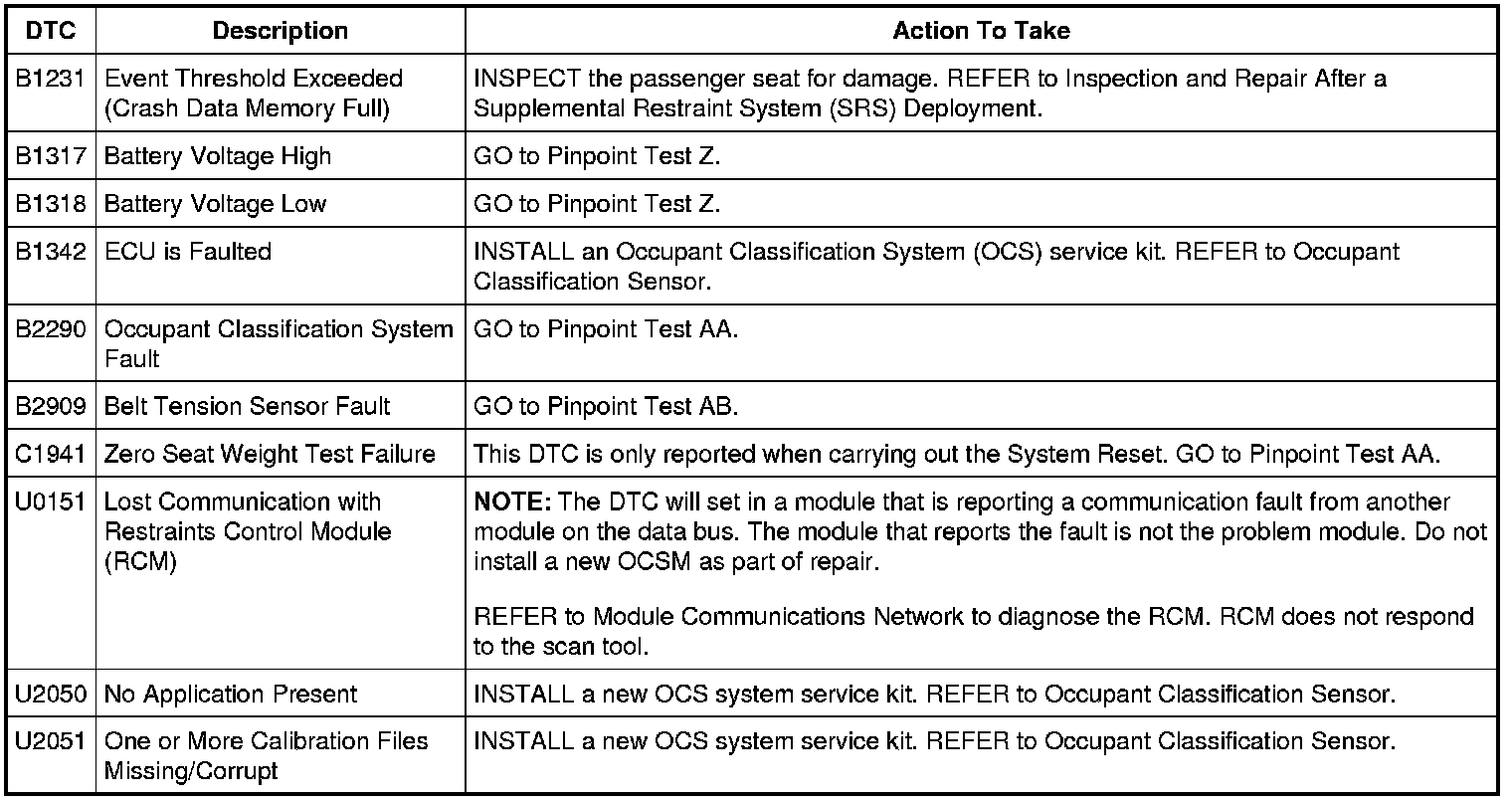

Occupant Classification System Module (OCSM) DTC Chart
