Automatic Shifting Manual Transmission/Transaxle

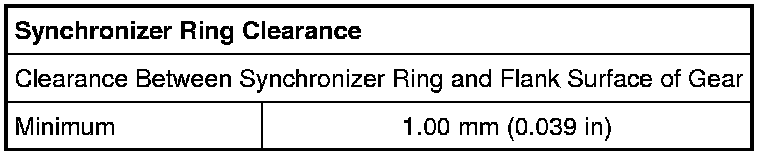

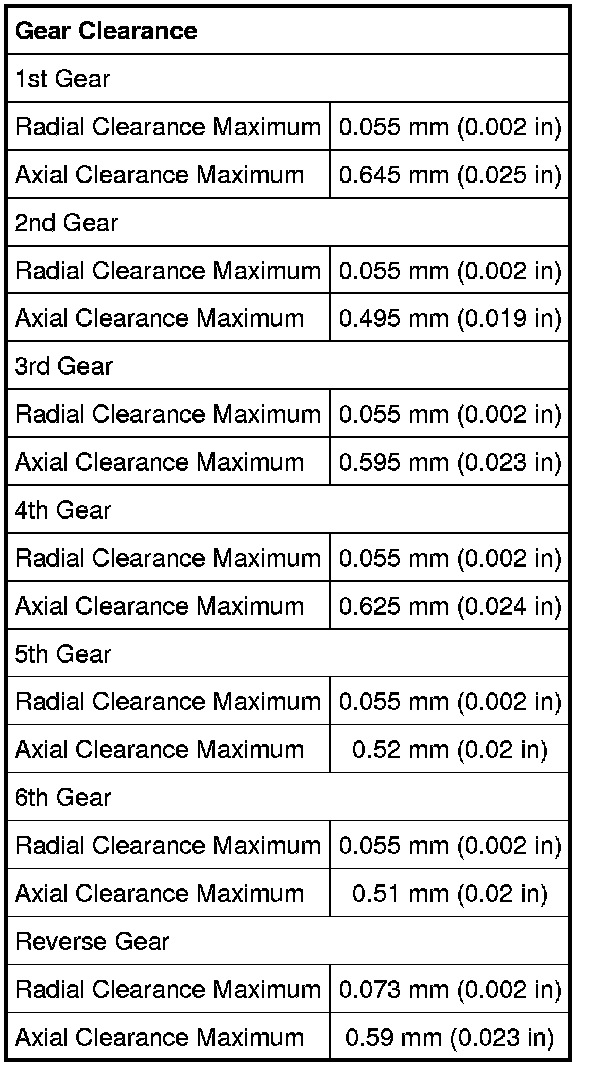

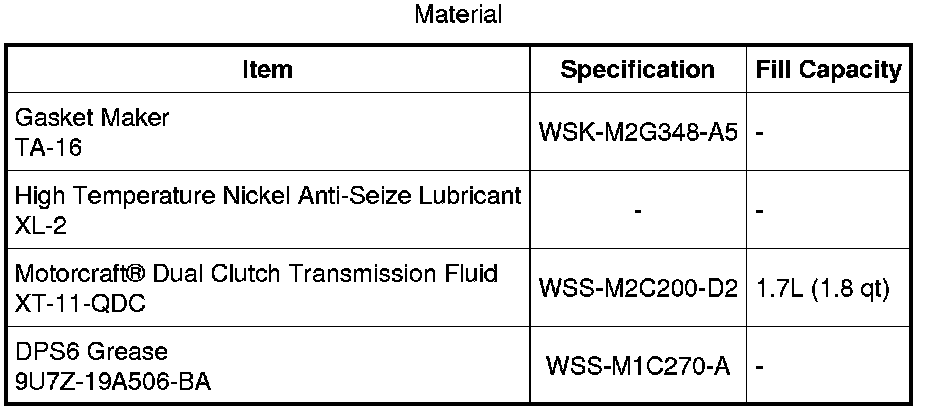

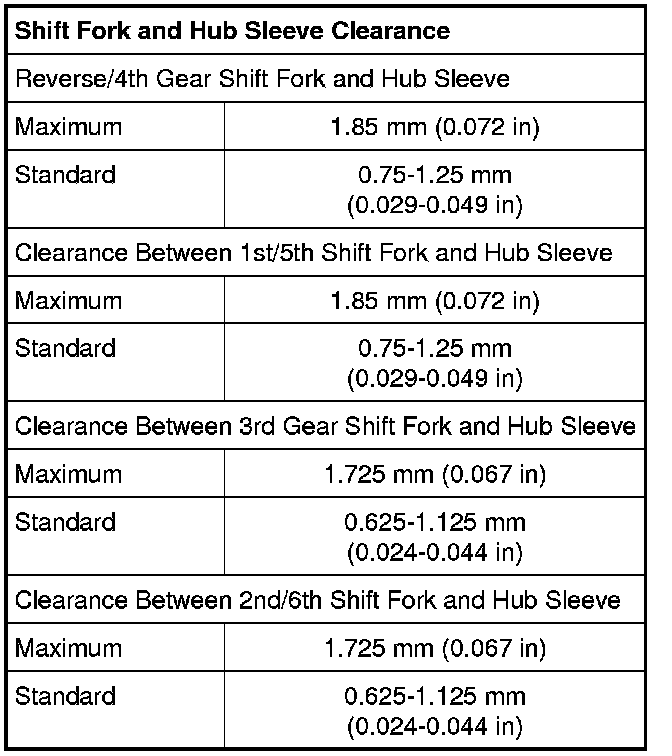

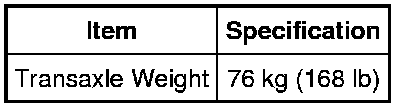

General Specifications

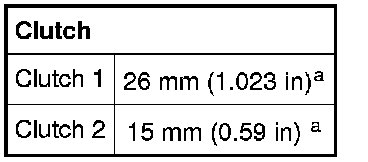

a After clutch reset

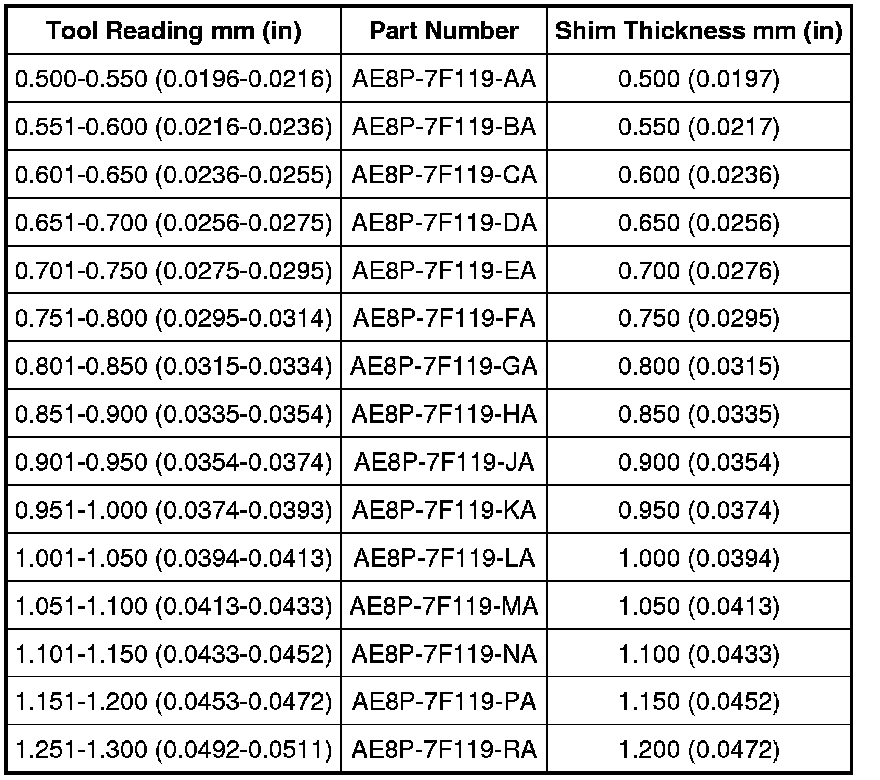

Differential Shim Selection Chart

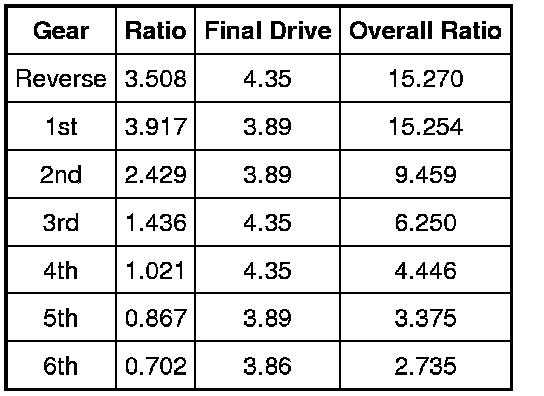

Gear Ratio

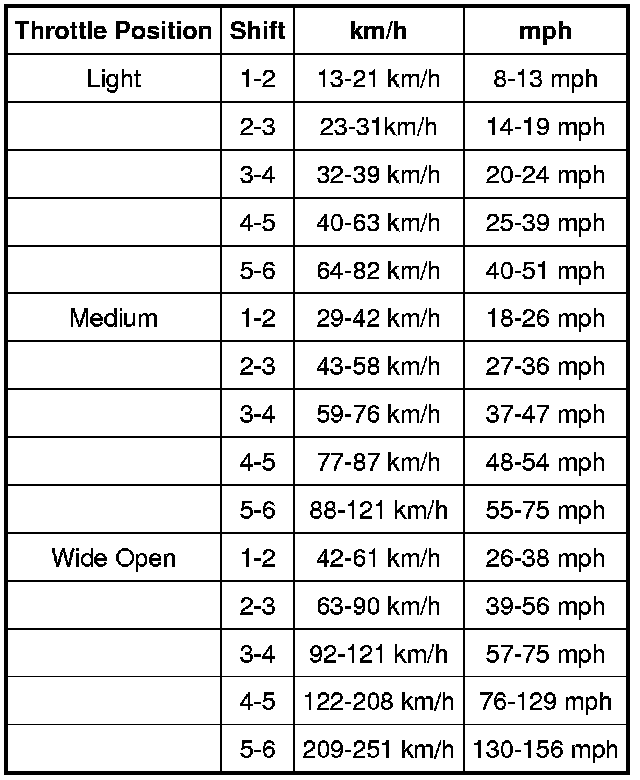

Shift Speeds Chart

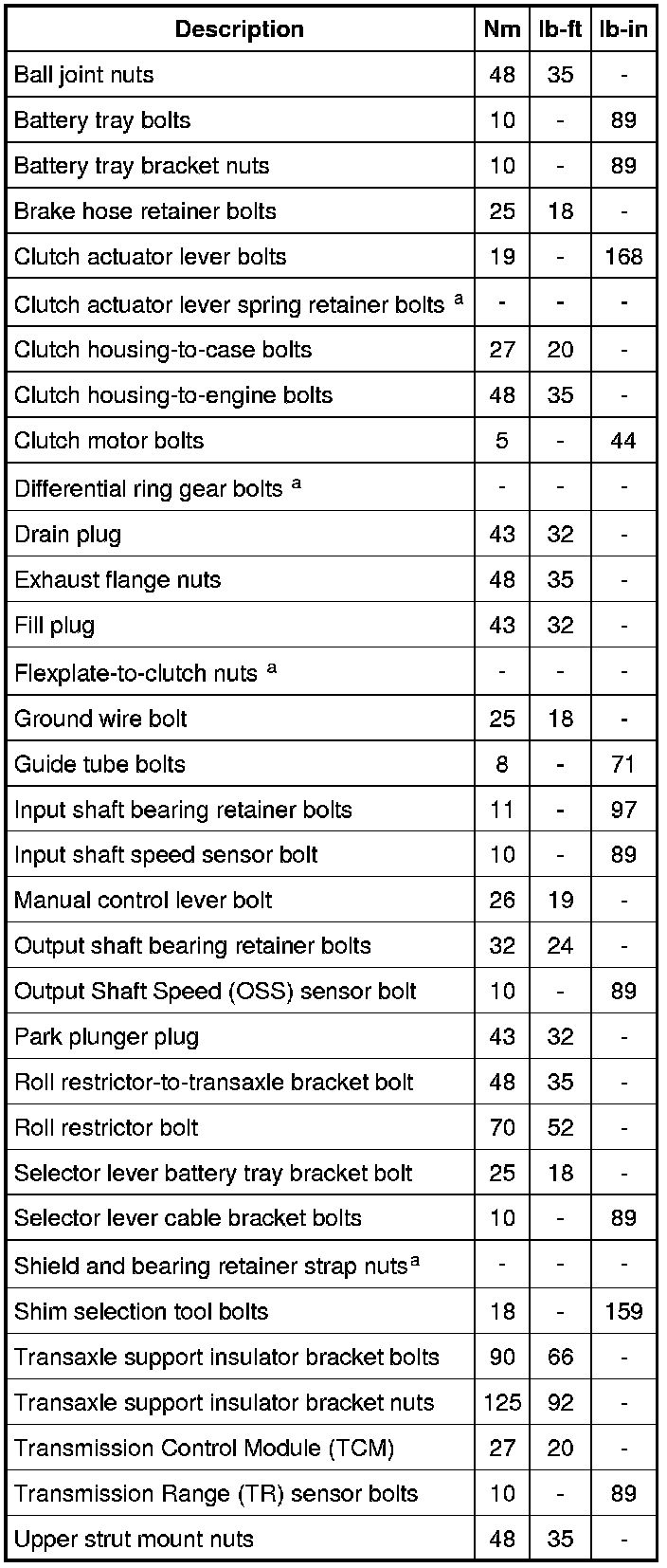

Torque Specifications





a Refer to the procedure.
