Scan Tool Testing and Procedures

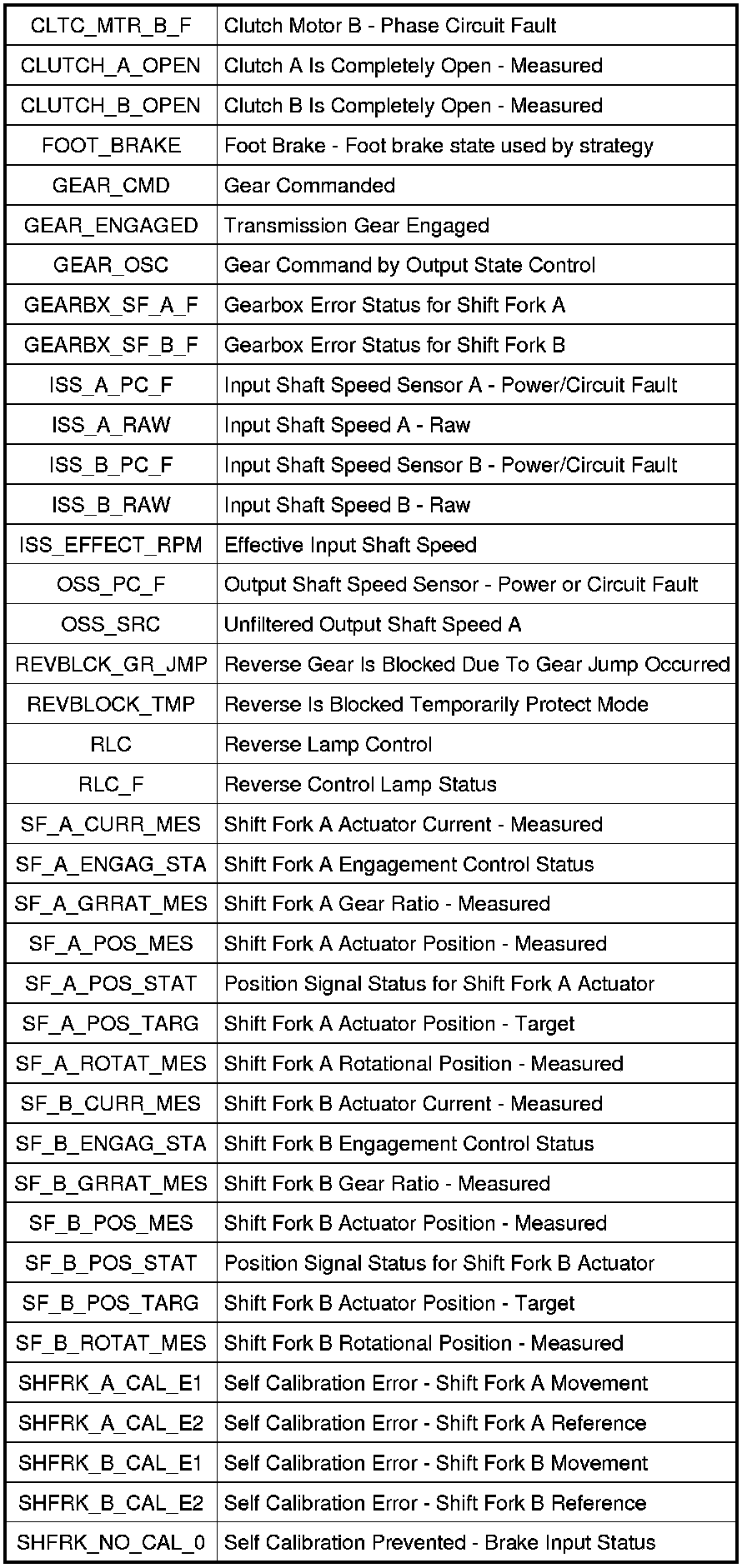

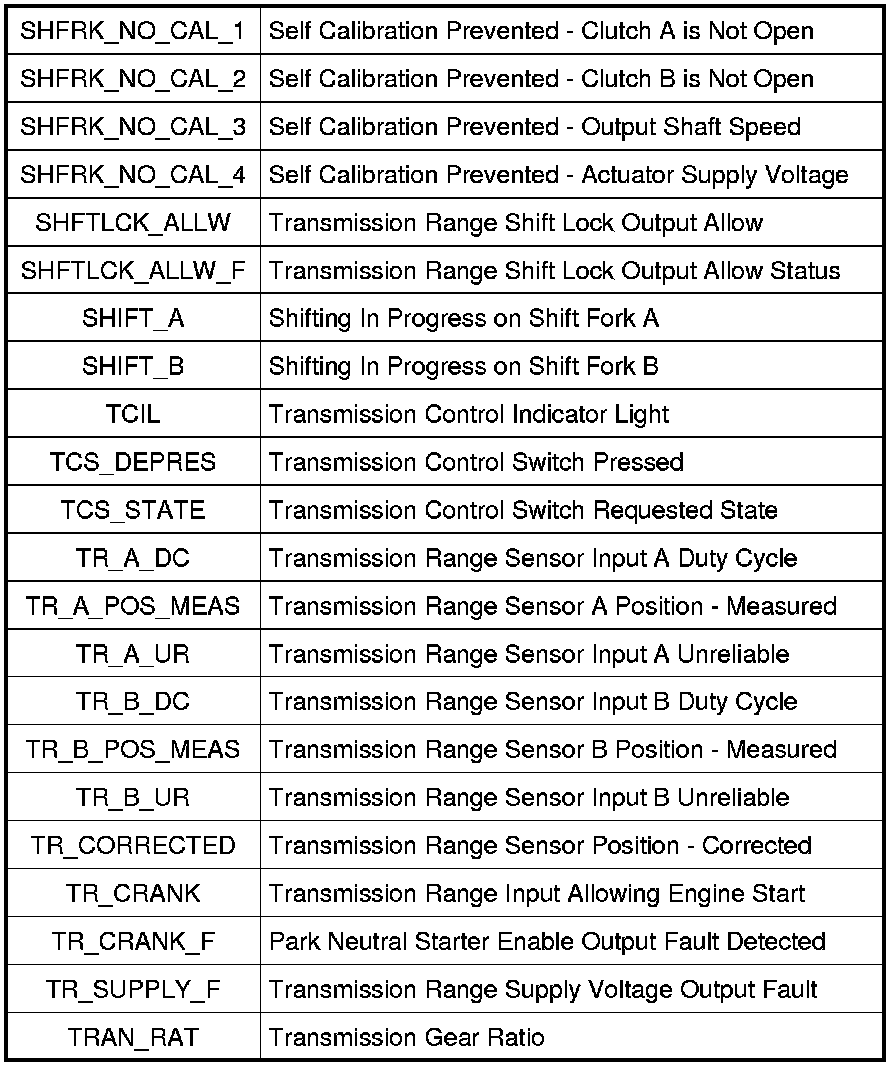

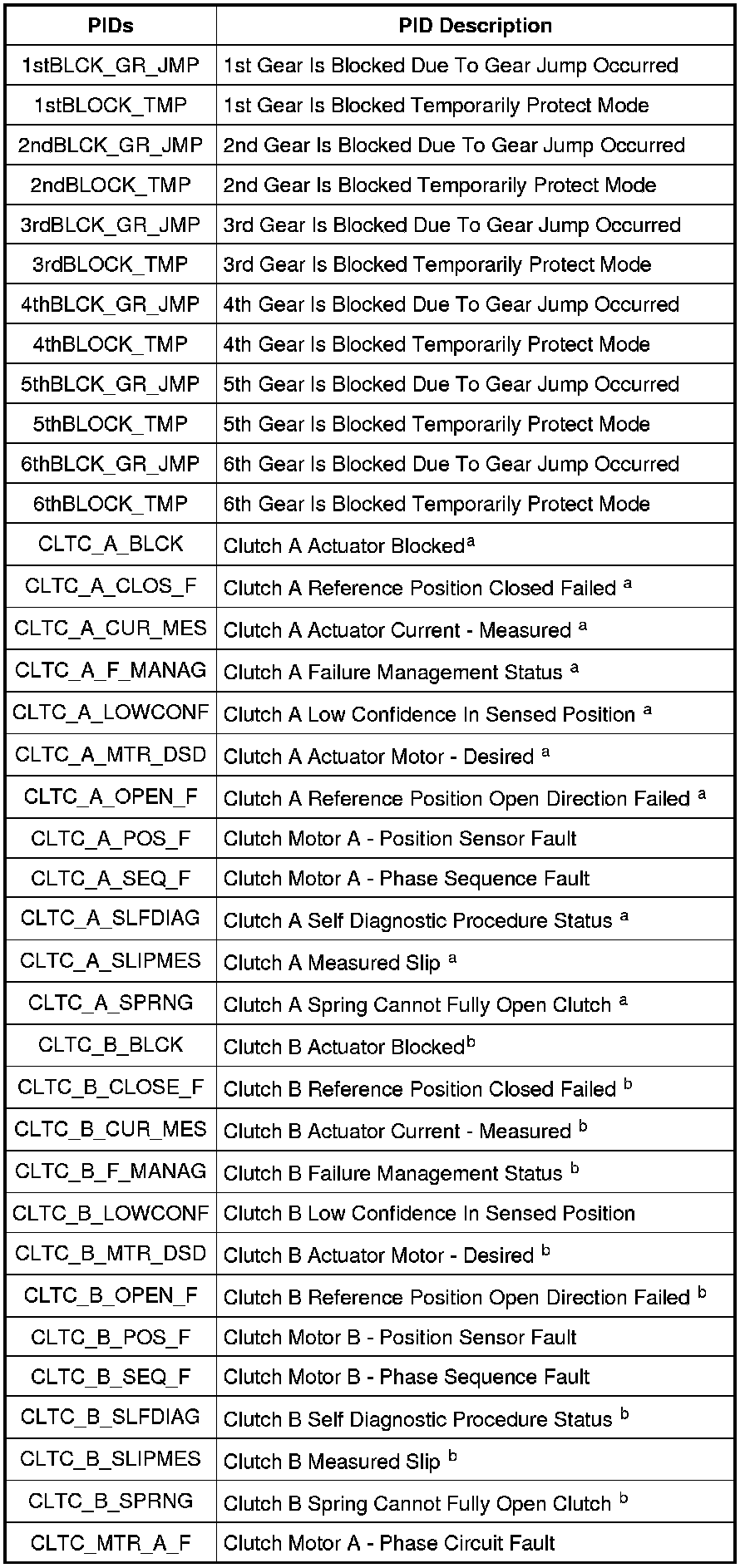

Diagnostic Parameters Identification (PID) Chart

Accessing PIDs

The following general PID list may be of use to the technician when exercising output state control:













a Clutch A = Clutch 1

b Clutch B = Clutch 2
