Component Location Views

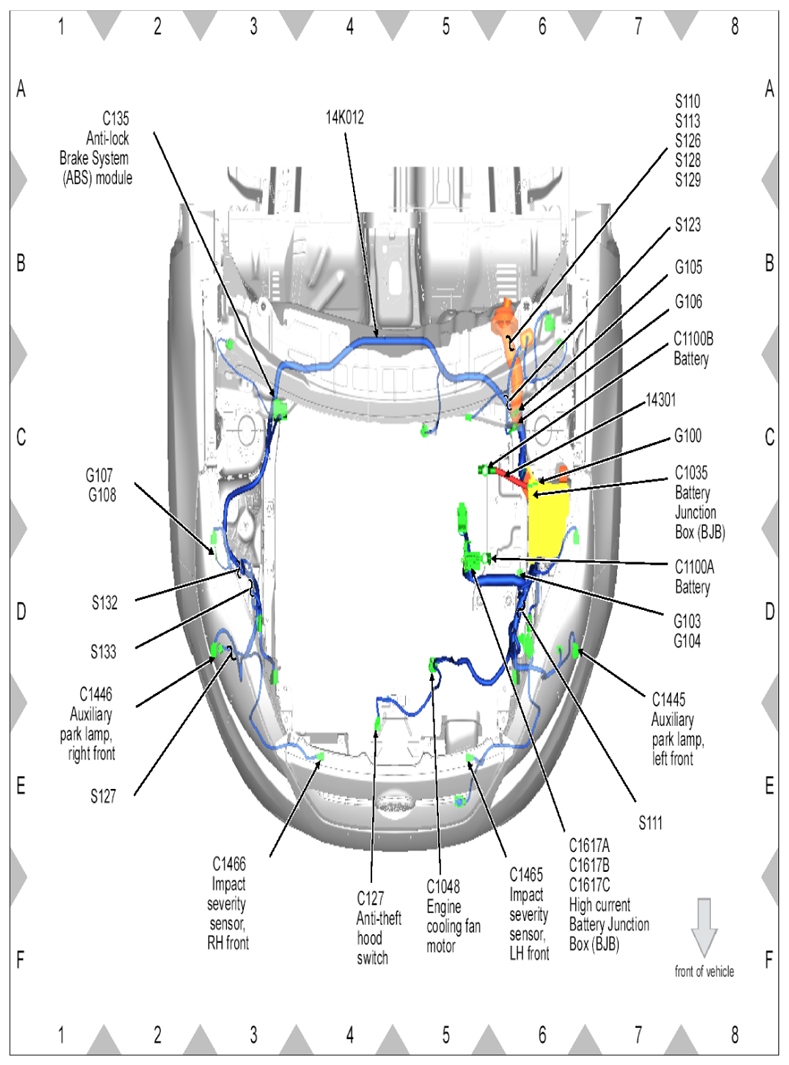

Fig 1: Identifying Engine Compartment Harness Connectors Location (1 Of 2)
G07860040Courtesy of FORD MOTOR CO.

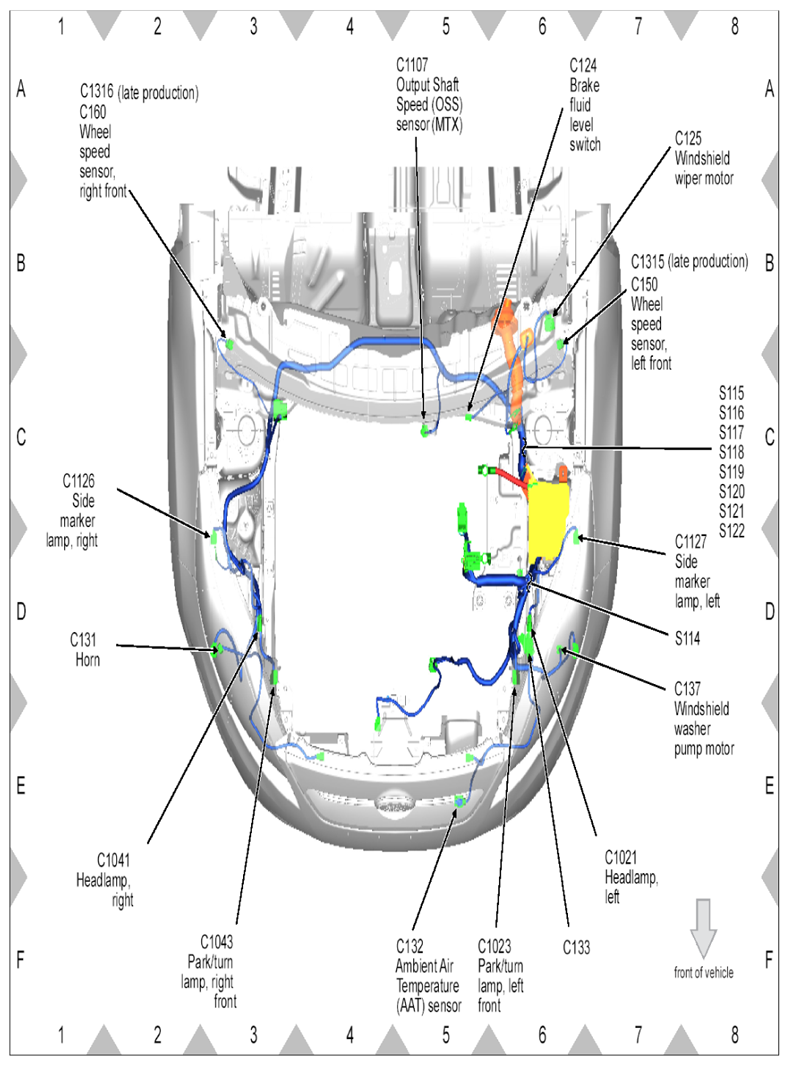

Fig 2: Identifying Engine Compartment Harness Connectors Location (2 Of 2)
G07860041Courtesy of FORD MOTOR CO.

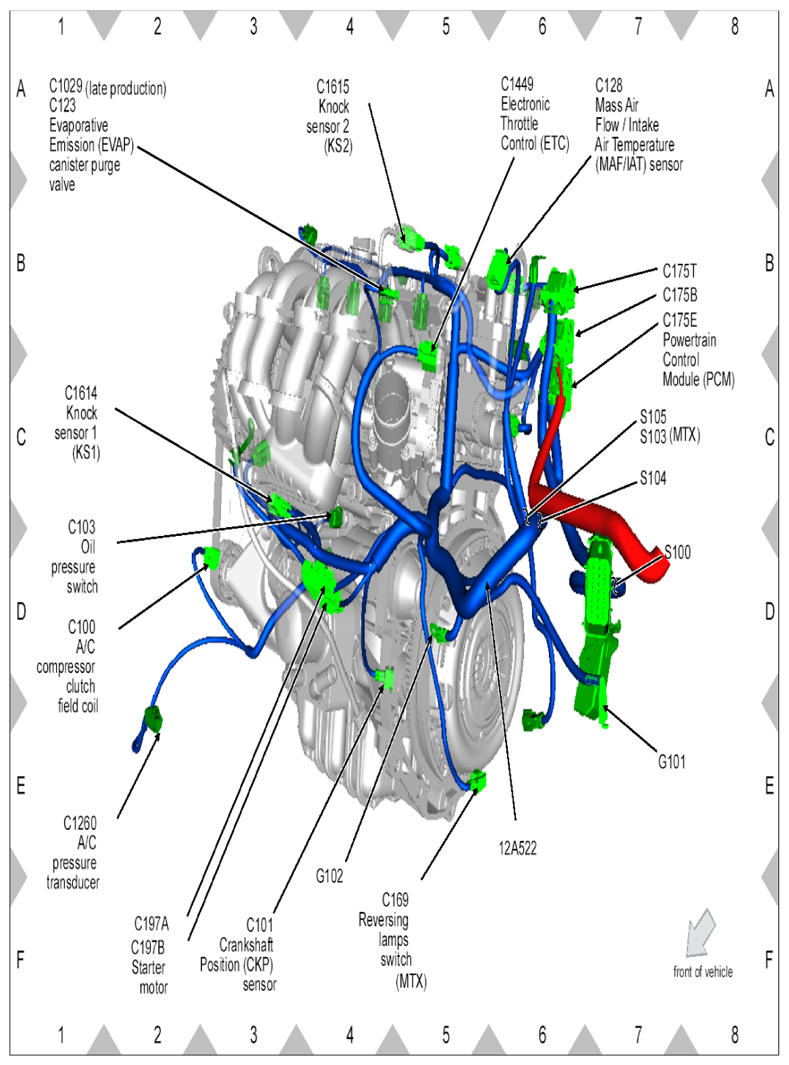

Fig 3: Identifying Engine Wiring Harness Connectors Location (1 Of 2)
G07860042Courtesy of FORD MOTOR CO.

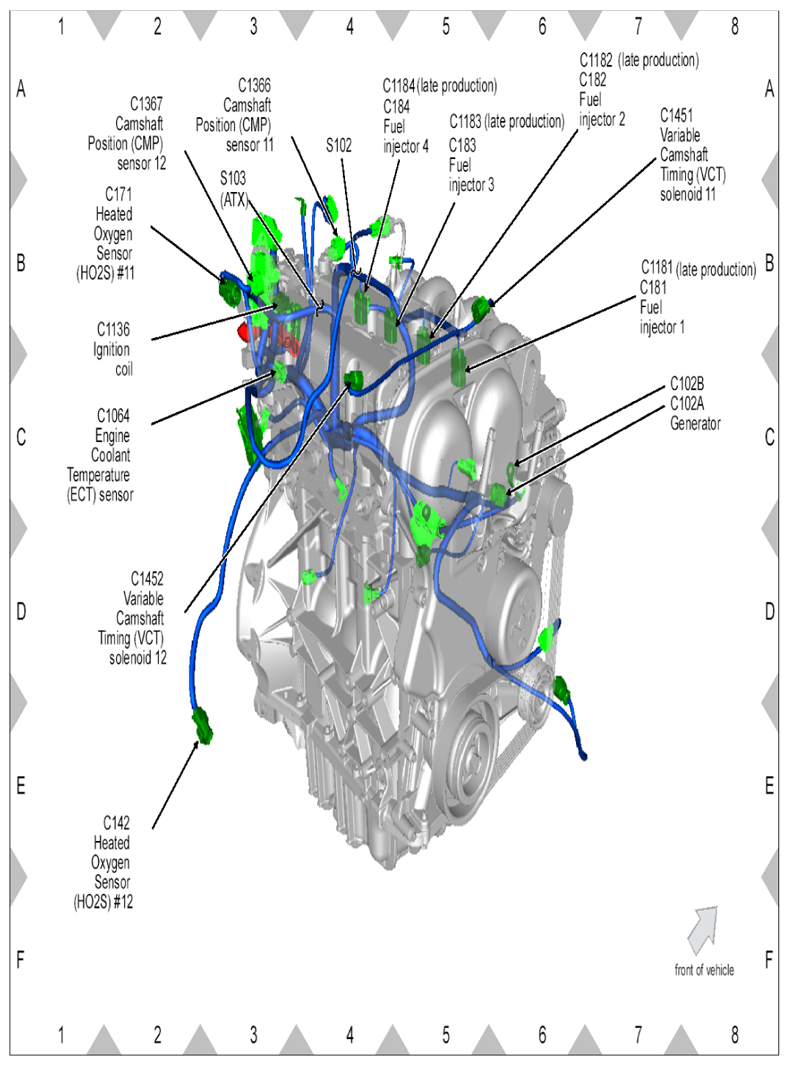

Fig 4: Identifying Engine Wiring Harness Connectors Location (2 Of 2)
G07860043Courtesy of FORD MOTOR CO.

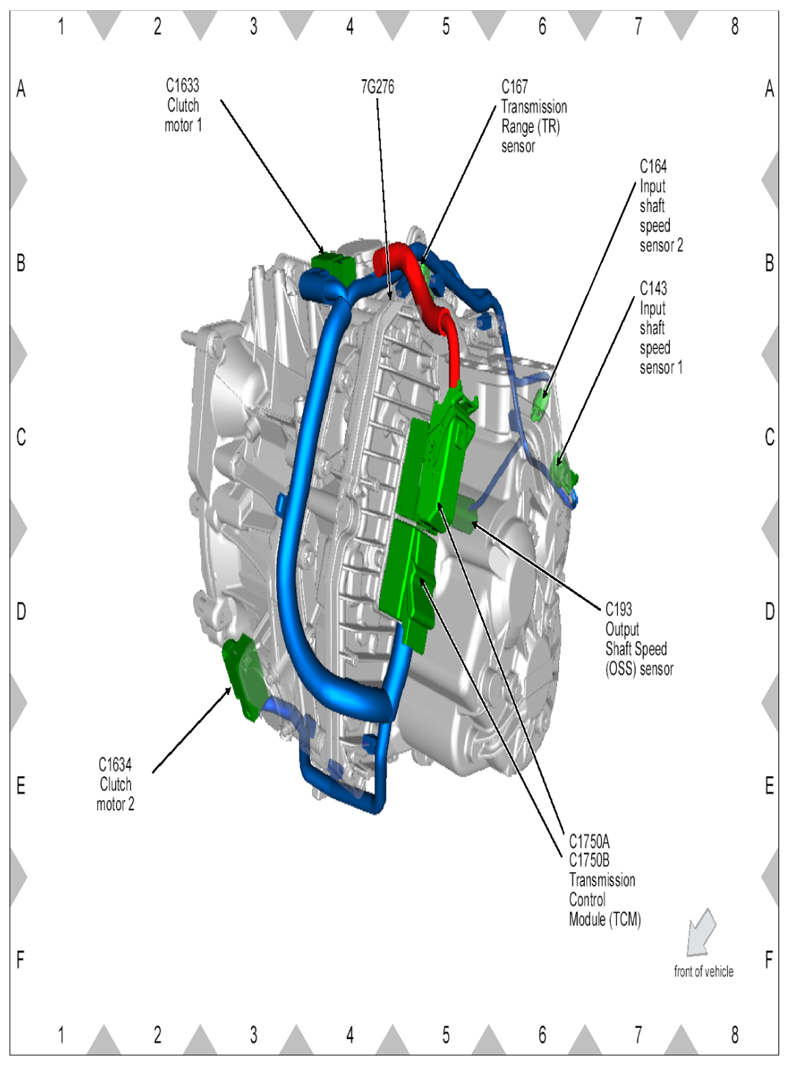

Fig 5: Identifying Transmission Control Module Wiring Harness Connectors Location
G07860044Courtesy of FORD MOTOR CO.

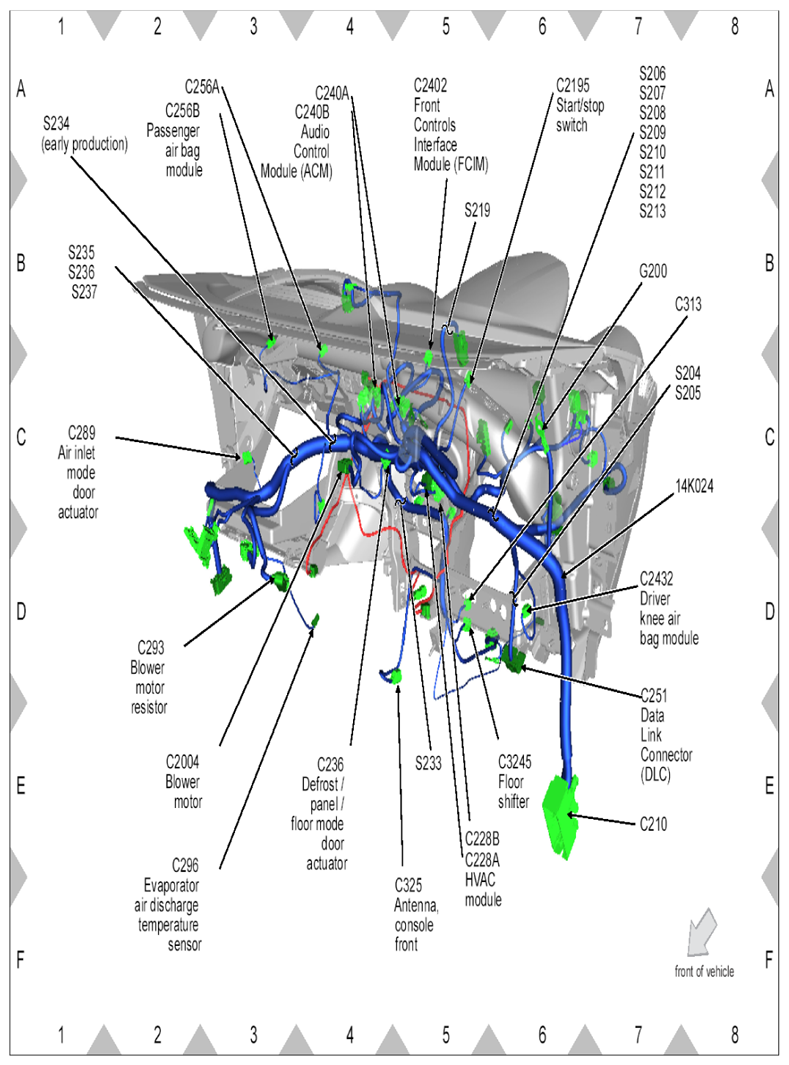

Fig 6: Identifying Dash Panel Wiring Harness Connectors Location (1 Of 2)
G07860045Courtesy of FORD MOTOR CO.

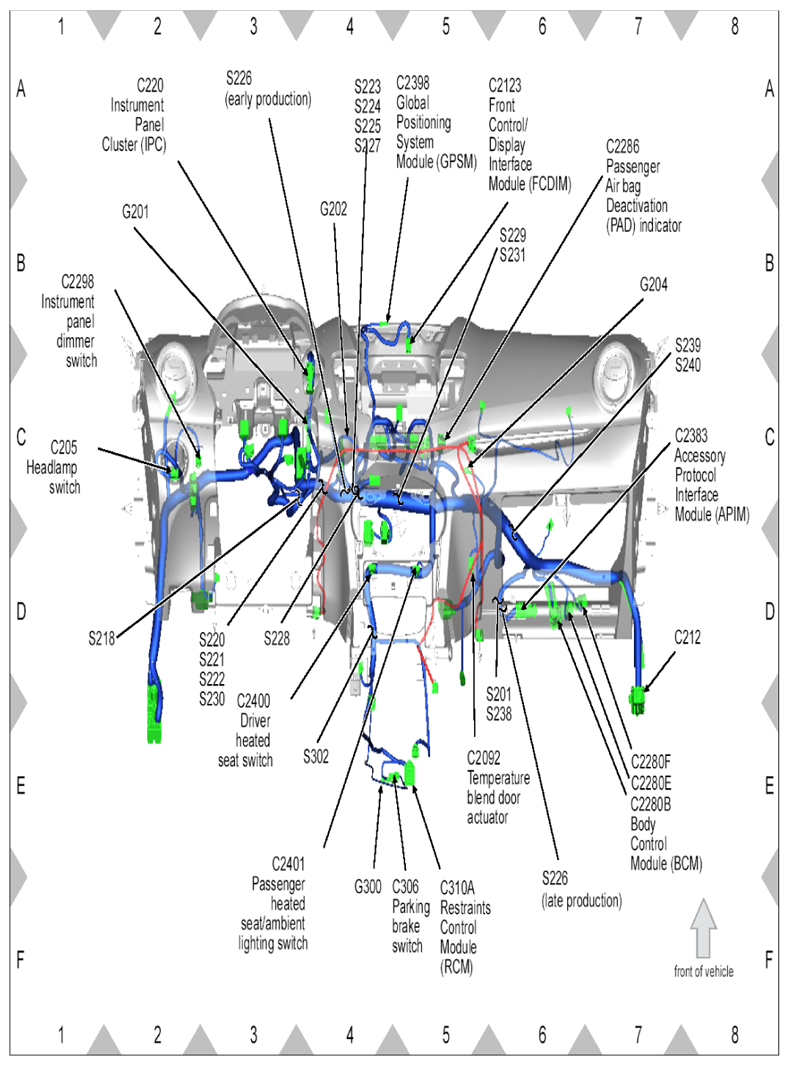

Fig 7: Identifying Dash Panel Wiring Harness Connectors Location (2 Of 2)
G07860046Courtesy of FORD MOTOR CO.

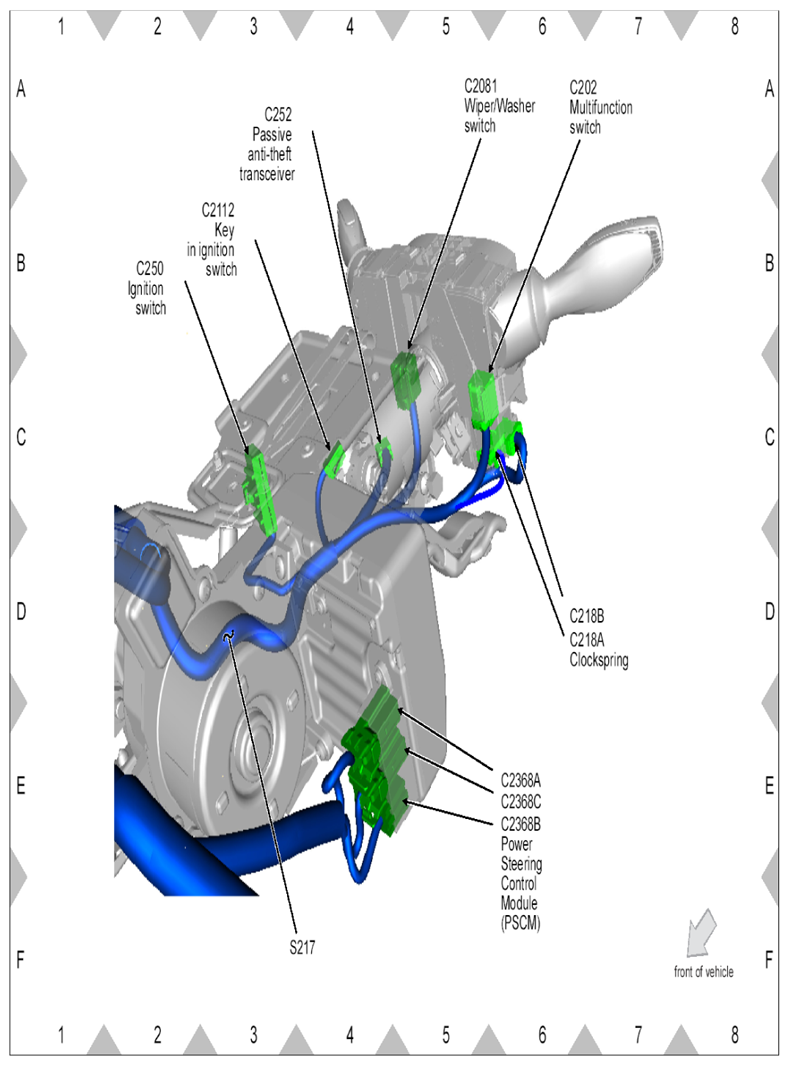

Fig 8: Identifying Steering Column Wiring Harness Connectors Location
G07860047Courtesy of FORD MOTOR CO.

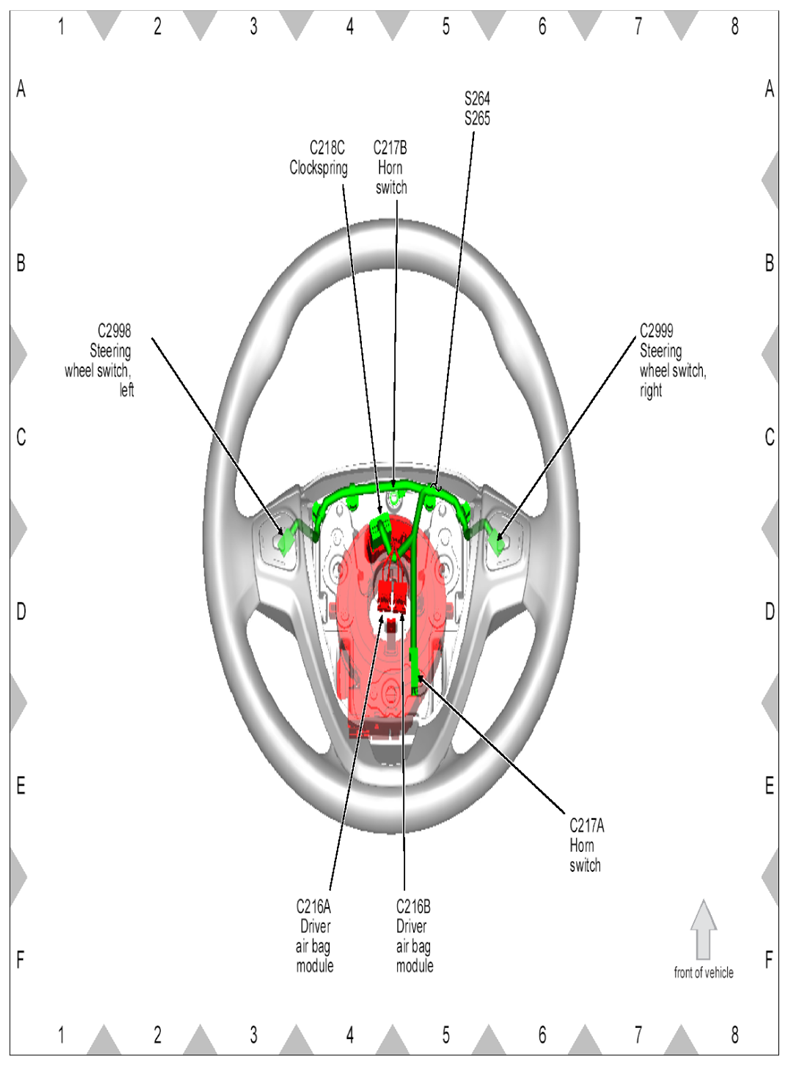

Fig 9: Identifying Steering Wheel Wiring Harness Connectors Location
G07860048Courtesy of FORD MOTOR CO.

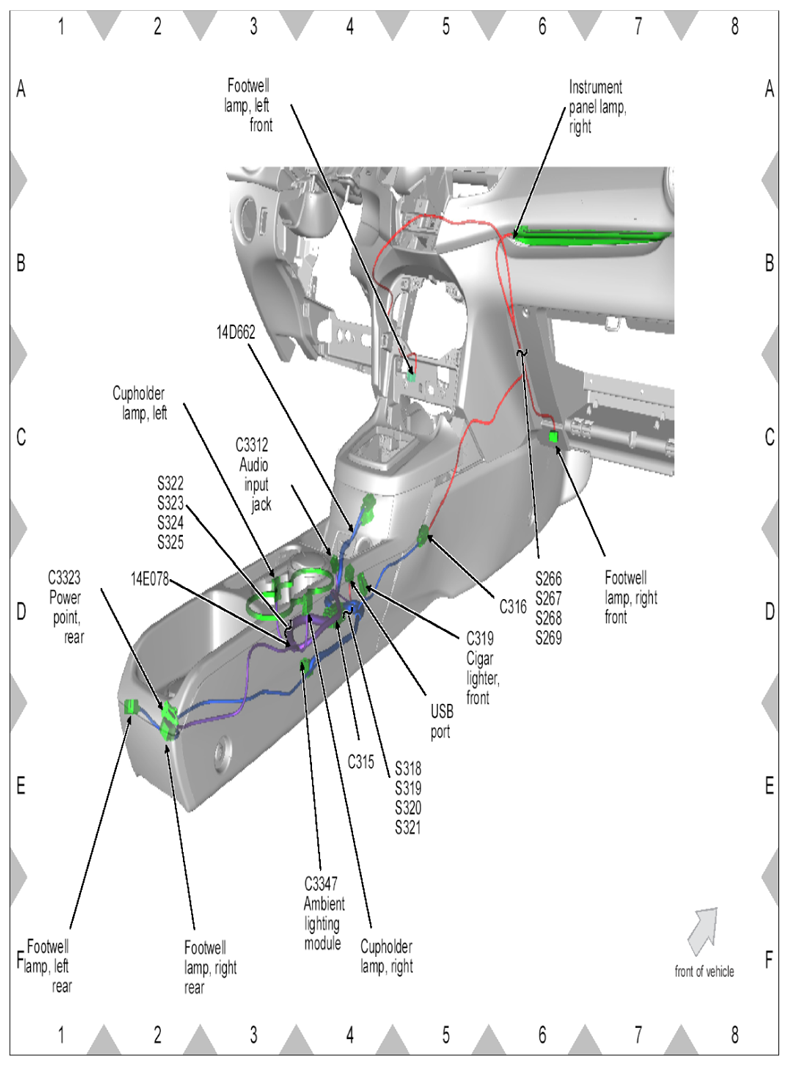

Fig 10: Identifying Center Console Wiring Harness Connectors Location
G07860049Courtesy of FORD MOTOR CO.

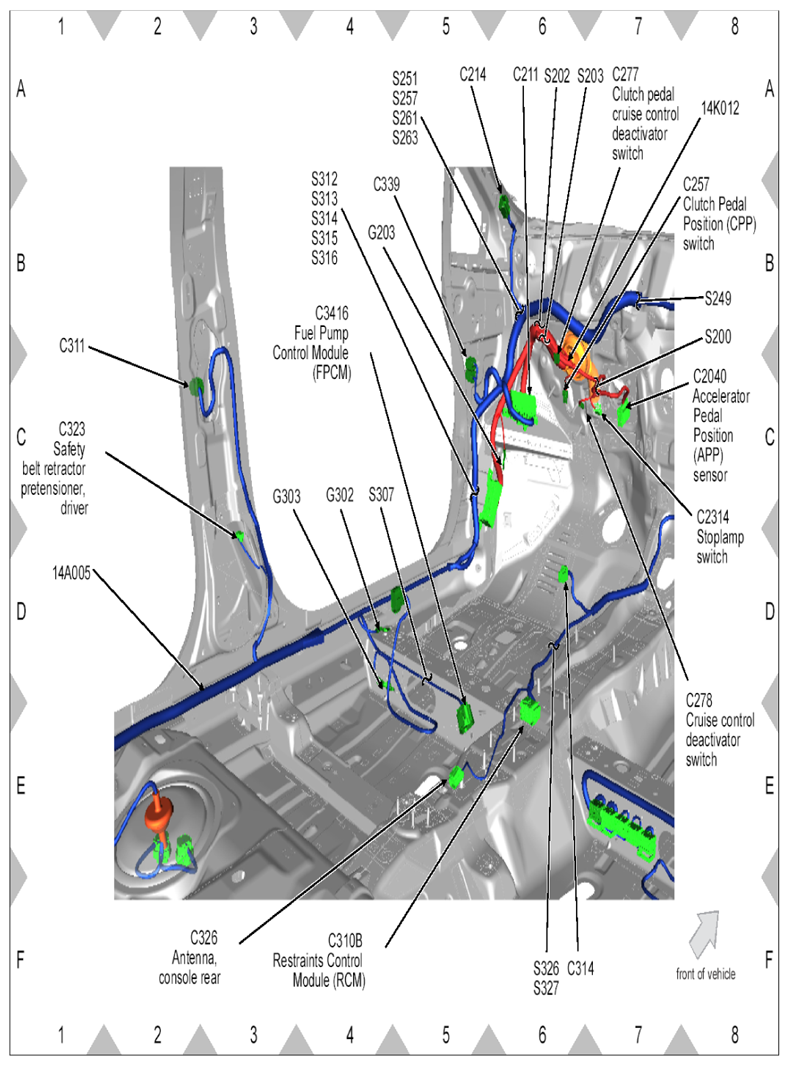

Fig 11: Identifying LH Front Compartment Wiring Harness Connectors Location
G07860050Courtesy of FORD MOTOR CO.

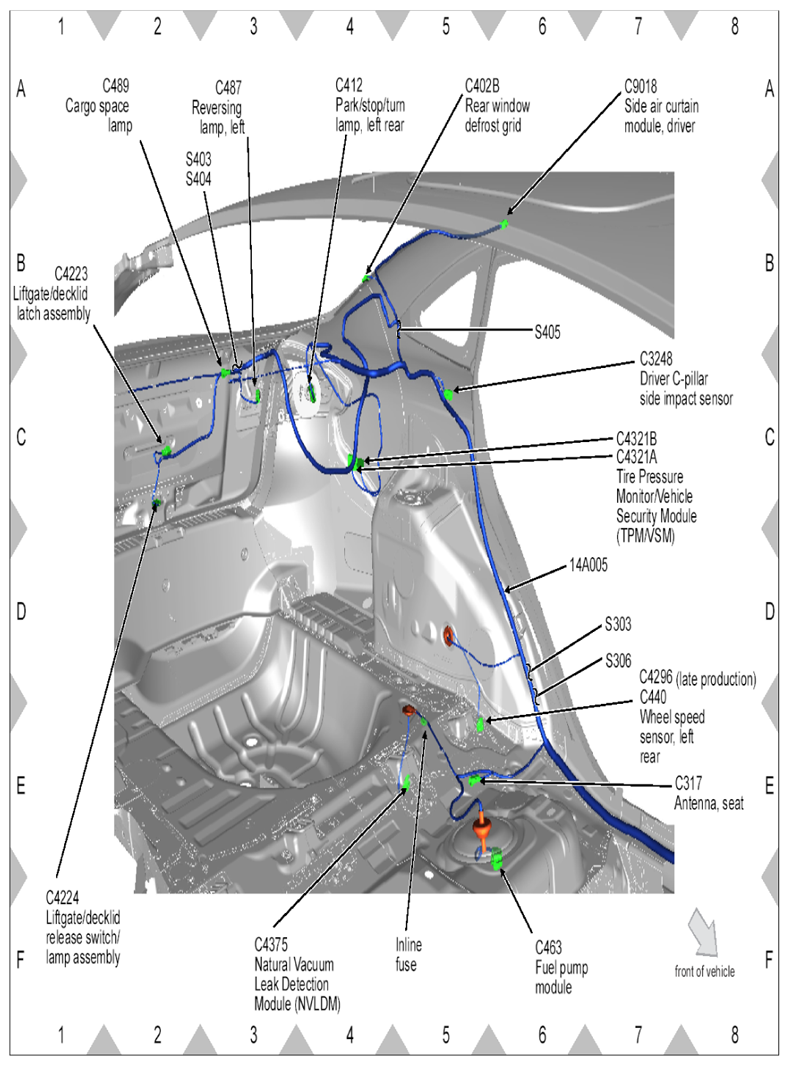

Fig 12: Identifying LH Rear Compartment Wiring Harness Connectors Location
G07860051Courtesy of FORD MOTOR CO.

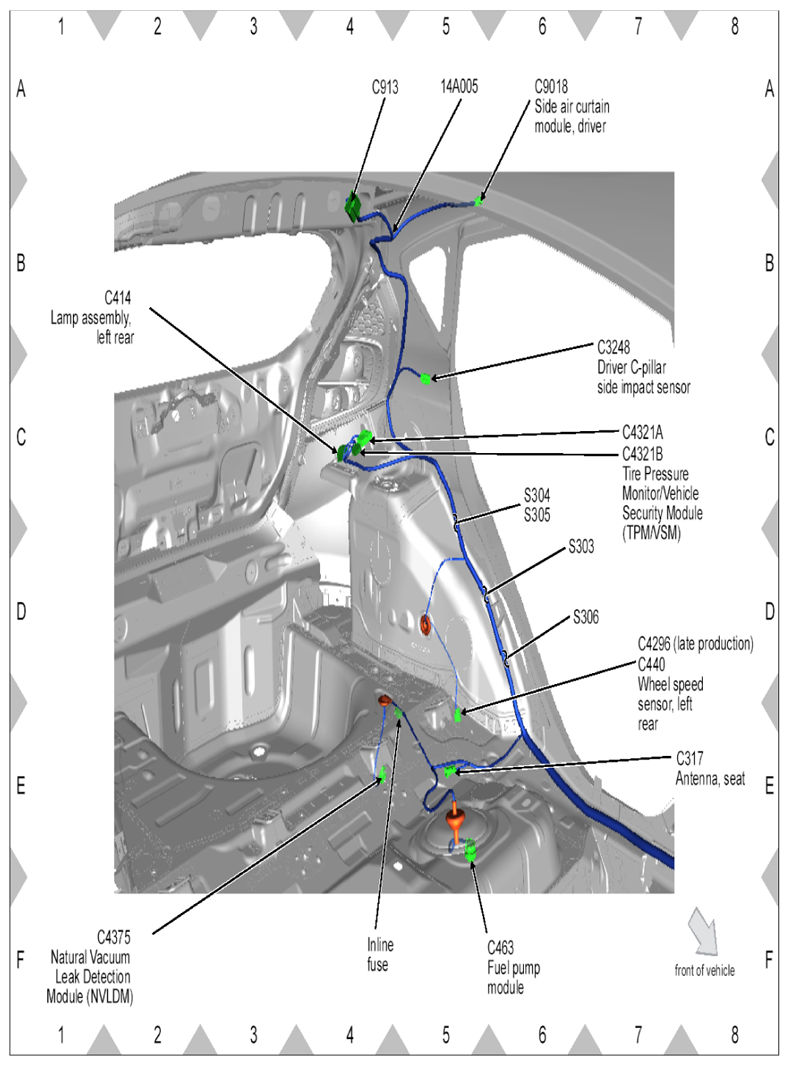

Fig 13: Identifying RH Rear Compartment Wiring Harness Connectors Location
G07860052Courtesy of FORD MOTOR CO.

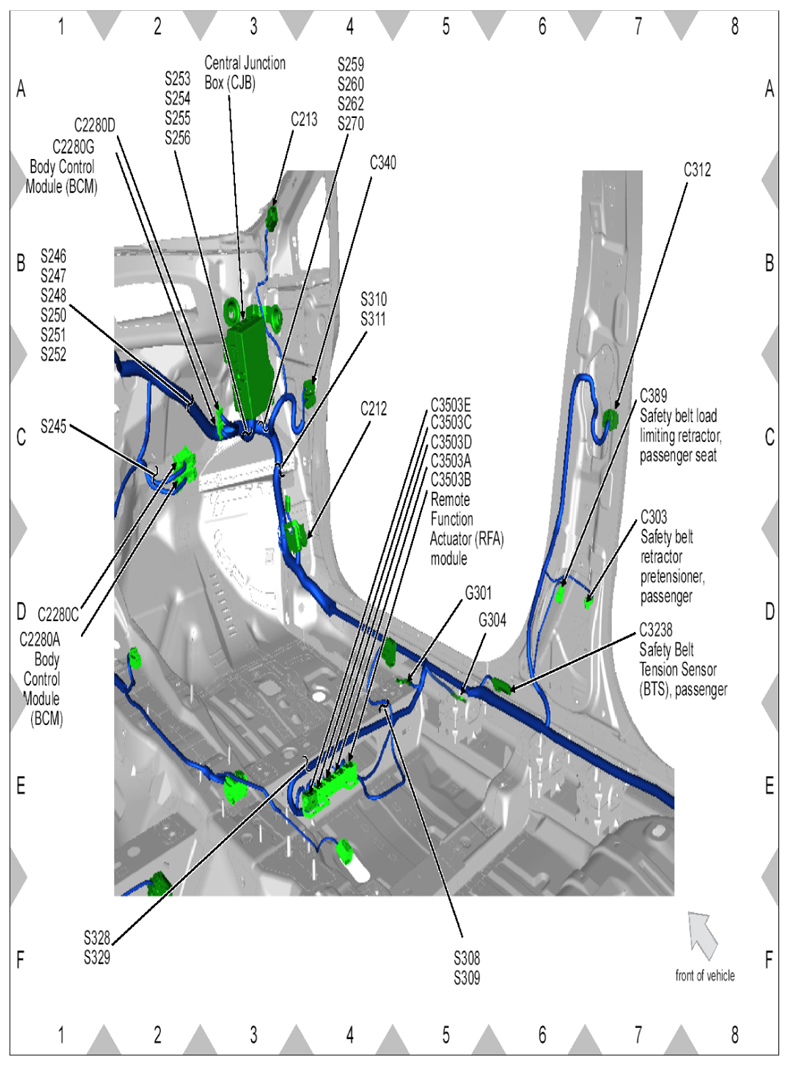

Fig 14: Identifying RH Front Compartment Wiring Harness Connectors Location
G07860053Courtesy of FORD MOTOR CO.

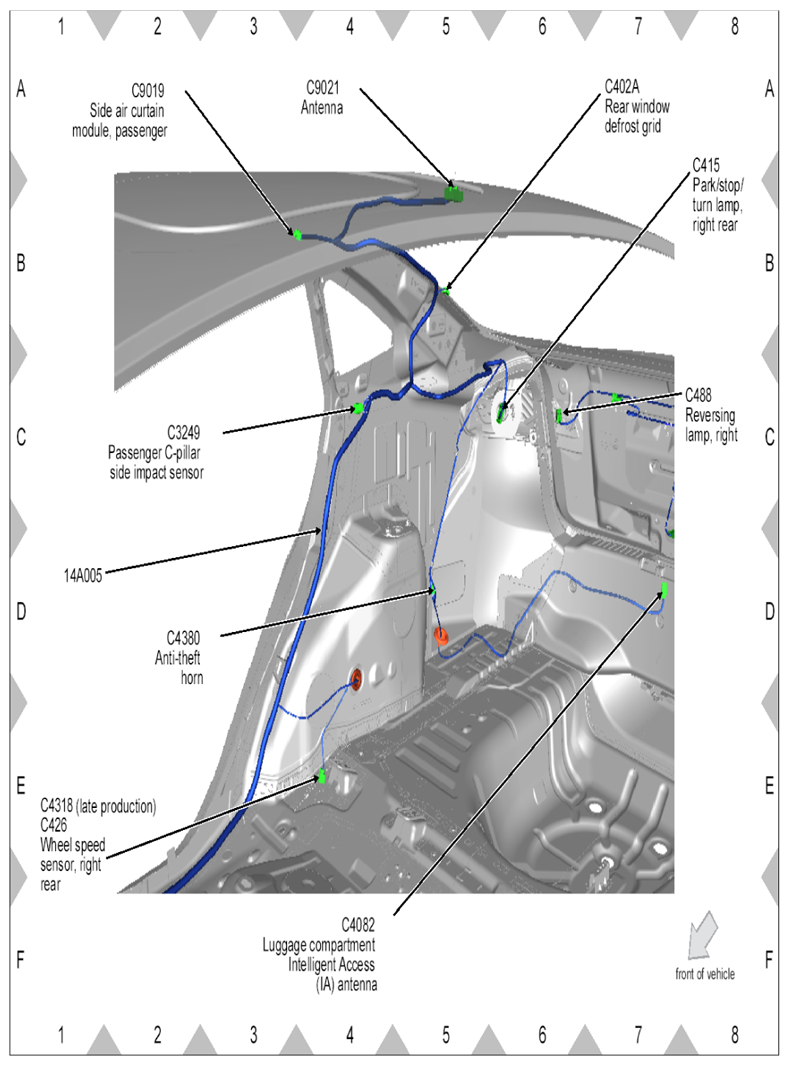

Fig 15: Identifying Luggage Compartment Wiring Harness Connectors Location (1 Of 2)
G07860054Courtesy of FORD MOTOR CO.

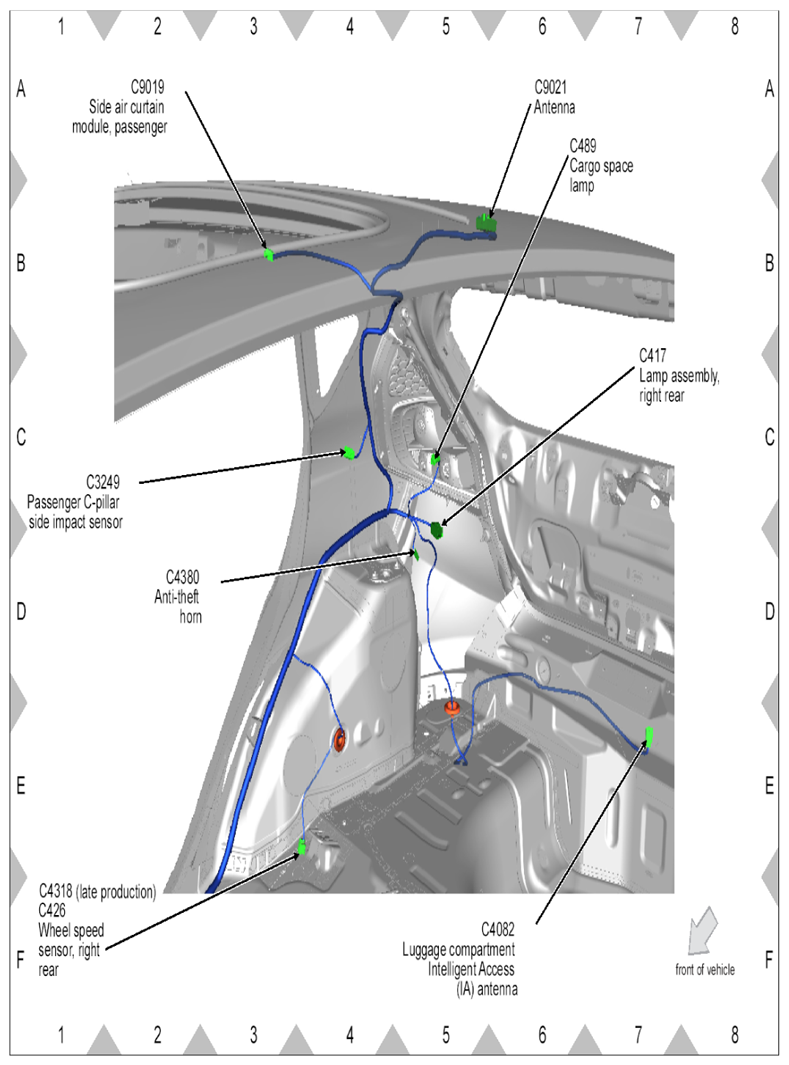

Fig 16: Identifying Luggage Compartment Wiring Harness Connectors Location (2 Of 2)
G07860055Courtesy of FORD MOTOR CO.

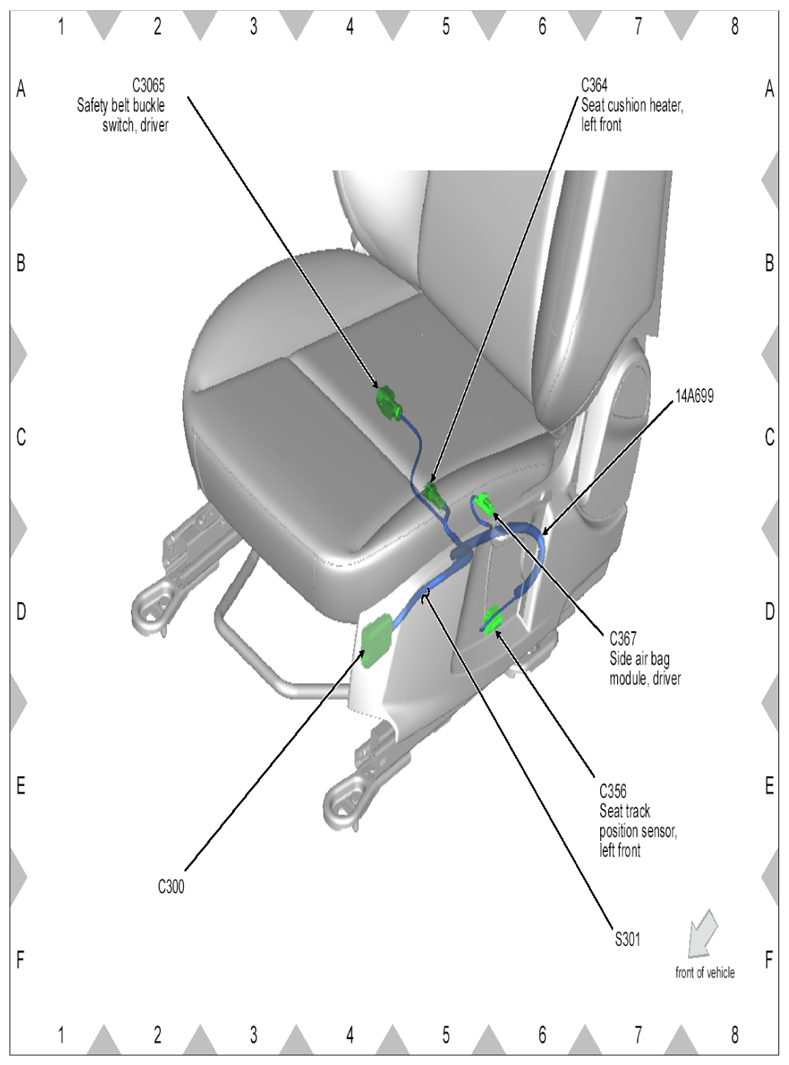

Fig 17: Identifying Driver Seat Wiring Harness Connectors Location
G07860056Courtesy of FORD MOTOR CO.

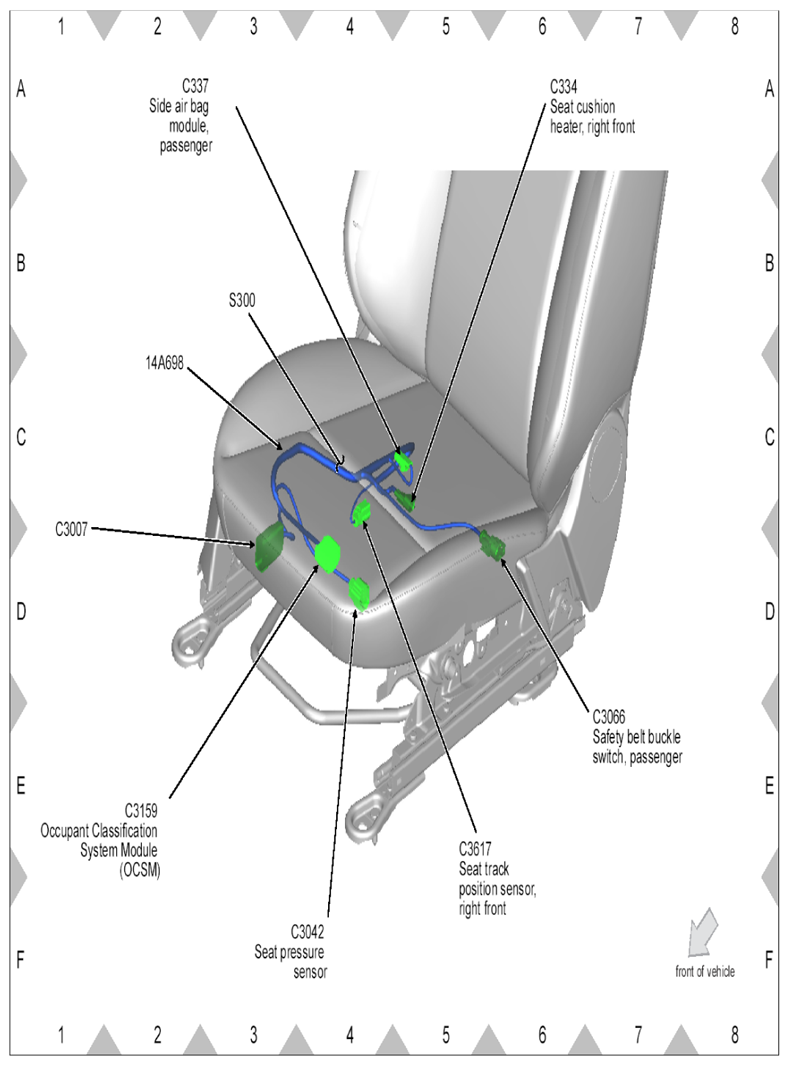

Fig 18: Identifying Passenger Seat Wiring Harness Connectors Location
G07860057Courtesy of FORD MOTOR CO.

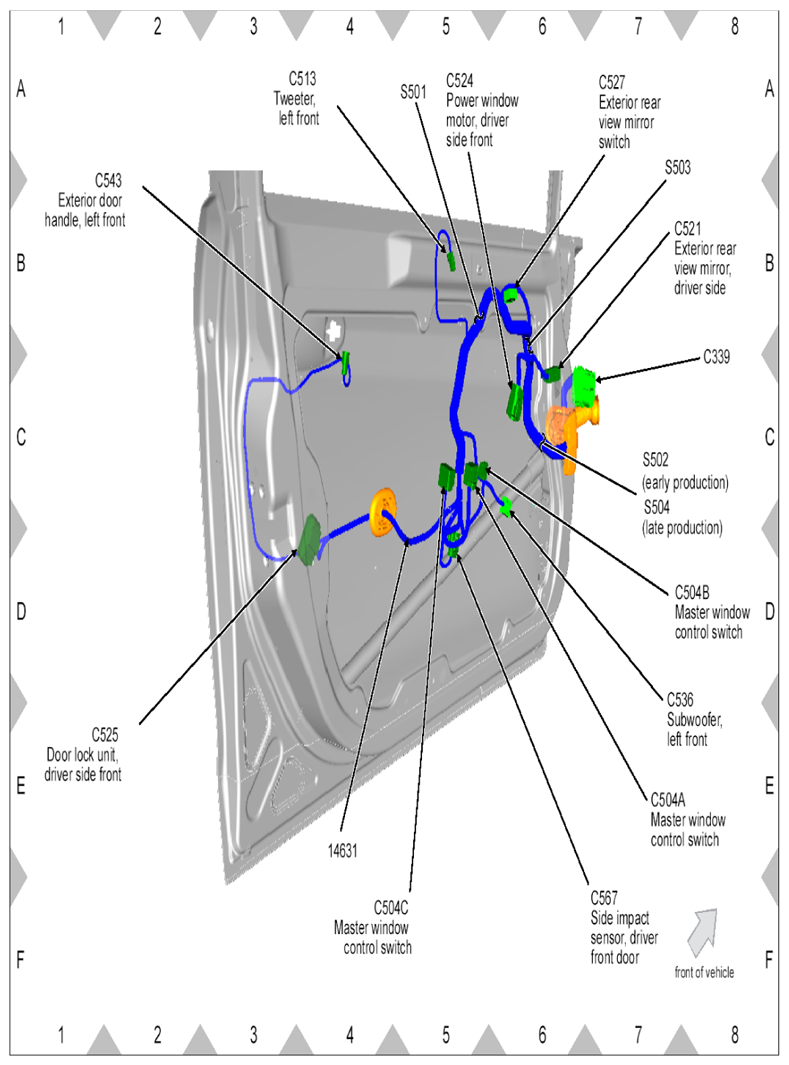

Fig 19: Identifying Driver Front Door Wiring Harness Connectors Location
G07860058Courtesy of FORD MOTOR CO.

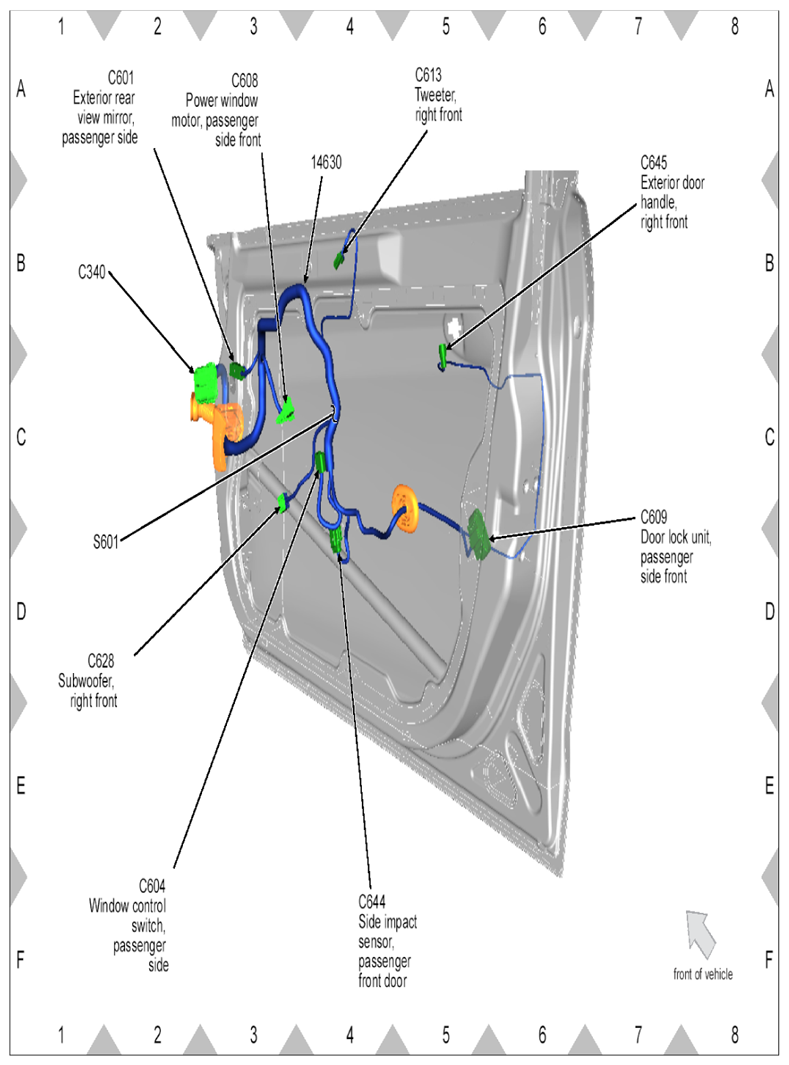

Fig 20: Identifying Passenger Side Door Wiring Harness Connectors Location
G07860059Courtesy of FORD MOTOR CO.

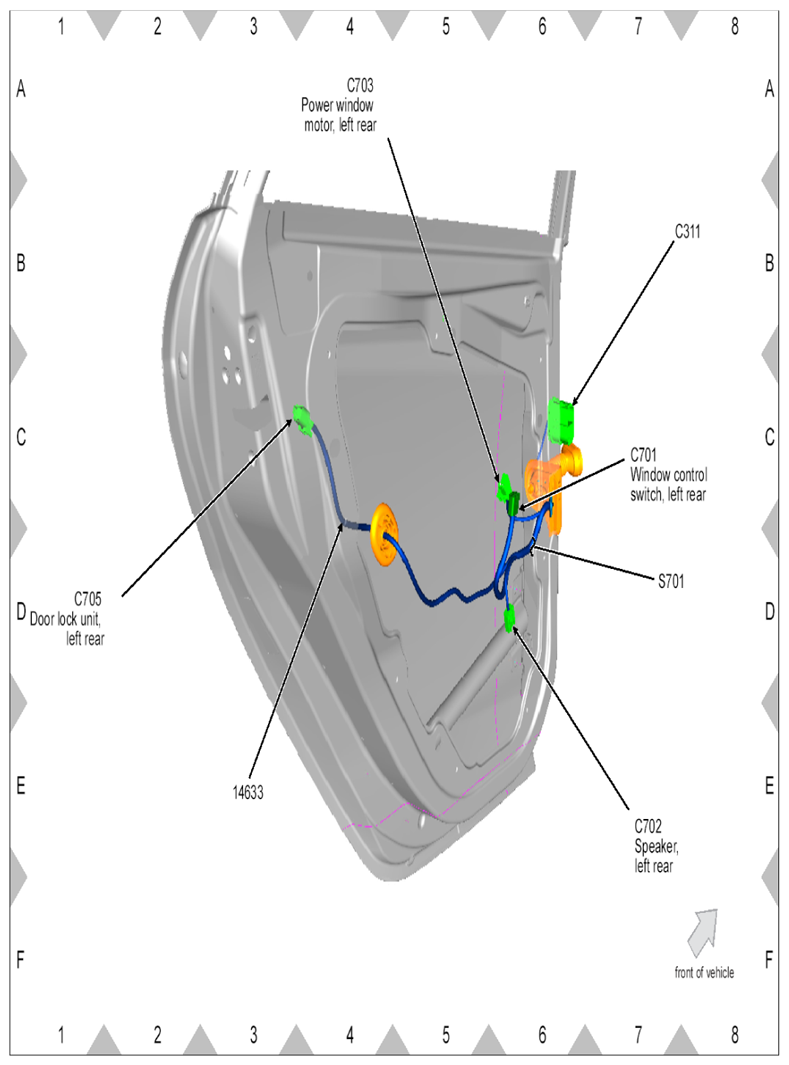

Fig 21: Identifying Left Rear Door Wiring Harness Connectors Location
G07860060Courtesy of FORD MOTOR CO.

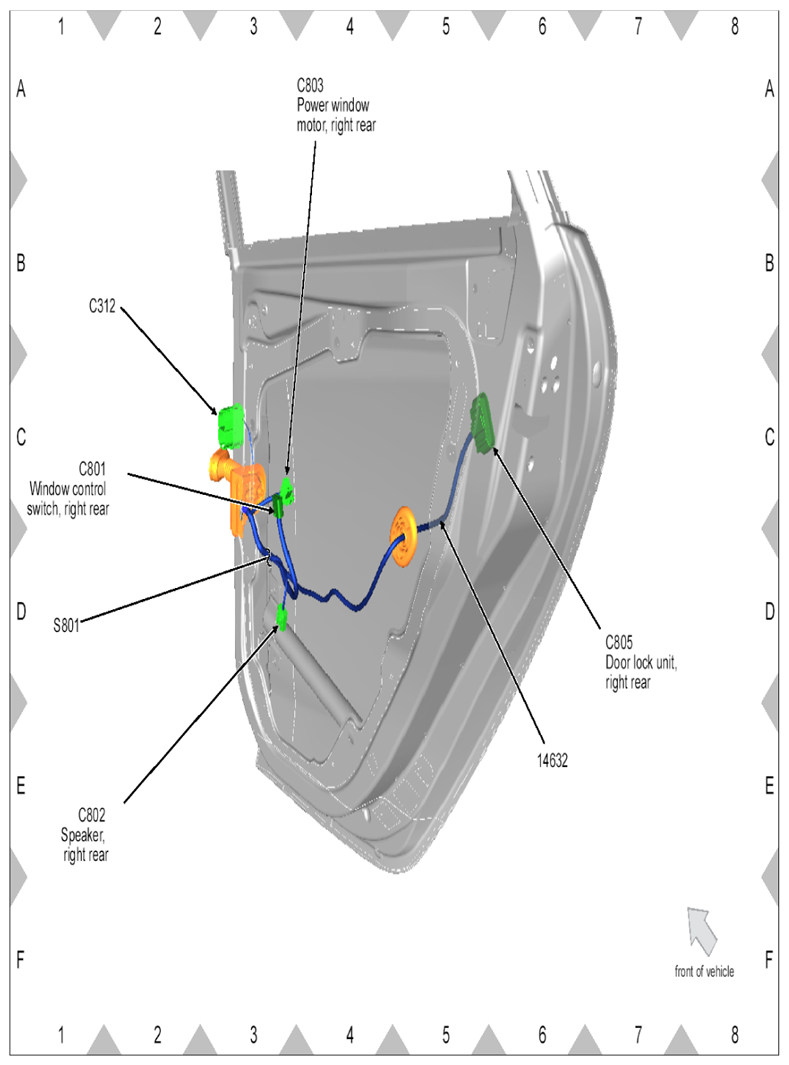

Fig 22: Identifying Right Rear Door Wiring Harness Connectors Location
G07860061Courtesy of FORD MOTOR CO.

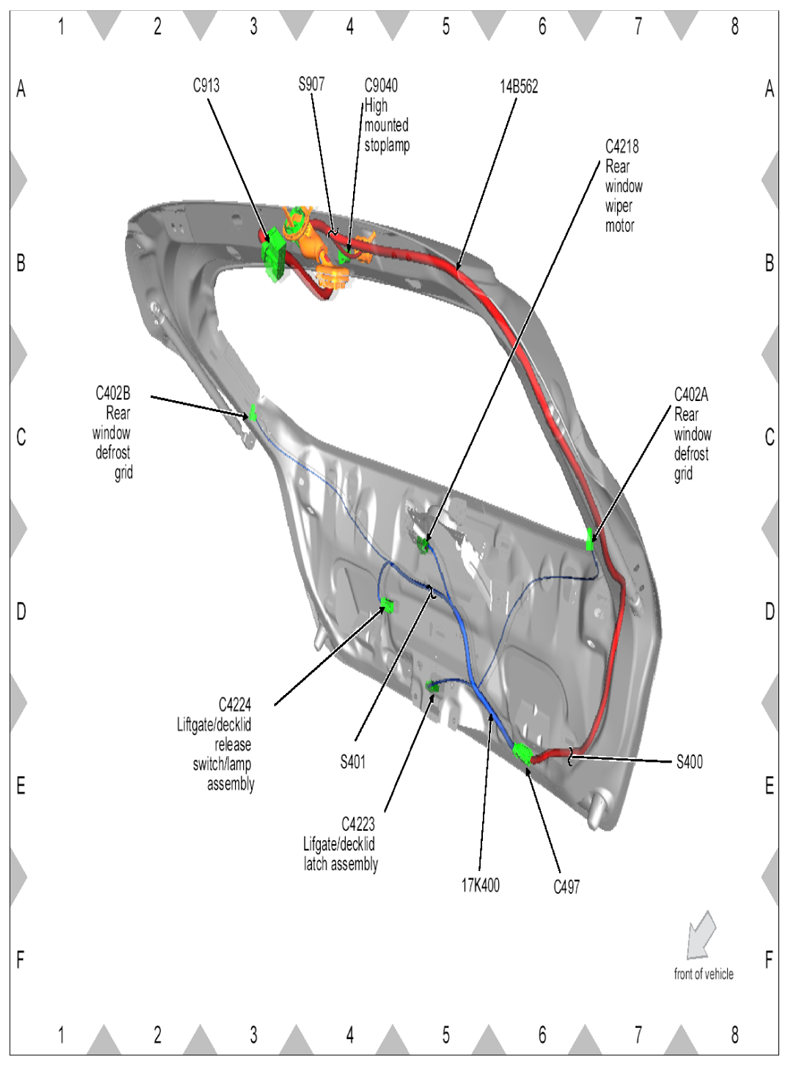

Fig 23: Identifying Liftgate Wiring Harness Connectors Location
G07860062Courtesy of FORD MOTOR CO.

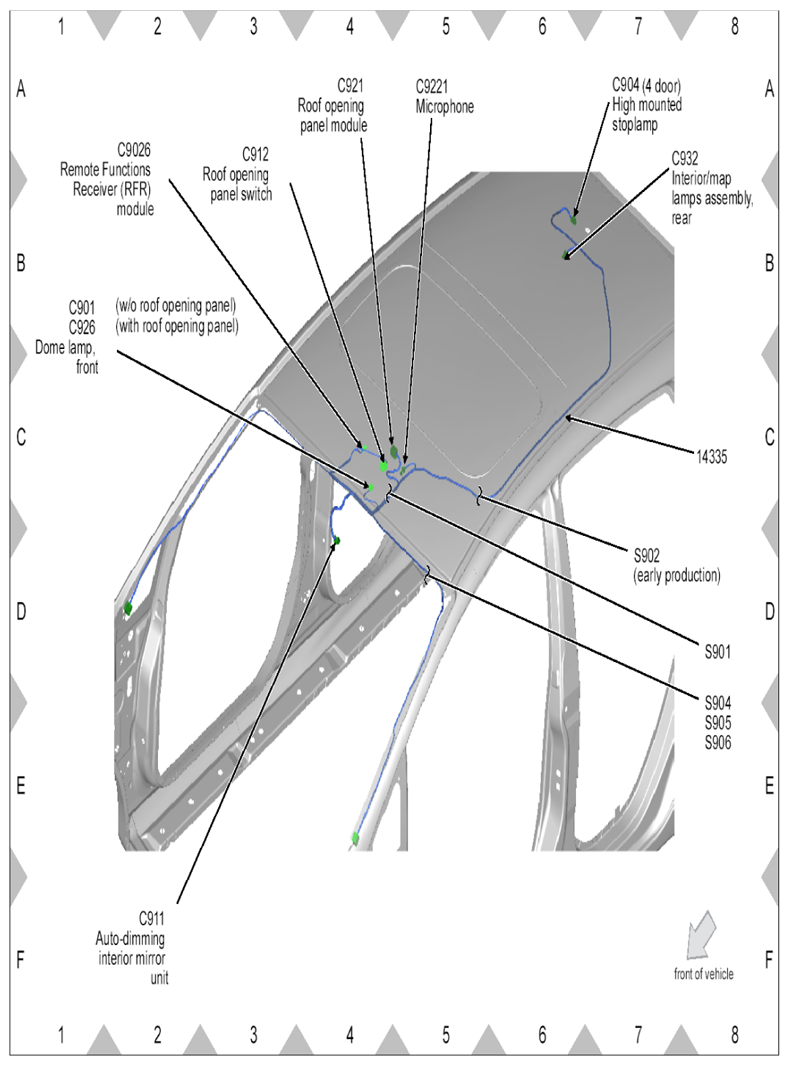

Fig 24: Identifying Roof Paneling Wiring Harness Connectors Location
G07860063Courtesy of FORD MOTOR CO.
