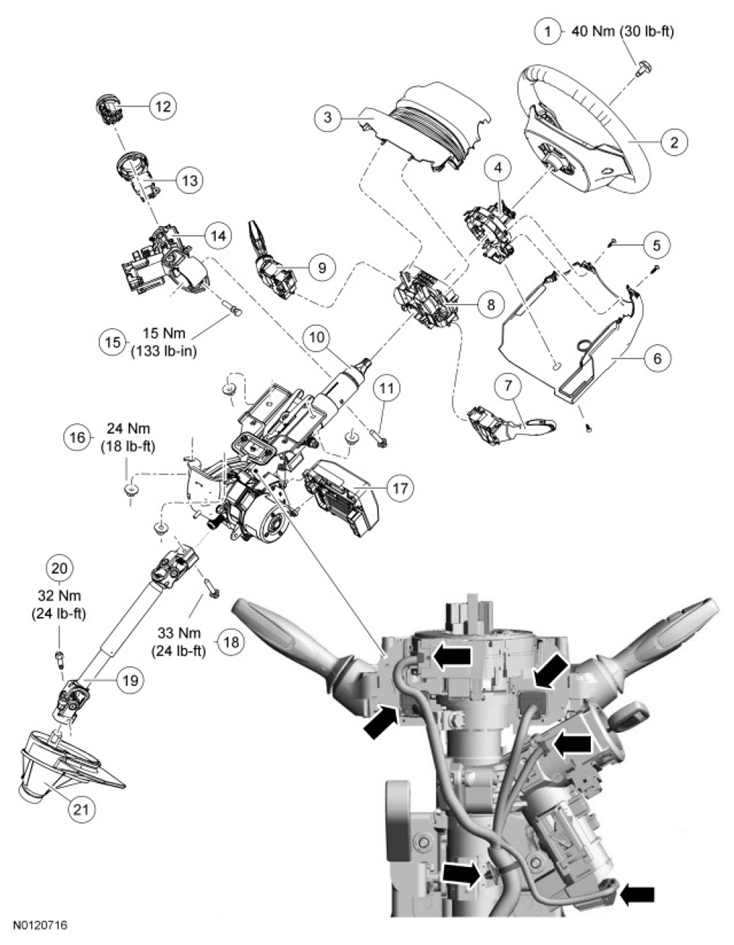

Steering Column - Exploded View: Notes
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W750985 | Steering wheel bolt |
| 2 | 3600 | Steering wheel |
| 3 | 3530 | Upper steering column shroud |
| 4 | 14A664 | Clockspring |
| 5 | W701928 | Steering column shroud bolt (2 required) |
| 6 | 3530 | Lower steering column shroud |
| 7 | 13341 | Switch assembly |
| 8 | 3F791 | Steering column multifunction switch |
| 9 | 17A553 | Switch assembly wiper/washer |
| 10 | 3C529 | Steering column |
| 11 | W501625 | Steering column anti-rotation bolt (Installed during service to maintain clockspring centering. Only install hand tight) |
| 12 | 11582 | Ignition switch cylinder |
| 13 | 15607 | Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 14 | 3F527 | Ignition switch housing (push button start and key start) |
| 15 | 66154 | Ignition switch housing bolt (or part of 3F790) |
| 16 | W520102 | Steering column nut (4 required) |
| 17 | - | Steering gear module (part of 3C529) |
| 18 | 3R827 | Steering column shaft-to-column bolt |
| 19 | 3A525 | Steering column shaft (or part of 3C529) |
| 20 | 3R827 | Steering column shaft-to-gear bolt |
| 21 | 3D677 | Steering column shaft boot |
