Variable Camshaft Timing (VCT) Oil Control Solenoid

NOTE: Intake solenoid shown in illustration, exhaust solenoid similar.

NOTE: Lubricate the O-ring seals with clean engine oil.

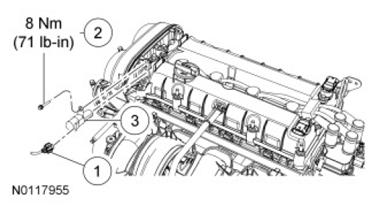

Fig 1: Exploded View Of Engine Control Components With Torque Specifications - Variable Camshaft Timing (VCT) Oil Control Solenoid

Courtesy of FORD MOTOR CO.

VARIABLE CAMSHAFT TIMING (VCT) OIL CONTROL SOLENOID COMPONENT REFERENCE CHART

Item	Part Number	Description
1	-	Variable Camshaft Timing (VCT) oil control solenoid electrical connector (2 required)
2	W500011	VCT oil control solenoid bolt (2 required)
3	6L713	VCT oil control solenoid (2 required)
