Engine

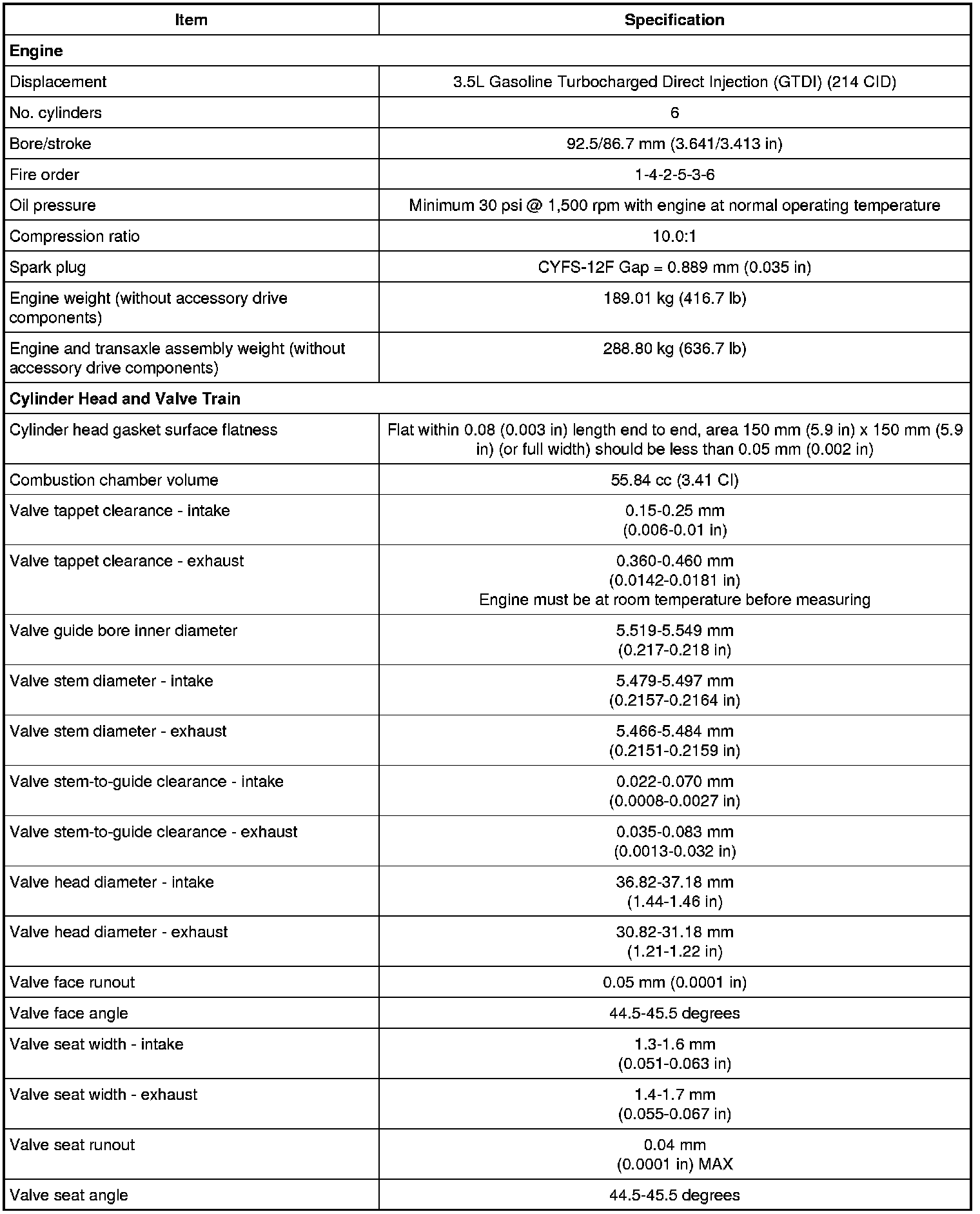

General Specifications

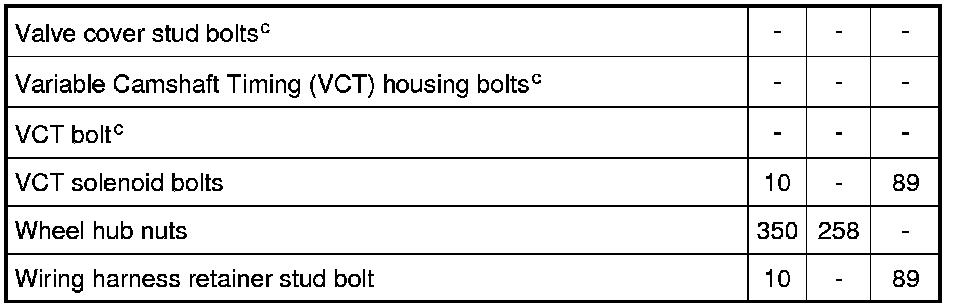

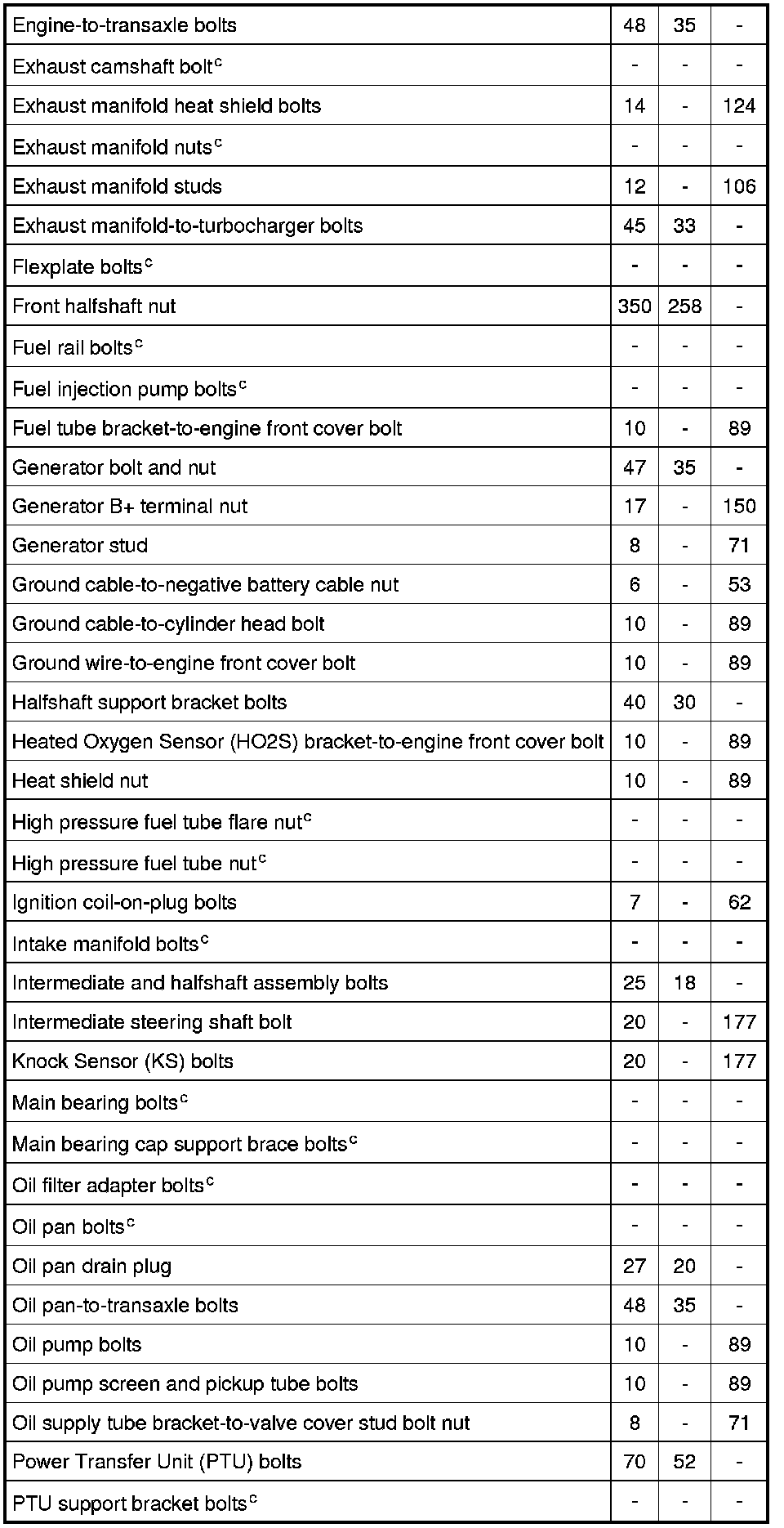

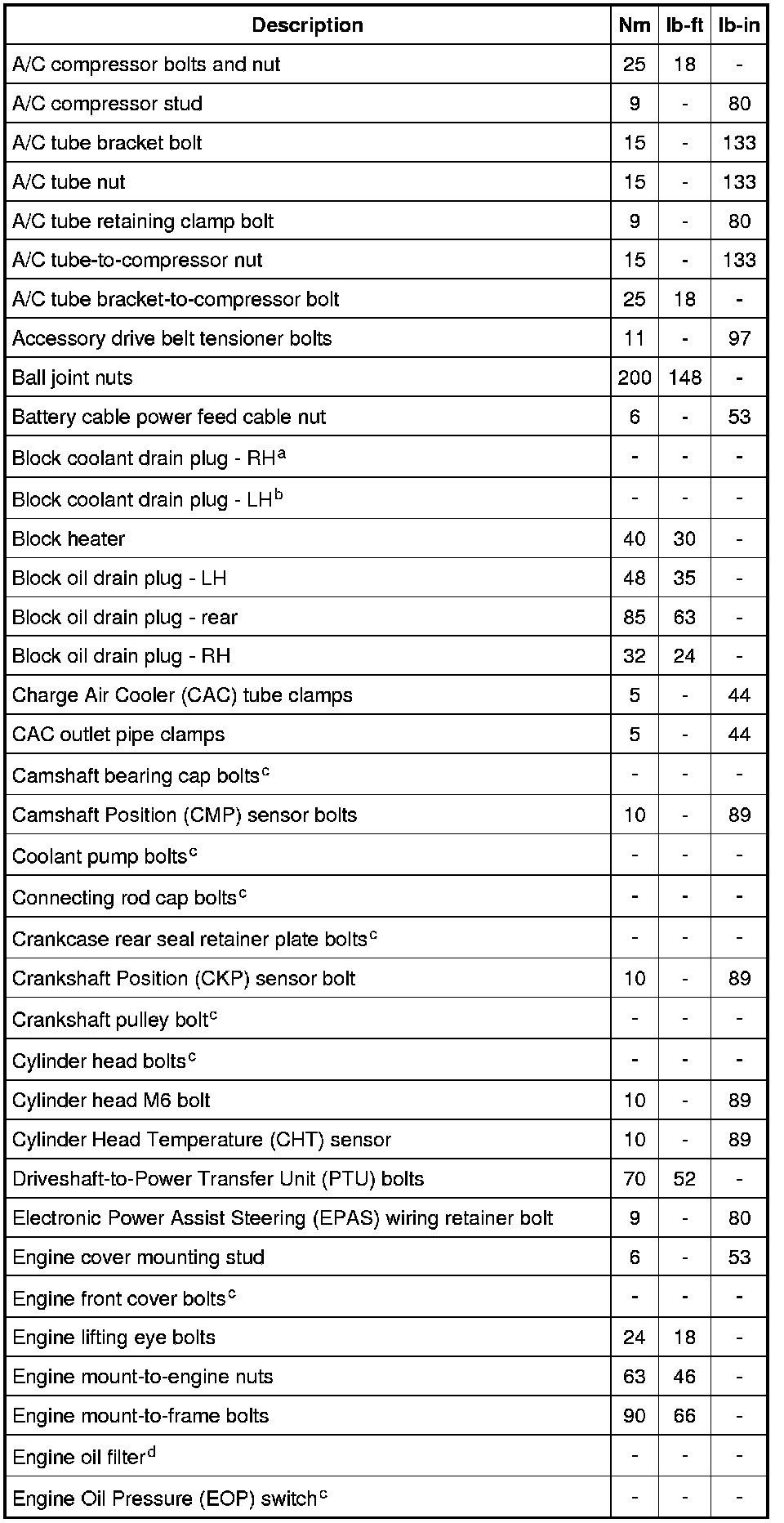

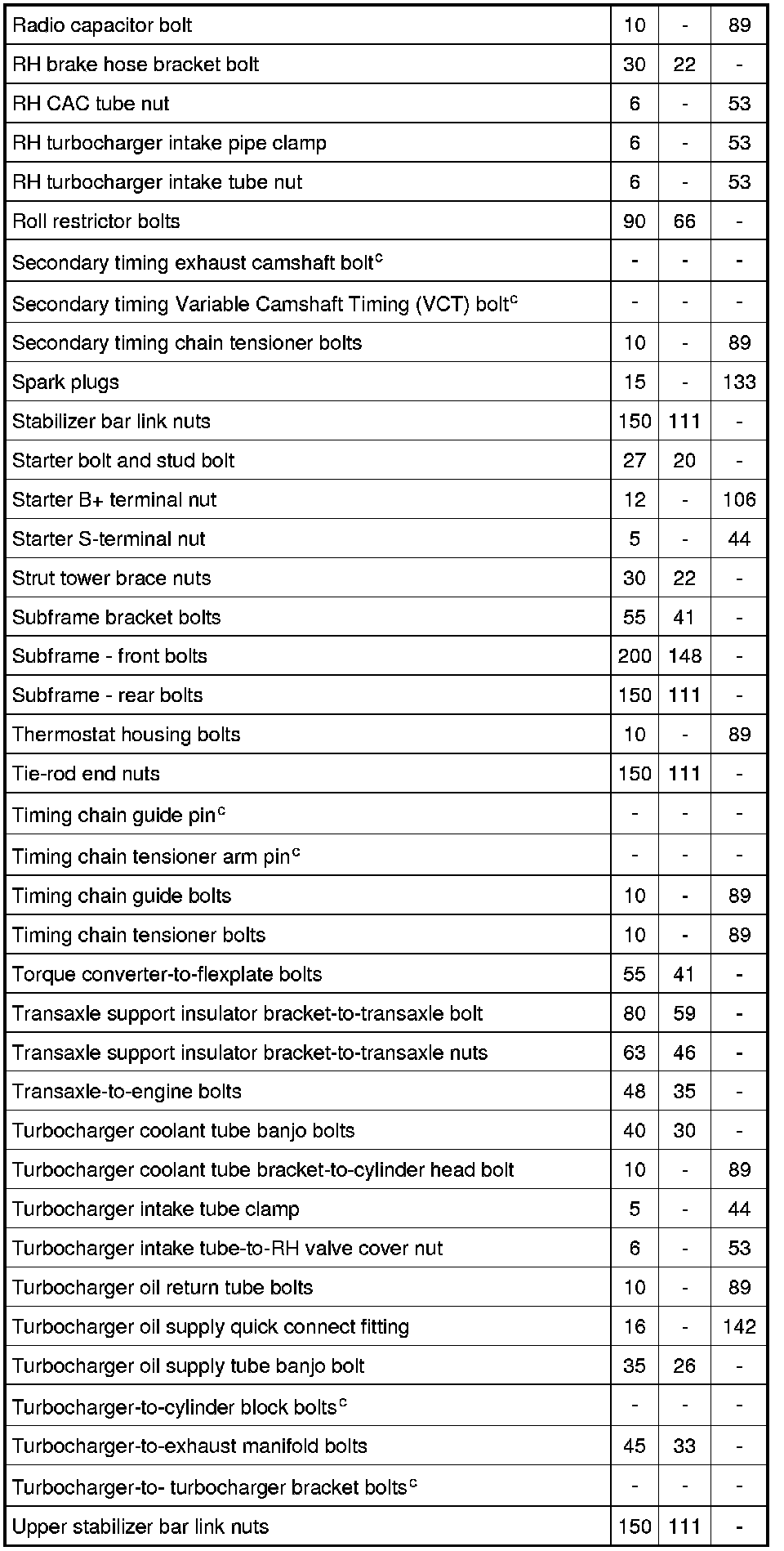

Torque Specifications

















a Tighten to 10 Nm (89 lb-in) plus an additional 720 degrees.
b Tighten to 16 Nm (142 lb-in) plus an additional 180 degrees.
c Refer to the procedure.
d Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.
